Glensound Vittoria DR - Dante to Ravenna Network Bridge


  • Dale #:

    GLEN-VITTORIADR
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The Vittoria provides a bridge between two internal and separate Dante/Ravenna networks. These networks are completely isolated from each other with 100% network security, providing a complete network firewall. Vittoria links 32 channels from each network directly in DSP, allowing the passing of ... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The Vittoria provides a bridge between two internal and separate Dante/Ravenna networks. These networks are completely isolated from each other with 100% network security, providing a complete network firewall. Vittoria links 32 channels from each network directly in DSP, allowing the passing of bi-directional audio but with complete isolation and security from each separate network.

As each network is isolated, they can operate asynchronously and at different sample rates from each other without any problems. Each network can operate at sample rates from 44.1 kHz up to 192kHz.

Features:

  • Provides a firewall between one internal Dante and one Ravenna network interface
  • 32 input and output channels at sample rates up to 96kHz
  • 16 input and output channels at sample rates of 176.4 and 192kHz
  • The two networks can operate asynchronously or at different sample rates
  • Support for 44.1-192kHz

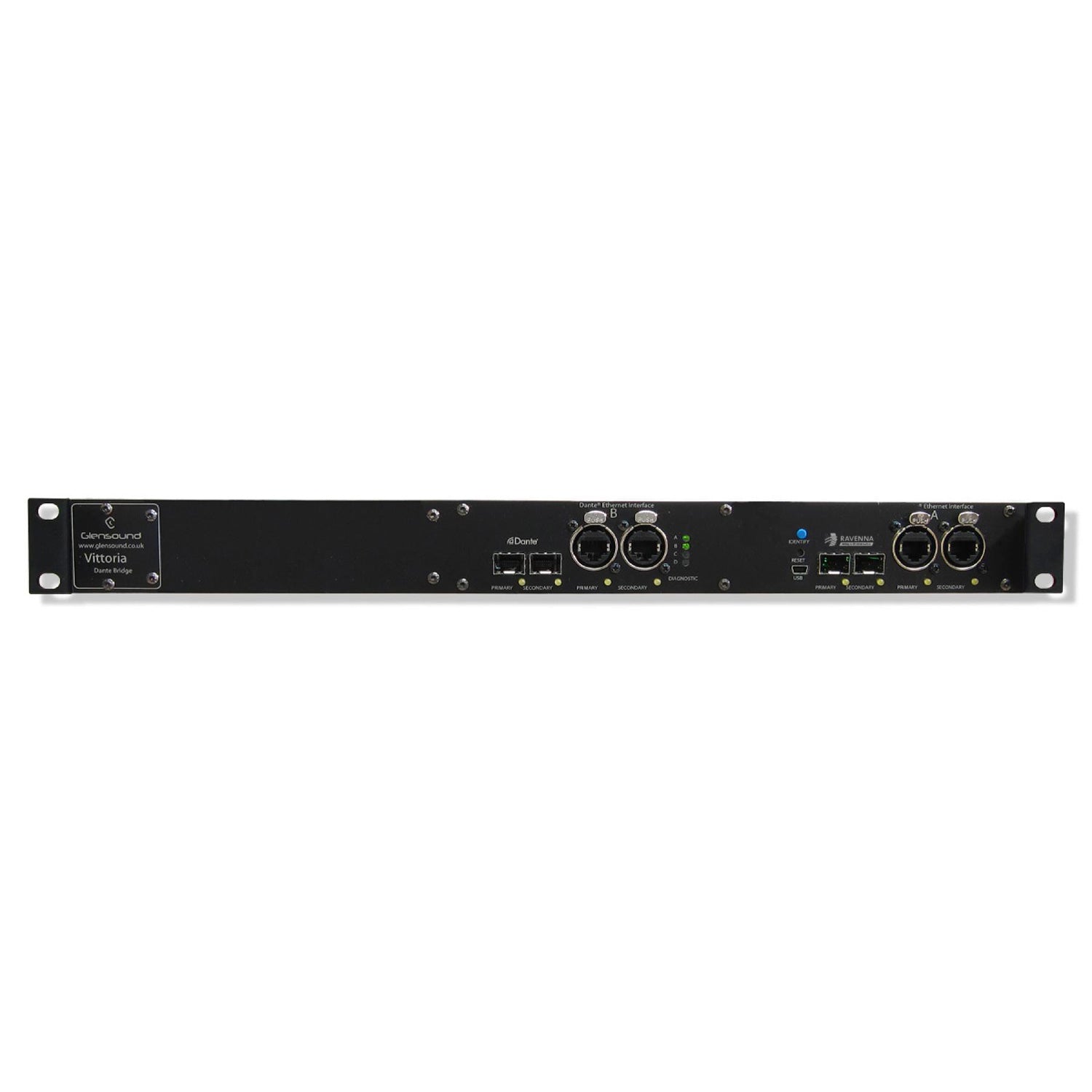

One Dante Interface One Ravenna inerface
The Vittoria has one Dante network audio interface and one Ravenna interface. Each interface has:
- Primary connection using copper Ethernet via RJ45 EtherCON socket
- Secondary connection using copper Ethernet via RJ45 EtherCON socket
- Primary fibre connection via SFP module slot
- Secondary fibre connection via SFP module slot

The two network interfaces will typically be connected onto different networks and the Vittoria will ‘bridge’ between them.

Independently Operated Networks
As each side of the Vittoria is independent and not connected across a network, they can have independent settings.

For example, if the Vittoria is in OB truck running its own network connection at 48kHz to sync with the other devices on board the truck, but needs to link with an external network in a local studio that is operating at 192kHz, then that is no problem for the Vittoria. It will bridge the two network settings and audio will flow!

If you have a work flow that includes AES67 and separate Dante networks, then the Vittoria can be used to bridge between them, with one network interface operating in Dante mode, and the other operating in AES67 mode.

Each network on the Vittoria will operate between sample rates of 44.1-192kHz.

32 Channels
The Vittoria features a Dante Brooklyn II module in each interface and has 32 channels. Whatever you input on the primary interface is output on the secondary interface, and vice versa, up to 32 channels.

Network Compatibility
As well as Dante or AES67, the Vittoria is also SMPTE ST-2110-30 compatible.

Each Network Can Operate Asynchronously
Although each network of the Vittoria is connected via Ethernet, they can be operated with different master clocks at different clock speeds. This could be useful if you needed to spread the number of devices on one network across two. This would be very useful when using a high number of Ultimo based devices, for example.

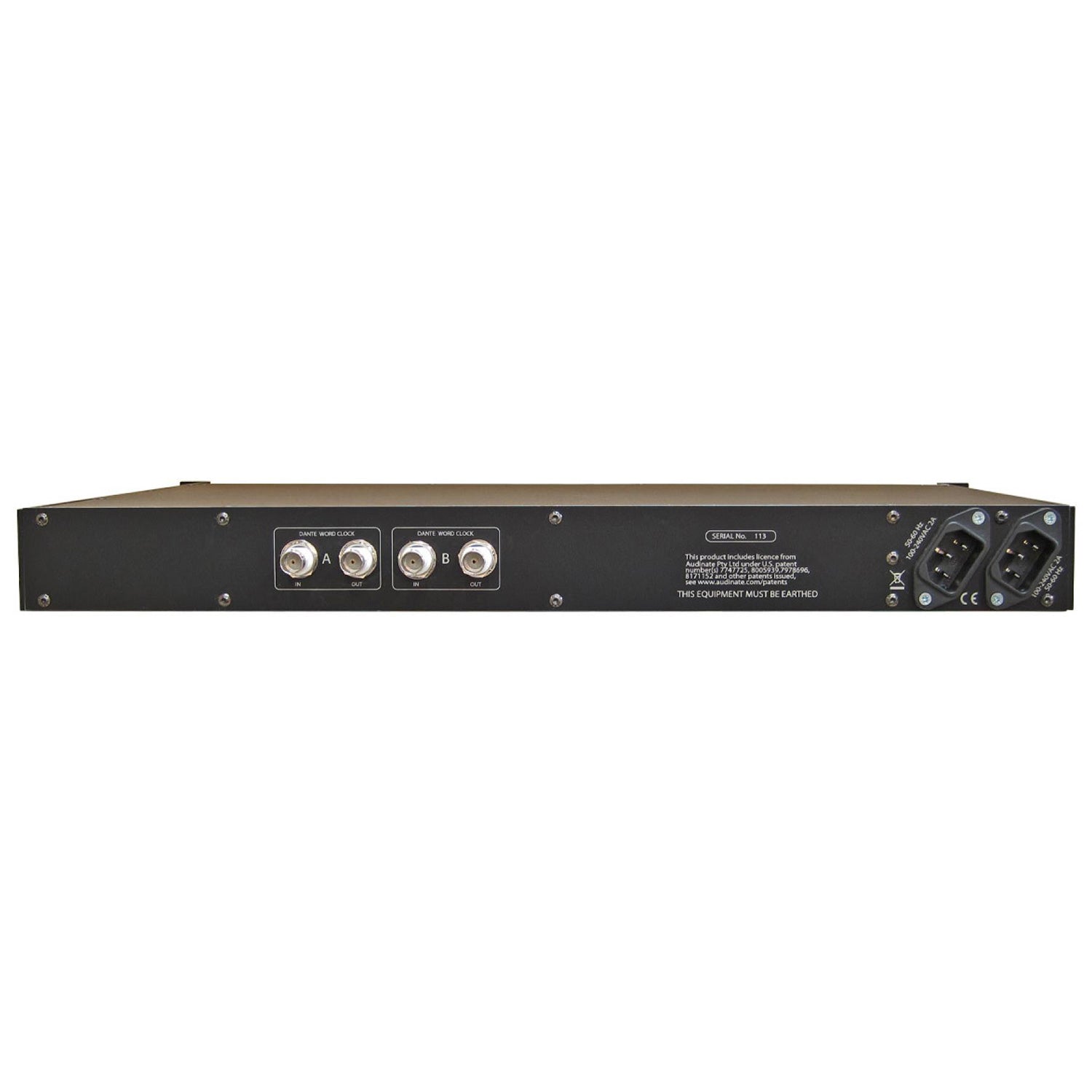

Separate Word Clock In/Out
Each network interface has a word clock input and a word clock output connection, available on full size BNC connectors. This allows connection of other devices for clock sync on each network separately.

Vittoria As A Sample Rate Converter
Typically each network interface of the Vittoria will operate on separate networks, however they can both be connected to the same network if you would like to use the Vittoria as a sample rate converter.

If the primary network is operating at 44.1kHz and you want to connect a device at 48kHz, just set the secondary interface to 48kHz and connect your new device to this interface in Dante Controller. The audio will now be available on the primary interface at 44.1kHz.

Redundant Power Supplies
The Vittoria has two switch mode AC power supplies presented on rear panel IEC plugs. These operate on a load sharing basis. This means that both supplies are running together at a low level. Statistically it is shown that running the supplies together offers greater life in the power supply than running one at full capacity with the other only taking over if it fails.

More +

Product Specs

NETWORK
Dante Yes, using Brooklyn II modules
Ravenna Yes
AES67 Compliant Yes
SMPTE ST-2110-30 Compliant Yes, using Dante Domain Manager
Number Of Network Interfaces 2 - Fully isolated
Copper Ethernet 4 x Neutrik EtherCON connectors
Fibre Ethernet 4 x GBIC SFP slots to accept fibre modules (SFP modules not included)
Audio Sampling Frequency 44.1 to 192 kHz
Transfer Rate 1000 Mbps
Resolution 24 bit
POWER
Number Of Inputs 2
Physical Inputs IEC plugs
Redundancy Yes with load sharing
Voltage Range 100-240VAC +/- 10%
Frequency 50-60Hz
Consumption 20 Watts
ASYNCHRONOUS SAMPLE RATE CONVERTERS
Dynamic Range 139dB
I/O Sample Rate 44.1-192kHz
I/O Sample Rate Ratio 1:8 to 7.75:1
Total Harmonic Distortion Plus Noise -120dB
Note All figures A weighted, 20Hz to 20kHz
PHYSICAL
Size 450 x 310 x 50 mm (WxDxH)
Weight 3Kg
Mechanics All aluminium construction, anodized and laser etched
Shipping Carton Rugged export quality cardboard carton 620 x 410 x 130 mm (WxDxH)
Shipping Weight 4 Kg
ENVIRONMENTAL
Operating Temperature 0 to +50 C (32° to 122 F)
Storage Temperature -20 to +70 C (-4° to 158 F)
Relative Humidity 0 to 95% non-condensing
INCLUDED ITEMS
Handbook Available by download
RJ45 Network Cable 2 x 2 metre Cat5 RJ45plug /RJ45plug cable

More +
