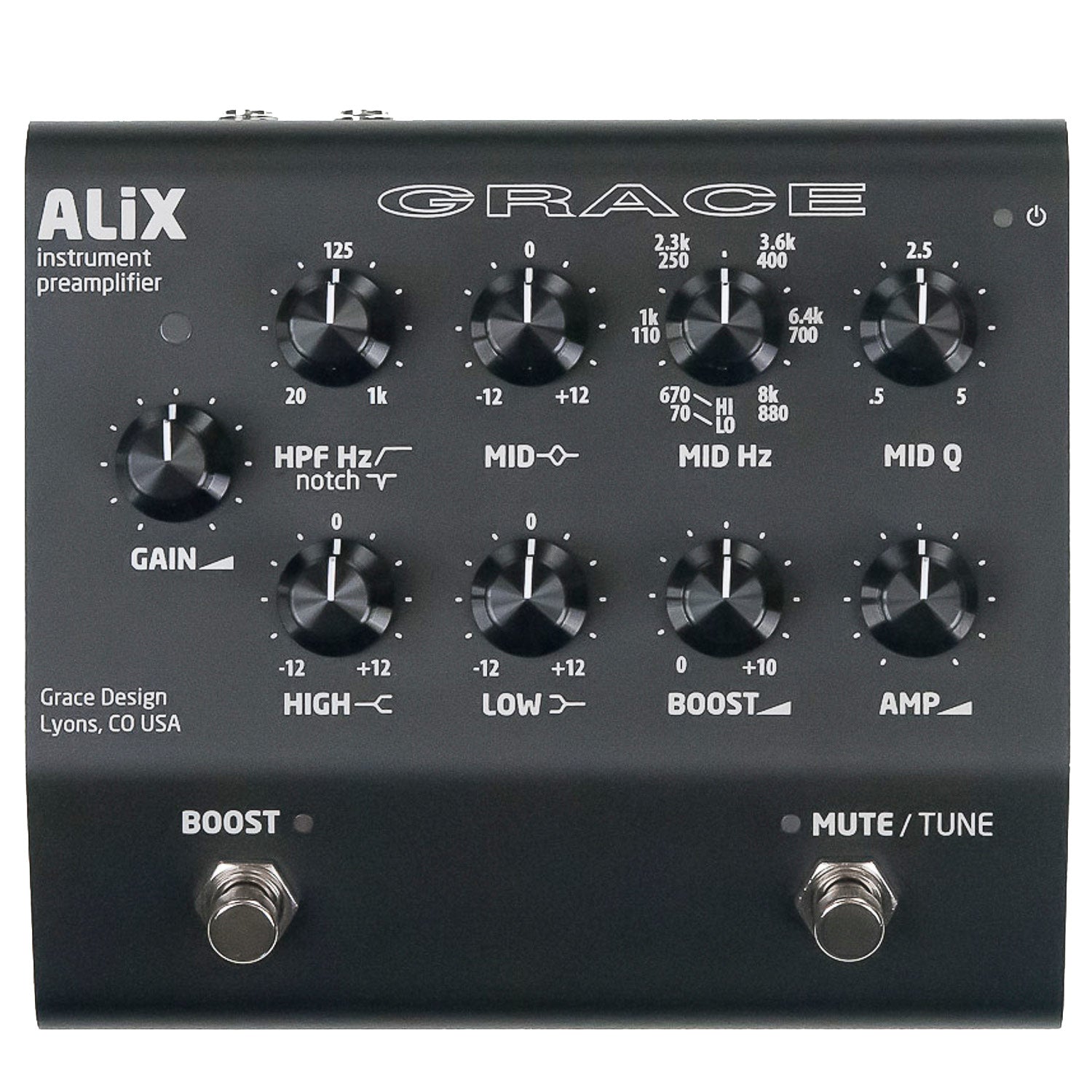

Grace Design ALiX Studio Quality Instrument Preamplifier / DI / EQ / Boost (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Like its big sibling the FELiX, ALiX is built into the same ultra-roadworthy floor unit chassis, portable enough to
throw in your bag or strap to your pedalboard, but still deliver studio quality sound to the stage. With the same
stunning audio performance and legendary reliability as our pro audio range, ALiX brings open, musical and
nuanced sonic character to any performance situation.
The same powerful eq section as the FELiX allows simple and intuitive tone shaping. The high pass filter cuts 12dB
per octave from 20Hz to 1kHz, and can also be set as a notch filter for chasing down problem feedback or rumble
areas. Parametric midrange covers from 70Hz all the way to 8KHz, and fixed low and high controls are carefully
voiced for musical shading of bass and treble.
Controls are dead simple and clearly marked on the panel, making them easy to read and tweak on a dark stage.
Footswitches include a mute / tune switch for muting all outputs except the dedicated tuner out, and a boost
switch which activates the 10dB variable boost circuit.
The instrument input has a 3 position impedance switch to ensure your pickup system sounds its very best. The
isolated DI output with our custom wound transformer delivers stunning clarity and bass response with incredibly
low noise. A dedicated, level controlled amplifier output can be used to drive a stage amp or personal monitor,
and a dedicated tuner output stays active when all the other outputs are muted.
Power is supplied by a universal 100-240VAC input module. 12V phantom is available in the line input for electret
/ lavalier mics, and we've even included a 9VDC 500mA BOSS™ style pedal power output jack, so you can power
your tuner and effects right from your ALiX. A TRS insert is included for adding effects.
Like its big sibling the FELiX, ALiX is built into the same ultra-roadworthy floor unit chassis, portable enough to
throw in your bag or strap to your pedalboard, but still deliver studio quality sound to the stage. With the same
stunning audio performance and legendary reliability as our pro audio range, ALiX brings open, musical and
nuanced sonic character to any performance situation.
The same powerful eq section as the FELiX allows simple and intuitive tone shaping. The high pass filter cuts 12dB
per octave from 20Hz to 1kHz, and can also be set as a notch filter for chasing down problem feedback or rumble
areas. Parametric midrange covers from 70Hz all the way to 8KHz, and fixed low and high controls are carefully
voiced for musical shading of bass and treble.
Controls are dead simple and clearly marked on the panel, making them easy to read and tweak on a dark stage.
Footswitches include a mute / tune switch for muting all outputs except the dedicated tuner out, and a boost
switch which activates the 10dB variable boost circuit.
The instrument input has a 3 position impedance switch to ensure your pickup system sounds its very best. The
isolated DI output with our custom wound transformer delivers stunning clarity and bass response with incredibly
low noise. A dedicated, level controlled amplifier output can be used to drive a stage amp or personal monitor,
and a dedicated tuner output stays active when all the other outputs are muted.
Power is supplied by a universal 100-240VAC input module. 12V phantom is available in the line input for electret
/ lavalier mics, and we've even included a 9VDC 500mA BOSS™ style pedal power output jack, so you can power
your tuner and effects right from your ALiX. A TRS insert is included for adding effects.
