Grace Design m701 - Multi-Format Audio Interface and AD/DA Converter (16x16 Analog / DigiLink)

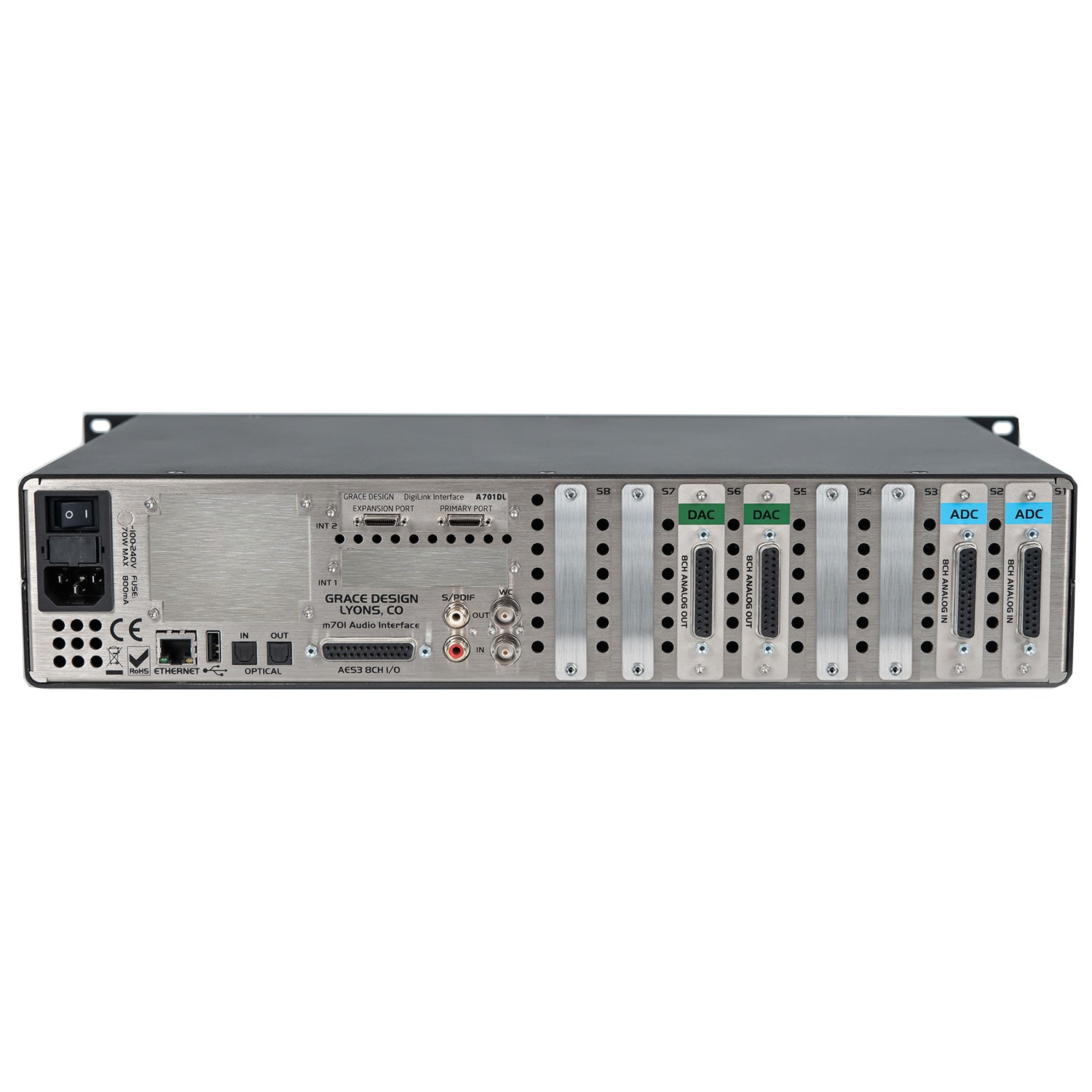

Ships with 16x16 analog I/O (2x analog input cards, 2x analog output cards) and Pro Tools DigiLink option pre-installed.

The Grace Design m701 is a modular, high channel count audio interface designed for professional and commercial recording facilities. As their first foray into a complete interface design, the goal was to provide their very highest quality AD/DA convertion integrated into a powerful, configurable platform. The m701's modular design allows a wide array of configurations based on your needs. From simple in the box systems to large hybrid studios, the m701 is ready.

Features:

• 64 channel analog I/O
• 202 channel digital I/O
• Reference quality 8ch AD/DA modules
• Eight 8ch AD/DA option slots
• DigiLink or Dante option modules
• Ravenna /AES67/ ST2110 option module
• 32x32 USB2 option module
• 24ch AES3 I/O option module
• Included I/O: 8ch ADAT, 8ch AES3, 2ch S/PDIF
• High performance 4ch microphone preamp option module
• Integrated control for Grace Design m108 mic preamplifiers
• GraceNet built-in Ethernet / web browser control
• Built-in 32_8 low latency cue mixer
• System workflow load, edit, save, and recall
• 5 year transferrable warranty

Modern Conversion
Grace Design has been building AD/DA conversion into their mic preamp and monitoring products since the early 2000's. During this time, digital audio converter chips have achieved a very mature state. Today it is hard to find a bad converter chip. But building a complete audio product around any converter still requires careful and expert audio design skills, which their team has been honing for decades. Analog input and output circuitry, power supply, and clock design matter more than ever, and are what differentiates a great sounding I/O device from the rest. The m701 furthers a legacy of open and musical sounding audio hardware with a remarkably powerful studio I/O tool.

Massive I/O Capability
Individual 8 channel ADC and DAC modules can be installed in any combination into the 8 available card slots, allowing for a wide array of I/O combinations based on the customer's need. Digital I/O options include: two 32 channel module slots for Digilink, Dante, USB2 (upcoming), Ravenna/ AES67/ ST2110 and other future formats. A third option module slot is provided for expanding m701 digital I/O capabilities, such as an additional 24 channel AES3 I/O module, Word Clock distribution module, or future studio monitoring functionality. Included baseboard digital I/O connections are 8ch AES, 8ch ADAT and 2ch S/PDIF. Also, optional Grace Design high-quality 4ch microphone preamplifier modules can mounted in any of the 8 card slots.

GraceNet

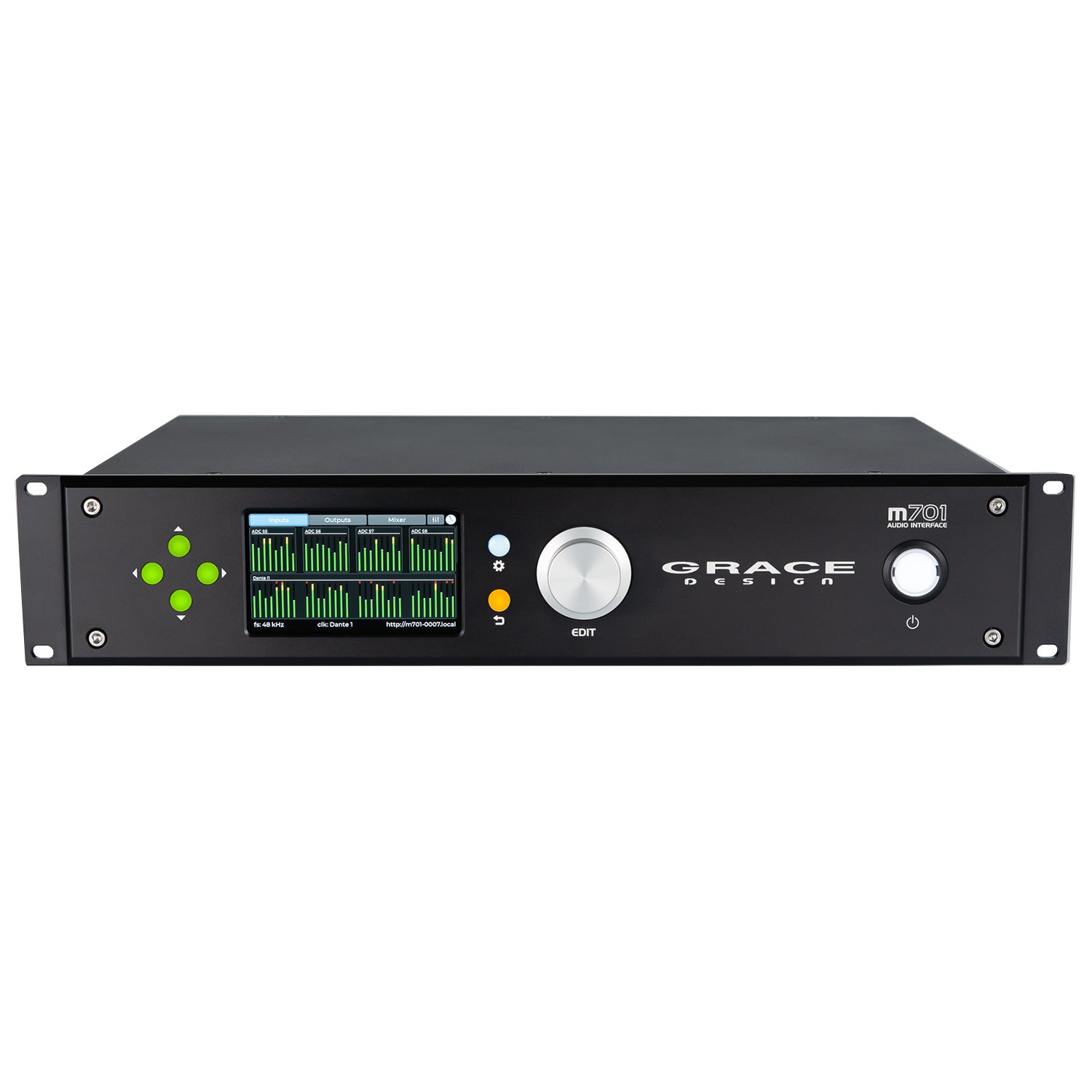

Configuring and operating the m701 is done at either the front panel or via the GraceNet web-based control software. GraceNet is built-in and automatically works with any browser - there is no software to install or update. The home screens for both the front panel hardware and GraceNet display comprehensive metering views for all inputs and outputs, as well as give access to all configuration and setup functions. GraceNet even includes an integrated control interface for Grace Design m108 microphone preamplifiers.

Cue Mixing Built-in
A built-in 32x8 mixer allows for multiple low latency cue mixes in a tracking environment, with individual mixers made available to the artist via GraceNet and a personal device (phone or tablet).

Grace Design Reliability
The m701 main unit is a single 2U chassis engineered with a high-quality dual redundant power supply and ultra quiet fan to maximize reliability for hardworking recording facilities. The m701 is backed by a 5 year transferrable warranty on all parts and labor.
