Grace Design m905-AN High Fidelity Stereo Monitor System (Analog Inputs / Black Finish)


  • Dale #:

    GRAC-M905ANBK
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The m905 Analog is now available without the built in DAC. This system is offered for users who already have an investment in DACs, whether stand-alone or built into their interface. System configuration is exactly the same, with all the same great monitoring features, except no digital inputs an... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The m905 Analog is now available without the built in DAC. This system is offered for users who already have an investment in DACs, whether stand-alone or built into their interface. System configuration is exactly the same, with all the same great monitoring features, except no digital inputs and an second pair of balanced analog inputs. The m905 Analog brings this world class performance into reach of almost any engineer or recording studio. Also, users can always upgrade their m905 Analog to the Digital version at anytime. NOTE: the analog only version incudes a simplified remote cable that does not carry headphone signal to the RCU. To enable the headphone output on the RCU, ask to upgrade to the premium remote cable.

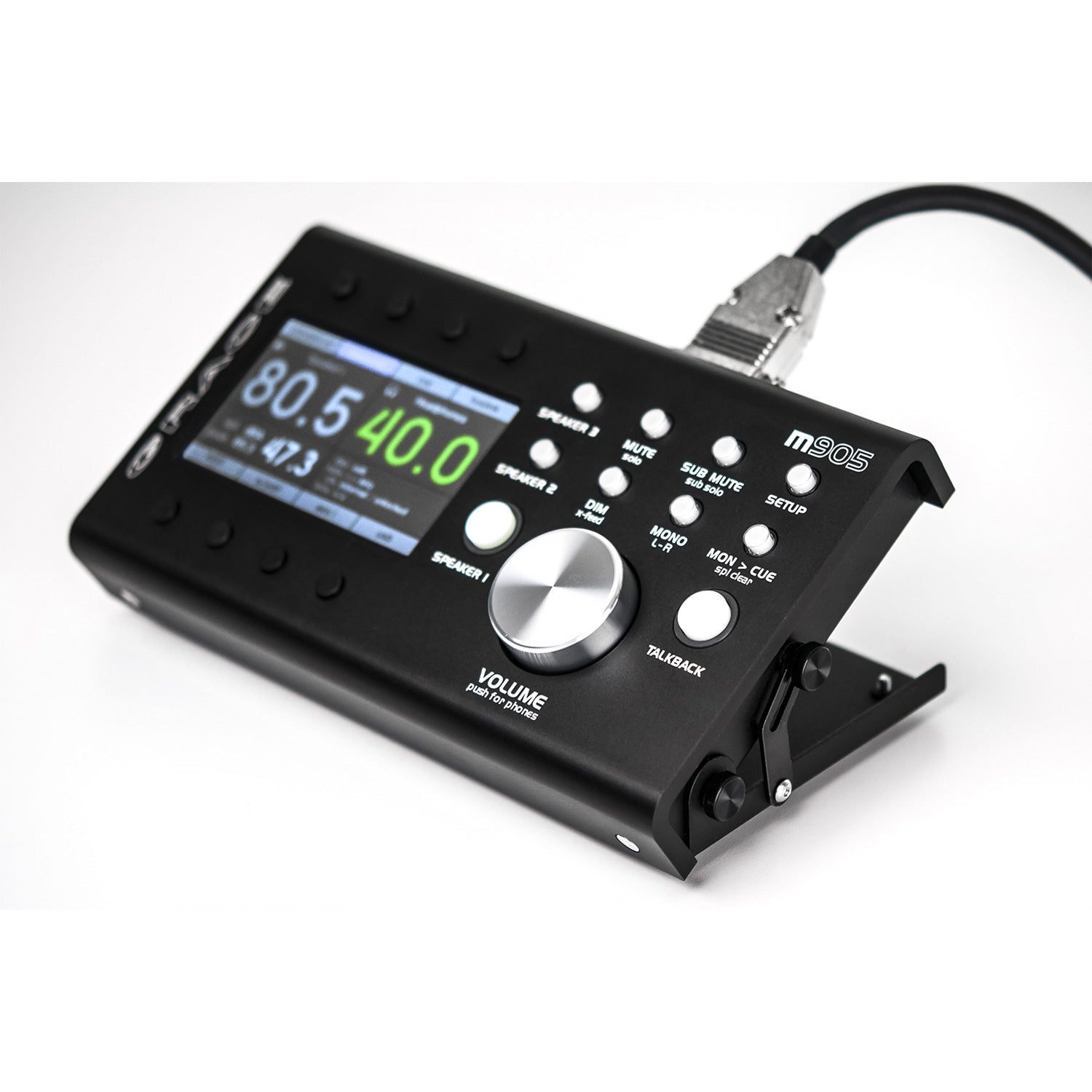

The m905 has been engineered from the ground up to provide unrivaled audio performance, with a powerful, comprehensive, and intuitive feature set. The main audio and power supply circuitry is housed in a 2U rack mount mainframe, while system control is managed by a sleek new ergonomic desktop remote control unit (RCU). The RCU is a combination of dedicated hardware and a color, graphical LCD. The primary monitoring features are accessed via hardware switches and a rotary encoder. All system information is presented on the LCD and illuminated switches. This hybrid design provides the solid feel and function of traditional hardware, with the added power and flexibility of a graphical user interface.

Features:

  • Analog inputs: balanced, unbalanced, cue loop and talkback mic
  • Digital inputs: 2x AES3, S/PDIF, TOSLINK, and ADAT (selectable in 4 pairs or 2 pairs in sMUX)
  • Asynchronous Class 2 USB input supports 24bit/192 kHz
  • Mastering grade DAC circuitry with configurable deemphasis filtering
  • sLock dualstage PLL (Phase Lock Loop) for ultralow jitter clock regeneration
  • Reference headphone amplifier circuitry (essentially, a builtin m903) with one output on the mainframe unit, and one on the RCU
  • Dr. Jan Meier's crossfeed circuitry for headphone monitoring use
  • Sleek new ergonomically designed RCU with hardware switches, large level/edit encoder, and color, graphical LCD
  • LCD shows inputs, outputs, (these can all be named by the user) levels, SPL and DAC status, plus a powerful calibration menu
  • Real-time SPL metering that's sourced by the builtin, omnidirectional RCU microphone includes level, peak, fast and slow modes and A & C weighting
  • Precision .5 dB step level control for speakers and headphones
  • Dedicated Mono, Dim and Mute switches
  • Mono mode can be set to L+R summed, L only in both channels, or R only in both channels
  • (3) available stereo speaker outputs.(2) configurable as 2.1
  • Multimode Sub/DAC/Meter outputs
  • Sub output mode for stereo or multiple mono subwoofer outputs
  • DAC output mode for a fixed DAC output fed by the currently selected digital inputs, with level calibration
  • Meter output mode fed by selected analog or digital input signal, with level calibration
  • Limited 5 Year Warranty
