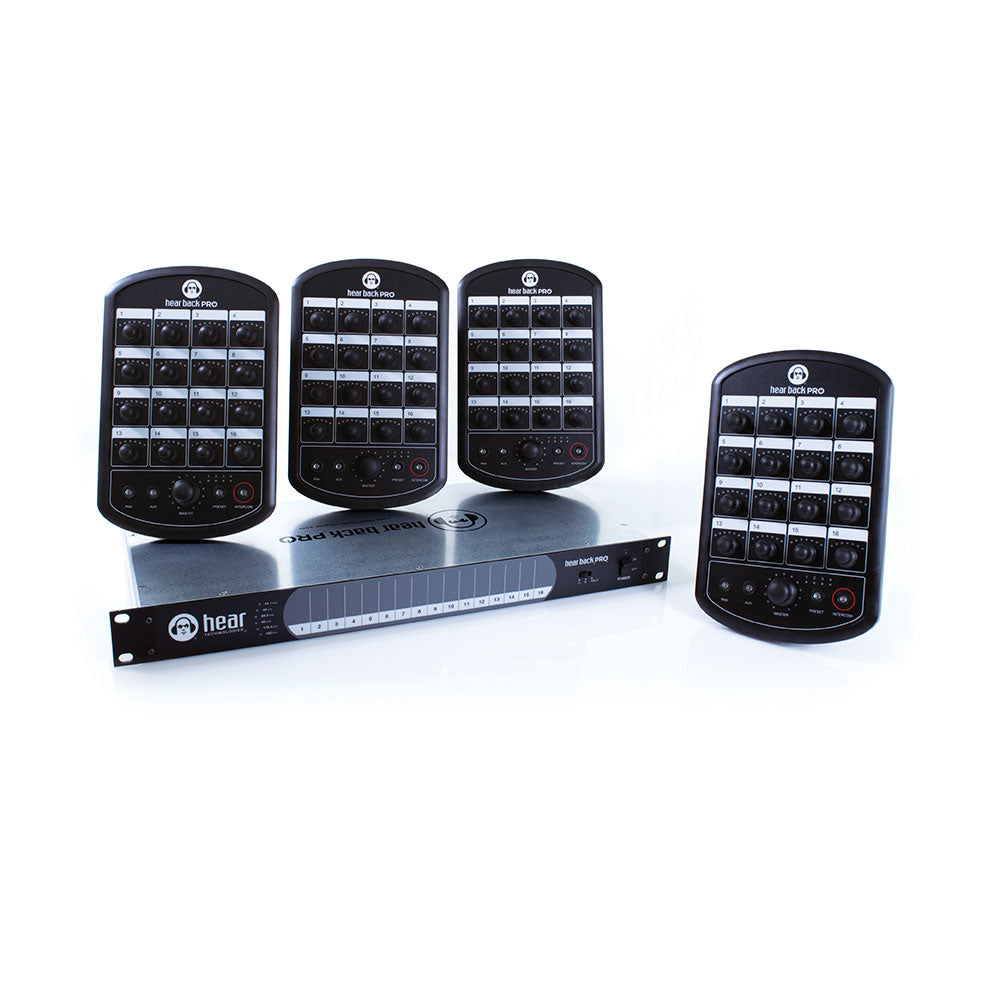

Hear Technologies Hear Back Pro Four Pack - Personal Monitor System (ADAT Input)
Dale #:
HEAR-PROHB4ADAvailability:
Not in Stock - Reserve YoursThis item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.
Retail Price: $6,690.00 Our Price: $4,650.00
Free Shipping (Continental US)
Suggested Accessories
Description
(4) PRO Mixers, (1) Hub Frame, (1) ADAT card, (1) Network Card, (4) 50' CAT6, (1) Tote Back, (5) Blank Overlays
This is it - the simplest, most affordable digital solution to get everyone the mix they need to perform their best. This new system platform is completely modular and infinitely expandable, which means it has become the last personal monitoring system you'll ever need.
With this system, there is no learning curve. Whether or not you've ever used a personal monitor mixer, the simple layout of this powerful system makes getting the right mix a quick and effortless experience. Based in Gigabit Ethernet, this framework paves the way for an impressive range of future possibilities.
The Hear Back PRO system consists of two main components: the Hub and the Mixer. The modular Hub consists of four card slots, which can be populated with any configuration of input and/or output cards to fit your exact needs. Each Hub has the ability to supply signal and power to as many as 32 Mixers (8 per Network Card), each over a single standard Cat5E/6 cable. And with the built-in HBus In/Out ports, multiple Hubs can be daisy-chained together, allowing for truly unlimited system expansion.
Features:
- Modular I/O Hub card system allows for system customization
- Large master knob controls overall main mix, AUX, and intercom levels independently
- Volume and panning control of all channels
- Direct and immediate visual feedback of all channels
- Support for sampling rates up to 192 kHz
- Selectable XLR or 1/8" Mixer AUX input
- Built-in intercom broadcasts the AUX source (mic, MP3 player, click, etc.)
- Intercom auto adjusts its own level so even the quietest message never goes unheard
- Supports secondary power supply to provide redundancy and power to up to 32 Mixers
- USB port on Hub makes updating firmware for future features and upgrades a simple drag-and-drop operation
- HBUS In/Out connections allow daisy-chaining Hubs and a wireless access point connection for use with the PRO's iOS App
- Side-mounted card slot on Mixer for future expansion
- Status indicating logos on Hub and Mixers make it easy to detect and diagnose problems, should they arise
- Write session info and channel settings on storable Mixer overlays for an unlimited number of presets
- Instantly store and recall presets from memory with the push of a button
- Most recent configuration is saved, even after power-down
- Hear Back PRO iOS App allows for complete control of all Mixers connected to the network
More +
Product Specs
| Mixer Aux Input | |
| Line Input Configuration / Impedance: | 1/8" Stereo, unbalanced, 10K ohms typical |
| Line Input Level: | 0 dBu optimal, +18 dBu max |
| Mic Input Configuration/Impedance: | XLR Mono, balanced, 150 ohms typical, 150 Hz high pass |
| Mic Input Level: | -42 dBu optimal, -30 dBu max |
| Mixer Headphone Power | |
| Load Impedance: | THD less than 0.01% / THD less than 0.1% |
| 8 Ohms: | 1.2 W / 1.5 W THD AT 8 Ohms = 0.015% typical |
| 16 Ohms: | 1.6 W / 1.8 W |
| 25 Ohms: | 2.0 W / 2.2 W |
| 32 Ohms: | 1.8 W / 2.0 W |
| 50 Ohms: | 1.5 W / 1.6 W |
| 100 Ohms: | 1.1 W / 1.2 W |
| 200 Ohms: | 500 mW / 650 mW |
| 600 Ohms: | 220 mW / 250 mW |
| IMD: | Typically Less than 0.03% |
| Mixer Line Output | |
| Freq Response: | 20 Hz to 20 KHz, +/-0.15 dB |
| THD+N: | 0.004% typical at 1 kHz, +15 dBu |
| 0.008% typical, 20 Hz - 20 kHz, +4 dBu | |
| IMD: | 0.02% typical at +4 dBu, 60 Hz / 7 kHz |
| Crosstalk: | Less than -93 dB @ 1 kHz |
| Propagation Delay: | Less than 0.25 mSec @ 192 kHz sample rate |
| System Noise Performance | |
| Noise, A-Weighted: | -93 dBu @ 192 kHz sample rate |
| Dynamic Range: | 117 dB typical |
| System I/O | |
| Hub Line In, 2x Analog Input Cards: | 16 Balanced inputs on 2x DB-25 female (DA-88 pinout) |
| Hub Maximum Input Level, Analog: | +18 dBu |
| Hub HBus In, Out: | 8-pin RJ45 jack (standard Ethernet pinout) |
| Hub USB Port: | USB 2.0 (for firmware updates) |
| Hub Card Slots (4x): | Each slot can accept an analog or digital input card, output card, or 8 port Mixer network card |
| Mixer to Hub Connection: | 8-pin RJ45 jack (8x Mixer connections per network card) |
| Mixer Headphone Out: | TRS 1/4" and 1/8" unbalanced stereo |
| Mixer Line Out: | TRS 1/4" balanced (2 connections: left/mono and right) |
| Mixer Max Output Level, Analog: | +24 dBu (mixed output) |
| Mixer Aux Input: | TRS 1/8" unbalanced stereo and XLR balanced mono (with 15 volts phantom power) |
| Mixer Card Slot: | For future digital or analog input/output expansion capabilities or side-car add-on |
| Physical, Mixer | |
| Size: | 9.5" (241 mm) H x 5.95" (152 mm) W x 2.71" (68.8 mm) D |
| Unit Weight: | 1.6 lb. (0.72 kg) |
| Mounting: | Standard mic stand (5/8" 27 threads per inch) or desk mounted |
| Physical, Hub | |
| Size: | 1.75" (44.5 mm) H x 19" (483 mm) W x 8.5" (216 mm) D |
| Unit Weight: | 6.3 lb. (2.8 kg) |
| Mounting: | Standard rack mount, 1 RU |
| Power | |
| Hub Power Requirements: | 48VDC, 150 Watts (each external power supply powers up to 16 Mixers)** |
| Mixer Power Requirements: | Power over Ethernet (PoE) 36-52 volts DC, 15 Watts max provided by Hub through Cat5e/6 network cabling |
| External Power Supply Requirements: | Input Voltage: 90VAC to 264VAC 50/60 Hz |
