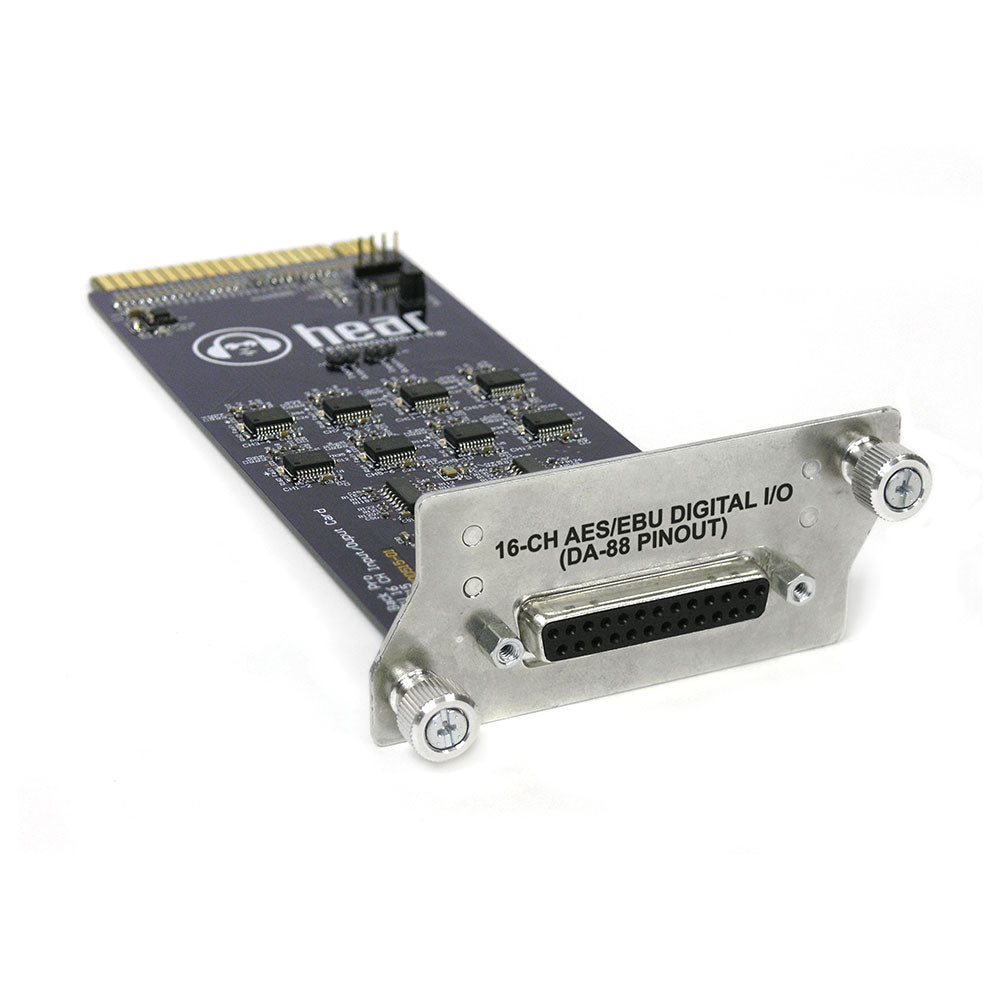

Hear Technologies PROHAES AES/EBU Card for Hear Back Pro Hub
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Hear Technologies PROHAES AES/EBU Card for Hear Back Pro Hub
Sale price$505.00
Regular price$630.00
Description
Allows HB PRO Hub to communicate with pro audio equipment using multi-channel AES/EBU protocol.
Features:

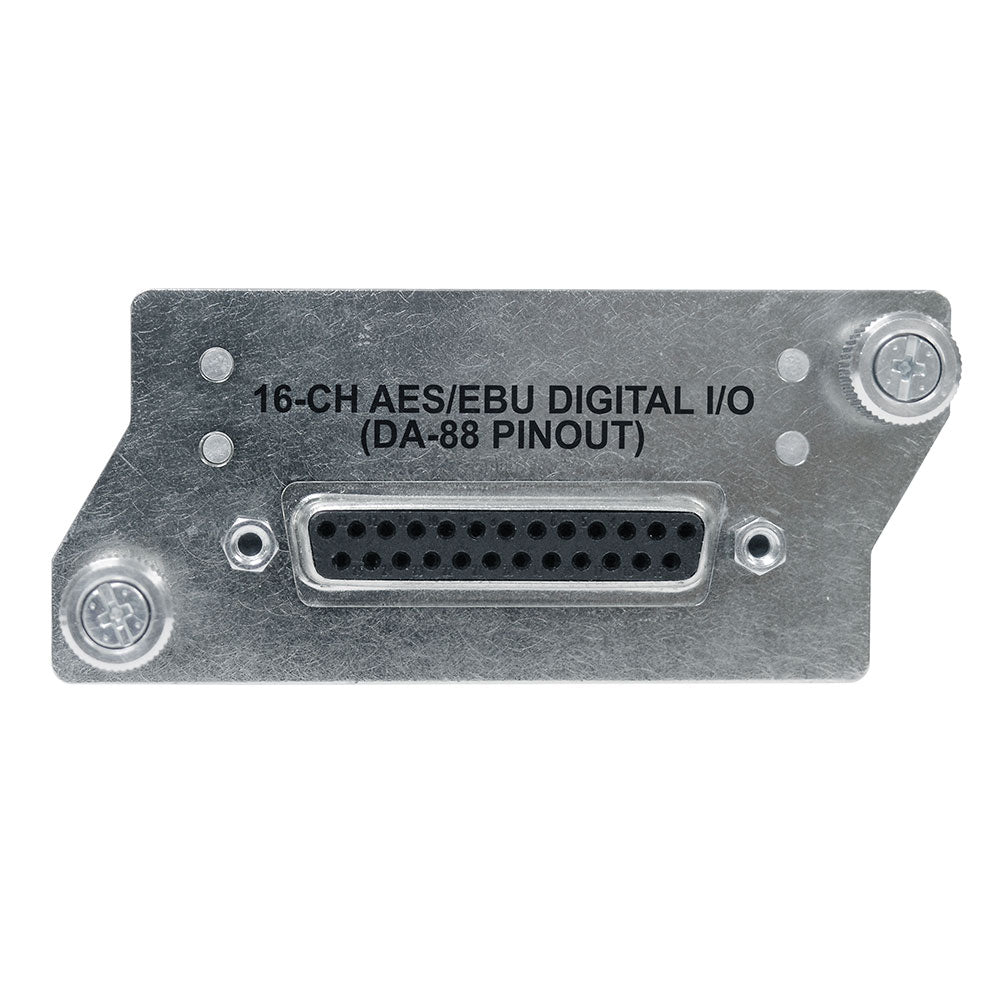

- Tascam DA-88-style pin-out on a DB25 connector for inputting or outputting 16 channels of digital audio
- Jumper settings allow the user to choose whether the card is 16 inputs or 16 outputs
- Supports and automatically locks onto sampling rates of 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, and 192kHz
- DB25 to (8) XLR (each AES/EBU XLR connector supports 2 channels of digital audio) break-out cable is sold separately, unless the AES/EBU card is purchased as part of the Hear Back PRO Four Pack
- (2) cards can be populated per Hub to allow A/B input switching between (2) banks of 16 channels
- Up to (4) cards can be populated to allow A/B input switching as well as dedicated AES/EBU outputs
Allows HB PRO Hub to communicate with pro audio equipment using multi-channel AES/EBU protocol.
Features:
- Tascam DA-88-style pin-out on a DB25 connector for inputting or outputting 16 channels of digital audio
- Jumper settings allow the user to choose whether the card is 16 inputs or 16 outputs
- Supports and automatically locks onto sampling rates of 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, and 192kHz
- DB25 to (8) XLR (each AES/EBU XLR connector supports 2 channels of digital audio) break-out cable is sold separately, unless the AES/EBU card is purchased as part of the Hear Back PRO Four Pack
- (2) cards can be populated per Hub to allow A/B input switching between (2) banks of 16 channels
- Up to (4) cards can be populated to allow A/B input switching as well as dedicated AES/EBU outputs
