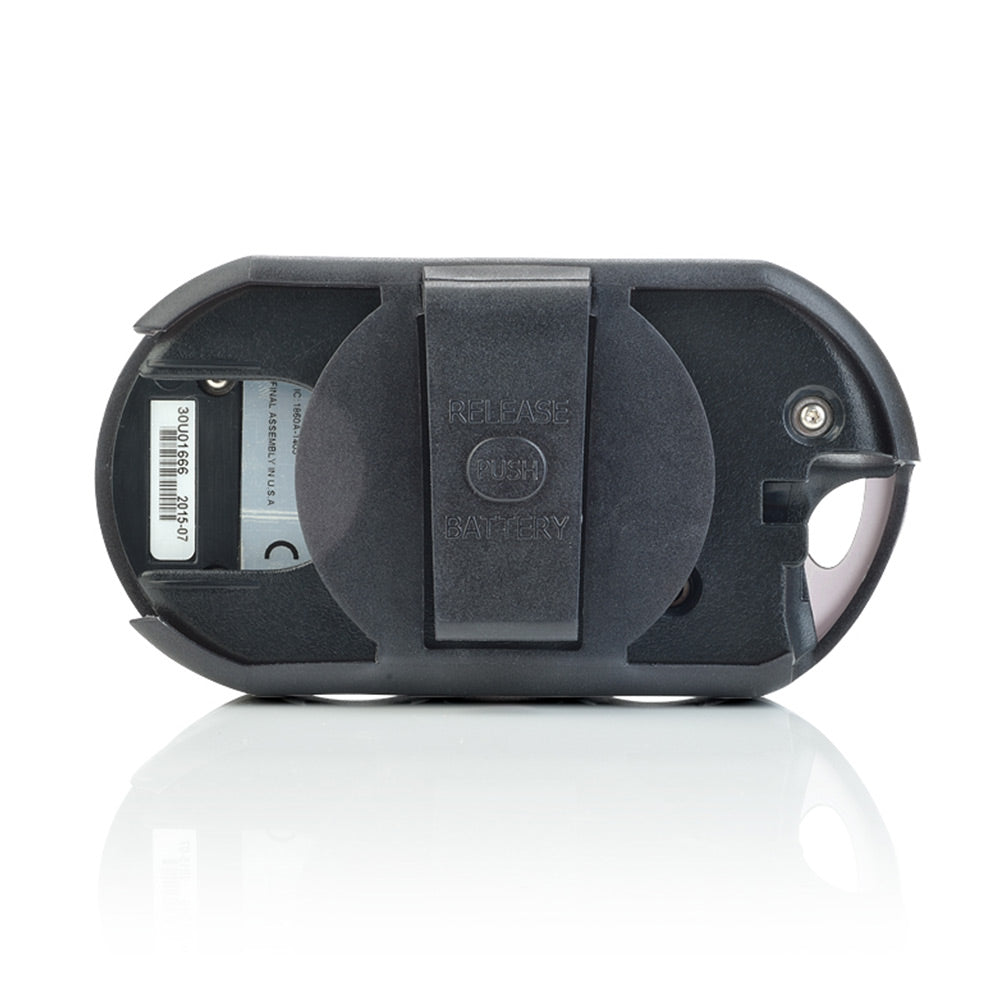

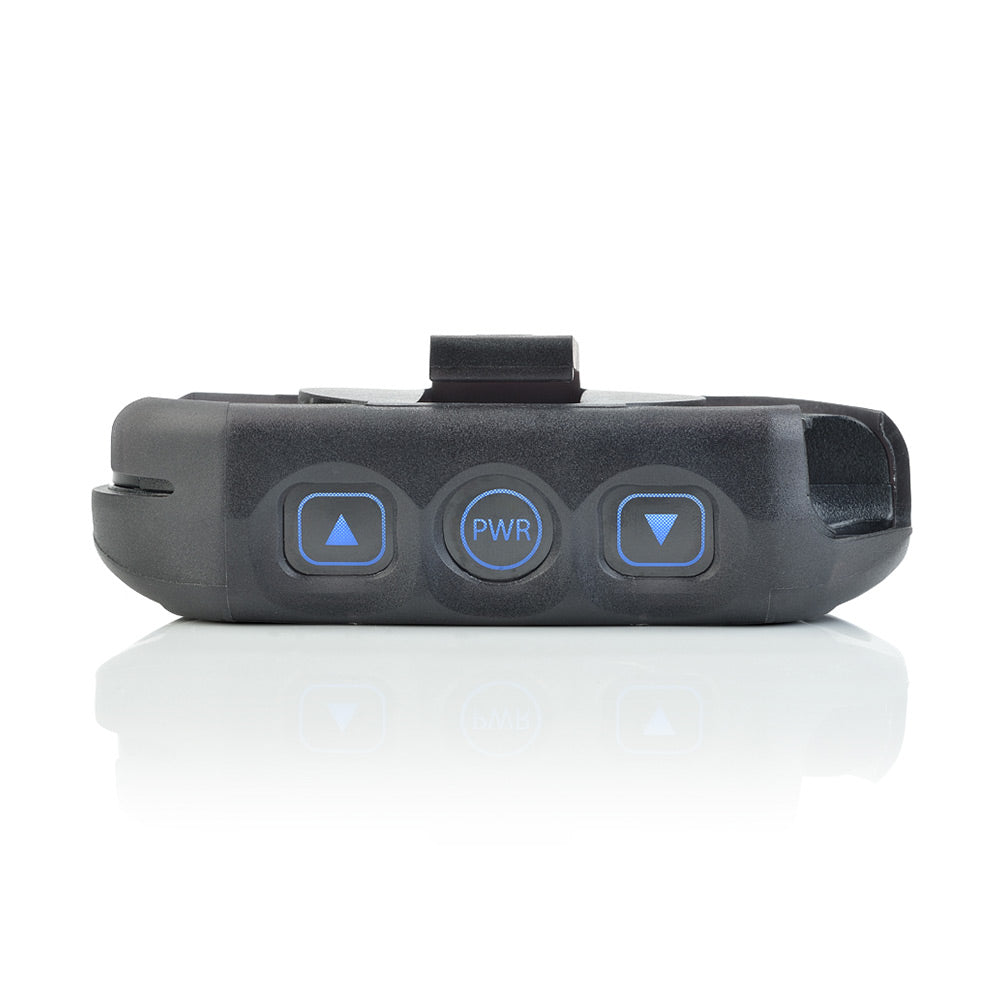

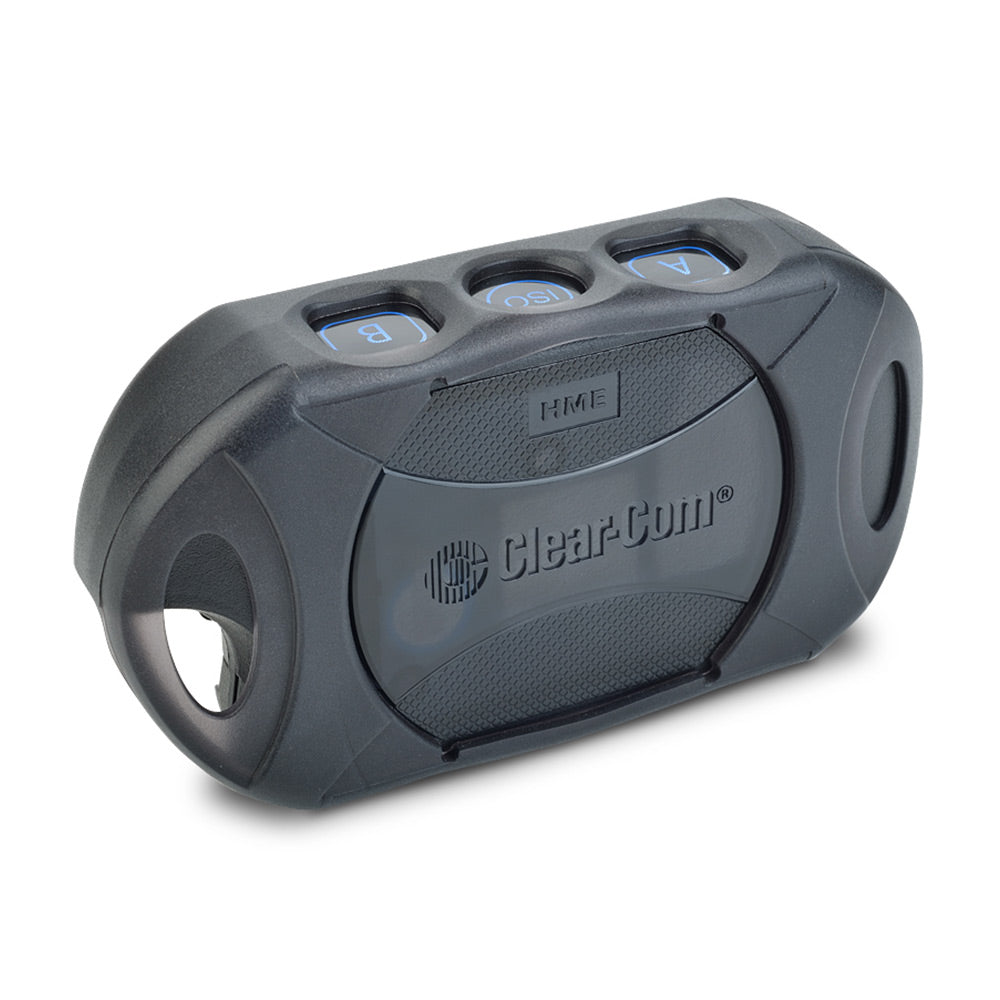

HME BP410 Wireless Beltpack for DX410 Intercom Systems
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The BP410 is a rugged, light-weight, ergonomically designed beltback to be used with the BS410 base station. Single-channel operation allows any four beltpack and/or all-in-one wireless headset uses to engage in simultaneous, full-duplex communication. In dual-channel operation, three users may be in full-duplex with up to 13 additional users in listen-only mode. The BP410 has a rugged, over-mold, reinforced casing and long-lasting keypads with no mechanical switch. Using the BAT50 Li-Ion battery, the BP410 has up to 12 hours of battery life.
Features:
- Two-channel
- 7kHz wideband audio
- Up to 15 beltpacks and/or all-in-one handsets on a single system
- Single or dual-channel operation
- Up to 12 hours of battery life
The DX410 is a newly designed two-channel digital wireless system, operating in the 2.4GHz band, that delivers an overall better experience in performance, range and sound. The system features 7kHz wideband audio, 2-wire and 4-wire bridging, and 2-wire auto-nulling for fast integration with Clear-Com or TW wired partyline systems.
| Audio | Channels: 2 audio channels Frequency Range: 2400 MHz Ð 2483.5 MHz Frequency Response: 200 Hz Ð 7 kHz Antenna: Internal, horizontal/vertical diversity Headset Connector: 4-pin, mini-DIN Microphone: Electret Headset Output: 160mW into 32 Ohms Communication Security: 64-bit encryption System Distortion: <2% Controls: Power, Volume-Up, Volume-Down, A, B, ISO Indicators: Dual-color LED (red/green) Battery Requirements: 3.6V lithium-ion Battery Life: Up to 12 hours |
| Antenna | Internal, Horizontal/Vertical diversity |
| Transmitter | Type: Frequency Hopping, Spread Spectrum (FHSS) Transmit Power: 100mW burst Modes: Momentary or Latch Type: Gaussian filtered FSK, TDMA Frequency Stability: 13 ppm Harmonics/Spurious: Exceeds FCC and ETSI specifications |
| Receiver | Type: Frequency Hopping, Spread Spectrum (FHSS) RF Sensitivity: <-90dBm w 10-3 BER Frequency Stability: 13 ppm Distortion: <2% |
| Environmental | 32¡F to +122¡F (0¡C to +50¡C) |
| Dimensions | 2.25 x 4.5 x 1 in (57.2 x 114.3 x 25.4 mm) (HxWxD) |
| Weight | 7.4 oz (0.21 kg) including battery and pouch |
The BP410 is a rugged, light-weight, ergonomically designed beltback to be used with the BS410 base station. Single-channel operation allows any four beltpack and/or all-in-one wireless headset uses to engage in simultaneous, full-duplex communication. In dual-channel operation, three users may be in full-duplex with up to 13 additional users in listen-only mode. The BP410 has a rugged, over-mold, reinforced casing and long-lasting keypads with no mechanical switch. Using the BAT50 Li-Ion battery, the BP410 has up to 12 hours of battery life.
Features:
- Two-channel
- 7kHz wideband audio
- Up to 15 beltpacks and/or all-in-one handsets on a single system
- Single or dual-channel operation
- Up to 12 hours of battery life
The DX410 is a newly designed two-channel digital wireless system, operating in the 2.4GHz band, that delivers an overall better experience in performance, range and sound. The system features 7kHz wideband audio, 2-wire and 4-wire bridging, and 2-wire auto-nulling for fast integration with Clear-Com or TW wired partyline systems.
| Audio | Channels: 2 audio channels Frequency Range: 2400 MHz Ð 2483.5 MHz Frequency Response: 200 Hz Ð 7 kHz Antenna: Internal, horizontal/vertical diversity Headset Connector: 4-pin, mini-DIN Microphone: Electret Headset Output: 160mW into 32 Ohms Communication Security: 64-bit encryption System Distortion: <2% Controls: Power, Volume-Up, Volume-Down, A, B, ISO Indicators: Dual-color LED (red/green) Battery Requirements: 3.6V lithium-ion Battery Life: Up to 12 hours |
| Antenna | Internal, Horizontal/Vertical diversity |
| Transmitter | Type: Frequency Hopping, Spread Spectrum (FHSS) Transmit Power: 100mW burst Modes: Momentary or Latch Type: Gaussian filtered FSK, TDMA Frequency Stability: 13 ppm Harmonics/Spurious: Exceeds FCC and ETSI specifications |
| Receiver | Type: Frequency Hopping, Spread Spectrum (FHSS) RF Sensitivity: <-90dBm w 10-3 BER Frequency Stability: 13 ppm Distortion: <2% |
| Environmental | 32¡F to +122¡F (0¡C to +50¡C) |
| Dimensions | 2.25 x 4.5 x 1 in (57.2 x 114.3 x 25.4 mm) (HxWxD) |
| Weight | 7.4 oz (0.21 kg) including battery and pouch |
