Hosa CBT-500 Audio Cable Tester
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description

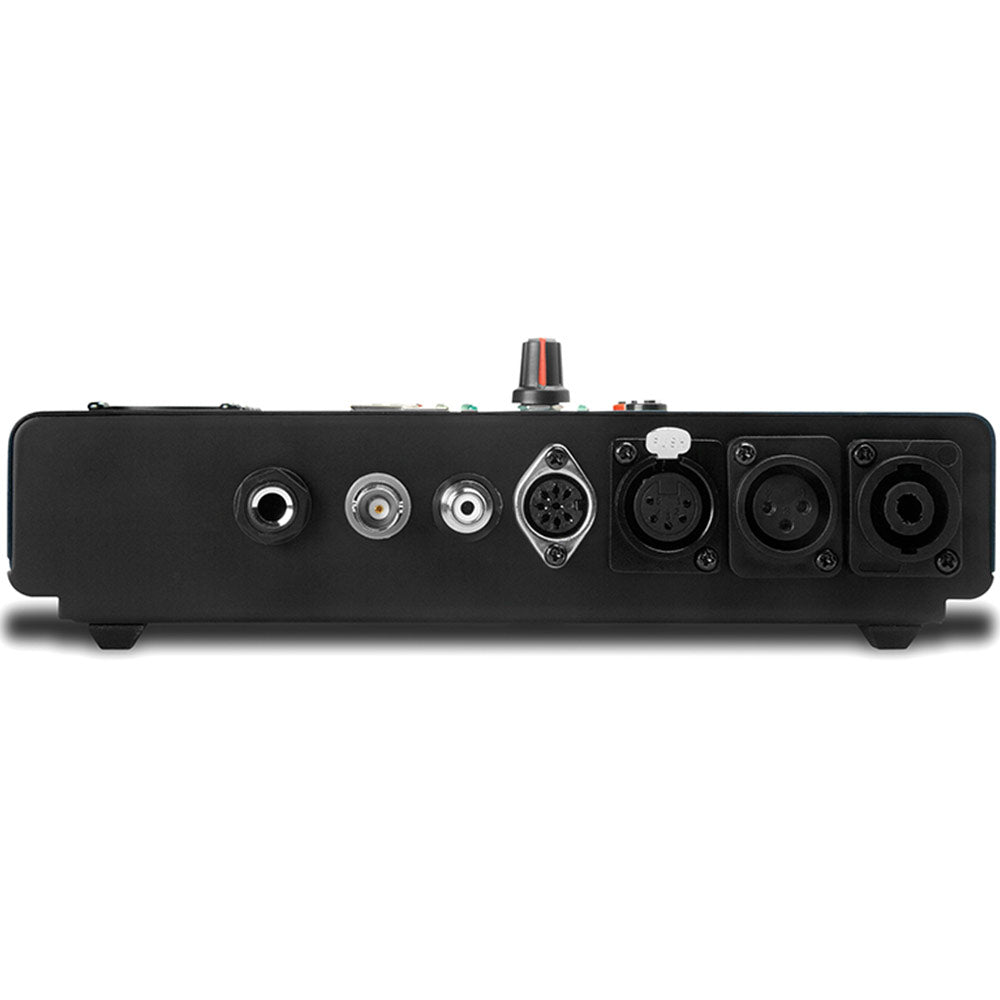

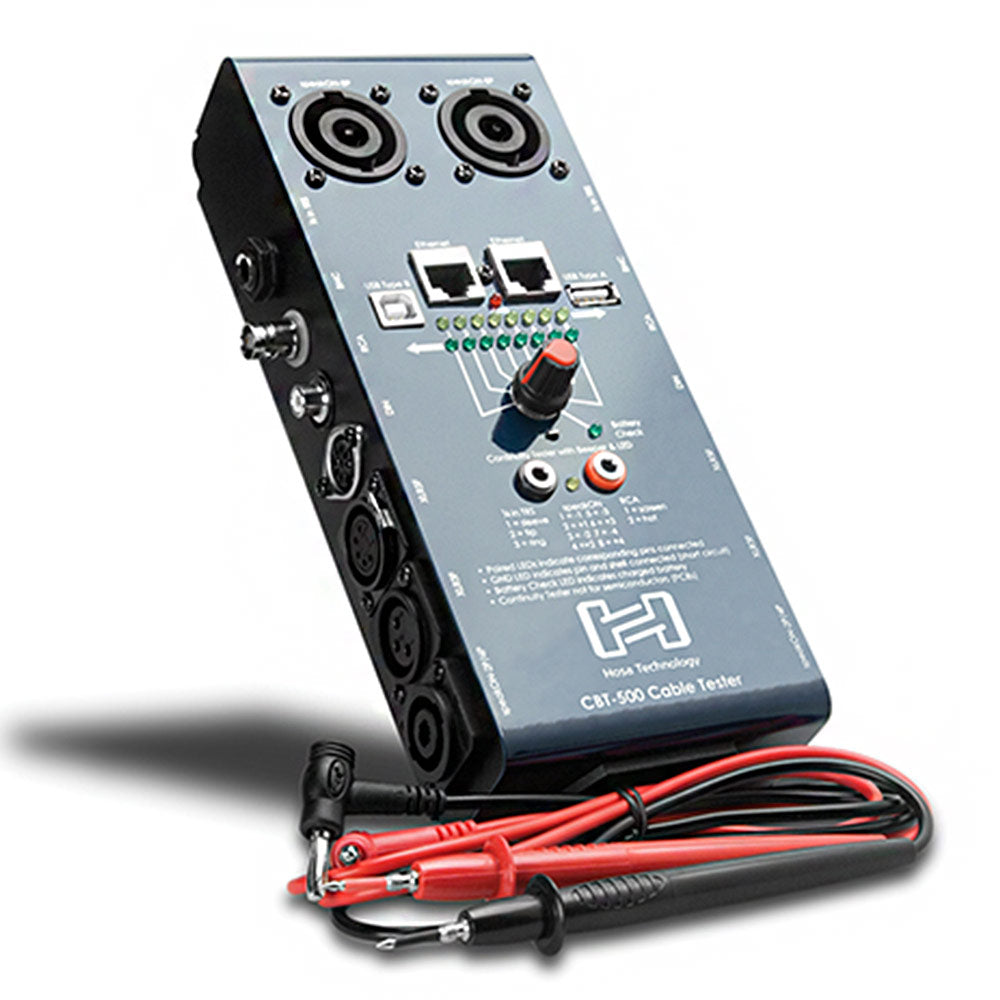

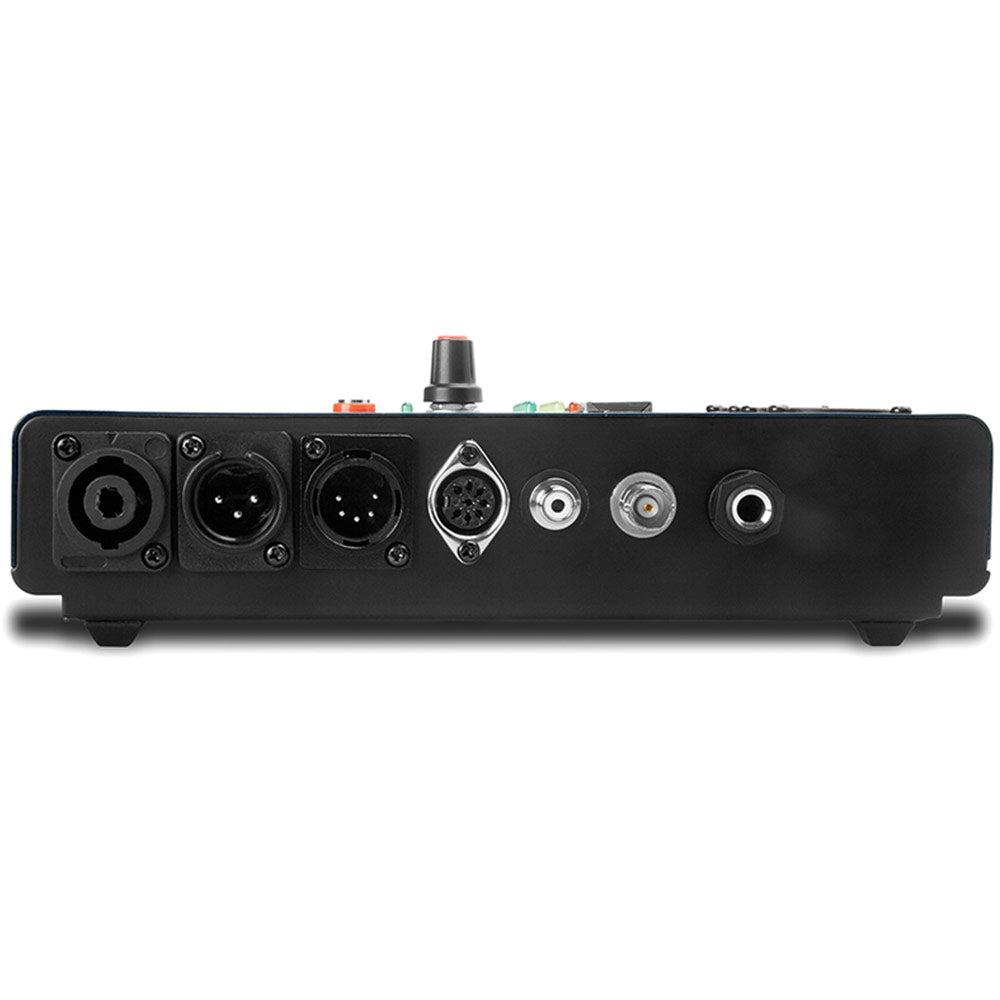

The CBT-500 Cable Tester by Hosa Technology diagnoses signal failure in cables terminated with any combination of XLR, Phone, Phono, and speakON® connectors, as well as DIN, Ethernet, and USB Type A to Type B cables. It is also equipped with removable leads to verify continuity of additional connectors and jacks. Operation requires one 9-volt battery (included).
Cable Test:
- Turn knob to position 1
- Plug one connector into corresponding jack on left side of tester
- Plug other connector into corresponding jack on right side of tester
- Turn knob to each position to check wiring of each contact
- Apply the tip of each lead to the corresponding contacts
- If continuity exists, the center LED will illuminate and tester will beep
- Turn knob to Battery Check
- LED will illuminate if the battery is charged
The CBT-500 Cable Tester by Hosa Technology diagnoses signal failure in cables terminated with any combination of XLR, Phone, Phono, and speakON® connectors, as well as DIN, Ethernet, and USB Type A to Type B cables. It is also equipped with removable leads to verify continuity of additional connectors and jacks. Operation requires one 9-volt battery (included).
Cable Test:
- Turn knob to position 1
- Plug one connector into corresponding jack on left side of tester
- Plug other connector into corresponding jack on right side of tester
- Turn knob to each position to check wiring of each contact
- Apply the tip of each lead to the corresponding contacts
- If continuity exists, the center LED will illuminate and tester will beep
- Turn knob to Battery Check
- LED will illuminate if the battery is charged
