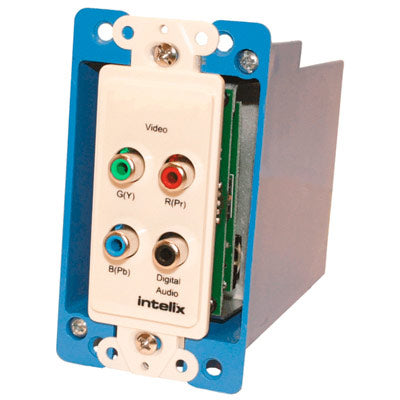

Intelix AVO-V3AD-WP-F Component Video/Digital Audio Balun with Single Gang Wallplate
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
The Intelix AVO-V3AD-WP-F HDTV balun transmits one high-definition component video signal and one digital audio signal up to 1,000 feet over inexpensive structured cabling, such as Cat 5 or Cat 6. Used in pairs or with the rack-mountable Intelix AVO-V3AD-F balun, the AVO-V3AD-WP-F is ideal for residential, corporate, educational, and hospitality environments. The AVO-V3AD-WP-F features gold-plated female RCA connectors on a standard decora plate.
The Intelix AvoCat Series of baluns is the ideal solution for sending audio and video over structured cabling. When signal quality matters, choose Intelix.
| Max Distance | 500 feet |
| Bandwidth | |
| Video | 60 MHz, 3 dB roll off |
| Audio | 25 MHz, 1 dB roll off |
| Power | No power required |
| Maximum Input | 1.1 Vp-p |
| Audio Insertion Loss | Less than 1 dB over the frequency range |
| Video Insertion Loss | 0.1 dB for 0.1 MHz. Gradually increasing to 2.5 dB over the frequency range. |
| Audio Return Loss | Greater than 15 dB over the frequency range |
| Video Return Loss | Greater than 15 dB over the frequency range |
| Audio Common Mode Rejection | 150 dB at 0.1 MHz. Gradually increasing to -30 dB at 25 MHz. |
| Video Common Mode Rejection | 55 dB at 0.1 MHz. Gradually increasing to -20 dB at 60 MHz. |
| Cable | Cat 3, Cat 5, Cat 5e, Cat 6, and Cat 7 compatible |
| Connectors | |
| Input | four (4) gold-plated female RCA |
| Output | one (1) shielded RJ45 |
| Enclosure | |
| Front | standard decora wall plate |
| Rear | metal casing |
| Dimensions | 4.0 x 1.4 x 1.7 |
| Shipping Weight | 0.2 lbs |
| Pin Out | |
| Red | 7 / 8, pair 4 |
| Blue | 1 / 2, pair 2 |
| Green | 3 / 6, pair 3 |
| Digital Audio | 4 / 5, pair 1 |
| Temperature | |
| Operating | 32 to 131 degrees F |
| Storage | -4 to 185 degrees F |
| Humidity | up to 95% |
The Intelix AVO-V3AD-WP-F HDTV balun transmits one high-definition component video signal and one digital audio signal up to 1,000 feet over inexpensive structured cabling, such as Cat 5 or Cat 6. Used in pairs or with the rack-mountable Intelix AVO-V3AD-F balun, the AVO-V3AD-WP-F is ideal for residential, corporate, educational, and hospitality environments. The AVO-V3AD-WP-F features gold-plated female RCA connectors on a standard decora plate.
The Intelix AvoCat Series of baluns is the ideal solution for sending audio and video over structured cabling. When signal quality matters, choose Intelix.
| Max Distance | 500 feet |
| Bandwidth | |
| Video | 60 MHz, 3 dB roll off |
| Audio | 25 MHz, 1 dB roll off |
| Power | No power required |
| Maximum Input | 1.1 Vp-p |
| Audio Insertion Loss | Less than 1 dB over the frequency range |
| Video Insertion Loss | 0.1 dB for 0.1 MHz. Gradually increasing to 2.5 dB over the frequency range. |
| Audio Return Loss | Greater than 15 dB over the frequency range |
| Video Return Loss | Greater than 15 dB over the frequency range |
| Audio Common Mode Rejection | 150 dB at 0.1 MHz. Gradually increasing to -30 dB at 25 MHz. |
| Video Common Mode Rejection | 55 dB at 0.1 MHz. Gradually increasing to -20 dB at 60 MHz. |
| Cable | Cat 3, Cat 5, Cat 5e, Cat 6, and Cat 7 compatible |
| Connectors | |
| Input | four (4) gold-plated female RCA |
| Output | one (1) shielded RJ45 |
| Enclosure | |
| Front | standard decora wall plate |
| Rear | metal casing |
| Dimensions | 4.0 x 1.4 x 1.7 |
| Shipping Weight | 0.2 lbs |
| Pin Out | |
| Red | 7 / 8, pair 4 |
| Blue | 1 / 2, pair 2 |
| Green | 3 / 6, pair 3 |
| Digital Audio | 4 / 5, pair 1 |
| Temperature | |
| Operating | 32 to 131 degrees F |
| Storage | -4 to 185 degrees F |
| Humidity | up to 95% |
