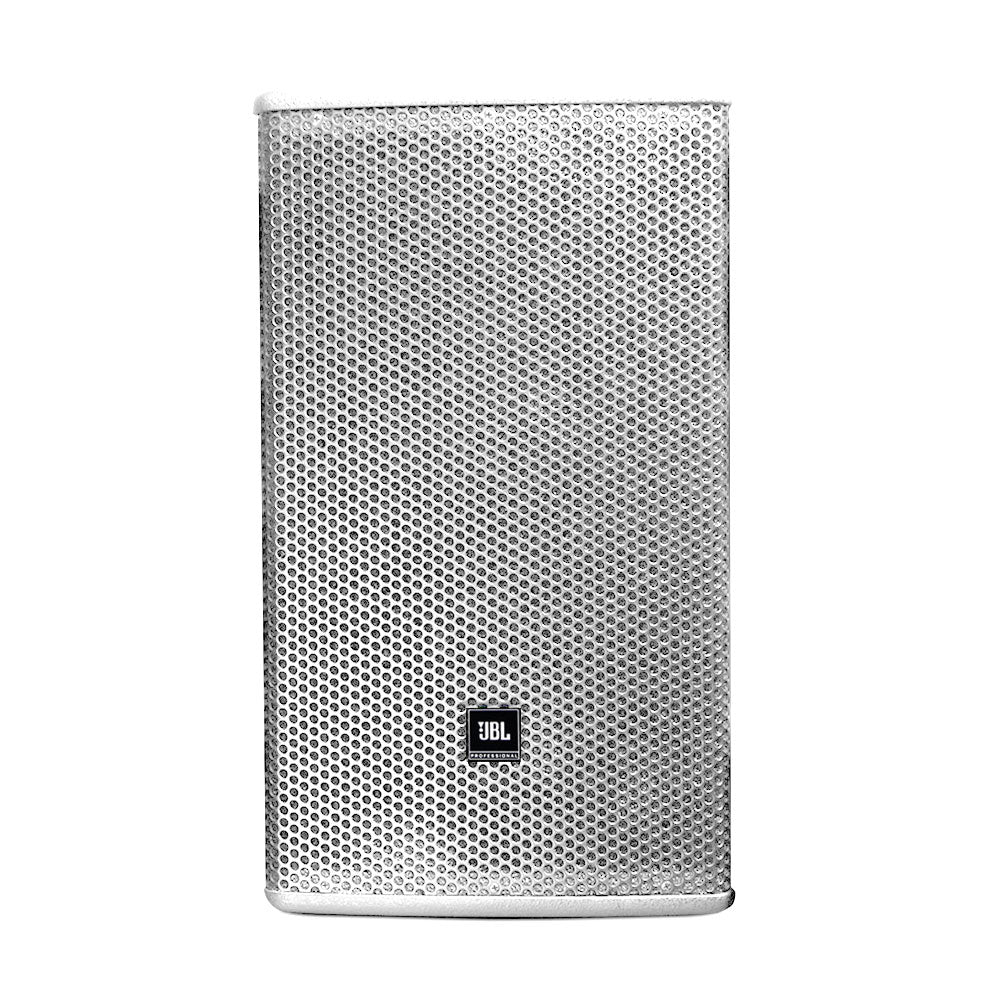

JBL AC195-WH Compact 2-Way Install Loudspeaker (White)
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
AC195 is a compact 2-way full-range loudspeaker system comprised of one 258 mm (10 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The rotatable PT™ Progressive Transition waveguide provides 90° by 50° coverage in vertical cabinet orientation. Highslope passive crossovers minimize band overlap and well-controlled offaxis response.
The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of a MultiMount® or similar type mounting.
AC195 is part of JBL’s AE Application Engineered Series, a versatil e family of loudspeakers for a wide variety of fixed installation applications.
Features:
- Compact enclosure
- 258 mm (10 in) LF transducer
- 90° x 50° Progressive Transition™ Field Rotatable Waveguide with a 25 mm (1 in) exit 35mm (1.5") voice-coil compression driver
- Dual Neutrik NL4 connectors plus screw terminals
- Multiple attachment points for ultimate flexibility
Applications:
- Performing Spaces
- Clubs & Bars
- Houses of Worship
- Multi Media Spaces
- Retail & Hospitality Spaces
- Presentation Suites
- Educational Facilities
| Frequency Range (-10 dB) | 68 Hz - 20 kHz |
| Frequency Response (±3 dB) | 85 Hz - 18kHz |
| System Sensitivity (1w @ 1m) | 95 dB |
| Nominal Impedance | 8 ohms |
| Maximum SPL(1m) | 118 dB (124 dB peak) |
| Power Rating (Continuous/Program/Peak) |
200 W/400 W/800 W |
| Coverage Pattern | 90¡ x 50¡ (H x V) |
| Crossover | 1.8 kHz |
| Low Frequency Driver | 1 x 10" woofer (P/N: 5050692), 258 mm (10 in) driver with 66 mm (2.5 in) voice-coil |
| High Frequency Driver | 1 x 2408H-2 driver with 25 mm (1 in) exit/38 mm (1.5 in) voice-coil |
| Input Connector | Dual Neutrik NL4MP connectors plus covered barrier trip terminals |
| Enclosure | 15 mm multi-ply hardwood plywood |
| Grille | Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing |
| Finish | Textured black paint finish. White (-WH) available upon request. Not available with WRC / WRX finish. |
| Suspension / Mounting | 14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, L-bracket and wall-mount bracket |
| Dimensions (H x W x D) | 535 mm x 310 mm x 329 mm 21.0 in x 12.2 in x 12.9 in |
| Net Weight | 13.1 kg (28.8 lbs) |
