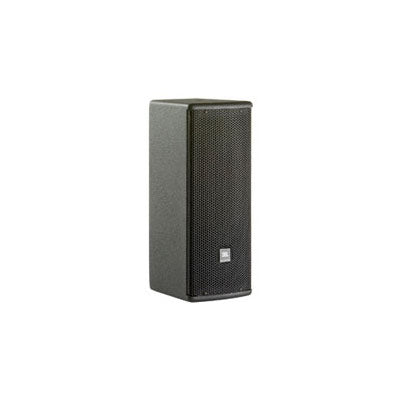

JBL AC25 - Ultra-Compact 2-Way Install Speaker (Black)
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The AC25 B (Black) from JBL is a 2-Way loudspeaker with dual 5.25" LF drivers. These speakers have broad dispersion angles making them easy to set up appropriately and are ideal for use in performing arts facilities, theatrical sound design, auditoriums, houses of worship, clubs, and themed entertainment venues. This speaker can handle up to 450W of program power and has 90x90Îç bandwidth. Dual Neutrik NL4 connectors plus screw terminals make it simple to add this speaker to your system. The AC25 B has attachment points for the optional U-bracket.
- 90x90Îç coverage
- Handles up to 450W program power
JBL's Filtered Array Technology, utilized in the AC25, AC26 and AC28 models, is a process where as each of the Low Frequency transducers is independently controlled for magnitude and phase response, resulting in smoother power response and constant coverage
| System Type | Ultra Compact 2-way Loudspeaker System with 2 - 5.25 LF |
| Frequency Range (-10 dB) | 80 Hz -20 kHz |
| Frequency Response (± 3 dB) | 90 Hz -18 kHz |
| System Sensitivity | 91 dB SPL/1W/1m |
| Impedence | 16 Ohms |
| Power Rating | 225W Continuous, 450W Program, 900W Peak |
| Coverage Pattern | 90¡ x 90¡ |
| Woofer | 5.25" x 2 |
| Tweeter | 1" Dome Tweeter |
| Enclosure Material | Multi-Ply Hardwood |
| Input Connections | Dual Neutrik NL4 connectors plus screw terminal |
| Dimensions (H XW X D) | 377.8 x 150.3 x 177.8 mm (14.9 x 5.9 x 7.0 in) |
| Weight | 7.5 kg (16.5 lb) |
The AC25 B (Black) from JBL is a 2-Way loudspeaker with dual 5.25" LF drivers. These speakers have broad dispersion angles making them easy to set up appropriately and are ideal for use in performing arts facilities, theatrical sound design, auditoriums, houses of worship, clubs, and themed entertainment venues. This speaker can handle up to 450W of program power and has 90x90Îç bandwidth. Dual Neutrik NL4 connectors plus screw terminals make it simple to add this speaker to your system. The AC25 B has attachment points for the optional U-bracket.
- 90x90Îç coverage
- Handles up to 450W program power
JBL's Filtered Array Technology, utilized in the AC25, AC26 and AC28 models, is a process where as each of the Low Frequency transducers is independently controlled for magnitude and phase response, resulting in smoother power response and constant coverage
| System Type | Ultra Compact 2-way Loudspeaker System with 2 - 5.25 LF |
| Frequency Range (-10 dB) | 80 Hz -20 kHz |
| Frequency Response (± 3 dB) | 90 Hz -18 kHz |
| System Sensitivity | 91 dB SPL/1W/1m |
| Impedence | 16 Ohms |
| Power Rating | 225W Continuous, 450W Program, 900W Peak |
| Coverage Pattern | 90¡ x 90¡ |
| Woofer | 5.25" x 2 |
| Tweeter | 1" Dome Tweeter |
| Enclosure Material | Multi-Ply Hardwood |
| Input Connections | Dual Neutrik NL4 connectors plus screw terminal |
| Dimensions (H XW X D) | 377.8 x 150.3 x 177.8 mm (14.9 x 5.9 x 7.0 in) |
| Weight | 7.5 kg (16.5 lb) |
