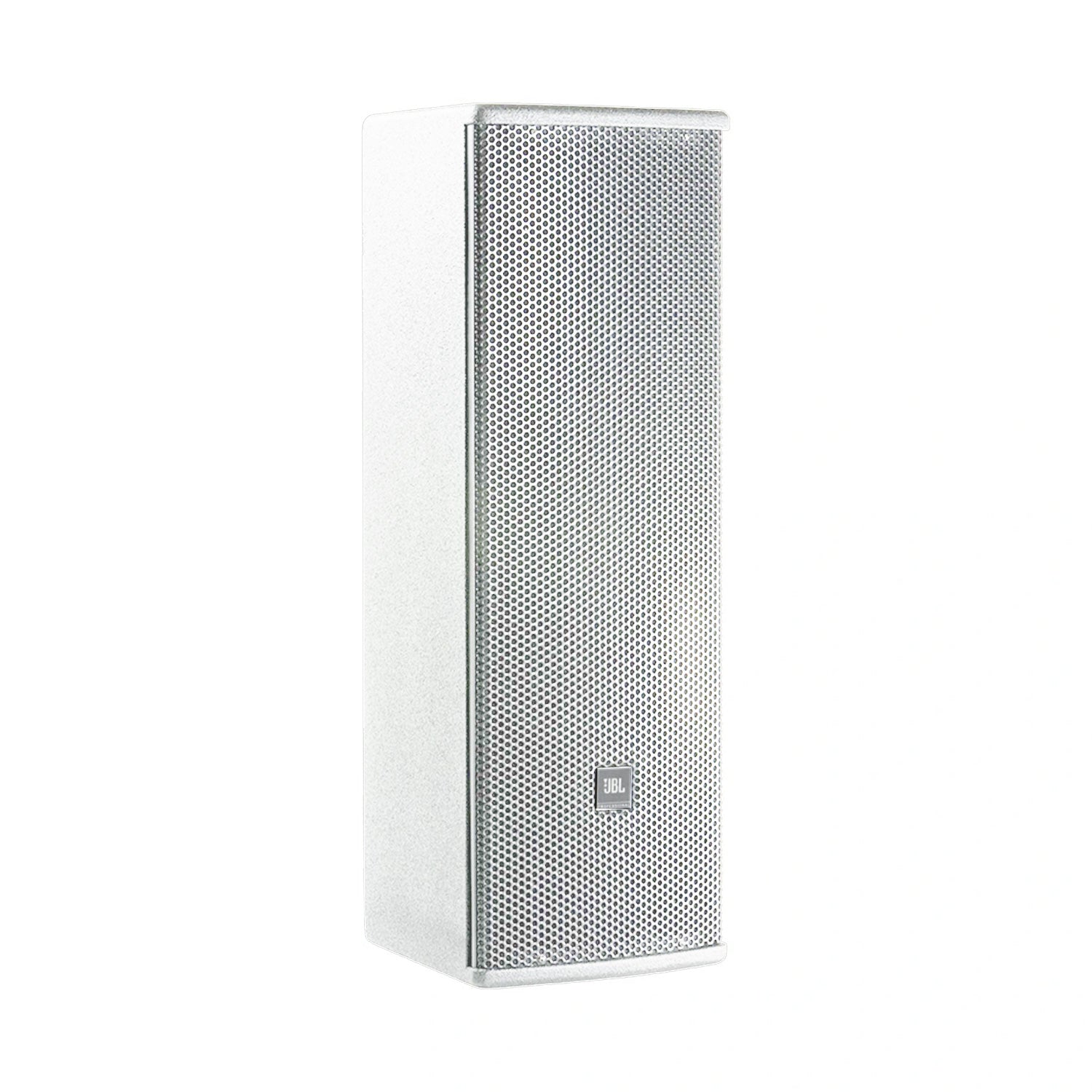

JBL AC28/95-WH - Compact 2-Way Install Loudspeaker (White)
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
An extension of the industry-leading AE Series, the AE Compact family consists of high output, 2-way loudspeaker systems combining flexibility with high fidelity. Ranging from a single 5.25" point-and-shoot box to dual 8" loudspeaker system that are specifically designed for better serving the needs of both designers and artists alike. The ultra-compact AC15 and AC25 models include a 1" dome tweeter, while the AC16, AC26, AC18, and AC28 models feature 1" exit compression drivers, providing sonic clarity and crisp detail. Furthermore, the AC18 and AC28, featuring JBL's Progressive TransitionTM Rotatable Waveguides, offer the system designer a choice of coverage patterns in either 90° x 50° or 120° x 60° configurations.
Features:
- 1-inch Exit Compression Driver with PT™ Waveguide
- 205 mm (8 in) LF transducer
- Compact enclosure
- 750W Program
- Dual Neutrik NL4 connectors plus screw terminal
- FIR Tuning Set Delivers Optimized Frequency / Phase Response, Coverage Consistency, and Sound Quality
- Attachment points for optional U-bracket, third part OmniMount® type bracket and stand mount accessory
Applications:
- Performing Arts Facilities
- Theatrical Sound Design
- Auditoriums
- Worship Facilities
- Live Clubs
- Dance Clubs
- Sports Facilities
- Themed Entertainment Venues
| Frequency Range (-10dB) | 53 Hz - 20 kHz |
| Frequency Response (±3 dB) | 65 Hz Ð 20 kHz |
| System Power Rating | 700 W (AES rated) 375 W / 750 W / 1500 W (Continuous/Program/Peak) (IEC rated) |
| Impedance | 8 ohms |
| Coverage Pattern | /26: 120¡ x 60¡/95: 90¡ x 50¡ |
| Dimensions (H x W x D) | 679.5 x 237.5 x 254.0 mm (26.8 x 9.4 x 10.0 in) |
| Net Weight (each) | 18.6 kg (40.9 lb) |
| Crossover Modes | Passive |
| Maximum SPL (1m) | 120 dB |
| System Sensitivity (1w @ 1m) | 94 dB SPL |
| LF Driver | 2 x JBL 228J, 205 mm (8 in) SFGª driver with 64 mm (2.5 in) edge wound voice coil |
| Nominal LF Driver Impedance | 8 Ohms |
| HF Driver | 1 x 2408H-1 25 mm (1 in) exit compression driver, 38 mm (1.5 in) voice coil |
| Enclosure | 12 mm and 15 mm exterior grade multi-ply hardwood plywood |
| Suspension Attachment | 6 x M8 points; 1 top, 3 bottom, 2 rear. 4 x M8 rear for MultiMount¨ MM-120-BT. |
| Environmental | Mil-Std 810; IPx3 per IEC529. For higher environmental ratings, use WRC or WRX. |
