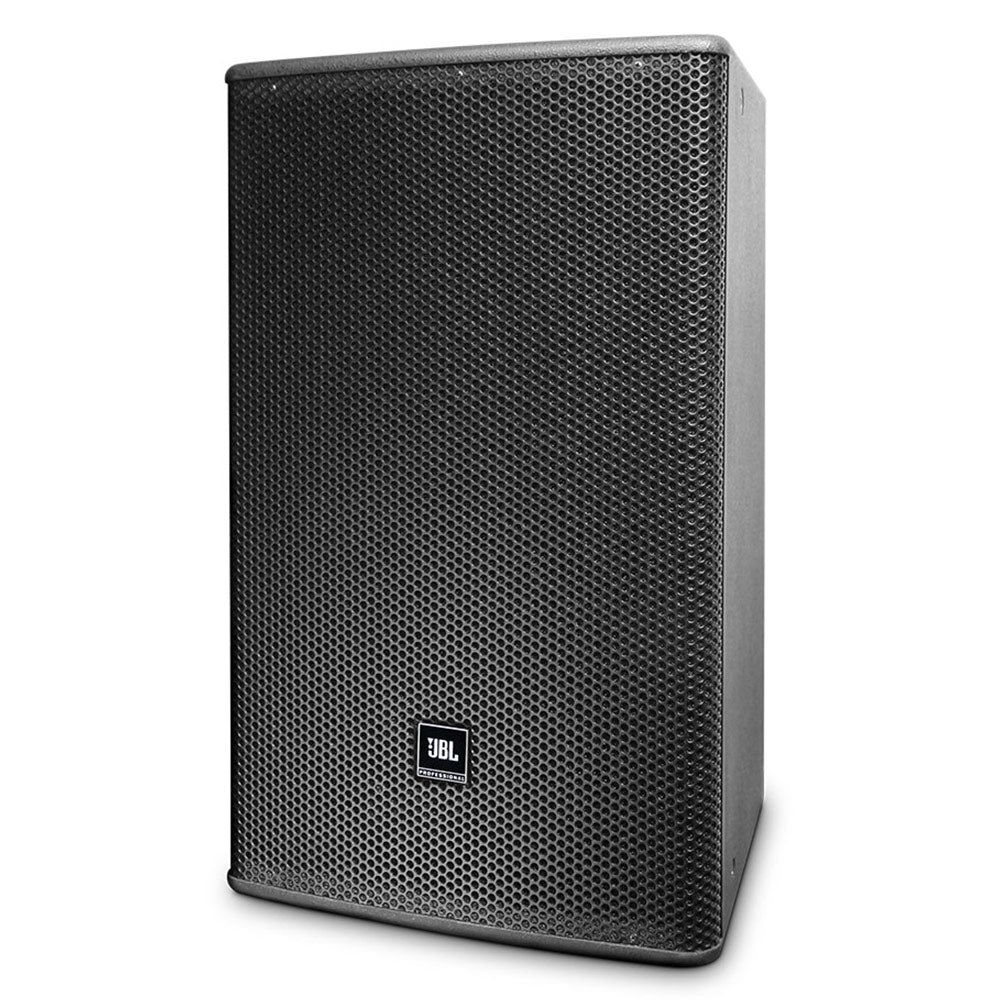

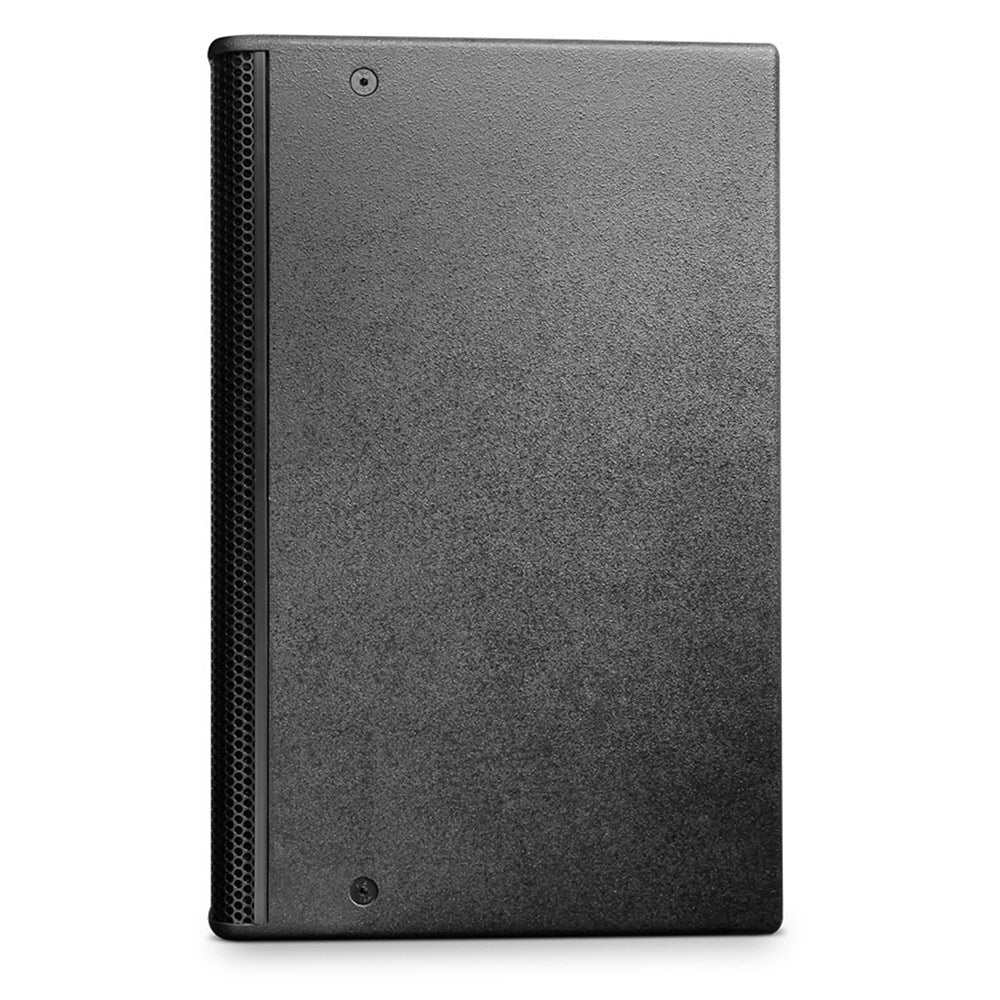

JBL AC599 - Compact 2-Way Install Loudspeaker (Black)
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
AC599 is a compact 2-way full-range loudspeaker system comprised of one 384 mm (15 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The horn provides 90° by 90° coverage in vertical and horizontal orientation. High-slope passive crossovers minimize band overlap and well-controlled offaxis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of an MultiMount® or similar type mounting. AC599 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.
Features:
- Robust 15mm enclosure with black textured finish
- 384 mm (15 in) LF transducer
- 90° x 90° Waveguide with a 25 mm (1 in) exit 35mm (1.5") diaphragm compression driver
- Dual Neutrik NL4 connectors plus screw terminals
- Multiple attachment points for ultimate flexibility
Applications:
- Performing Spaces
- Clubs & Bars
- Houses of Worship
- Multi Media Spaces
- Retail & Hospitality Spaces
- Presentation Suites
- Educational Facilities
| Frequency Range (-10 dB) | 60 Hz - 20 kHz |
| Frequency Response (±3 dB) | 75 Hz - 18 kHz |
| System Sensitivity (1w @ 1m) | 98 dB |
| Nominal Impedance | 8 ohms |
| Maximum SPL (1m) | 122 dB (128 dB peak) |
| Power Rating (Continuous/Program/Peak) |
250 W/500 W/1000 W |
| Coverage Pattern | 90¡ x 90¡ (H x V) |
| Crossover | 1.5 kHz |
| Low Frequency Driver | 1 x 15" woofer (P/N: 5053935), 381 mm (15 in) driver with 38 mm (1.5 in) voice-coil |
| High Frequency Driver | 1 x 2408H-2 driver with 25 mm (1 in) exit/38 mm (1.5 in) voice-coil |
| Input Connector | Dual Neutrik NL4MP connectors plus covered barrier trip terminals |
| Enclosure | 15 mm multi-ply hardwood plywood |
| Grille | Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing |
| Finish | Textured black paint finish. White (-WH) available upon request. Not available with WRC / WRX finish. |
| Suspension / Mounting | 14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, overhead suspension bracket, and wall-mount bracket |
AC599 is a compact 2-way full-range loudspeaker system comprised of one 384 mm (15 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The horn provides 90° by 90° coverage in vertical and horizontal orientation. High-slope passive crossovers minimize band overlap and well-controlled offaxis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of an MultiMount® or similar type mounting. AC599 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.
Features:
- Robust 15mm enclosure with black textured finish
- 384 mm (15 in) LF transducer
- 90° x 90° Waveguide with a 25 mm (1 in) exit 35mm (1.5") diaphragm compression driver
- Dual Neutrik NL4 connectors plus screw terminals
- Multiple attachment points for ultimate flexibility
Applications:
- Performing Spaces
- Clubs & Bars
- Houses of Worship
- Multi Media Spaces
- Retail & Hospitality Spaces
- Presentation Suites
- Educational Facilities
| Frequency Range (-10 dB) | 60 Hz - 20 kHz |
| Frequency Response (±3 dB) | 75 Hz - 18 kHz |
| System Sensitivity (1w @ 1m) | 98 dB |
| Nominal Impedance | 8 ohms |
| Maximum SPL (1m) | 122 dB (128 dB peak) |
| Power Rating (Continuous/Program/Peak) |
250 W/500 W/1000 W |
| Coverage Pattern | 90¡ x 90¡ (H x V) |
| Crossover | 1.5 kHz |
| Low Frequency Driver | 1 x 15" woofer (P/N: 5053935), 381 mm (15 in) driver with 38 mm (1.5 in) voice-coil |
| High Frequency Driver | 1 x 2408H-2 driver with 25 mm (1 in) exit/38 mm (1.5 in) voice-coil |
| Input Connector | Dual Neutrik NL4MP connectors plus covered barrier trip terminals |
| Enclosure | 15 mm multi-ply hardwood plywood |
| Grille | Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing |
| Finish | Textured black paint finish. White (-WH) available upon request. Not available with WRC / WRX finish. |
| Suspension / Mounting | 14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, overhead suspension bracket, and wall-mount bracket |
