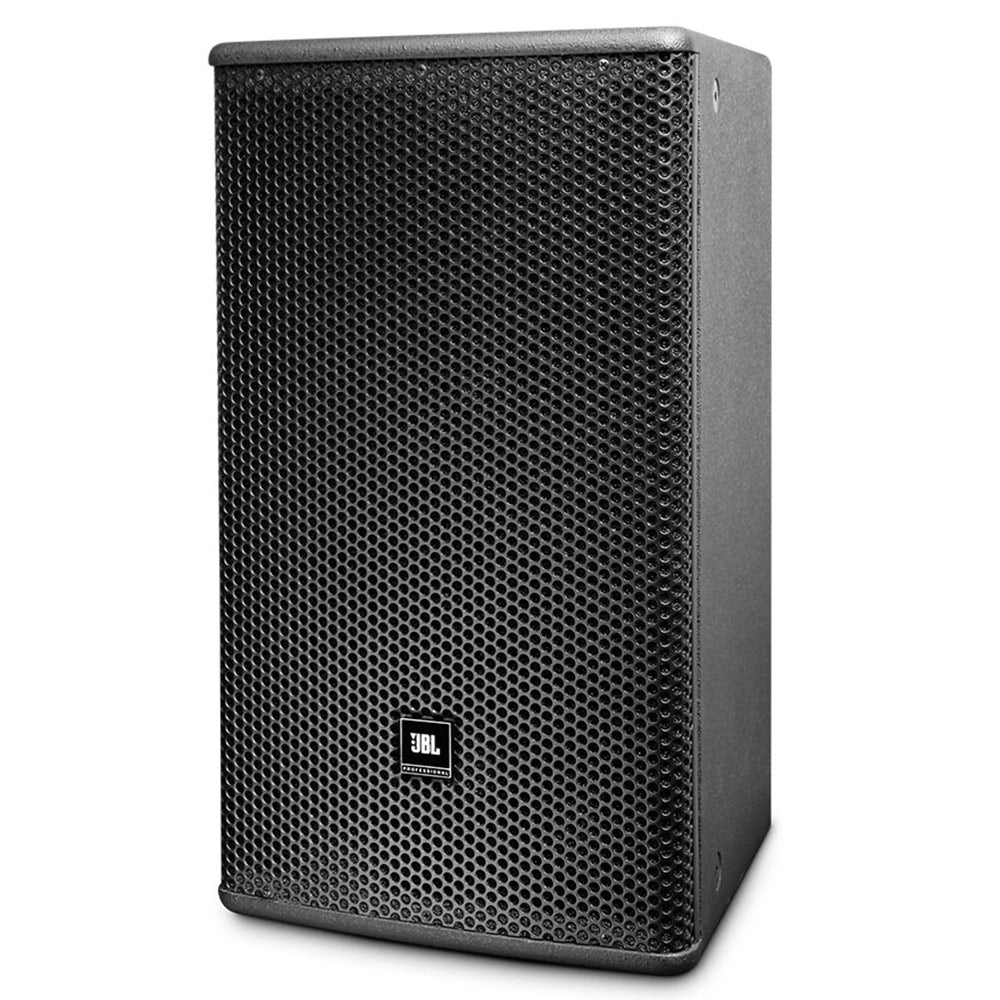

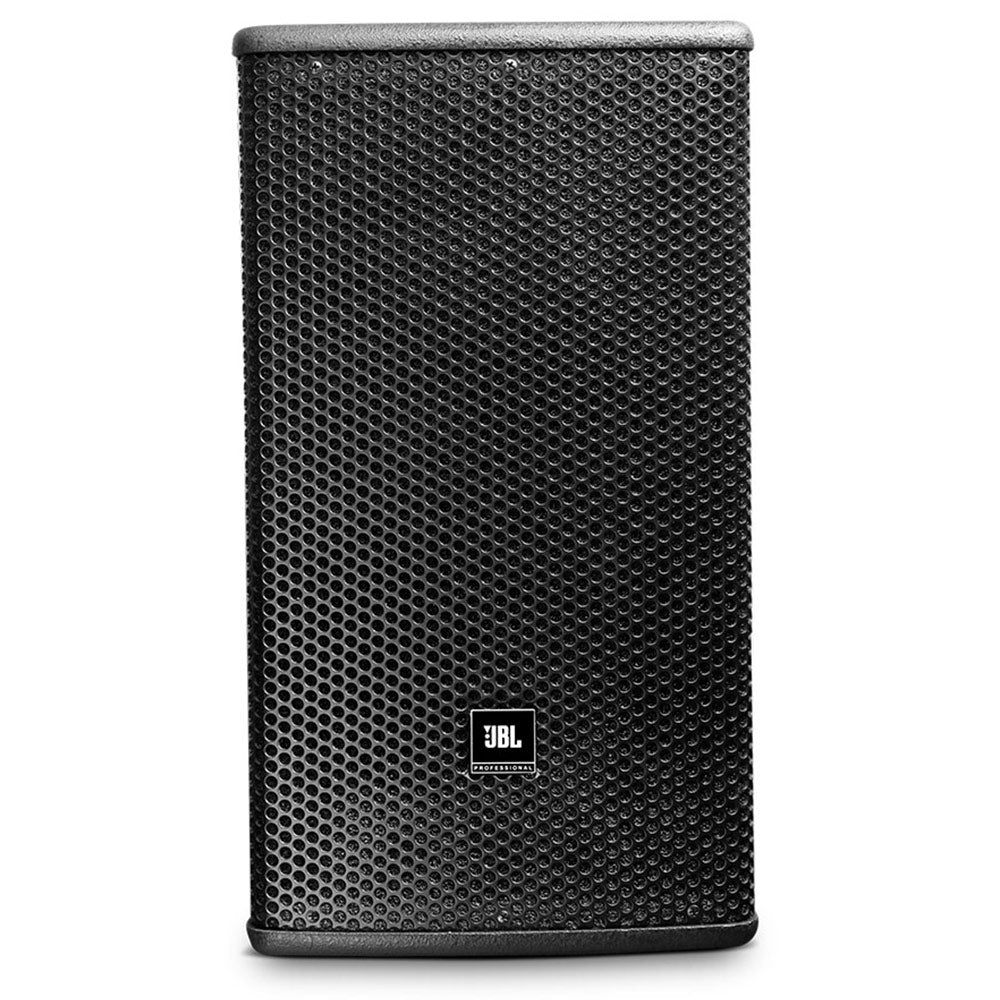

JBL AC895 - Compact 2-Way Install Loudspeaker (Black)
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

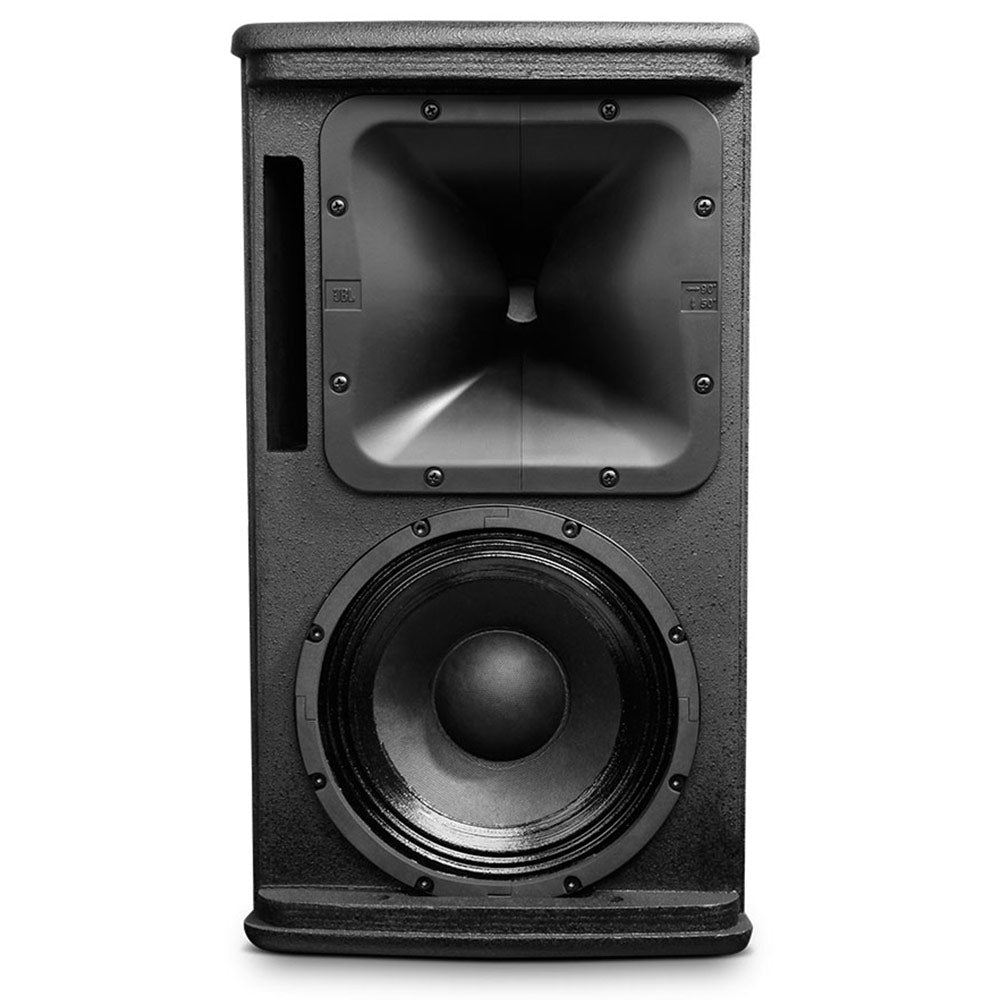

AC895 is a compact 2-way full-range loudspeaker system comprised of one 209 mm (8 in) low frequency driver and one 25 mm (1 in) exit/25 mm (1 in) voice-coil compression driver. The rotatable PT™ Progressive Transition waveguide provides 90° by 50° coverage in vertical cabinet orientation. Highslope passive crossovers minimize band overlap and well-controlled offaxis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of an MultiMount® or similar type mounting. AC895 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.
Features:
- Compact enclosure
- 209 mm (8 in) LF transducer
- 90° x 50° Progressive Transition™ Field Rotatable Waveguide with a 25 mm (1 in) exit 25mm (1") diaphragm compression driver
- Dual Neutrik NL4 connectors plus screw terminals
- Multiple Attachment Points for Ultimate Flexibility
Applications:
- Performing Spaces
- Clubs & Bars
- Houses of Worship
- Multi Media Spaces
- Retail & Hospitality Spaces
- Presentation Suites
- Educational Facilities
| Frequency Range (-10 dB) | 70 Hz - 20 kHz |
| Frequency Response (±3 dB) | 90 Hz - 18 kHz |
| System Sensitivity (1w @ 1m) | 94 dB |
| Nominal Impedance | 8 ohms |
| Maximum SPL (1m) | 116 dB (122 dB peak) |
| Power Rating (Continuous/Program/Peak) |
150 W/ 300 W/ 600 W |
| Coverage Pattern | 90¡ x 50¡ (H x V) |
| Crossover | 2 kHz |
| Low Frequency Driver | 1 x 8" woofer (P/N: 5055470), 209 mm (8 in) driver with 50 mm (2 in) voice-coil |
| High Frequency Driver | 1 x 2414H-C driver with 25 mm (1 in) exit/25 mm (1 in) voice-coil |
| Input Connector | Dual Neutrik NL4MP connectors plus covered barrier trip terminals |
| Enclosure | 15 mm multi-ply hardwood plywood |
| Grille | Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing |
| Finish | Textured black paint finish. White (-WH) available upon request. Not available with WRC / WRX finish. |
| Suspension / Mounting | 14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, L-bracket and wall-mount bracket |
| Dimensions (H x W x D) | 470 mm x 265 mm x 254 mm 18.5 in x 10.4 in x 10.0 in |
| Net Weight | 10.2 kg (22.4 lbs) |
AC895 is a compact 2-way full-range loudspeaker system comprised of one 209 mm (8 in) low frequency driver and one 25 mm (1 in) exit/25 mm (1 in) voice-coil compression driver. The rotatable PT™ Progressive Transition waveguide provides 90° by 50° coverage in vertical cabinet orientation. Highslope passive crossovers minimize band overlap and well-controlled offaxis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of an MultiMount® or similar type mounting. AC895 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.
Features:
- Compact enclosure
- 209 mm (8 in) LF transducer
- 90° x 50° Progressive Transition™ Field Rotatable Waveguide with a 25 mm (1 in) exit 25mm (1") diaphragm compression driver
- Dual Neutrik NL4 connectors plus screw terminals
- Multiple Attachment Points for Ultimate Flexibility
Applications:
- Performing Spaces
- Clubs & Bars
- Houses of Worship
- Multi Media Spaces
- Retail & Hospitality Spaces
- Presentation Suites
- Educational Facilities
| Frequency Range (-10 dB) | 70 Hz - 20 kHz |
| Frequency Response (±3 dB) | 90 Hz - 18 kHz |
| System Sensitivity (1w @ 1m) | 94 dB |
| Nominal Impedance | 8 ohms |
| Maximum SPL (1m) | 116 dB (122 dB peak) |
| Power Rating (Continuous/Program/Peak) |
150 W/ 300 W/ 600 W |
| Coverage Pattern | 90¡ x 50¡ (H x V) |
| Crossover | 2 kHz |
| Low Frequency Driver | 1 x 8" woofer (P/N: 5055470), 209 mm (8 in) driver with 50 mm (2 in) voice-coil |
| High Frequency Driver | 1 x 2414H-C driver with 25 mm (1 in) exit/25 mm (1 in) voice-coil |
| Input Connector | Dual Neutrik NL4MP connectors plus covered barrier trip terminals |
| Enclosure | 15 mm multi-ply hardwood plywood |
| Grille | Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing |
| Finish | Textured black paint finish. White (-WH) available upon request. Not available with WRC / WRX finish. |
| Suspension / Mounting | 14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, L-bracket and wall-mount bracket |
| Dimensions (H x W x D) | 470 mm x 265 mm x 254 mm 18.5 in x 10.4 in x 10.0 in |
| Net Weight | 10.2 kg (22.4 lbs) |
