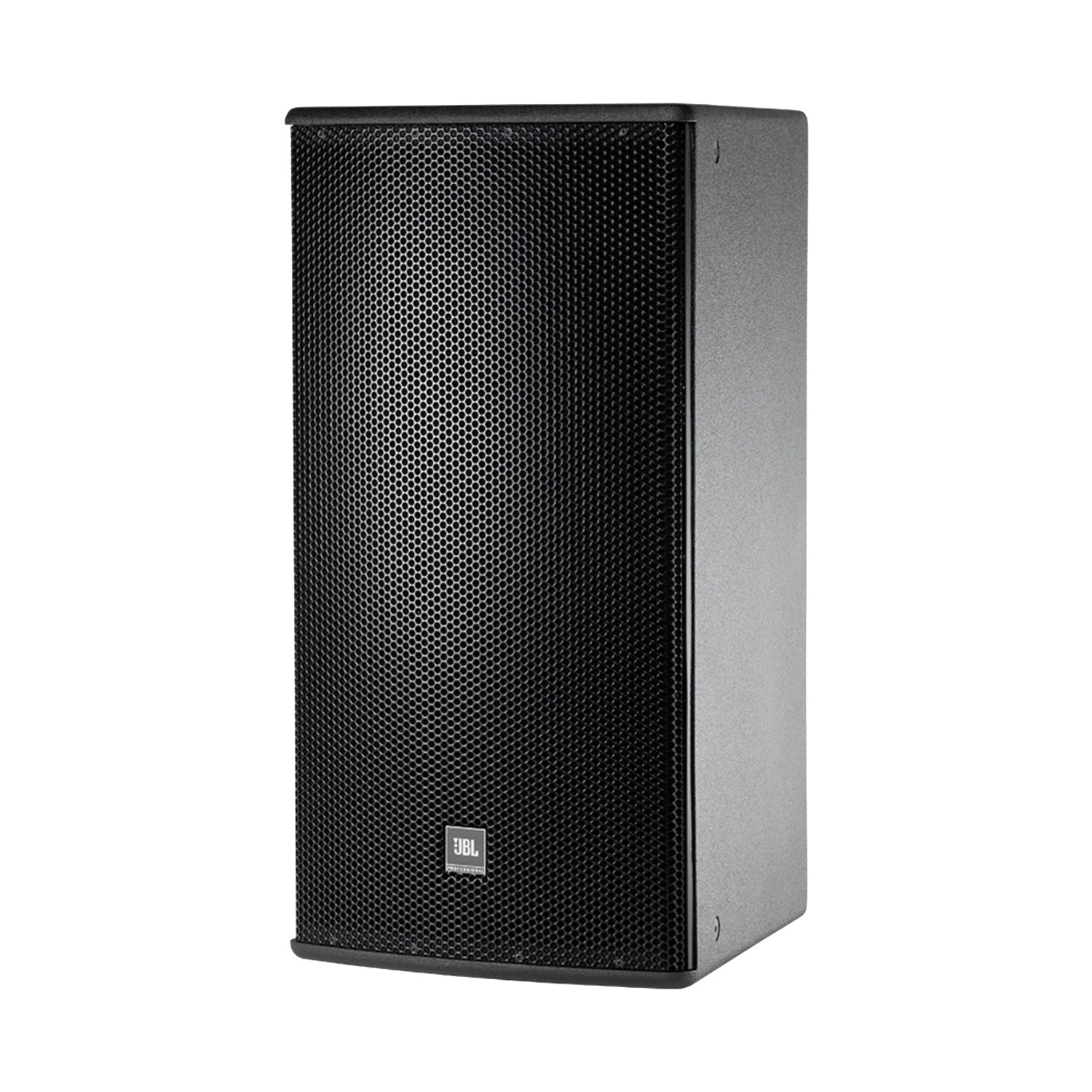

JBL AM5215/26 - 15-Inch 2-Way Install Speaker (Black)
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The AM5215/26 is a medium power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive® dual voice coil and dual magnetic gap 265H-1 380 mm (15 in) low frequency driver and 2408H-1 high frequency 38 mm (1.5 in) exit, 38 mm (1.5 in) voice-coil compression driver. The large format PT™ Progressive Transition waveguide provides excellent 120° x 60° coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.
Features
- 120° x 60° Coverage
- 265H-1 Differential Drive® Low-Frequency Driver
- 2408H-1 High-Frequency Compression Driver
- Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
- Rotatable waveguide for vertical or horizontal orientation
- Bi-Amp/Passive Switchable
- Available in Black, White and WRC/WRX weather resistant finishes
| Frequency Range (-10 dB) | 35 Hz Ð 20 kHz | ||||||||||||||||
| Frequency Response (±3 dB) | 41 Hz Ð 18 kHz | ||||||||||||||||
| Coverage Pattern | 120¡ x 60¡, rotatable waveguide | ||||||||||||||||
| Directivity Factor (Q) | 8.6 | ||||||||||||||||
| Directivity Index (DI) | 9.3 dB | ||||||||||||||||
| Crossover Modes | Bi-amp/Passive switchable | ||||||||||||||||
| Passive Crossover Frequency | 1.3 kHz | ||||||||||||||||
| Transducer Power Rating (AES) |
