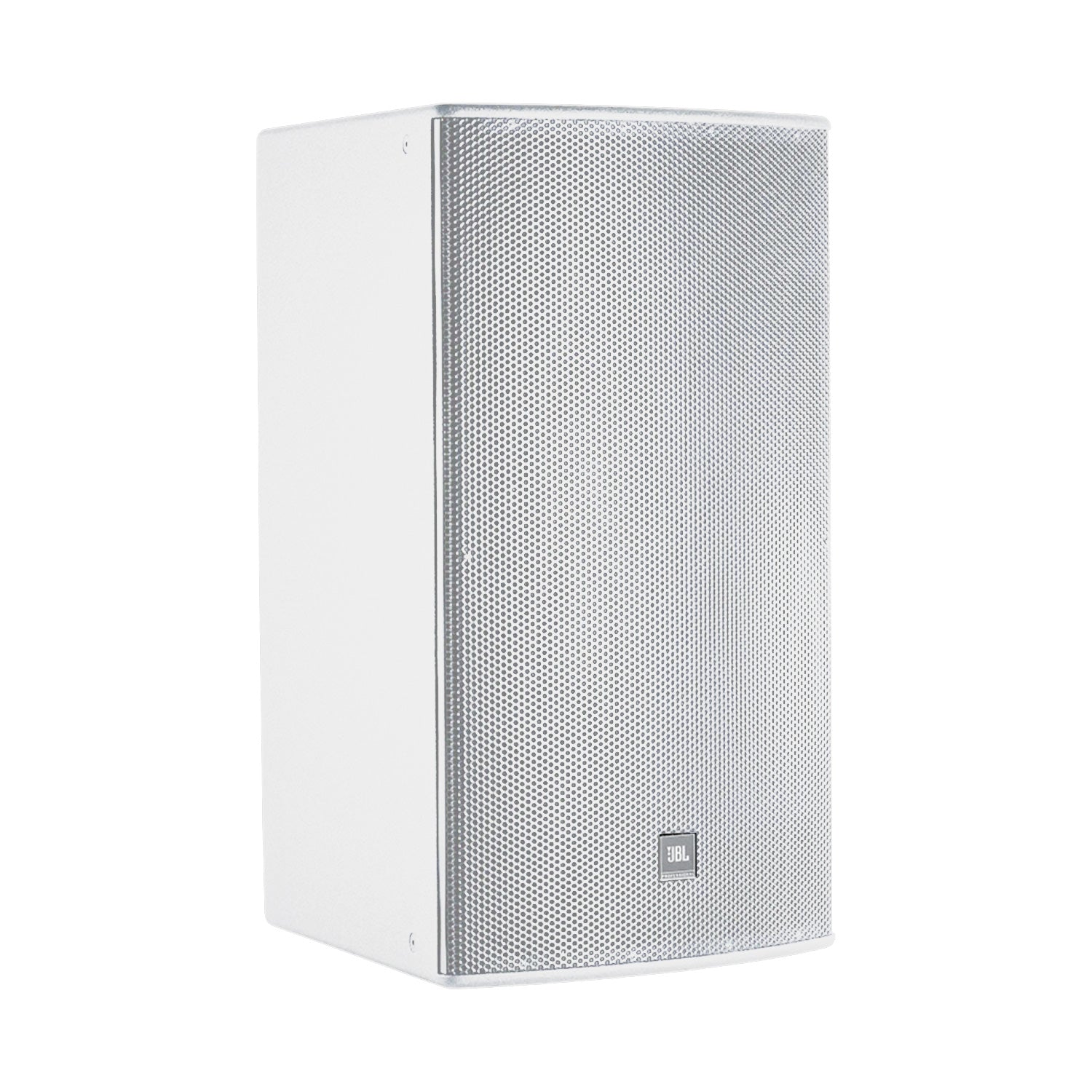

JBL AM7315/64-WH - High-Power 15 Inch 3 Way Install Speaker (White)
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
AM7315/64 is a high power 3-way full-range loudspeaker system comprised of one 380 mm (15 in) Differential Drive® low frequency driver, one 200 mm (8 in) CMCD Cone Midrange Compression Driver, and one 38 mm (1.5 in) exit/75 mm (3 in) voice-coil HF compression driver. The multi-band PT Progressive Transition mid-high frequency waveguide provides well-controlled 60° by 40° coverage and is rotatable for cabinet positioning in either horizontal or vertical orientation. High-slope crossovers minimize band overlap and well-controlled off-axis response enhances arrayability. The cabinet is fitted with M10 threaded suspension points. Preengineered array bracketry is available. AM7315/64 is part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.
Features
- 60° x 40° Coverage, rotatable for use in either vertical or horizontal orientation.
- 2265H Differential Drive® Low- Frequency Driver
- CMCD™ Cone Midrange Compression Driver provides low midrange distortion, increased sensitivity, extended bandwidth and improved phase coherency.
- 2432H High-Frequency Compression Driver
- PT™ Progressive Transition Waveguide for excellent pattern control with low distortion.
- Bi-Amp/Tri-Amp Switchable.
- Optional planar array frame kit (see AE Series Array Guide).
| Frequency Range (-10 dB) |
AM7315/64 is a high power 3-way full-range loudspeaker system comprised of one 380 mm (15 in) Differential Drive® low frequency driver, one 200 mm (8 in) CMCD Cone Midrange Compression Driver, and one 38 mm (1.5 in) exit/75 mm (3 in) voice-coil HF compression driver. The multi-band PT Progressive Transition mid-high frequency waveguide provides well-controlled 60° by 40° coverage and is rotatable for cabinet positioning in either horizontal or vertical orientation. High-slope crossovers minimize band overlap and well-controlled off-axis response enhances arrayability. The cabinet is fitted with M10 threaded suspension points. Preengineered array bracketry is available. AM7315/64 is part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications. Features
|
