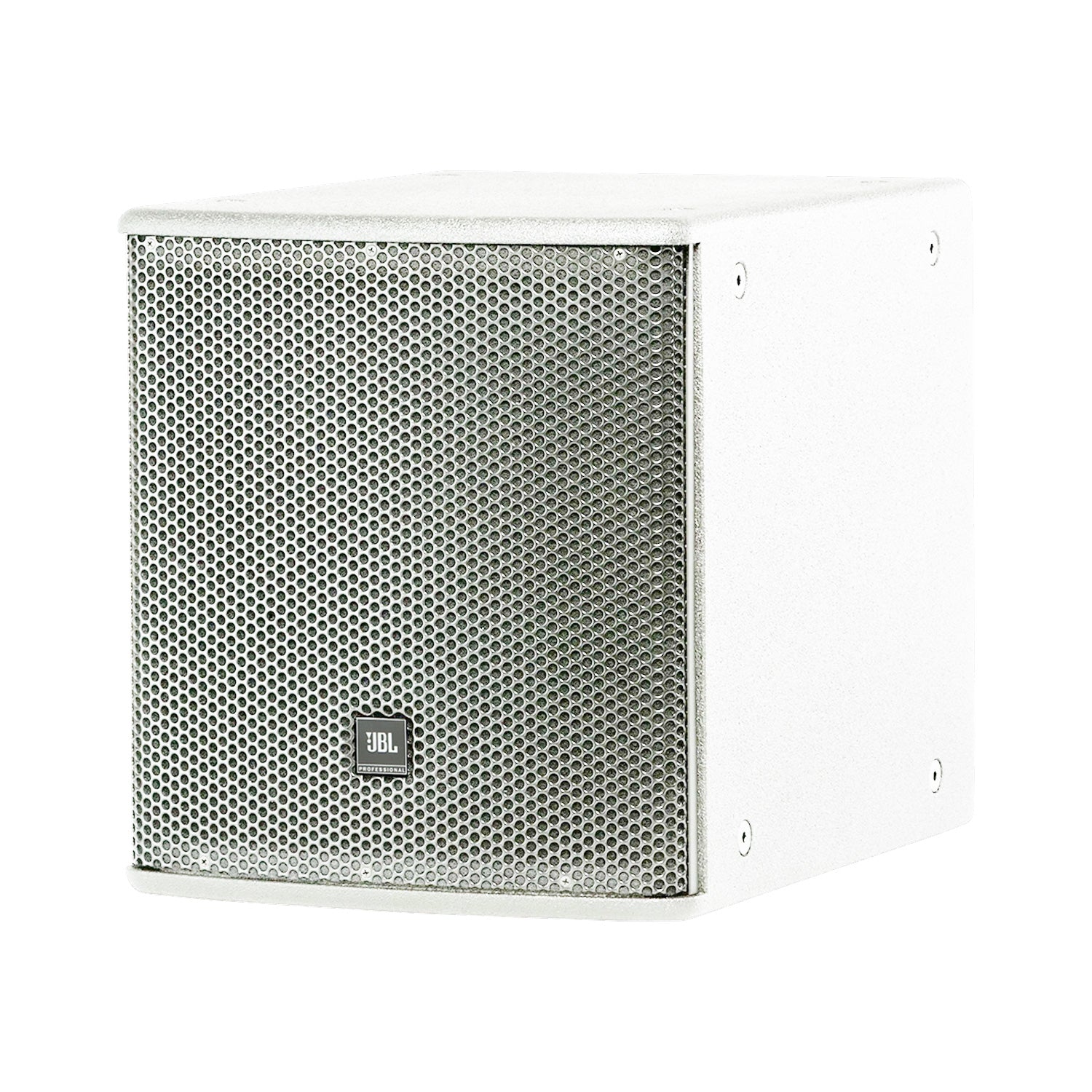

JBL ASB6112-WH - Ultra-Compact High-Power 12-Inch Install Subwoofer (White)
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The ASB6112 is a high power, lightweight front-loaded vented subwoofer enclosure housing JBL's 2263H Differential Drive¨ dual coil dual gap 12" woofer. This woofer features neodymium magnet and ultra robust cone for extra long life.
Features:
- 2263H 12" Differential Drive¨ dual voice coil dual gap, neodymium magnet transducer
- 1000 watts continuous pink noise,
4000 watts peak power handling capacity - Large vent area for high output with low distortion
- FIR Tuning Set Matches Phase Profile to Full-Range Models
- For ground-stacked or suspended applications in stand-alone arrays or in combination with other
AE Series products
| Driver | 12 (305mm) Differential Drive Woofer with 3 Dual Coil Dual Gap Neodymium Magnet |
| Crossover | Not Specified by Manufacturer |
| Frequency Range | 35Hz - 1kHz |
| Impedance | 8 Ohms |
| Maximum Power Handling | 1000W (4000W Peak), 2 Hours 700W (2800W Peak), 100 Hours |
| Maximum Sound Pressure Level (SPL) | 126dB |
| Controls and Indicators | None |
| Connectors | 1 x NL4 Neutrik Speakon Input 1 x Barrier Strip Terminal |
| Shielded | No |
| Enclosure Material | 11-Ply Birch Plywood with DuraFlex Finish 14-Gauge Steel Grille with Acoustically Transparent Foam |
| Dimensions (HxWxD) | 16 x 14.5 x 19 (406 x 369 x 483mm) |
| Weight | 36 lbs (16.3kg) |
The ASB6112 is a high power, lightweight front-loaded vented subwoofer enclosure housing JBL's 2263H Differential Drive¨ dual coil dual gap 12" woofer. This woofer features neodymium magnet and ultra robust cone for extra long life.
Features:
- 2263H 12" Differential Drive¨ dual voice coil dual gap, neodymium magnet transducer
- 1000 watts continuous pink noise,
4000 watts peak power handling capacity - Large vent area for high output with low distortion
- FIR Tuning Set Matches Phase Profile to Full-Range Models
- For ground-stacked or suspended applications in stand-alone arrays or in combination with other
AE Series products
| Driver | 12 (305mm) Differential Drive Woofer with 3 Dual Coil Dual Gap Neodymium Magnet |
| Crossover | Not Specified by Manufacturer |
| Frequency Range | 35Hz - 1kHz |
| Impedance | 8 Ohms |
| Maximum Power Handling | 1000W (4000W Peak), 2 Hours 700W (2800W Peak), 100 Hours |
| Maximum Sound Pressure Level (SPL) | 126dB |
| Controls and Indicators | None |
| Connectors | 1 x NL4 Neutrik Speakon Input 1 x Barrier Strip Terminal |
| Shielded | No |
| Enclosure Material | 11-Ply Birch Plywood with DuraFlex Finish 14-Gauge Steel Grille with Acoustically Transparent Foam |
| Dimensions (HxWxD) | 16 x 14.5 x 19 (406 x 369 x 483mm) |
| Weight | 36 lbs (16.3kg) |
