Description
Priced individually, but sold in pairs.

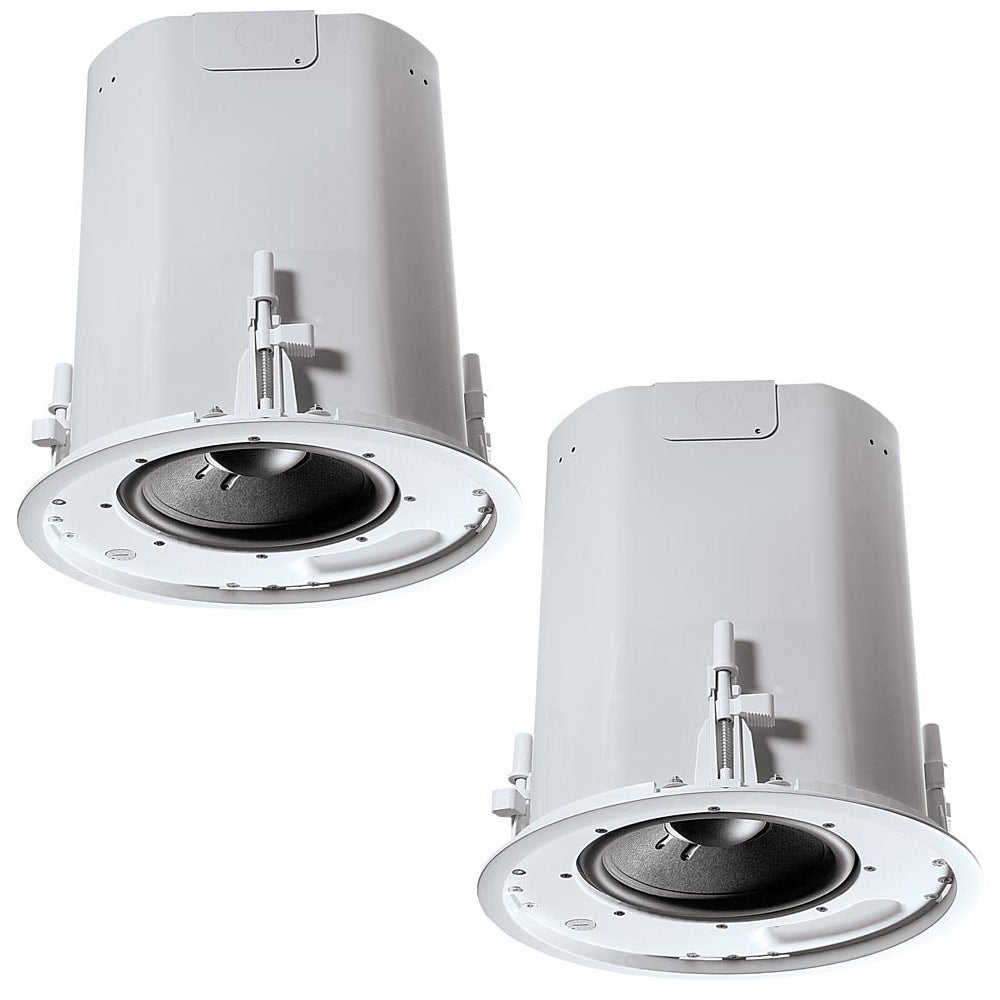

JBL C40CS/T-PL 8-Inch In-Ceiling Subwoofer - Single
Frequency Range | 32 Hz - 300 Hz |
Power Rating | IEC System Long-Term Ratings (low-Z direct): 200 Watts Continuous Program Power 100 Watts Continuous Pink Noise(400W peak), 100 hr |
Sensitivity | 95 dB (near corner), 89 dB (center of ceiling) |
Transformer Taps | 80W, 40W, 20W (& 10W at 70V only) |
Impedance | 8 ohms (in bypass mode) |
Drivers | 200 mm (8 in) subwoofer |
Termination | Screw-down removable locking clip-in connector |
Satellite Outputs | Connectors for 2 or 4 Control 42C satellite speakers |
Included Accessories | C-rings, tile rails, paint shield, cutout template, grille |
Dimensions (Diameter x Depth) | 332mm Diameter x 338mm Diameter Depth (13.1 in x 13.3 in) |
Transformer Taps | 80 W 40 W, 20 W, (& 10 W @ 70V), plus transformer bypass |
Maximum SPL (1m) | 109 dB (low-impedance, 115 dB peak, center of ceiling) 115 dB (low-impedance, 121 dB peak near corner) 108 dB (70V/100V, center of ceiling) 114 dB (70V/100V near corner) |
Input Connectors | 6 removeable locking 2-pin connectors with screwdown terminals. |
Color | White |
Safety Agency | Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 / NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849. |
Backcan | formed steel (included "blind-mount") |
Baffle/Rim | ABS baffle with UL94-V0 and UL94-5VB flame class fire rating. |
Ceiling Cutout Size | 307 mm Diameter (12.1 in) (cardboard cutout template included) |
Optional Accessories | MTC-19NC New Construction Bracket, MTC-19MR Mud Ring Construction Bracket |
Plenum Usage | Yes, backcan included |
Coverage Angle | Omnidirectional |
Priced individually, but sold in pairs.
JBL C40CS/T-PL 8-Inch In-Ceiling Subwoofer - Single
Frequency Range | 32 Hz - 300 Hz |
Power Rating | IEC System Long-Term Ratings (low-Z direct): 200 Watts Continuous Program Power 100 Watts Continuous Pink Noise(400W peak), 100 hr |
Sensitivity | 95 dB (near corner), 89 dB (center of ceiling) |
Transformer Taps | 80W, 40W, 20W (& 10W at 70V only) |
Impedance | 8 ohms (in bypass mode) |
Drivers | 200 mm (8 in) subwoofer |
Termination | Screw-down removable locking clip-in connector |
Satellite Outputs | Connectors for 2 or 4 Control 42C satellite speakers |
Included Accessories | C-rings, tile rails, paint shield, cutout template, grille |
Dimensions (Diameter x Depth) | 332mm Diameter x 338mm Diameter Depth (13.1 in x 13.3 in) |
Transformer Taps | 80 W 40 W, 20 W, (& 10 W @ 70V), plus transformer bypass |
Maximum SPL (1m) | 109 dB (low-impedance, 115 dB peak, center of ceiling) 115 dB (low-impedance, 121 dB peak near corner) 108 dB (70V/100V, center of ceiling) 114 dB (70V/100V near corner) |
Input Connectors | 6 removeable locking 2-pin connectors with screwdown terminals. |
Color | White |
Safety Agency | Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 / NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849. |
Backcan | formed steel (included "blind-mount") |
Baffle/Rim | ABS baffle with UL94-V0 and UL94-5VB flame class fire rating. |
Ceiling Cutout Size | 307 mm Diameter (12.1 in) (cardboard cutout template included) |
Optional Accessories | MTC-19NC New Construction Bracket, MTC-19MR Mud Ring Construction Bracket |
Plenum Usage | Yes, backcan included |
Coverage Angle | Omnidirectional |
