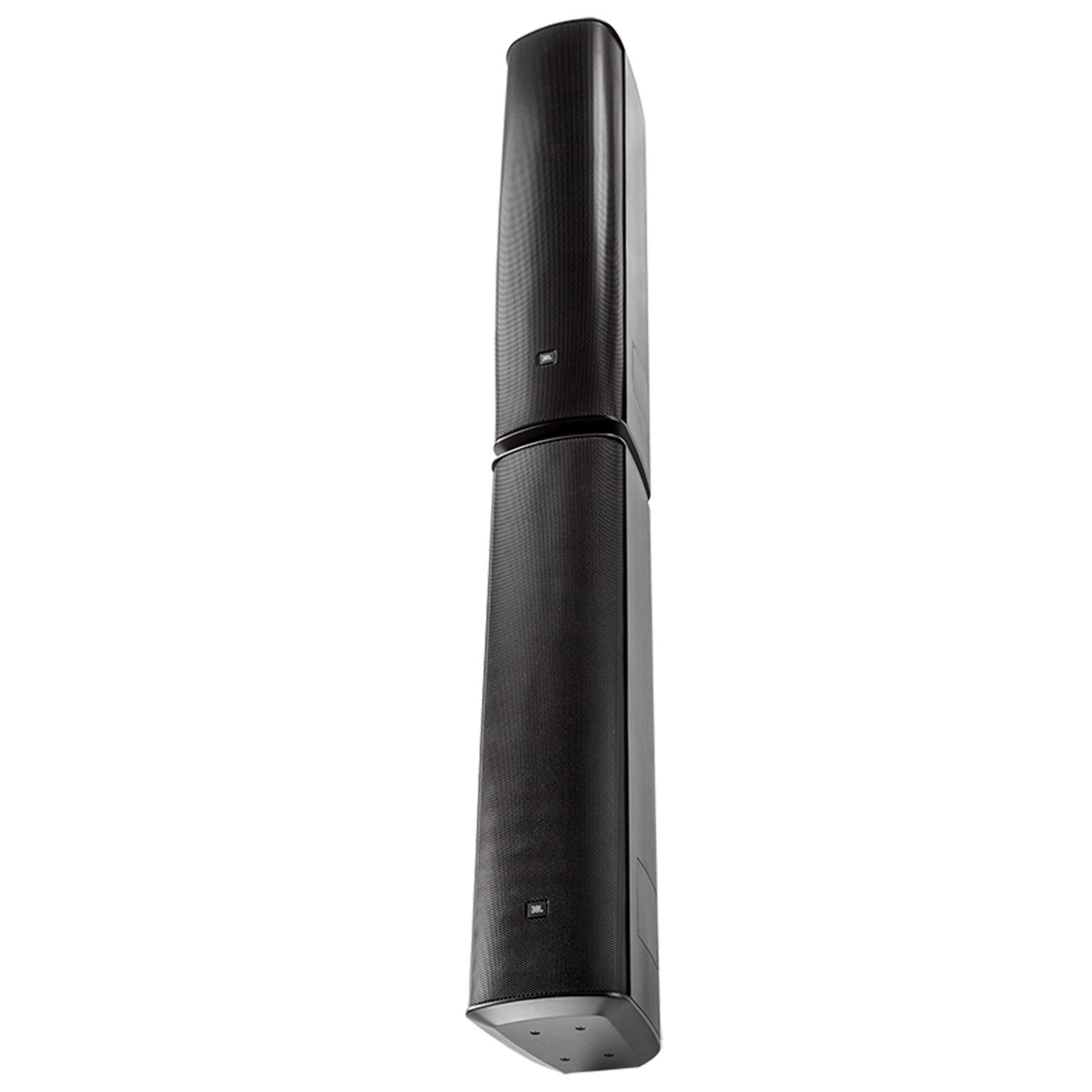

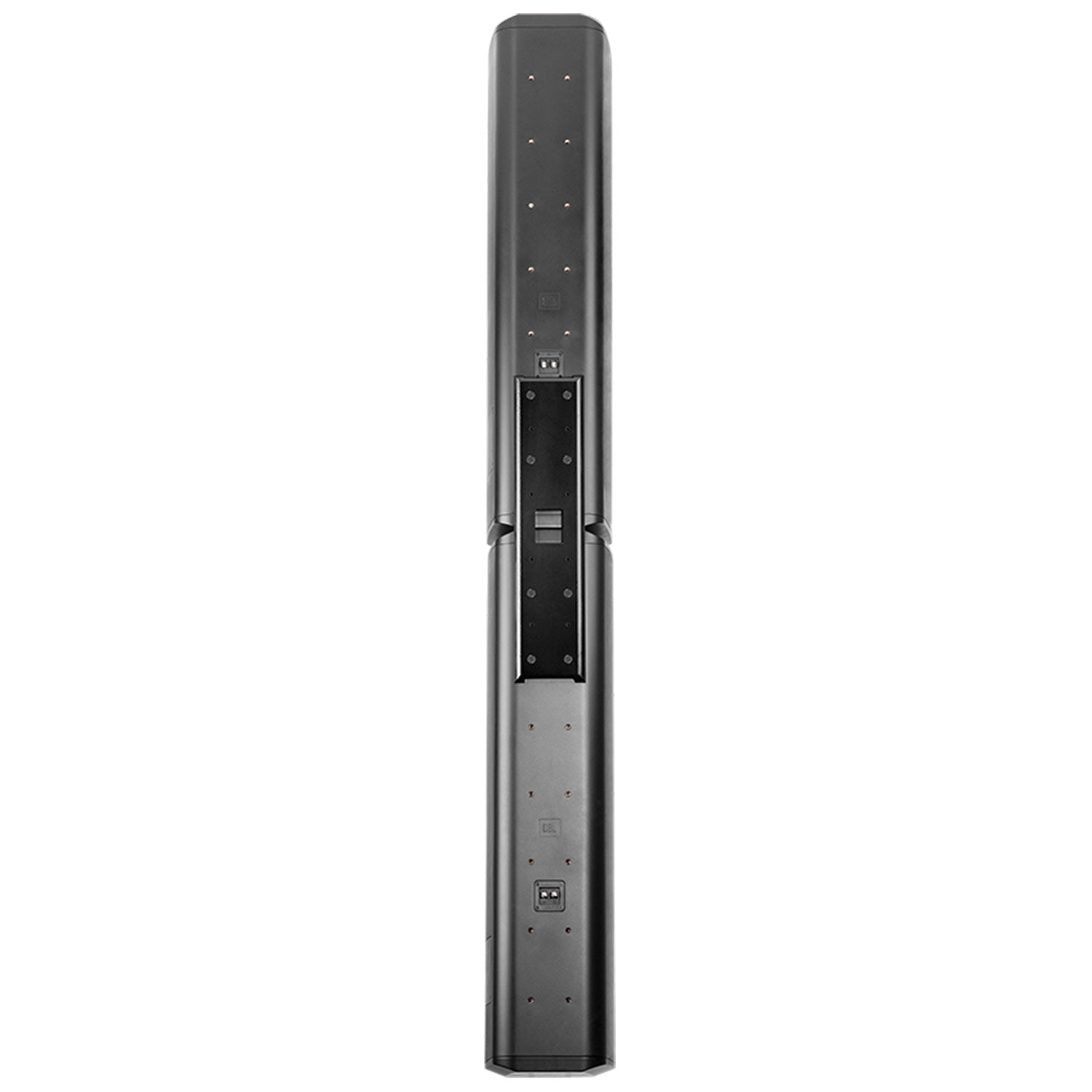

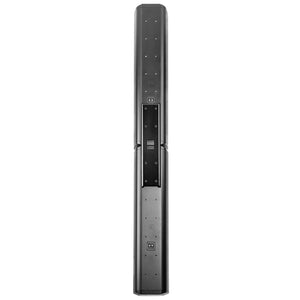

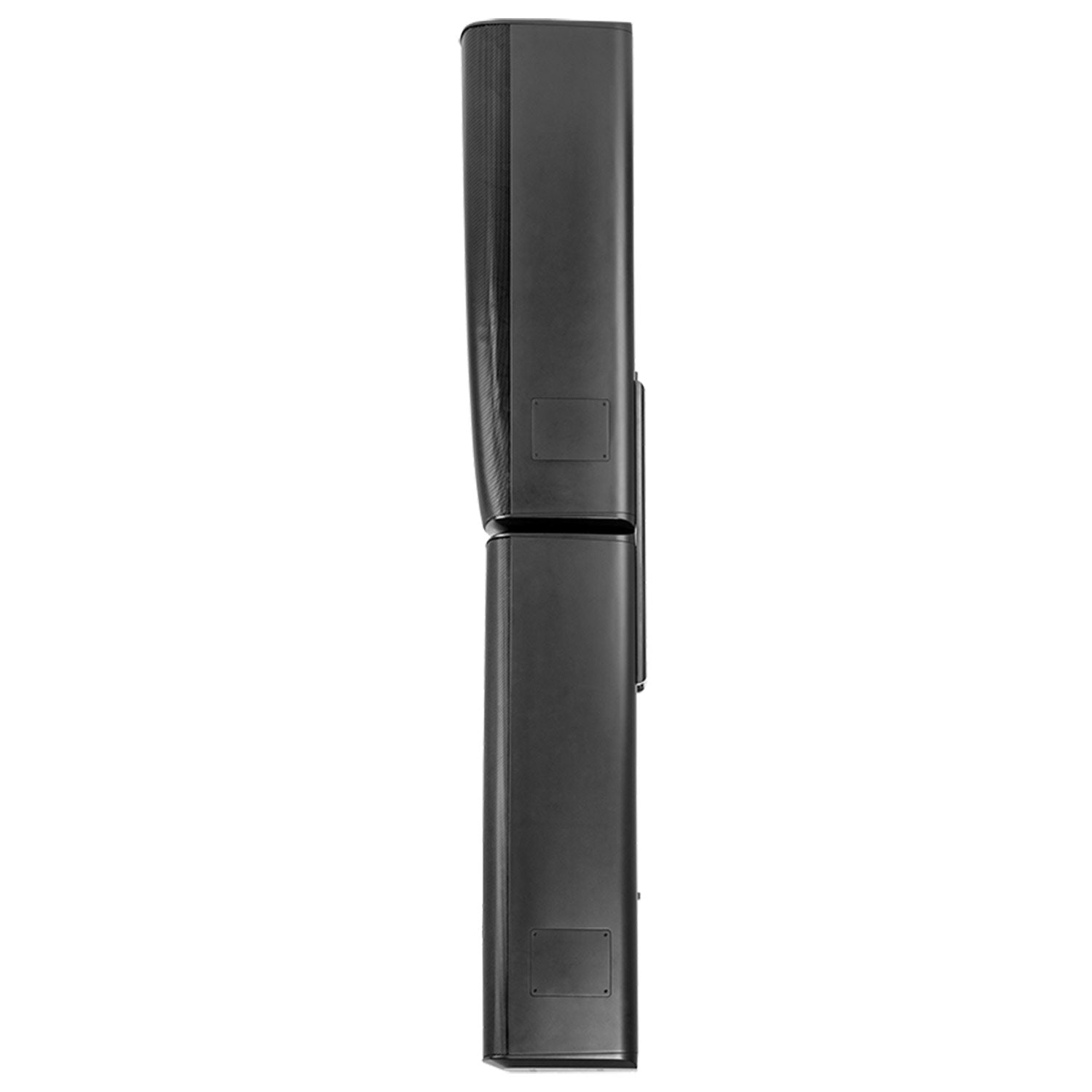

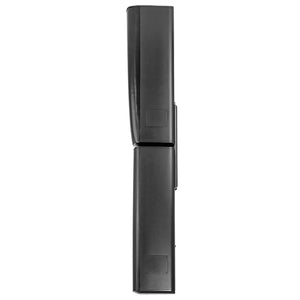

JBL CBT 1000E Purpose-Designed Extension for CBT 1000 Line Array Column Speaker (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
JBL CBT 1000E Purpose-Designed Extension for CBT 1000 Line Array Column Speaker (Black)
Sale price$1,815.00
Regular price$2,178.00
Description
When connected to a CBT1000 line array column speaker, the CBT1000E Extension provides extended bass response, extended pattern control, and increased sound output levels. The combined array system provides Constant Beamwidth Technology™, which represents a breakthrough in pattern control consistency, utilizing complex analog beamforming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of passive column speakers.
Features:
- Components: Six (6) 165 mm (6.5 in) high-excursion LF drivers
- 1500 Watt power handling
- Built-in purpose-designed crossover network, for combining with CBT1000
- Coupler plate included
- Extended pattern control
- Patent-pending Constant Beamwidth Technology ™ provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
- Swivel (pan)/tilt wall bracket and coupler plate included.

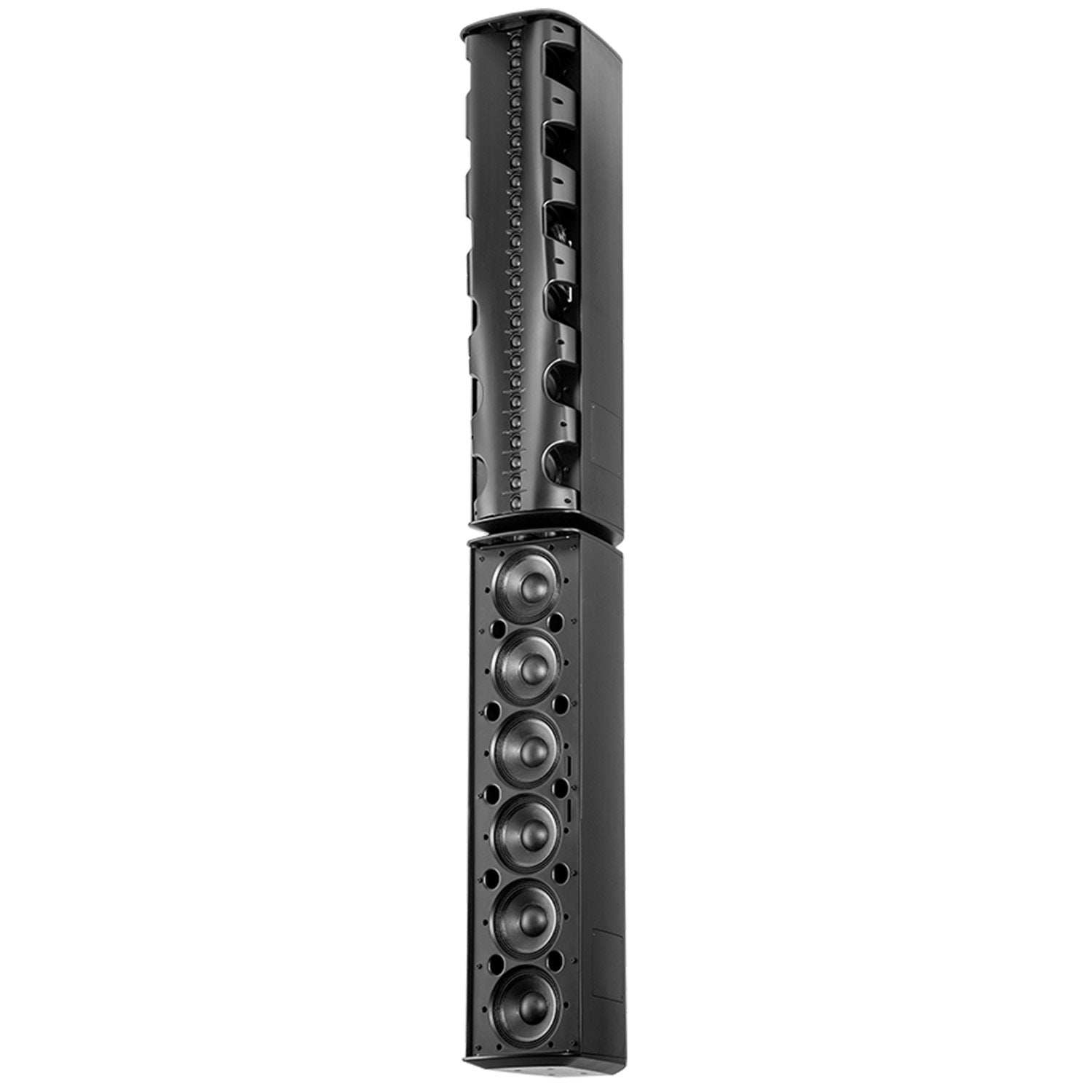

| 1COMPONENTS | Twenty-four (24) 25 mm (1 in) extra-high-power soft dome tweeters and Twelve (12) 165 mm (6.5 in) high-excursion LF drivers (CBT1000+1000E) |
| FREQUENCY RANGE (-10 DB) | 38 Hz - 20 kHz |
| Coverage | Vertical (selectable via switch) |
| Sensitivity (2.83V@ 1m) | 102 dB (at highest sensitivity setting: “Point” pattern up, “Point” pattern down, “Speech” voicing, in free space) 95 dB (at lowest sensitivity setting: “Medium” pattern up, “Downfill” pattern down, “Music” voicing in free space) |
| Nominal Impedance | 4 ohms |
| Power Capacity | 3000 W (12000 W peak), 2 hrs 2000 W (8000 W peak), 100 hrs |
| Max SPL | Highest directivity setting: (“Point” pattern up, “Point” pattern down) with “Speech” voicing: 131 dB continuous average pink noiseÊ 134 dB continuous programÊ 137 dB PeakÊ Highest directivity setting: (“Point” pattern up, “Point” pattern down) with “Music” voicing: 127 dB continuous average pink noiseÊ 130 dB continuous programÊ 133 dB peakÊ Lowest directivity setting: (“Medium” pattern up, “Downfill” pattern down) with “Speech” voicing: 128 dB continuous average pink noiseÊ 131 dB continuous programÊ 134 dB peakÊ Lowest directivity setting: (“Medium” pattern up, “Downfill” pattern down) with “Music” voicing: 124 |
| Vertical Coverage Settings | Coverage is effective (frequency response similar) beyond the traditional -6 dB coverage angles. This is especially useful in compensating for differences in listening distances. Figures show both the -6 dB and -12 dB coverage angles (at 3 kHz). Angles are in reference to cabinet aiming axis. Pattern UP Settings:Ê “Point”: -6dB @ +7¡, -12 dB @ +12¡ “Tight”: -6dB @ +9¡, -12 dB @ +15¡ “Narrow”: -6dB @ +10¡, -12 dB @ +20¡ “Medium”: -6dB @ +13¡, -12 dB @ +24¡ Pattern DOWN Settings: “Point”: -6dB @ -7¡, -12 dB @ -12¡ |
| Horizontal Coverage | Patent-pending Tapered Horizontal Waveguide continuously variable. Long-throw (top) section: 100¡ Middle section: 130¡ Short-throw (bottom) section: 160¡ |
| Transducers | |
| Low Frequency Drivers | 12 pcs, 165 mm (6.5 in) drivers, neodymium, 50 mm (2 in) voice coil, damped blended textile surround, coated diaphragm for moisture, UV, and salt resistance. |
| High Frequency Drivers | 24 pcs, 25 mm (1 in) drivers, neodymium, encased magnet and coated diaphragm for moisture, UV, and salt resistance. |
| Enclosure | Fiberglass reinforced ABS cabinet, powder coated 1050 aluminum grille |
| Outdoor Capability | IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. Exceeds Mil Spec 810 for humidity, temperature / UV, ASTM G85 for acid-air/salt-spray (200 hrs). |
| Colors | Black (RAL9004) or White (-WH) (RAL9016) |
| Insert Points | Coupler plate utilizes the bottom two rows of the top speaker and the top two rows of the bottom speaker, leaving available: 20 individual M8 inserts on back panel (20 mm deep) for use with swivel (pan)/tilt bracket(s), plus 4 individual M8 inserts on top and 4 on bottom of cabinet end-caps. |
| Mounting | Included two-part swivel (pan)/tilt wall bracket provides continuously variable +/- 45 degree left-right swivel aiming (at no up/down tilt Ð see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously variable +/- 5.25 degree tilt, in the following increments: 5.25¡, 5.0¡, 4.5¡, 4¡, 3.75¡, 3.5¡, 3.0¡, 2.75¡, 2.5¡, 2.0¡, 1.75¡, and 1.25¡. Twenty (20) available threaded mounting points located on back panel of cabinet conform to industry standard rectangular 127 x 70 mm (5.0 x 2.75 in) pattern for legacy OmniMount¨ and other compatible thirdÐparty brackets. Four (4) threaded mount points on the top end-cap and four (4) on the bottom end-cap. Threaded mounting points can be utilized for suspension. (Always use multiple mounting points.) |
| Dimensions (H x W x D) | 2040 mm x 250 mm x 345 mm (80.4 x 9.9 x 13.6 in) |
| Net Weight | (cabinet): 47.2 kg (104 lbs) |
| Included Accessories | Two-piece swivel (pan)/tilt wall bracket Coupler Plate |
| Optional Accessories | MTC-PC2 terminal panel cover MTC-CBT1K-ACC1 Accessory kit includes: 2 pcs MTC-CBT-FM3 flush-mount brackets 1 pc MTC-CBT-OS3 offset bracket (for CBT 1000+1000E array Ð works in conjunction with CBT 1000E’s included Coupler Plate for locating CBT 1000E extension cabinet above CBT 1000 instead of below it) MTC-CBT-SUS3 CBT Series suspension bracket kit (2 pcs included to provide top and bottom attachment points) |
When connected to a CBT1000 line array column speaker, the CBT1000E Extension provides extended bass response, extended pattern control, and increased sound output levels. The combined array system provides Constant Beamwidth Technology™, which represents a breakthrough in pattern control consistency, utilizing complex analog beamforming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of passive column speakers.
Features:
- Components: Six (6) 165 mm (6.5 in) high-excursion LF drivers
- 1500 Watt power handling
- Built-in purpose-designed crossover network, for combining with CBT1000
- Coupler plate included
- Extended pattern control
- Patent-pending Constant Beamwidth Technology ™ provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
- Swivel (pan)/tilt wall bracket and coupler plate included.
| 1COMPONENTS | Twenty-four (24) 25 mm (1 in) extra-high-power soft dome tweeters and Twelve (12) 165 mm (6.5 in) high-excursion LF drivers (CBT1000+1000E) |
| FREQUENCY RANGE (-10 DB) | 38 Hz - 20 kHz |
| Coverage | Vertical (selectable via switch) |
| Sensitivity (2.83V@ 1m) | 102 dB (at highest sensitivity setting: “Point” pattern up, “Point” pattern down, “Speech” voicing, in free space) 95 dB (at lowest sensitivity setting: “Medium” pattern up, “Downfill” pattern down, “Music” voicing in free space) |
| Nominal Impedance | 4 ohms |
| Power Capacity | 3000 W (12000 W peak), 2 hrs 2000 W (8000 W peak), 100 hrs |
| Max SPL | Highest directivity setting: (“Point” pattern up, “Point” pattern down) with “Speech” voicing: 131 dB continuous average pink noiseÊ 134 dB continuous programÊ 137 dB PeakÊ Highest directivity setting: (“Point” pattern up, “Point” pattern down) with “Music” voicing: 127 dB continuous average pink noiseÊ 130 dB continuous programÊ 133 dB peakÊ Lowest directivity setting: (“Medium” pattern up, “Downfill” pattern down) with “Speech” voicing: 128 dB continuous average pink noiseÊ 131 dB continuous programÊ 134 dB peakÊ Lowest directivity setting: (“Medium” pattern up, “Downfill” pattern down) with “Music” voicing: 124 |
| Vertical Coverage Settings | Coverage is effective (frequency response similar) beyond the traditional -6 dB coverage angles. This is especially useful in compensating for differences in listening distances. Figures show both the -6 dB and -12 dB coverage angles (at 3 kHz). Angles are in reference to cabinet aiming axis. Pattern UP Settings:Ê “Point”: -6dB @ +7¡, -12 dB @ +12¡ “Tight”: -6dB @ +9¡, -12 dB @ +15¡ “Narrow”: -6dB @ +10¡, -12 dB @ +20¡ “Medium”: -6dB @ +13¡, -12 dB @ +24¡ Pattern DOWN Settings: “Point”: -6dB @ -7¡, -12 dB @ -12¡ |
| Horizontal Coverage | Patent-pending Tapered Horizontal Waveguide continuously variable. Long-throw (top) section: 100¡ Middle section: 130¡ Short-throw (bottom) section: 160¡ |
| Transducers | |
| Low Frequency Drivers | 12 pcs, 165 mm (6.5 in) drivers, neodymium, 50 mm (2 in) voice coil, damped blended textile surround, coated diaphragm for moisture, UV, and salt resistance. |
| High Frequency Drivers | 24 pcs, 25 mm (1 in) drivers, neodymium, encased magnet and coated diaphragm for moisture, UV, and salt resistance. |
| Enclosure | Fiberglass reinforced ABS cabinet, powder coated 1050 aluminum grille |
| Outdoor Capability | IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. Exceeds Mil Spec 810 for humidity, temperature / UV, ASTM G85 for acid-air/salt-spray (200 hrs). |
| Colors | Black (RAL9004) or White (-WH) (RAL9016) |
| Insert Points | Coupler plate utilizes the bottom two rows of the top speaker and the top two rows of the bottom speaker, leaving available: 20 individual M8 inserts on back panel (20 mm deep) for use with swivel (pan)/tilt bracket(s), plus 4 individual M8 inserts on top and 4 on bottom of cabinet end-caps. |
| Mounting | Included two-part swivel (pan)/tilt wall bracket provides continuously variable +/- 45 degree left-right swivel aiming (at no up/down tilt Ð see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously variable +/- 5.25 degree tilt, in the following increments: 5.25¡, 5.0¡, 4.5¡, 4¡, 3.75¡, 3.5¡, 3.0¡, 2.75¡, 2.5¡, 2.0¡, 1.75¡, and 1.25¡. Twenty (20) available threaded mounting points located on back panel of cabinet conform to industry standard rectangular 127 x 70 mm (5.0 x 2.75 in) pattern for legacy OmniMount¨ and other compatible thirdÐparty brackets. Four (4) threaded mount points on the top end-cap and four (4) on the bottom end-cap. Threaded mounting points can be utilized for suspension. (Always use multiple mounting points.) |
| Dimensions (H x W x D) | 2040 mm x 250 mm x 345 mm (80.4 x 9.9 x 13.6 in) |
| Net Weight | (cabinet): 47.2 kg (104 lbs) |
| Included Accessories | Two-piece swivel (pan)/tilt wall bracket Coupler Plate |
| Optional Accessories | MTC-PC2 terminal panel cover MTC-CBT1K-ACC1 Accessory kit includes: 2 pcs MTC-CBT-FM3 flush-mount brackets 1 pc MTC-CBT-OS3 offset bracket (for CBT 1000+1000E array Ð works in conjunction with CBT 1000E’s included Coupler Plate for locating CBT 1000E extension cabinet above CBT 1000 instead of below it) MTC-CBT-SUS3 CBT Series suspension bracket kit (2 pcs included to provide top and bottom attachment points) |
