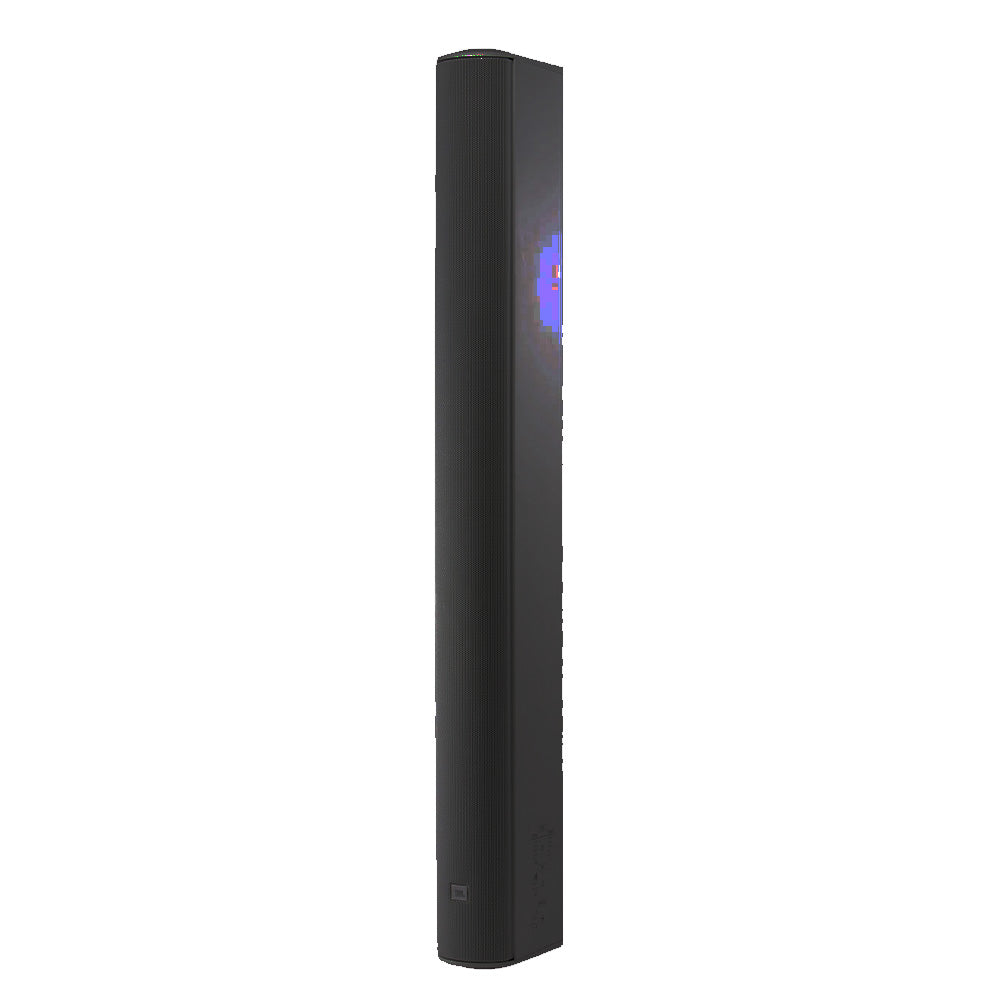

JBL CBT 100LA-1 Line Array Speaker Column (Black)


  • Dale #:

    JBL-CBT100LA1
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The CBT 100LA-1, with Constant Beamwidth Technology™, represents a breakthrough in pattern control consistency, utilizing complex analog delay beam-forming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing th... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The CBT 100LA-1, with Constant Beamwidth Technology™, represents a breakthrough in pattern control consistency, utilizing complex analog delay beam-forming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor column speakers.

Features

  • Patent-pending Constant Beamwidth Technology™ provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
  • Vertical pattern coverage switchable between 40° for medium-throw coverage and 15° for long-throw applications.
  • Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
  • Dynamic SonicGuard™ overload protection
  • Swivel (pan)/tilt wall bracket included.
  • Built-in 70V/100V transformer, plus 8 ohm direct capability.

More +

Product Specs

ComponentsSixteen 50 mm (2 in) Full-Range
Frequency Range (-10 dB)80 Hz – 20 kHz
Vertical CoverageVertical
Narrow Mode15° (2 kHz - 16 kHz) (±10°)
Broad Mode40° (1 kHz - 16 kHz) (±10°)
Horizontal150° (ave, 1 kHz – 4 kHz, ±20°)
Sensitivity (2.83V@ 1m)Narrow: (speech mode) 96 dB (2 kHz - 14 kHz ) (music mode) 93 dB (300 Hz - 18 kHz)
Broad: (speech mode) 93 dB (2 kHz - 14 kHz) (music mode) 90 dB (300 Hz - 18 kHz)
Nominal Impedance8 ohms (in Thru mode)
Power Capacity (8 ohm setting)325 W (1300W peak), 2 hrs
200 W (800W peak), 100 hrs
Max SPLNarrow: (speech mode) 121 dB cont ave (127 peak) (music mode) 118 dB cont ave (124 peak)
Broad: (speech mode) 118 dB cont ave (124 peak) (music mode) 115 dB cont ave (121 peak)
70V/100V Transformer Taps120W, 60W, 30W (15W at 70V only), and 8Ω thru, via switch
EnclosureFiberglass reinforced ABS cabinet, painted aluminum grille
Outdoor CapabilityOutdoor Capability
Outdoor CapabilityBlack or White (-WH)
Insert Points18 M6 insert points on back panel.
MountingIncluded swivel (pan)/tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt -- see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously adjustable ±15 degree tilt, as well as 5 degree fixed increment points. Eighteen threaded mounting points located on back panel conform to industry standard rectangular 108 x 51 mm (4.25 x 2.0 in) pattern for OmniMount® 30.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension.
Dimensions (H x W x D)1000 x 98.5 x 153 (39.4 in x 3.8 in x 6.0 in)
Net Weight7.2 kg (15.8 lb)
Included AccessoriesSwivel (pan) / tilt wall bracket
Optional AccessoriesMTC-PC2 terminal panel cover
MTC-CBT-FM1 flush-mount low-profile wall-mount bracket
MTC-CBT-SMB1 Stand-Mount Bracket for use with 35 mm speaker stand
