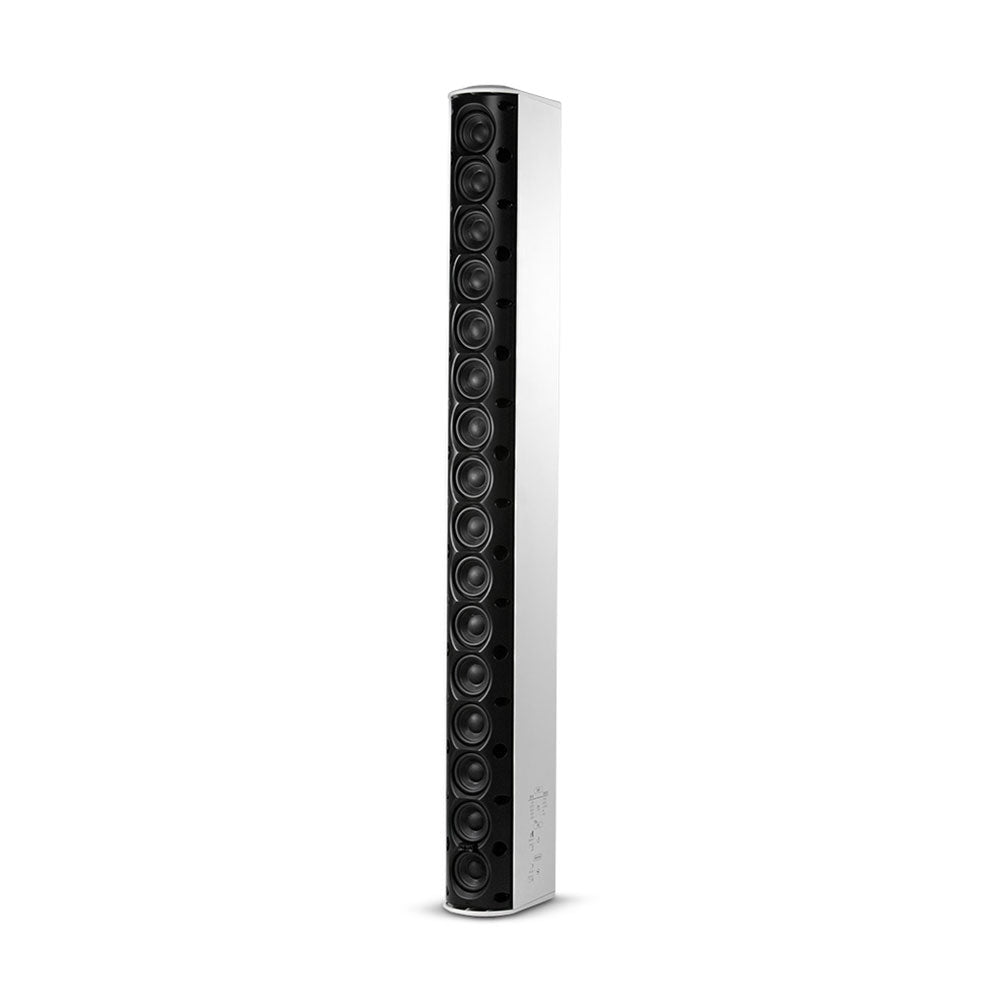

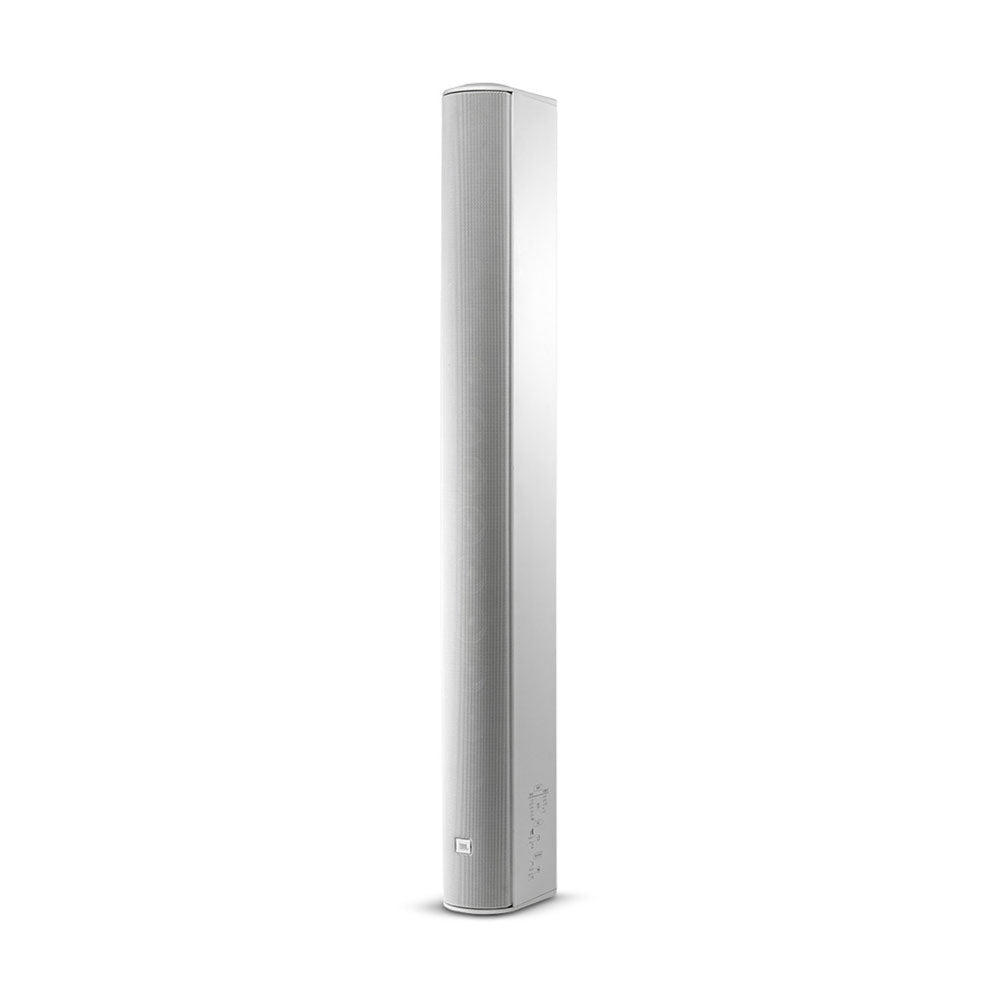

JBL CBT 100LA-LS Line Array Column Loudspeaker with EN54:24 Certification (White)


  • Dale #:

    JBL-CBT100LALSWH
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The CBT 100LA-LS, with Constant Beamwidth Technology™, represents a breakthrough in pattern control consistency, utilizing complex analog delay beam-forming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing t... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The CBT 100LA-LS, with Constant Beamwidth Technology™, represents a breakthrough in pattern control consistency, utilizing complex analog delay beam-forming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor column speakers.

Features:

  • Patent-pending Constant Beamwidth Technology™ provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
  • EN54-24 Compliant (when installed with included MTC-PC2 panel cover).
  • Vertical pattern coverage switchable between 40° for medium-throw coverage and 15° for long-throw applications.
  • Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
  • Dynamic SonicGuard™ overload protection
  • Swivel (pan)/tilt wall bracket included.
  • Built-in 70V/100V transformer, plus 8 ohm direct capability.

More +

Product Specs

Components Sixteen 50 mm (2 in) Full-Range
Frequency Range (-10 dB) 120 Hz – 20 kHz
Coverage Pattern Vertical:
Narrow Mode: 15° (2 kHz - 16 kHz) (±10°)
Broad Mode: 40° (1 kHz - 16 kHz) (±10°)
Horizontal: 150° (ave, 1 kHz – 4 kHz, ±20°)
Sensitivity (2.83V@ 1m) Narrow: (speech mode) 96 dB (2 kHz - 14 kHz )
(music mode) 93 dB (300 Hz - 18 kHz)
Broad: (speech mode) 93 dB (2 kHz - 14 kHz)
(music mode) 90 dB (300 Hz - 18 kHz)
EN54 Sensitivity (@ 4m) 76 dB (per EN54:24 spectrum and measurement conditions at 4 meters, set at broad/music mode.)
Nominal Impedance 8 ohms (in Thru mode)
15w@70v; 30w@100v Tap = 333Ω
30w@70v; 60w@100v Tap = 167Ω
60w@70v; 120w@100v Tap = 83Ω
120w@70v; N/C@100v Tap = 42Ω
Power Capacity
(8 ohm setting)
325 W (1300W peak), 2 hrs
200 W (800W peak), 100 hrs
Max SPL Narrow: (speech mode) 121 dB cont ave (127 peak)
(music mode) 118 dB cont ave (124 peak)
Broad: (speech mode) 118 dB cont ave (124 peak)
(music mode) 115 dB cont ave (121 peak)
EN54 Max SPL (@ 4m) 92 dB (per EN54:24 spectrum and measurement conditions, at 4 meters)
70V/100V Transformer Taps 120W, 60W, 30W, (15W at 70V only), and 8 thru, via switch
Reference Axis Specification and measurement referenced on-axis vertically and horizontally to the center point of the speaker baffle.
Enclosure Fiberglass reinforced ABS cabinet with UL94-5VB flammability rating, painted aluminum grille
Outdoor Capability IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant.
Colors Black or White (-WH)
Insert Points 18 M6 insert points on back panel.
Mounting Included swivel (pan)/tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt -- see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously adjustable ±15 degree tilt, as well as 5 degree fixed increment points. Eighteen threaded mounting points located on back panel conform to industry standard rectangular 108 x 51 mm (4.25 x 2.0 in) pattern for OmniMount® 30.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension.
Dimensions (H x W x D) 1000 x 98.5 x 153 (39.4 in x 3.8 in x 6.0 in)
Net Weight 7.2 kg (15.8 lb)
Safety Agency EN54-24:2008 certified (Certificate No. 0359-CPR-00432), when installed with MTC-PC2 terminal panel cover. Cabinet UL94-5VB flammability rated. In accordance with the requirements of IEC60849/EN60849. Transformer UL registered per UL1876.
Included Accessories Swivel (pan) / tilt wall bracket
MTC-PC2 terminal panel cover
Optional Accessories MTC-CBT-FM1 flush-mount low-profile wall-mount bracket
MTC-CBT-SMB1 Stand-Mount Bracket for use with 35 mm speaker stand
