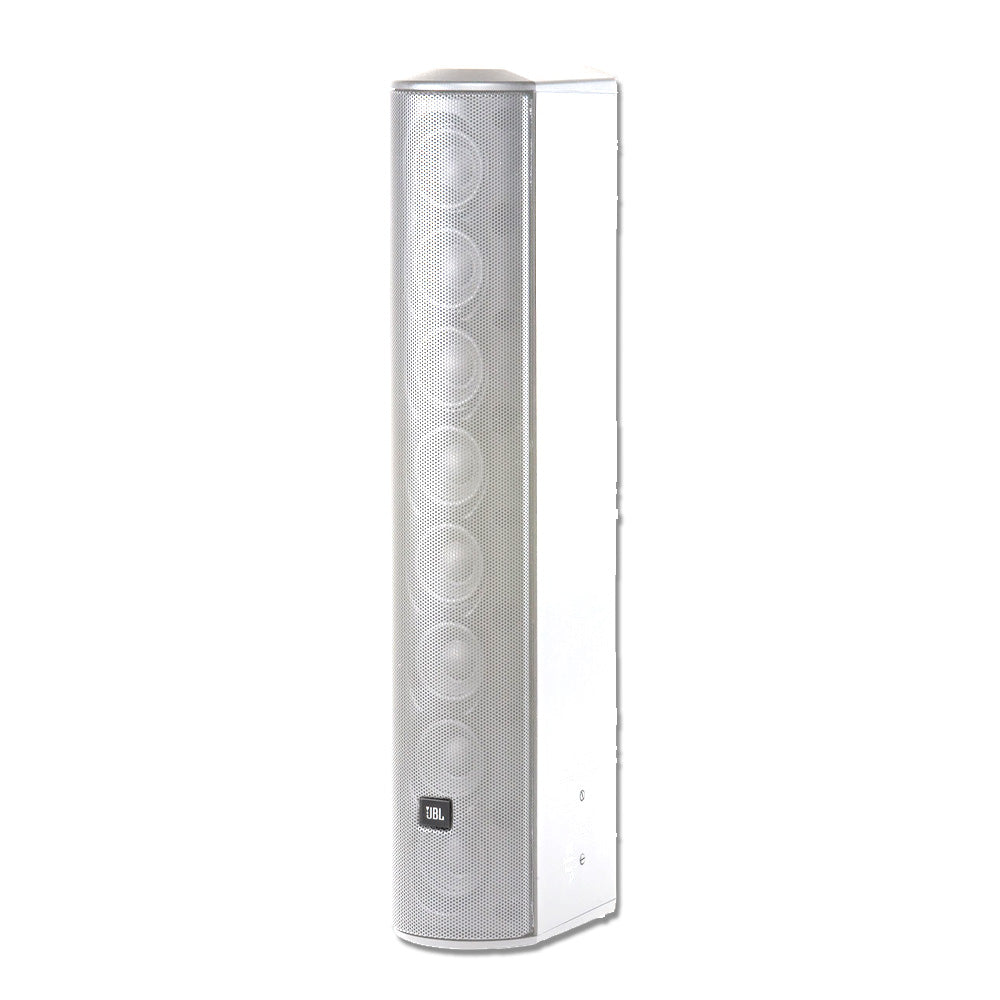

JBL CBT 50LA-1WH Line Array Speaker Column (White)


  • Dale #:

    JBL-CBT50LA1WH
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The CBT 50LA-1, with Constant Beamwidth Technology™, represents a breakthrough in pattern control, utilizing analog delay beam-forming and amplitude tapering to accomplish consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The CBT 50LA-1, with Constant Beamwidth Technology™, represents a breakthrough in pattern control, utilizing analog delay beam-forming and amplitude tapering to accomplish consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor passive column speakers.

Features

  • Patent-pending Constant Beamwidth Technology™ provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
  • Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
  • Dynamic SonicGuard™ overload protection
  • Built-in 70V/100V transformer, plus 8 ohm direct capability.
  • Swivel (pan) / tilt wall bracket included.

More +

Product Specs

Components Eight 50 mm
(2 in) Full-Range
Frequency Range (-10 dB) 80 Hz – 20 kHz
Coverage Pattern Vertical 20° (1.5 kHz - 16 kHz, ±10°)
Horizontal 150° (ave, 1 kHz – 4 kHz, ±20°)
Sensitivity (2.83V@ 1m) 93 dB (speech mode, 2 kHz - 14 kHz)
89 dB (music mode, 300 Hz - 18 kHz)
Nominal Impedance 8 ohms
Power Capacity
(8 ohm setting)
150W (600W peak), 2 hrs
100 W (400W peak), 100 hrs
Max SPL Speech mode: 115 dB cont ave (121 peak)
Music mode: 111 dB cont ave (117 peak)
70V/100V Transformer Taps 60W, 30W, 15W, (7.5W at 70V only), and 8Ω thru, via switch
Enclosure Fiberglass reinforced ABS cabinet, painted aluminum grille
Outdoor Capability IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant.
Colors Black or White (-WH)
Insert Points Ten M6 insert points on back panel.
Mounting Included swivel (pan) / tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt -- see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously adjustable ±15 degree tilt, as well as 5 degree fixed increment points within the range. Ten threaded mounting points located on back panel conform to industry standard rectangular 108 x 51 mm (4.25 x 2.0 in) pattern for OmniMount® 30.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension.
Dimensions (H x W x D) 528 x 99 x 153 mm
(20.8 x 3.9 x 6.0 in)
Net Weight 4.1 kg (9.0 lb)
Included Accessories Swivel (pan) / tilt wall bracket
Optional Accessories MTC-PC2 terminal panel cover
MTC-CBT-FM1 flush-mount low-profile wall-mount bracket
MTC-CBT-SMB1 Stand-Mount Bracket for use with 35 mm speaker stand

More +
