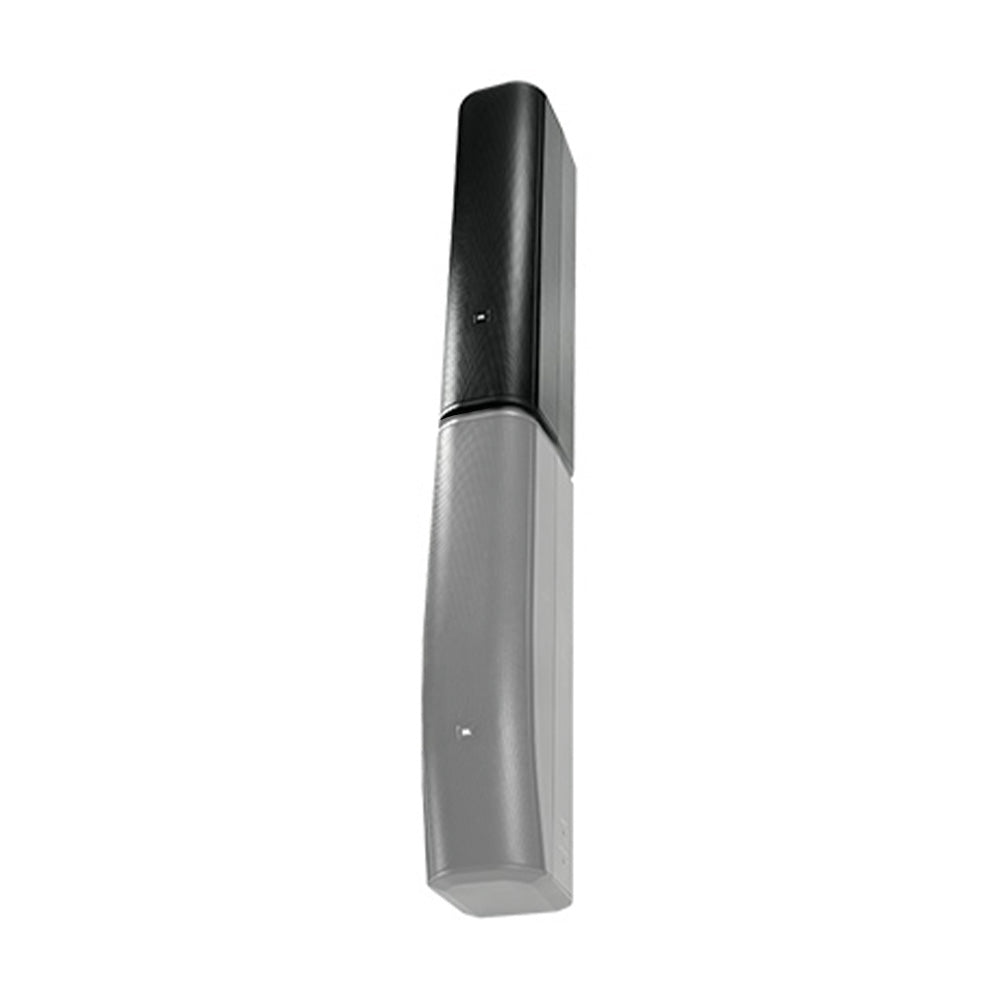

JBL CBT 70JE-1 Line Array Extension Speaker Column (Black)


  • Dale #:

    JBL-CBT70JE1
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

When connected to a CBT 70J-1 line array column speaker, the CBT 70JE-1 Extension provides extended bass response, extended pattern control, and increased sound output levels. The combined array system provides Constant Beamwidth Technology™, which represents a breakthrough in pattern control con... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

When connected to a CBT 70J-1 line array column speaker, the CBT 70JE-1 Extension provides extended bass response, extended pattern control, and increased sound output levels. The combined array system provides Constant Beamwidth Technology™, which represents a breakthrough in pattern control consistency, utilizing complex analog beamforming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of passive column speakers.

Features

  • Components: Four 125 mm (5 in) high-power LF drivers (70JE-1)
  • 500 Watt power handling (70JE-1)
  • Built-in purpose-designed crossover network, for combining with CBT 70J-1 (70JE-1)
  • Coupler plate included (70JE-1)
  • Extended pattern control (to 400 Hz for ± 20° control, to 200 Hz for substantial off-axis cancellation)
  • Extended bass response to 45 Hz.
  • Components: Sixteen 25 mm (1 in) soft dome tweeters and eight 125 mm (5 in) high-power LF drivers.
  • Patent-pending Constant Beamwidth Technology™ provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
  • Vertical pattern coverage switchable between 45° for medium-throw coverage and 25° for long-throw applications.
  • Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
  • Coupler plate and wall swivel (pan)/tilt bracket included (rear insert-point pattern fits standard third-party brackets)

More +

Product Specs

ComponentsEight (8) 130 mm (5 in) LF drivers
Sixteen (16) 25 mm (1 in) HF drivers
Frequency Range (-10 db)45 Hz – 20 kHz
CoverageVertical (selectable via switch)
Narrow Mode25° (2 kHz – 16 kHz) (±10°)
Broad Mode45° (350 Hz – 16 kHz) (±10°)
Horizontal150° (500 Hz – 18 kHz, ±20°)
Sensitivity (@1m)Narrow: (speech mode) 98 dB @ 2.83V, 95 dB @ 2.0V (150 Hz – 8 kHz)
(music mode) 94 dB @ 2.83V, 91 dB @ 2.0V (80 Hz – 18 kHz)
Broad: (speech mode) 97 dB @ 2.83V, 94 dB @ 2.0V (100 – 8 kHz)
(music mode) 93 dB @ 2.83V, 90 dB @ 2.0V (70 Hz – 18 kHz)
Nominal Impedance4 ohms
Power Capacity1000 W (4000 W peak), 2 hrs
700 W (2800 W peak), 100 hrs
Max SPLNarrow: (speech mode) 125 dB cont ave (131 peak)
(music mode) 121 dB cont ave (127 peak)
Broad: (speech mode) 124 dB cont ave (130 peak)
(music mode) 120 dB cont ave (126 peak)
Transducers
Low Frequency Drivers8 pcs, 130 mm (5 in) drivers, dual magnet neodymium, 38 mm (1.5 in) voice coil, damped blended textile surround, coated diaphragm for moisture, UV and salt resistance, shielded.
High Frequency Drivers16 pcs, 25 mm (1 in) drivers, dual magnet neodymium, encased magnet and coated diaphragm for moisture, UV and salt resistance, shielded.
EnclosureFiberglass-reinforced ABS cabinet, painted aluminum grille.
Outdoor CapabilityIP-54 rated, per IEC 529, UV, moisture and salt-spray resistant.
ColorsBlack or white (-WH)
Insert Points20 insert points total, 8 utilized for coupler plate, M6 (16 mm deep) on back panel
MountingCoupler plate joins the CBT70J-1 and 70JE-1 end-to-end. Threaded points on coupler plate accepts OmniMount™ 60.0 Series and 120.0 Series compatible wall-mount brackets, as well as points for the swivel (pan)/tilt wall bracket that is included with CBT 70J-1. Twelve (12) additional M6 mounting points accept forged shoulder steel eyebolts or swivel clips for suspension.
Dimensions (H x W x D)1388 x 170 x 237 mm (54.8 x 6.7 x 9.3 in)
Net Weight20.4 kg (45 lb)
Included AccessoriesCoupler plate (included with 70JE-1)
Swivel (pan) / tilt wall bracket (included with 70J-1)
Optional AccessoriesMTC-PC2 terminal panel cover
MTC-CBT-SMB1 Stand-Mount Bracket for use with 35 mm heavy duty speaker stand (must be heavy-duty stand for stability with this array)
MTC-CBT-FM2 flush-mount low-profile
wall-mount bracket
Components - 70JE-1Four (4) 130 mm (5 in) LF drivers
Frequency Range (-10 dB) - 70JE-145 Hz – 700 Hz
Sensitivity (2.83V @ 1m) - 70JE-190 dB full space, 96 dB half-space (65 Hz - 300 Hz)
Nominal Impedance - 70JE-18 ohms
Power Capacity - 70JE-1500 W (2000 W peak), 2 hrs
350 W (1400 W peak), 100 hrs
Max SPL - 70JE-1117 dB
Net Weight - 70JE-18.2 kg (18 lb)
