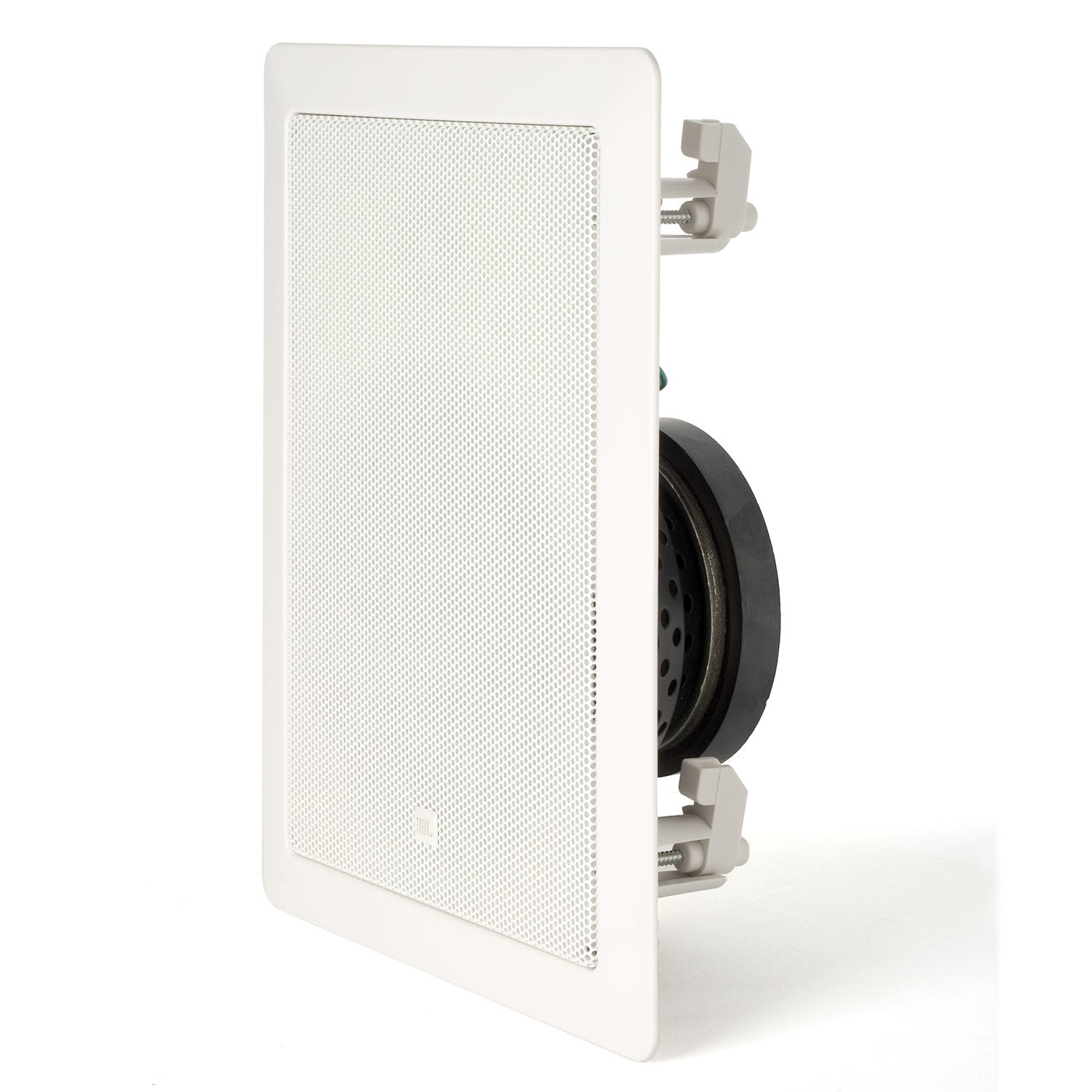

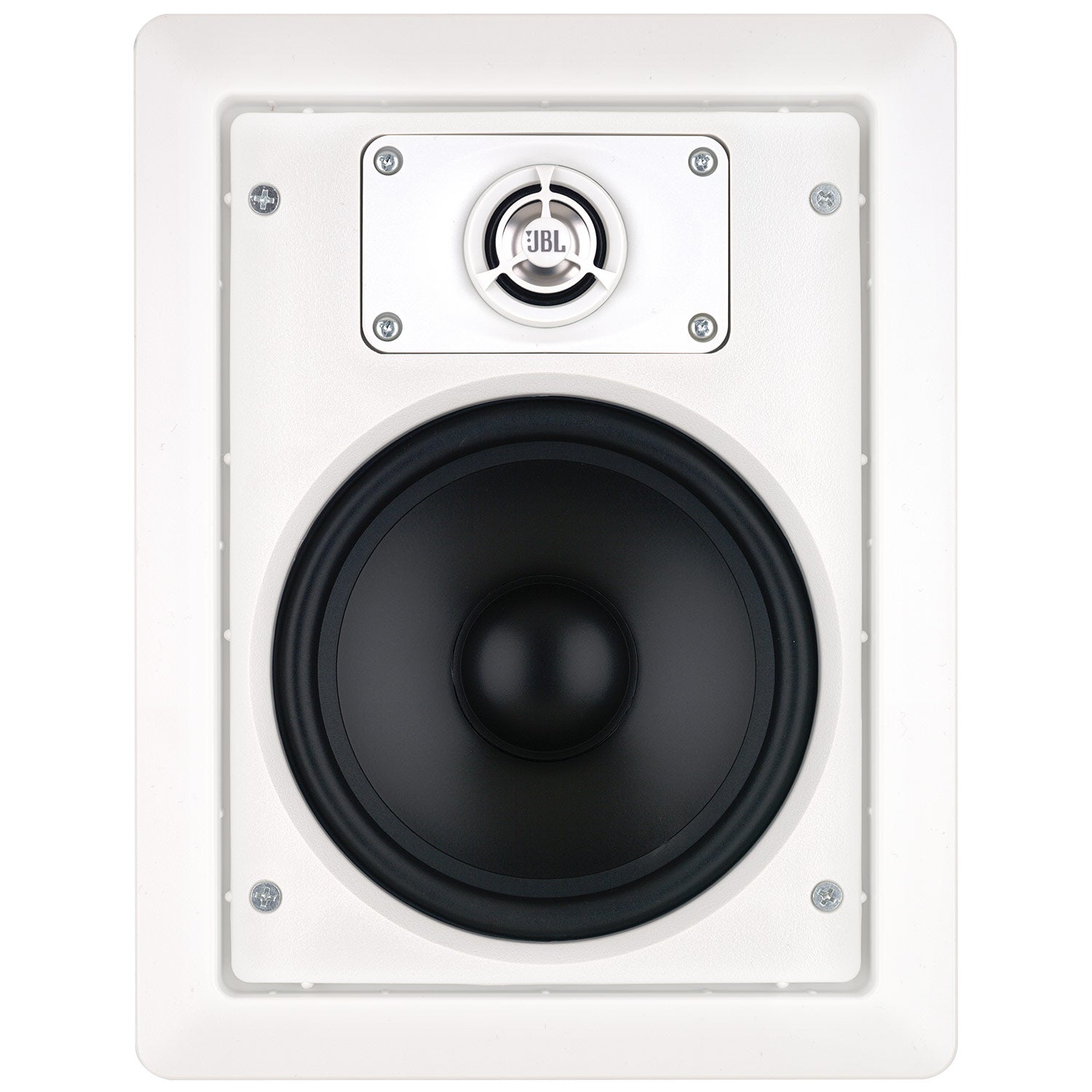

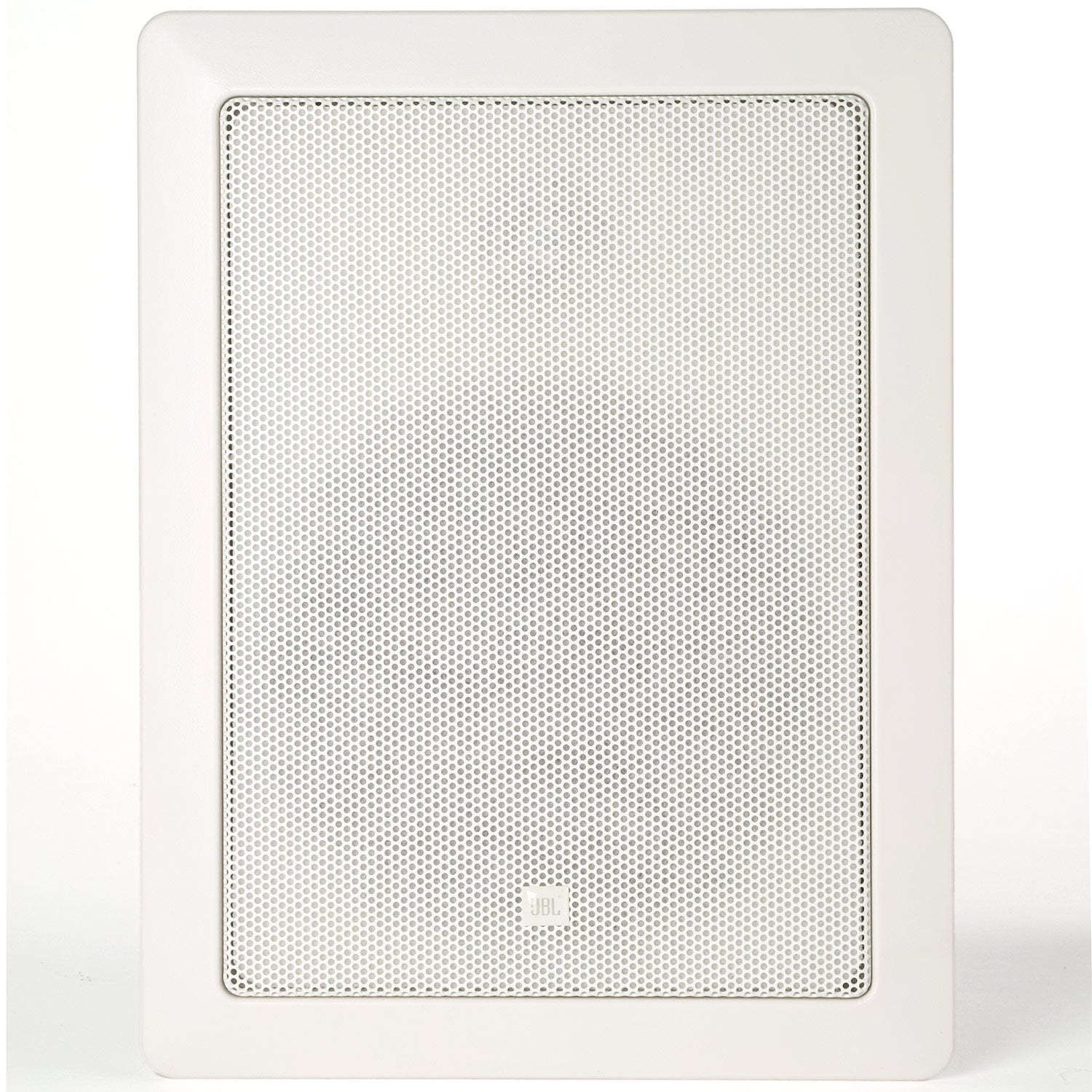

JBL Control 126WT Premium In-Wall Two Way 6.5" Speaker with Transformer
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description

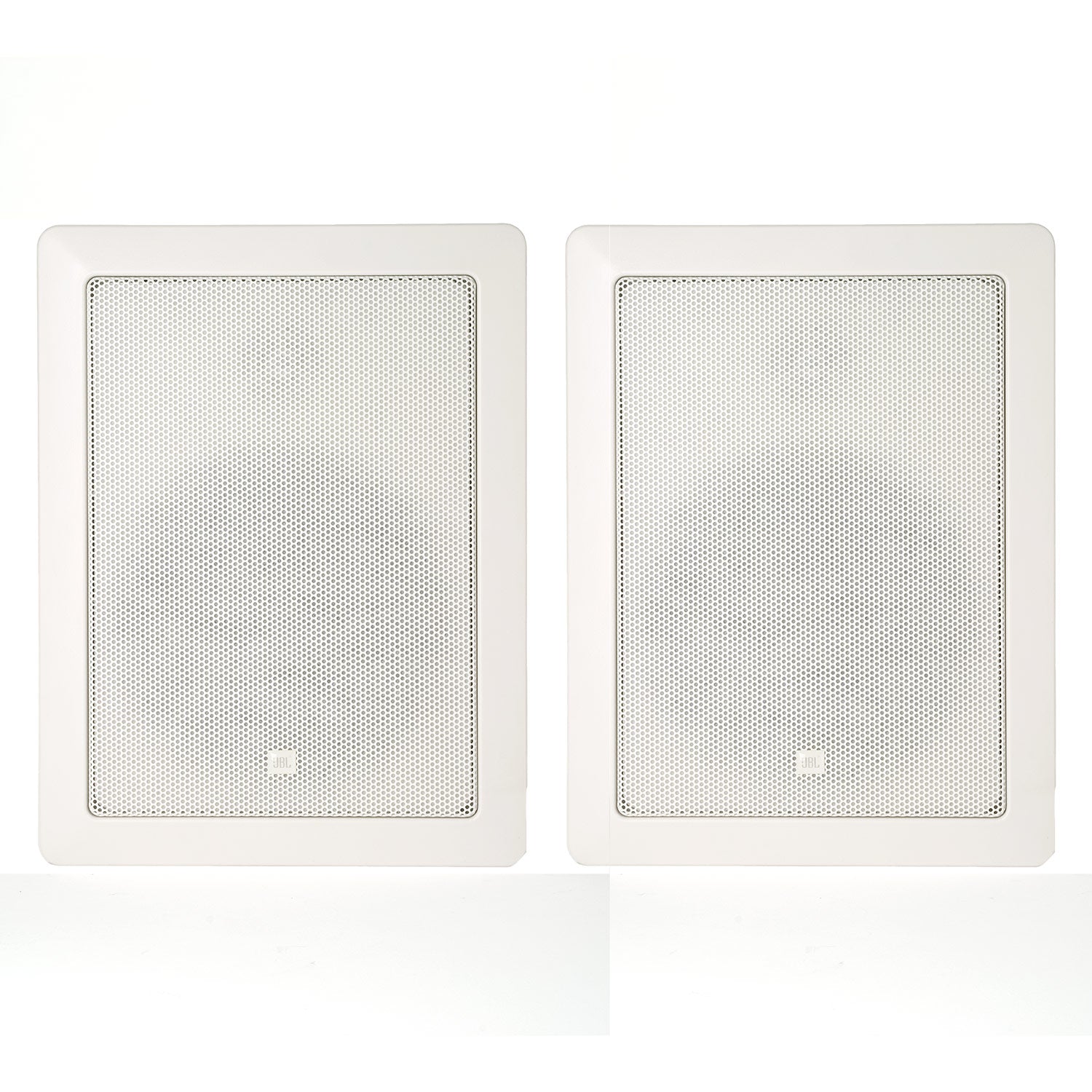

Priced individually, but sold in pairs.
Premium in-wall speaker designed for applications where top performance is required. The high performance 6-1/2 inch woofer features a polymer-coated aluminum cone with pure butyl rubber surround. The 1" pure titanium dome tweeter is mounted on a low-diffraction swivel-mounting system enabling the user to direct high frequencies where required without the diffraction distortion inherent in other aimable tweeter designs. The optional Control 126WT contains a 70V/100V transformer for use on distributed loudspeaker lines.
Features:
- 38 Hz - 20 kHz
- 100W continuous program (50W cont. pink, 200W cont. peak)
- 88 dB sensitivity (1W/1m)
- High-slope crossover network produces natural sound and even coverage.
- 70V/100V transformer with taps at 30W, 15W and 7.5W (126WT)
- Optional MTC-126RIF Rough-In-Frame for new construction installation to wallstuds. [hyperlink to RIF Instructions PDF)
| System | |
| Frequency Range (-10 dB)1 | 38 Hz - 20 kHz |
| Continuous Power Capacity2 | 200 Watts Peak 100 Watts Continuous Program 50 Watts Continuous Pink Noise |
| Sensitivity3 | 88 dB SPL, 1W, 1 m (3.3 ft) |
| Nominal Impedance (126W) | 8 ohms |
| Transformer Taps (126WT) | 70V: 30W, 15W, 7.5W / 3.7W taps |
| 100V | 30W, 15W / 7.5W taps |
| Transducers | |
| Low-Frequency | 165 mm (6.5 in) polymer-coated aluminum cone, pure butyl rubber surround. |
| High-Frequency | 25 mm (1 in) pure-titanium dome with cloth suspension on low-diffraction swivel-mount with -10 degree aimability. |
| Physical | |
| Termination | Screw-down Euroblock-type connector. Max wire size 14 AWG (1.5 mm)2 |
| Crossover Network | 3rd order (18 dB/oct) low-pass to the woofer and 3rd order (18 dB/oct) high-pass to the tweeter. |
| Optimum Air Cavity Behind Speaker | 20 to 40 liters (0.7 to 1.4 cu ft) |
| Outside Dimensions (H x W x D) | 280 x 215 x 105 mm (11 x 8.5 x 4.1 in), 99 mm (3.8 in) front of wall to back of speaker. |
| Cutout Size (H x W) | 246 x 181 mm (9.7 x 7.2 in), Cutout template included. |
| Maximum Wall Thickness | 32 mm (1.25 in) |
| Net Weight (ea) | 126W: 2.1 kg (4.5 lb), 126WT: 2.7 kg (5.9 lb) |
| Shipping Weight (pair) | 126W: 4.8 kg (10.5 lb), 126WT: 6.2 kg (13.5 lb) |
| Included Accessories | Cutout template / paint shield |
| Optional Accessories | MTC-126RIF Rough-In Frame for new construction installation to wallstuds. |
