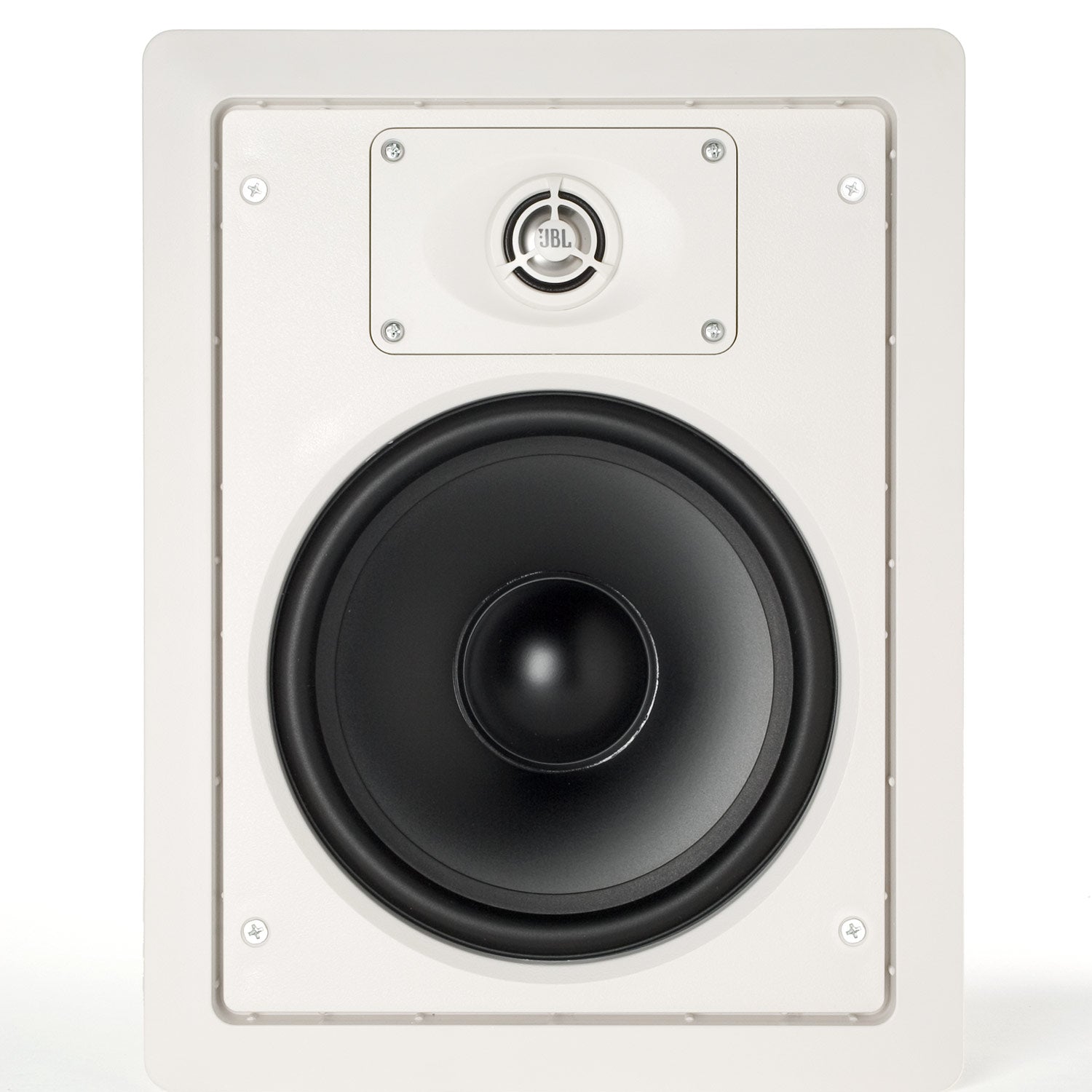

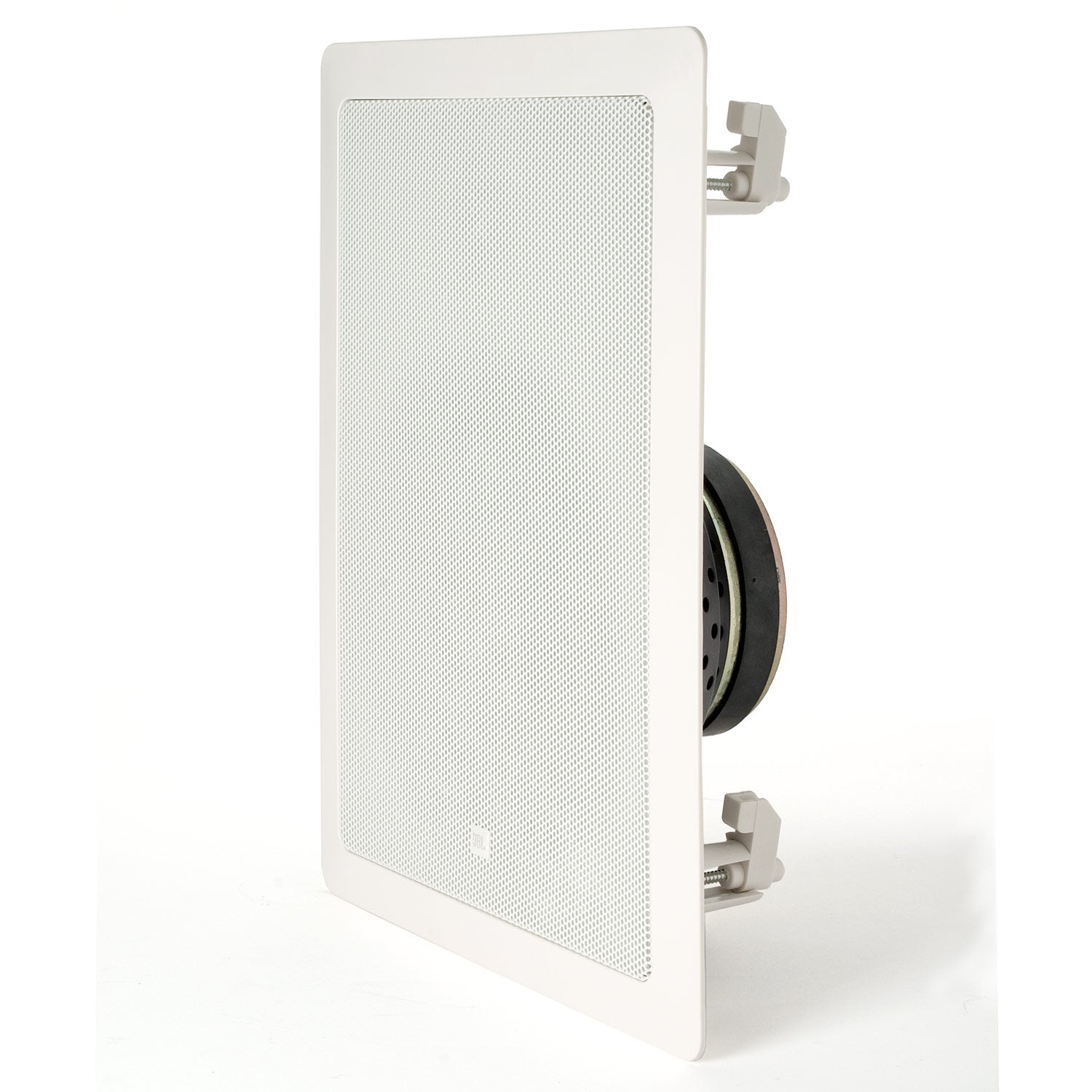

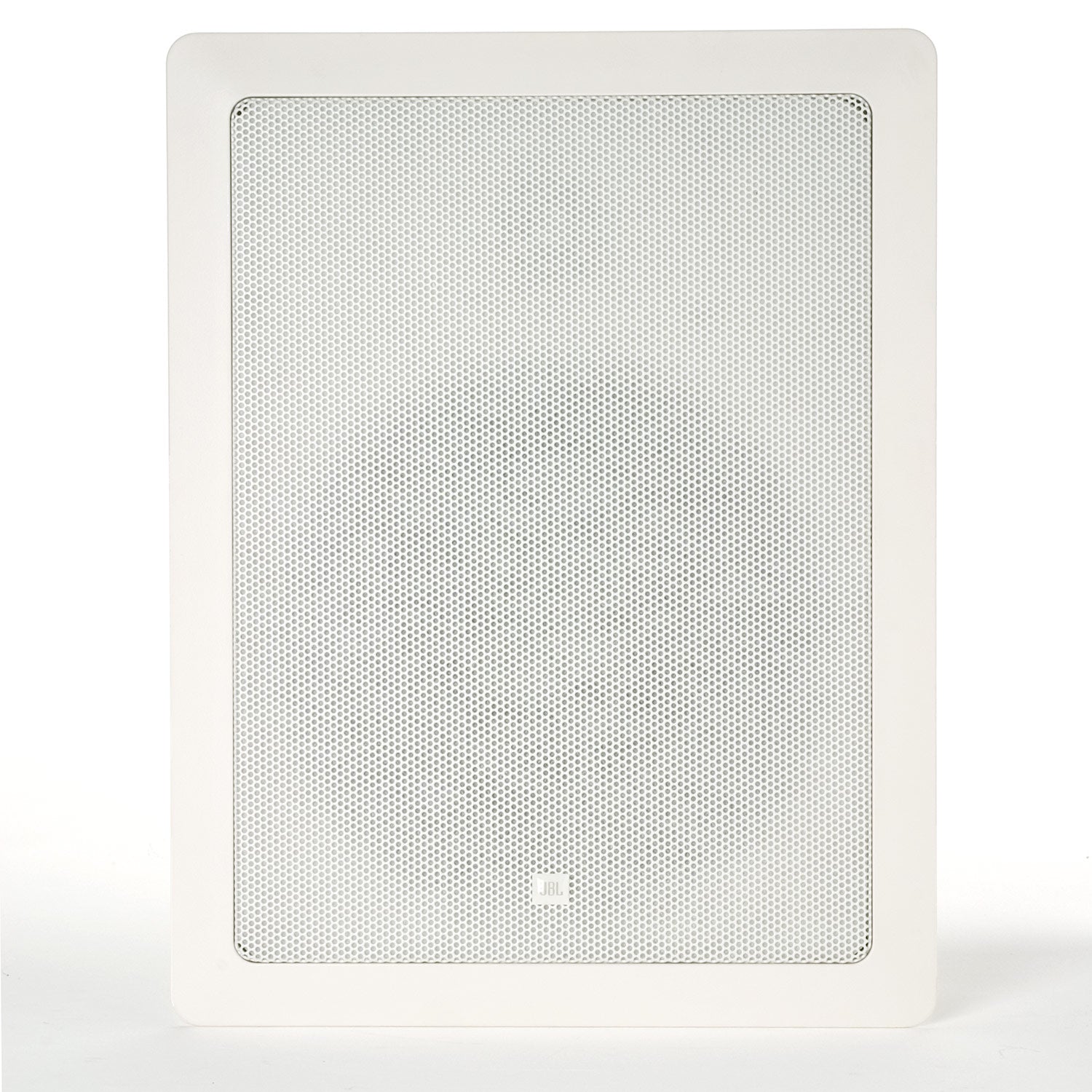

JBL Control 128W Two Way 120-Watt In-Wall Loudspeaker with 8" Woofer

  • Dale #:

    JBL-CONTROL128W
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Priced individually, but sold in pairs. The Control 128W is a premium in-wall speaker within the JBL Professional Control¨ Contractor line designed for applications such as foreground music, boardrooms, reception areas, airports, convention centers, cruise ships, retail outlets, restaurants, muse... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

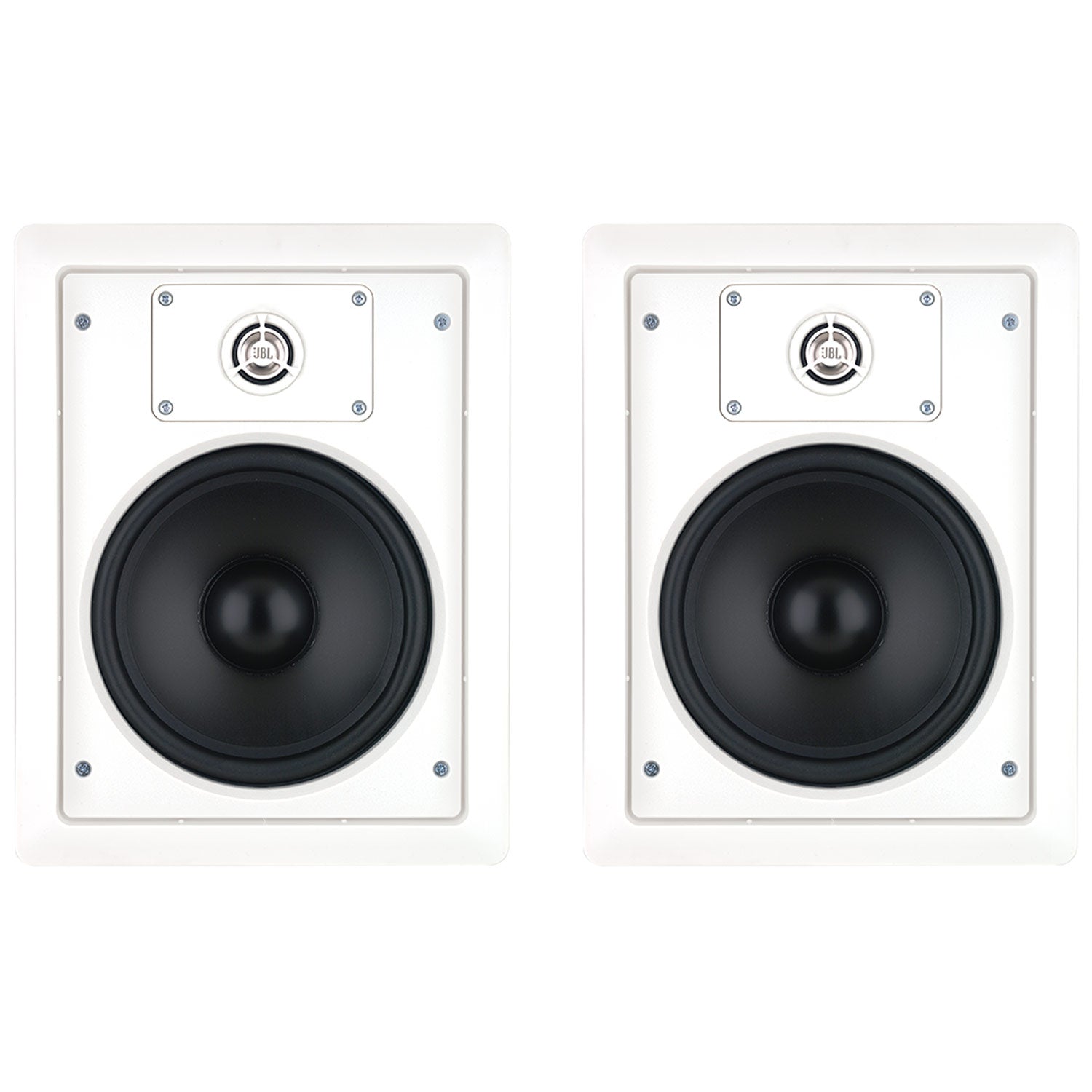

Priced individually, but sold in pairs.

The Control 128W is a premium in-wall speaker within the JBL Professional Control¨ Contractor line designed for applications such as foreground music, boardrooms, reception areas, airports, convention centers, cruise ships, retail outlets, restaurants, museums, surround locations, or any critical listening application where top performance from a loudspeaker with minimal visual impact is required.

Features:

  • Components:
    200 mm (8 in) polymer-coated aluminum-cone woofer with pure butyl rubber surround.
    25 mm (1 in) pure-titanium dome low-diffraction swivel aimable titanium tweeter.
  • High-slope crossover for natural midrange sound.
  • Extended bandwidth performance of 30 Hz Ð 20 kHz.
  • 60 W continuous (120 W program, 240 W peak)
    Power handling (128 W).


The high-performance woofer features a polymer-coated aluminum cone for high performance down to 30 Hz and pure butyl rubber surround for long life and high reliability along with extended-polepiece magnet design for long excursion and tight, low bass. The pure titanium dome high frequency driver is loaded with a built-in EOSª (Elliptical Oblate Spheroidal) waveguide for low distortion and a smooth frequency response. A low-diffraction swivelmounting system enables the user to direct high frequencies where required without the diffraction distortion inherent in other aimable tweeter designs. A high-slope crossover network maintains natural midrange sound and produces more even coverage throughout the listening area. The optional Control 128WT version includes a multi-tap transformer for 70V/100V systems.

The Control 100 Series speakers are voiced similarly to other JBL Control Contractor models, allowing mixing with surface-mount and in-ceiling speakers within a single listening space. The premium sound quality makes these loudspeakers ideal for critical listening environments, yet they are high power and rugged enough to handle venues requiring high SPL, heavy dutycycle music.

The speaker fits into the wall space of ordinary stud-wall construction. An optional rough-in frame is available for installing the speakers into standard stud walls in new construction projects. As is the case with all Control Contractor speakers, the baffles and grilles are paintable to match any dŽcor.

More +

Product Specs

Active or PassivePassive
Frequency Response30 Hz - 20 kHz, -10dB
Power Capacity120 Watts, program,240 Watts, peak
Maximum Sound Pressure Level (SPL)Not Specified by Manufacturer
Nominal Sensitivity90dB SPL, 1W @ 1m
Impedance8 Ohms
Crossover2nd order(low-pass to woofer)2nd order(high-pass to tweeter)
ShieldedNo
Low Frequency Driver8 polymer-coated aluminum cone, butyl rubber surround
High Frequency Driver1 Titanium Dome with cloth suspension on low-diffraction swivel-mount
Enclosure MaterialPlastic with paintable baffles and Grille
Input ConnectionsScrew-down Euroblock connector
EnvironmentalNot Applicable, Indoor only
Dimensions13.1 x 10.1 x 4.3 (334 x 257 x 110mm)
Weight5.5 lb (2.6 kg)
SpecialtiesIn-wall Installation Speaker
