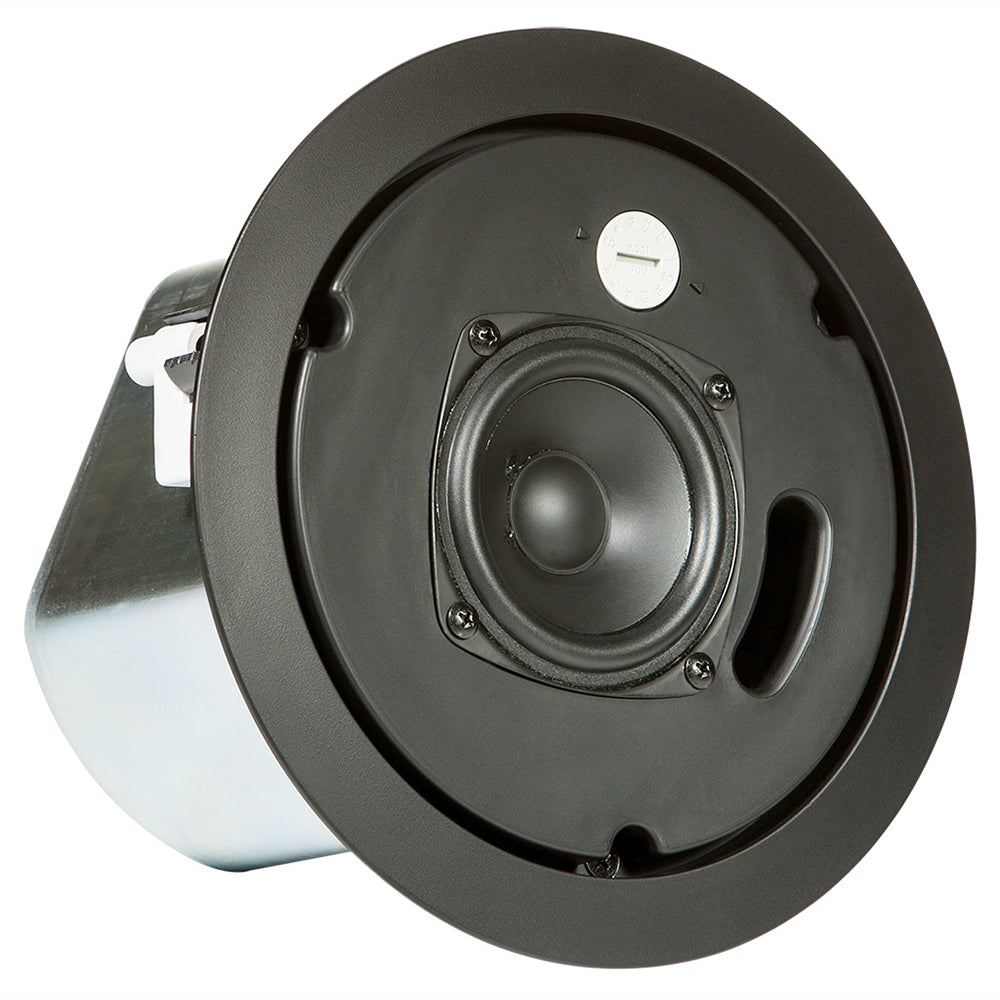

JBL CONTROL 12C/T 3-inch Compact Ceiling Loudspeaker (Black)



  • Dale #:

    JBL-CONTROL12CTBK

  • Availability:

    In Stock

  • Available for immediate shipment or pick-up from our Jamaica, NY warehouse. In-store pick-up is available Monday through Friday 8:30 am to 5:30 pm.

Description

Priced individually, but sold in pairs.The Control 12C/T is a full-range ceiling speaker consisting of 76 mm (3 inch) wide-bandwidth cone driver mounted in a vented, paintable baffle made of UV resistant UL94-V0 material, with a preattached blind-mount backcan for quick and easy installation.Feat... Read More

Retail Price: $109.32 Our Price: $89.00

affirm logo 3, 6 or 12 monthly payments available.

Learn more

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Priced individually, but sold in pairs.

The Control 12C/T is a full-range ceiling speaker consisting of 76 mm (3 inch) wide-bandwidth cone driver mounted in a vented, paintable baffle made of UV resistant UL94-V0 material, with a preattached blind-mount backcan for quick and easy installation.

Features:

  • 76 mm (3 in) full-range driver
  • Blind-mount backcan for quick and easy install
  • Dual conduit/cable clamps
  • Combined 70V/100V and low impedance direct operation
    • 20 Watts at 8ohm nominal setting
    • 15W multi-tap at 70V/100V
  • 68 Hz - 17 kHz bandwidth with wide 130 deg. coverage

More +

Product Specs

Frequency Range (-10 dB)68 Hz - 17 kHz
Power Capacity (at low-Z)40 Watts Continuous Program Power
20 Watts Continuous Pink Noise
Transformer Taps15 W, 7.5 W, 3.8 W @ 70V and 100V (& 1.9 W @ 70V only)
Frequency Response (+/- 3 dB)95 Hz - 15 kHz
Nominal Sensivity84 dB
Nominal Coverage Angle130Á conical coverage
Directivity Factor (Q)9.8
Directivity Index (DI)7.4 dB
Rated Maximum SPL97 dB @ 1 m (3.3 ft) average, 103 dB peak
Nominal Impedance8 ohms (in direct/bypass 8? setting)
Full-Range Driver76 mm (3 inch) with polypropylene cone, butyl rubber surround, Kapton» voice coil former, high temperature voice coil, aluminum coupling ring for low distortion and HF extension
Input ConnectorsRemovable locking 4-pin connector with screw-down terminals. Max wire size 12 AWG (2.5 mm2)
Connector WiringPin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru
Strain ReliefsStrain relief for two cables or two flex conduits via coupled clamping mechanism
MaterialsABS baffle with UL94-V0 and UL94-5VB flame class fire rating. Zinc-plated steel backcan
Safety AgencyUL1480, UL2043, NFPA90 / NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems
Dimensions196 mm diameter x 138 mm depth from back of baffle (7.7 in diameter x 5.4 in depth)
Ceiling Cutout SizeCircular cutout with 170 mm (6.7 in) diameter (cardboard cutout template included)
Ceiling Thickness RangeUp to 35 mm (1.4 in) with stock dog-ears. MTC-TCD thickceiling dog-ears available for up to 55 mm (2.2 in) ceiling thicknesses
Safety Seismic AttachmentOne point, top surface
Net Weight1.6 kg (3.5 lbs, one speaker)
Shipping Weight6.7 kg (14.7 lbs, pair in master carton)
Included AccesoriesC-ring support backing plate, 2 tile support rails (for 2 ft or 600 mm tile spans; optional MTC-48TR extension available for larger 4 ft or 1200 mm tile spans), cutout template, paint shield, removable locking multi-pin connector, grille.
Optional AccessoriesMTC-24NC new construction bracket
MTC-24MR mud-ring construction bracket
MTC-TCD thick-ceiling dog-ears for ceiling thicknesses up to 55 mm (2.2 in, ordering one set = 24 dog-ears for 8 speakers)
MTC-48TR tile rail for 1200 mm (4 ft) tile spans

More +
