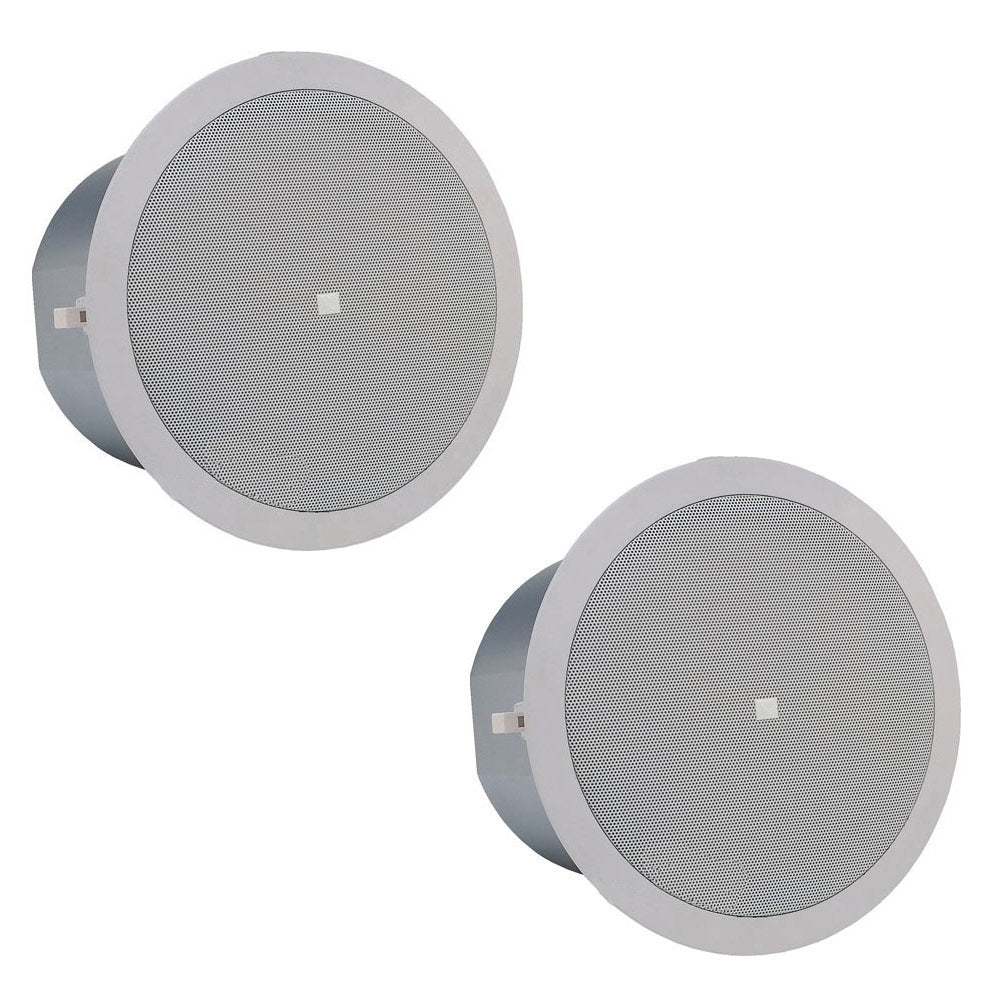

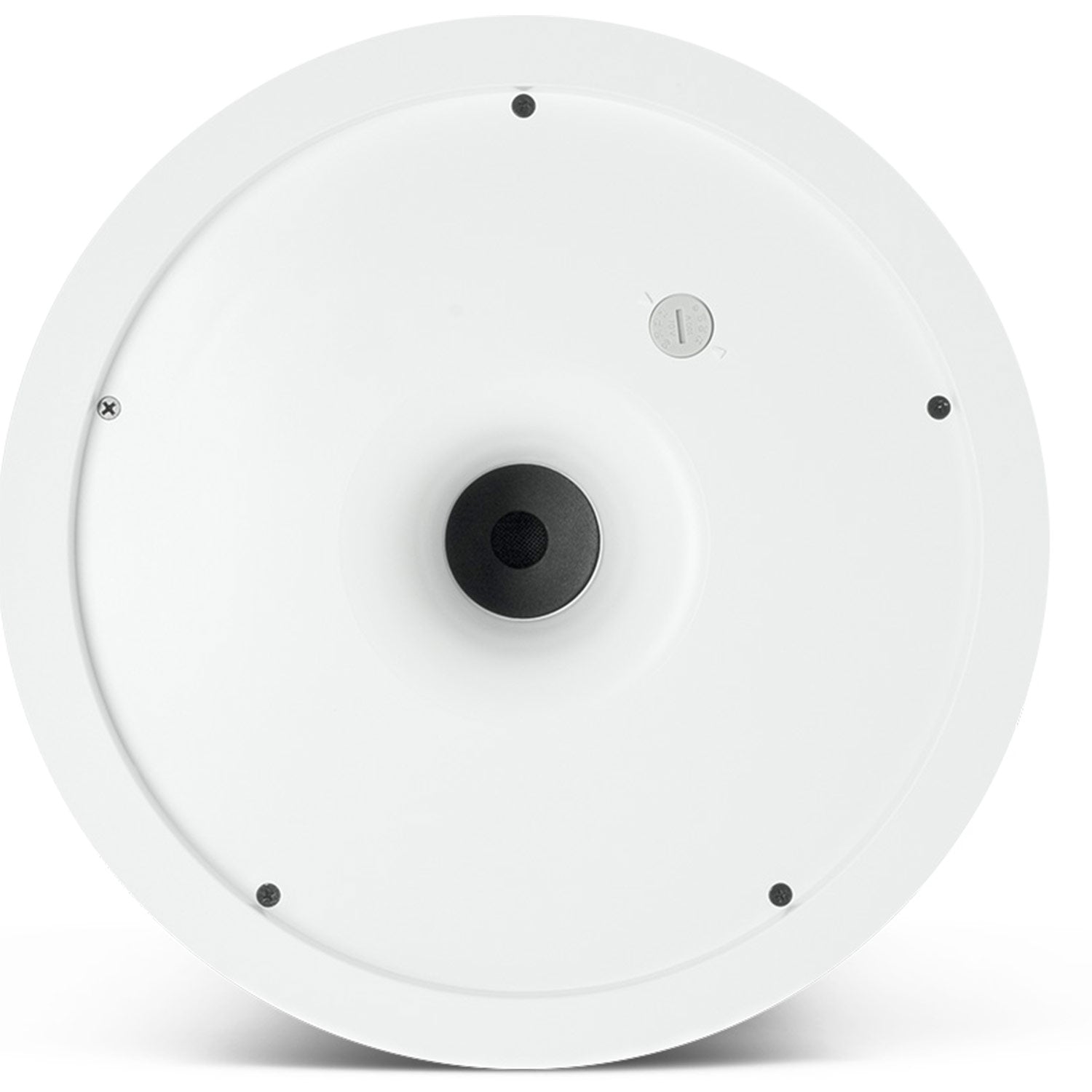

JBL Control 19CS 8" In-Ceiling Subwoofer
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Priced individually, but sold in pairs.
The unique Nested-Chamber design and Linear Dynamic port of the JBL Control 19CS subwoofer allows powerful low-frequency reinforcement from a compact in-ceiling enclosure. The Control 19CS is an ideal addition to any system, resulting in full-fidelity, high level sound.
Features:
- 42 Hz to 200 Hz frequency range (-10 dB)
- 140 watts continuous program power capacity
- 95 dB sensitivity (1W/1m)
- 8 ohms nominal impedance
- Steel back-can with removable locking connector
- Dimensions (height x diameter):Ê 345 mm x 345 mm (13.6 in x 13.6 in)
- Net Weights:Ê Control 19CS = 5.5 kg (12 lb)
| System | |
| Freq. Range (-10 dB)1 | 42 Hz - 200 Hz |
| Power Capacity2 | 200 Watts Continuous Program Power 100 Watts Continuous Pink Noise |
| Nominal Sensitivity | 95 dB SPL, 1W @ 1 m (3.3 ft) in ceiling near corner (/2) 89 dB SPL, 1W @ 1 m (3.3 ft) in center of ceiling (2) |
| Nominal Coverage Angle | 180Á conical coverage |
| Rated Maximum SPL3 | 115 dB @ 1 m (3.3 ft) in ceiling near corner (/2) |
| Nominal Impedance (19CS) | 8 ohms |
| Transducer | |
| Low-Frequency | 200 mm (8.0 in) Polypropelene cone. 38 mm (1.5 in) coil on aluminum former |
| Physical | |
| Enclosure | Backcan: Formed steel |
| Baffle/Rim | Medium impact polystyrene, fire rated UL94V-0 |
| Overload Protection | Full-range power limiting to protect network and transducers. (On Control 19CS, not on Control 19CST) |
| Termination | Removable locking connector with screw-down terminals. 2 input terminals and 2 loop-thru output terminals. Max. wire size 12 AWG (2.5 mm2) |
| Safety Agency Rating | In accordance with IEC60849 / EN60849. Suitable for use in air handling spaces, per U.L.-2043, U.L.-1480, NFPA90, NFPA70A. |
| Outside Dimensions (H x Dia) | 345 x 345 mm (13.6 x 13.6 in) 318 mm (12.5 in) front of ceiling tile to back of backcan |
| Cutout Size | 305 mm (12.0 in) |
| Net Weight (ea) | T5.5 kg (12 lb) |
| Shipping Weight (pair) | T12.7 kg (28 lb) |
| Included Accessories | C-shaped support backing plate, 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles), Cutout template, Paint shield, Removable locking wiring connector |
