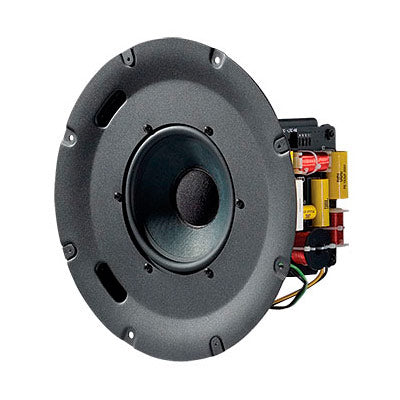

JBL Control 227C 6.5" Coaxial Ceiling Loudspeaker with Compression Driver


  • Dale #:

    JBL-CONTROL227C
  • Availability:

    Reserve Yours Now
  • This item usually ships within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

The JBL Professional Control 227C and CT are premium in-ceiling professional loudspeakers designed for applications requiring superior quality sound in ceilingmount applications.Features Consistent 120Îç broadband pattern control for exceptional coverage. Coaxial design featuring: Kevlar-reinforc... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The JBL Professional Control 227C and CT are premium in-ceiling professional loudspeakers designed for applications requiring superior quality sound in ceilingmount applications.

Features

  • Consistent 120Îç broadband pattern control for exceptional coverage.
  • Coaxial design featuring: Kevlar-reinforced 165 mm (6.5 in) woofer.25 mm (1 in) compression driver
  • Extraordinary clarity for speech and vocals with extended frequency response for music.
  • 150 Watts Power Handling.
  • Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
  • Integrated back can with clean, contemporary grille.(sold separately)

The JBL Professional Control 227C and CT are premium in-ceiling professional loudspeakers designed for applications requiring superior quality sound in ceilingmount applications. Delivering exceptional next-generation performance in a medium format coaxial point source design, the Control 227C and CT incorporate breakthrough performance features such as best-in-class pattern control to provide a consistent sound throughout the listening area. Especially wide coverage allows fewer speakers to cover the space, reducing both the material and labor cost for the installation.

The Control 227C and CT feature a 165 mm (6.5 in) Kevlar-reinforced low frequency driver coupled with a 25 mm (1 in) exit titanium compression driver for enduring reliability and outstanding performance. An 8 ohm driver is utilized on the Control 227C and offers 150 Watts of continuous power handling capability, while a top quality, low saturation 68 Watt multitap transformer comes pre-attached on the Control 227CT enabling the system to be used on 70V or 100V distributed speaker lines.The Control 227C and CT are easy to install and feature a removable multi-pin locking connector, with secure screw-down terminals.

More +

Product Specs

System
Frequency Range (-10 dB)43 Hz - 19 kHz
Frequency Response (±3 dB)75 Hz - 17 kHz
Coverage Pattern120° conical, broadband
Directivity Factor (Q)7 (1 k - 16 kHz)
Directivity Index (DI)8.5 dB (1 k - 16 kHz)
Long-Term System Power Rating, IEC150 W (600 W peak), 2 hrs; 100 W (400 W peak), 100 hrs
Sensitivity (2.83V @ 1 m)90 dB measured half-space; 95 dB computed for competitive comparison
Maximum SPL112 dB continuous average (118 dB peak)
Crossover Network2.2 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 3rd order low-pass to LF.
Nominal Impedance (bypass mode)8 ohms
Transformer Taps
70V68W, 34W, 17W & 8.5W
100V68W, 34W & 17W
Transducers
Low Frequency Driver65 mm (6.5 in) Kevlar reinforced cone
High Frequency Driver25 mm (1 in) exit compression driver
Enclosure
Input Connectors (227C/CT)Removable locking connector with screw-down terminals. Max wire 12 AWG (2.5 mm)
Input Connectors (227C)1) + in, 2) + loop out, 3) – loop out, 4) – in
Tap Connection (227CT)A) Common; B) 8.5W @ 70V, 17W @ 100V; C) 17W @ 70V, 34W @ 100V; D) 34W @ 70V, 68W @ 100V; E) 68W @ 70V, n/c @ 100V
Safety Agency RatingSuitable for use in air handling spaces, per U.L.-1480, U.L.-2043, NFPA90 & NFPA 70.In accordance with IEC60849 / EN60849.Transformer UL Listed per UL1876.
BaffleMetal, round 305 mm (12.0 in), driver premounted to baffle, ported.
Baffle Attachment to MTC-200BB6 Backbox#10 x 19 mm (0.75 in) sheet metal screws.
Grille Attachement to Baffle4 pcs 4 mm machine screws
Dimensions (Diameter x Depth)Ø 305 mm (12 in) round baffle x depth from back of baffle of 147 mm (5.8 in)
Net Weight227C: 4.1 kg (9.0 lb)
Shipping Weight227C: 5.4 kg (12.0 lb)
Included AccessoriesPorted baffle pre-attached, transformer on 227CT
Optional AccessoriesMTC-200BB6 Back Can; MTC-RG6/8 Grille; MTC-TB6/8 Tile Bridge
