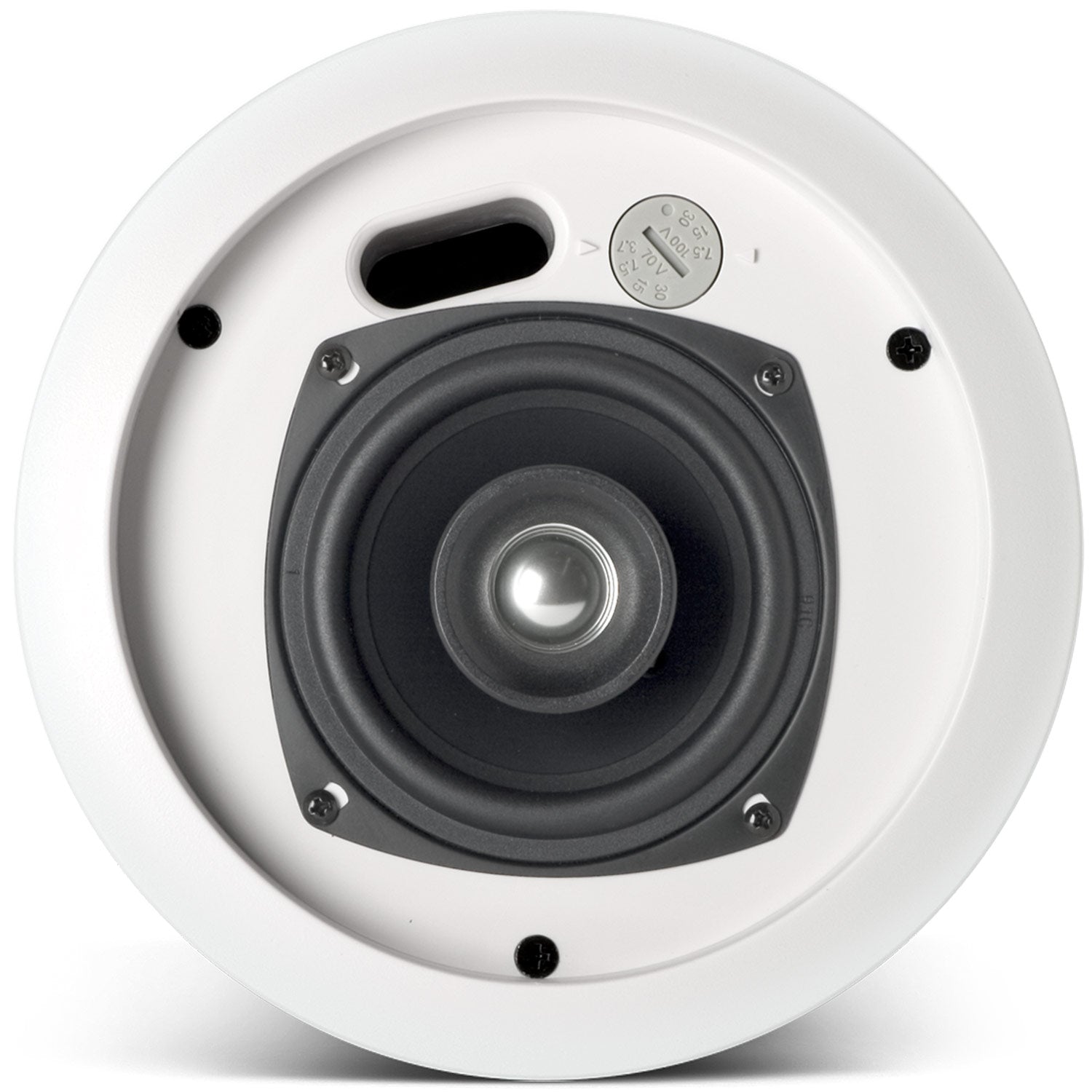

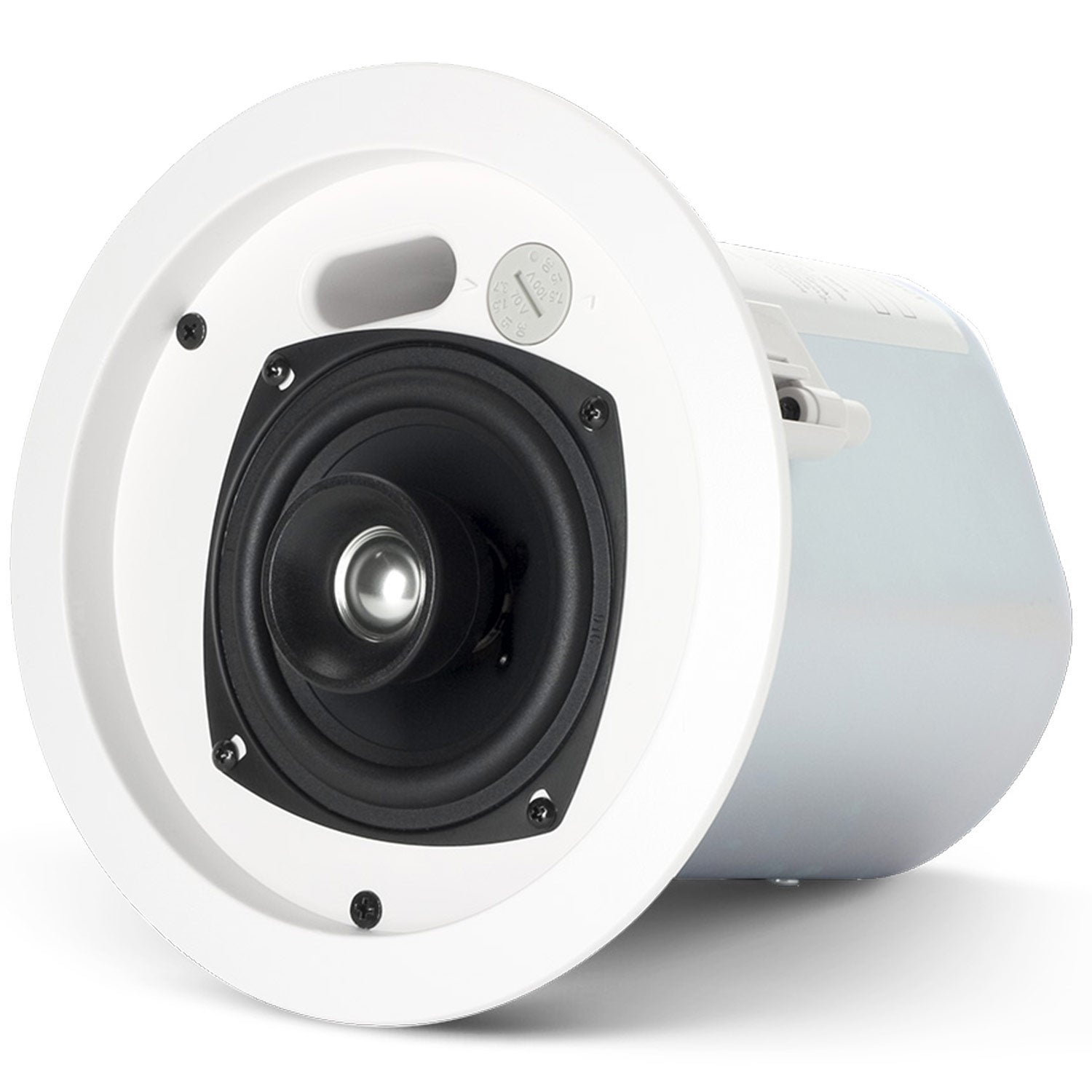

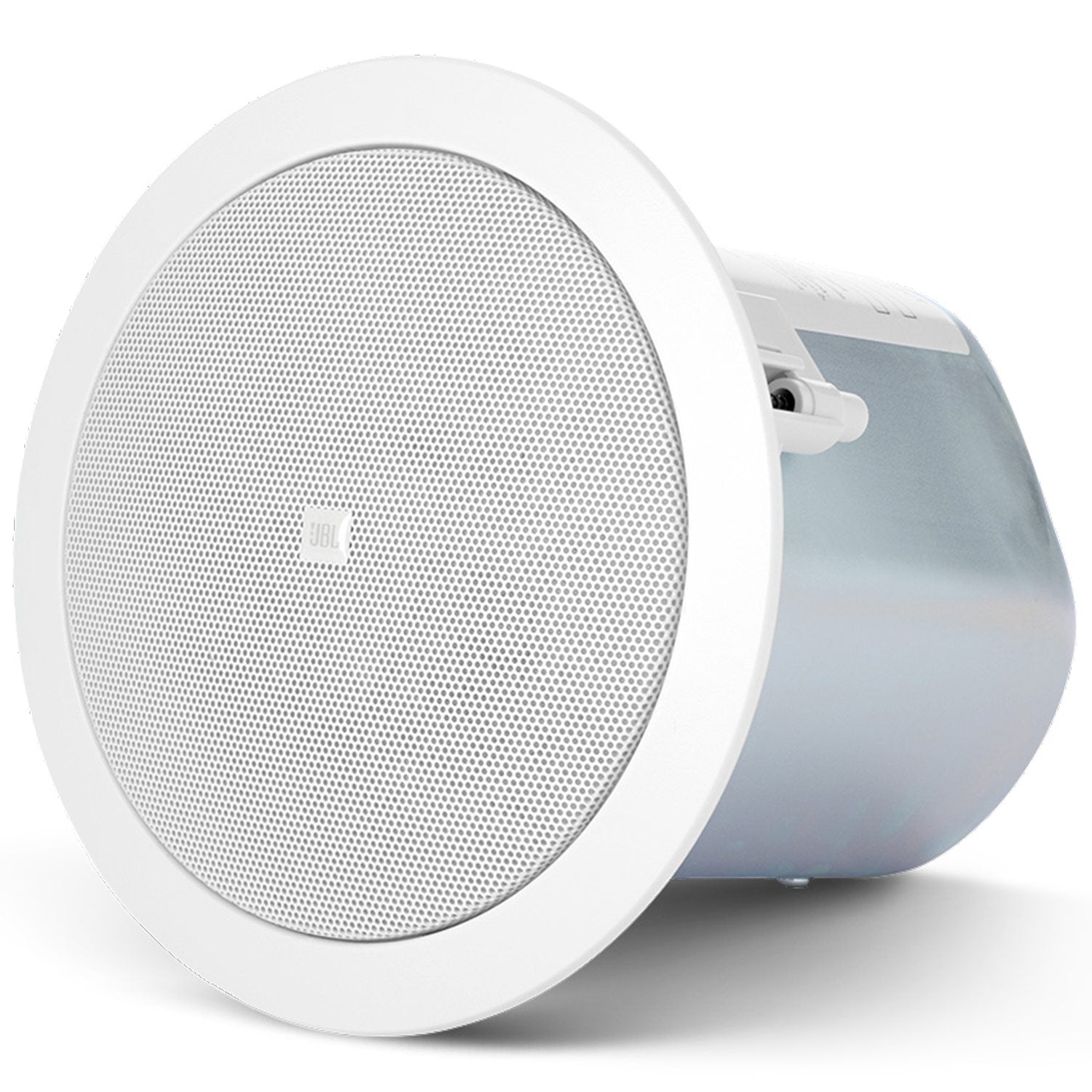

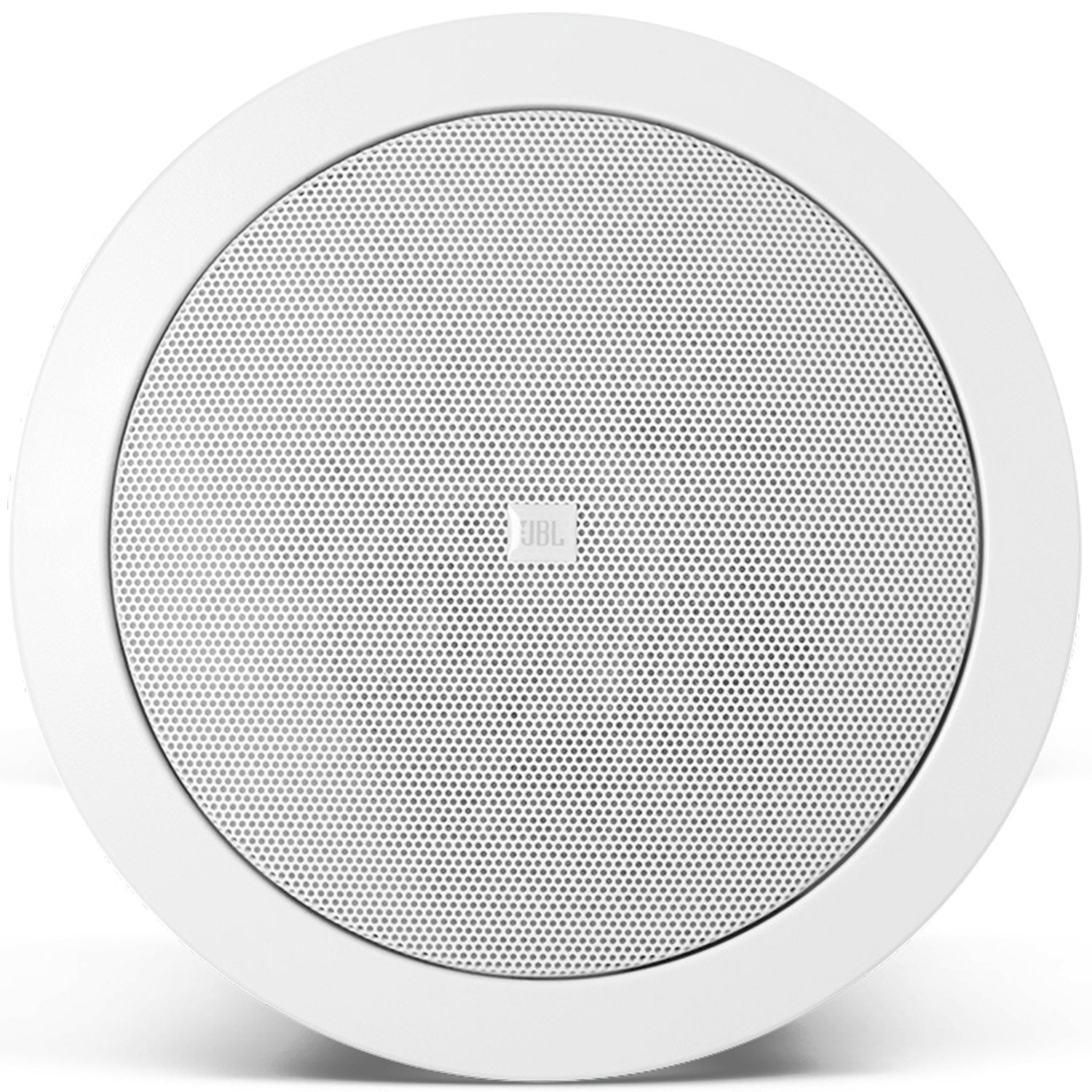

JBL Control 24CT 4" Two Way Vented Ceiling Speaker with Transformer
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description

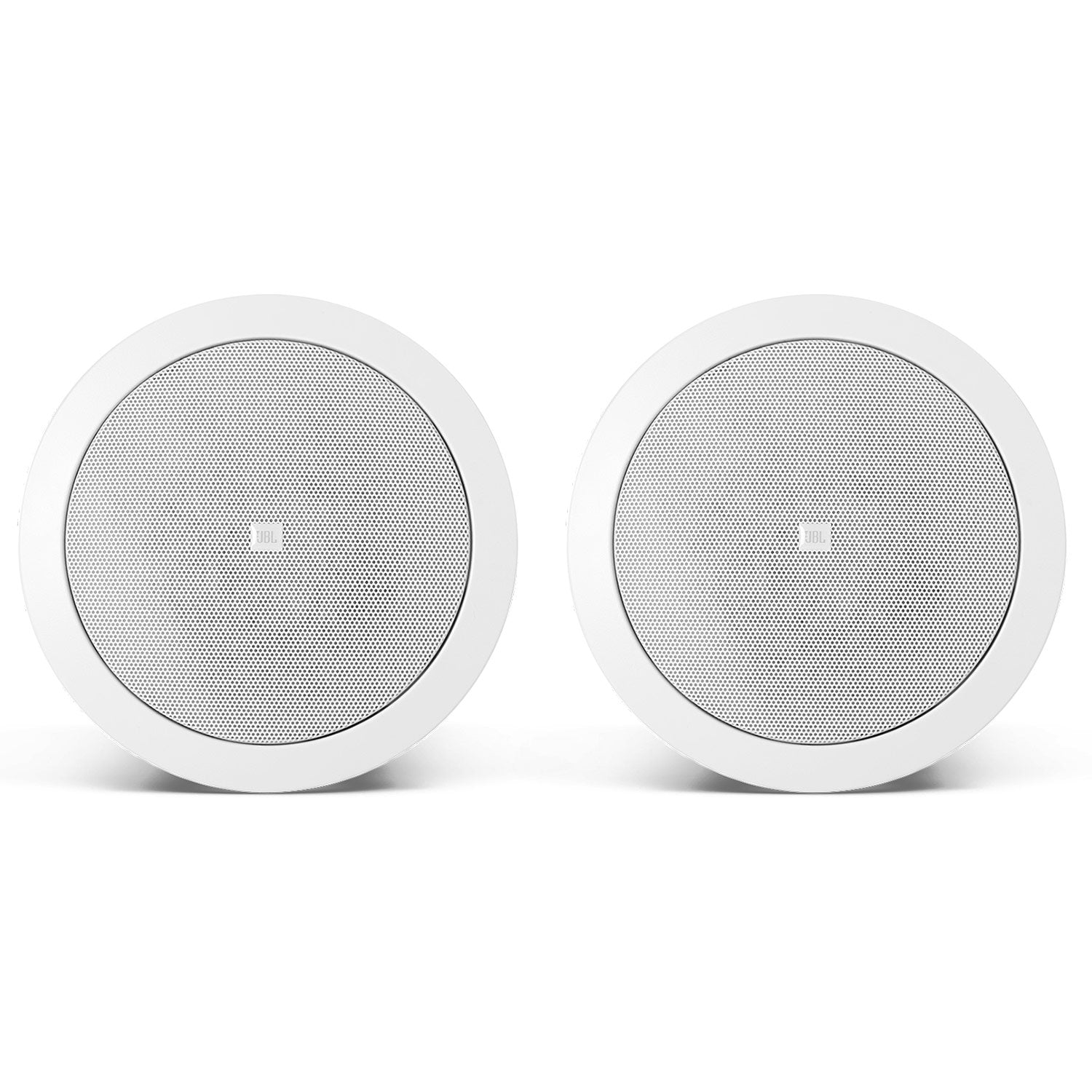

Priced individually, but sold in pairs.
Most compact of the JBL ceiling speakers, the Control 24CT contains a coaxially mounted 4 woofer and 3/4 titanium-coated tweeter, providing high-fidelity sound over an extremely wide coverage area and includes a multitap transformer for 70V or 100V systems.
| Frequency Range | 80 Hz - 20 kHz |
| Power Capacity | 80 W Continuous Program Power; 40 W Continuous Pink Noise |
| Transformer Taps | 70 V: 30 W, 15 W, 7.5 W / 3.7 W taps 100 V: 30 W, 15 W, / 7.5 W taps |
| Nominal Coverage Angle | 130 deg. conical coverage |
| Directivity Factor (Q) | 2.4 dB averaged 500 Hz to 4 kHz |
| Directivity Index (DI) | 3.8 dB averaged 500 Hz to 4 kHz |
| Rated Maximum SPL | 102 dB @ 1 m (3.3 ft) |
| Nominal Impedance | 16 ohms (Min Z 16.1 ohms @ 320 Hz) |
Priced individually, but sold in pairs.
Most compact of the JBL ceiling speakers, the Control 24CT contains a coaxially mounted 4 woofer and 3/4 titanium-coated tweeter, providing high-fidelity sound over an extremely wide coverage area and includes a multitap transformer for 70V or 100V systems.
| Frequency Range | 80 Hz - 20 kHz |
| Power Capacity | 80 W Continuous Program Power; 40 W Continuous Pink Noise |
| Transformer Taps | 70 V: 30 W, 15 W, 7.5 W / 3.7 W taps 100 V: 30 W, 15 W, / 7.5 W taps |
| Nominal Coverage Angle | 130 deg. conical coverage |
| Directivity Factor (Q) | 2.4 dB averaged 500 Hz to 4 kHz |
| Directivity Index (DI) | 3.8 dB averaged 500 Hz to 4 kHz |
| Rated Maximum SPL | 102 dB @ 1 m (3.3 ft) |
| Nominal Impedance | 16 ohms (Min Z 16.1 ohms @ 320 Hz) |
