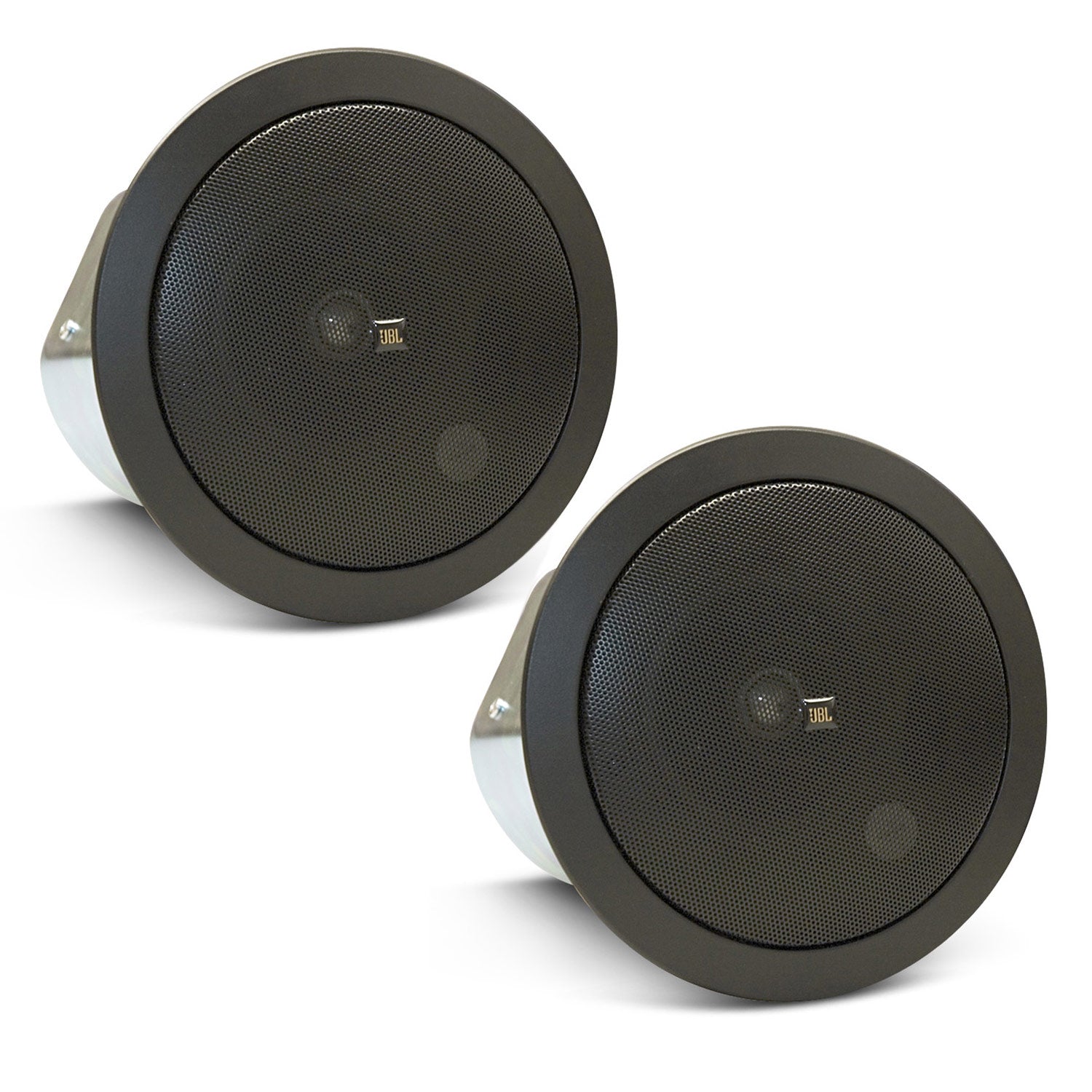

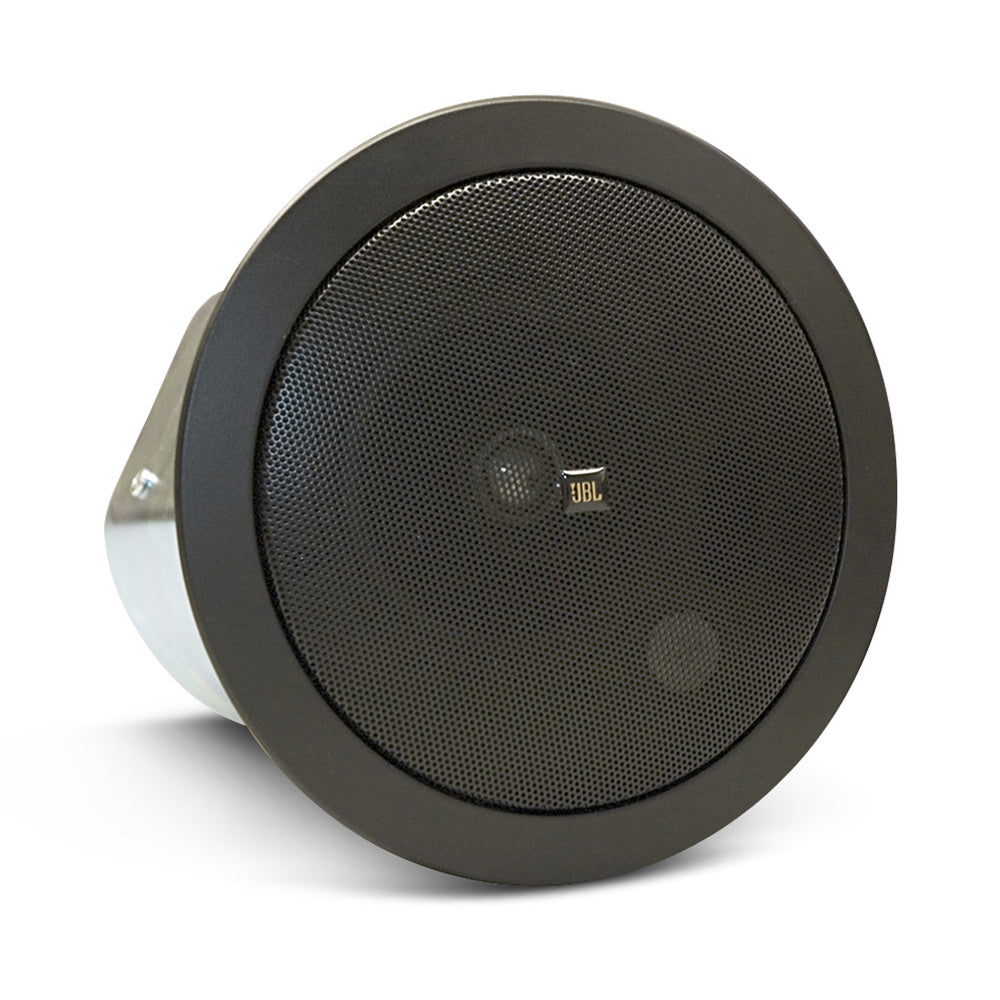

JBL Control 24CT-BK Background/Foreground Ceiling Speaker with Transformer (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Priced individually, but sold in pairs.
The Control 24CT-BK is a compact ceiling speaker providing premium performance in background, foreground and music-pluspaging sound systems. The Control 24CT-BK is perfectly suited for a wide variety of applications from professional offices and airports to restaurants and specialty retail stores. High power handling, wide frequency response and low distortion make the Control 24CT-BK ideal for sound systems requiring a higher fidelity sound from ceiling loudspeakers. The premium performance capability ensures excellent sound character, providing pleasant, enveloping sound throughout the listening area.
Features:
- Coaxially mounted 100 mm (4 in) woofer with butyl rubber surround and 19 mm (_ in) titanium coated diffraction-loaded tweeter
- High power, wide frequency response and low distortion for high sound level capability
- Wide coverage allows fewer speakers, reducing the cost of the installed sound system without
sacrificing performance - Packaged with grille, backcan and tile rails for fast installation and easy spec-ing
- Black baffle and grille works well in black and dark ceiling
Spanning a complete range of surface-mount (on-wall), in-ceiling and in-wall models, the variety of solutions offered by the Control Contractor Series give you complete mastery of any architectural, aesthetic or system performance requirement. JBL engineers have made the art of science of loudspeaker specification and installation easy to manage. Simply select the JBL Control Contractor loudspeaker appropriate for the architectural, form factor and sonic requirements. The resulting sound system will always deliver on its promise of Performance, Reliability and Value.
| Freq. Range (-10 dB) | 80 Hz - 20 kHz |
| Power Capacity | 80 Watts Continuous Program Power; 40 Watts Continuous Pink Noise |
| Transformer Taps | 70 V: 30W, 15W, 7.5W / 3.7W taps 100 V: 30W, 15W, / 7.5W taps |
| Nominal Sensitivity | 86 dB SPL @ 1 m (3.3 ft) |
| Nominal Coverage Angle | 130Á conical coverage |
| Directivity Factor (Q) | 2.4 averaged 500 Hz to 4 kHz |
| Directivity Index (DI) | 3.8 averaged 500 Hz to 4 kHz |
| Transformer Insertion Loss | Max 0.8 dB |
| Low-Frequency Transducers | 100 mm (4.0 in) Polypropylene-coated, 1" coil on aluminum former |
| High-Frequency Transducers | 19 mm (0.75 in) Titanium coated polyester |
| Enclosure | Backcan: Formed steel Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0 |
| Termination | Removable locking connector with screw-down terminals. 2 input terminals and 2 loop-thru output terminals. Max. wire size 12 AWG (2.5 mm) |
| Outside Dimensions (H x Dia) | 200 x 195 mm (7.9 x 7.7 in) 184 mm (7.2 in) front of ceiling tile to back of backcan |
| Cutout Size | 168 mm (6.6 in) |
| Net Weight (ea) | 3.5 kg (8 lb) |
| Shipping Weight (pair) | 8.0 kg (18 lb) |
| Included Accessories | C-shaped support backing plate 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) Cutout template Paint shield Removable locking wiring connector |
Priced individually, but sold in pairs.
The Control 24CT-BK is a compact ceiling speaker providing premium performance in background, foreground and music-pluspaging sound systems. The Control 24CT-BK is perfectly suited for a wide variety of applications from professional offices and airports to restaurants and specialty retail stores. High power handling, wide frequency response and low distortion make the Control 24CT-BK ideal for sound systems requiring a higher fidelity sound from ceiling loudspeakers. The premium performance capability ensures excellent sound character, providing pleasant, enveloping sound throughout the listening area.
Features:
- Coaxially mounted 100 mm (4 in) woofer with butyl rubber surround and 19 mm (_ in) titanium coated diffraction-loaded tweeter
- High power, wide frequency response and low distortion for high sound level capability
- Wide coverage allows fewer speakers, reducing the cost of the installed sound system without
sacrificing performance - Packaged with grille, backcan and tile rails for fast installation and easy spec-ing
- Black baffle and grille works well in black and dark ceiling
Spanning a complete range of surface-mount (on-wall), in-ceiling and in-wall models, the variety of solutions offered by the Control Contractor Series give you complete mastery of any architectural, aesthetic or system performance requirement. JBL engineers have made the art of science of loudspeaker specification and installation easy to manage. Simply select the JBL Control Contractor loudspeaker appropriate for the architectural, form factor and sonic requirements. The resulting sound system will always deliver on its promise of Performance, Reliability and Value.
| Freq. Range (-10 dB) | 80 Hz - 20 kHz |
| Power Capacity | 80 Watts Continuous Program Power; 40 Watts Continuous Pink Noise |
| Transformer Taps | 70 V: 30W, 15W, 7.5W / 3.7W taps 100 V: 30W, 15W, / 7.5W taps |
| Nominal Sensitivity | 86 dB SPL @ 1 m (3.3 ft) |
| Nominal Coverage Angle | 130Á conical coverage |
| Directivity Factor (Q) | 2.4 averaged 500 Hz to 4 kHz |
| Directivity Index (DI) | 3.8 averaged 500 Hz to 4 kHz |
| Transformer Insertion Loss | Max 0.8 dB |
| Low-Frequency Transducers | 100 mm (4.0 in) Polypropylene-coated, 1" coil on aluminum former |
| High-Frequency Transducers | 19 mm (0.75 in) Titanium coated polyester |
| Enclosure | Backcan: Formed steel Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0 |
| Termination | Removable locking connector with screw-down terminals. 2 input terminals and 2 loop-thru output terminals. Max. wire size 12 AWG (2.5 mm) |
| Outside Dimensions (H x Dia) | 200 x 195 mm (7.9 x 7.7 in) 184 mm (7.2 in) front of ceiling tile to back of backcan |
| Cutout Size | 168 mm (6.6 in) |
| Net Weight (ea) | 3.5 kg (8 lb) |
| Shipping Weight (pair) | 8.0 kg (18 lb) |
| Included Accessories | C-shaped support backing plate 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) Cutout template Paint shield Removable locking wiring connector |
