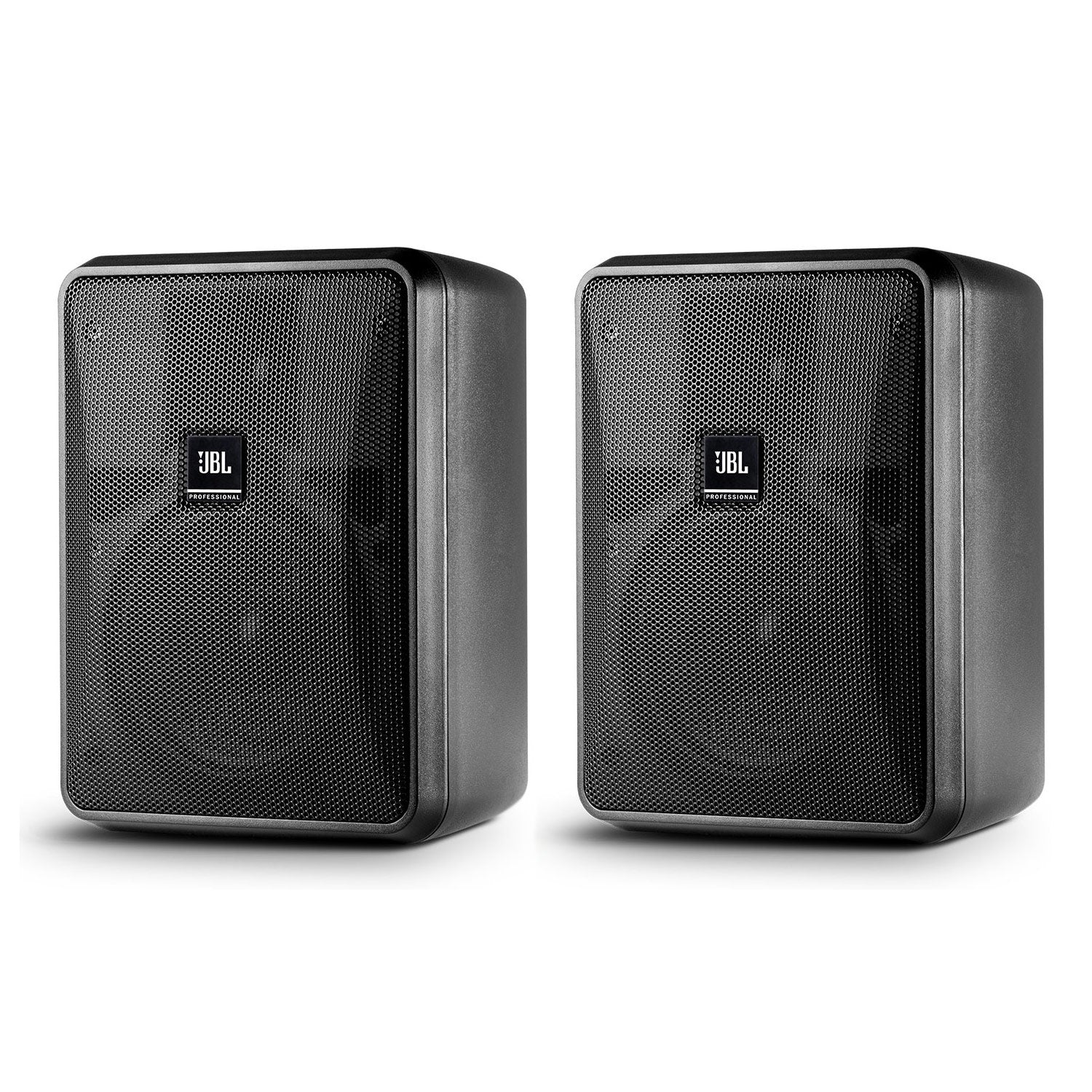

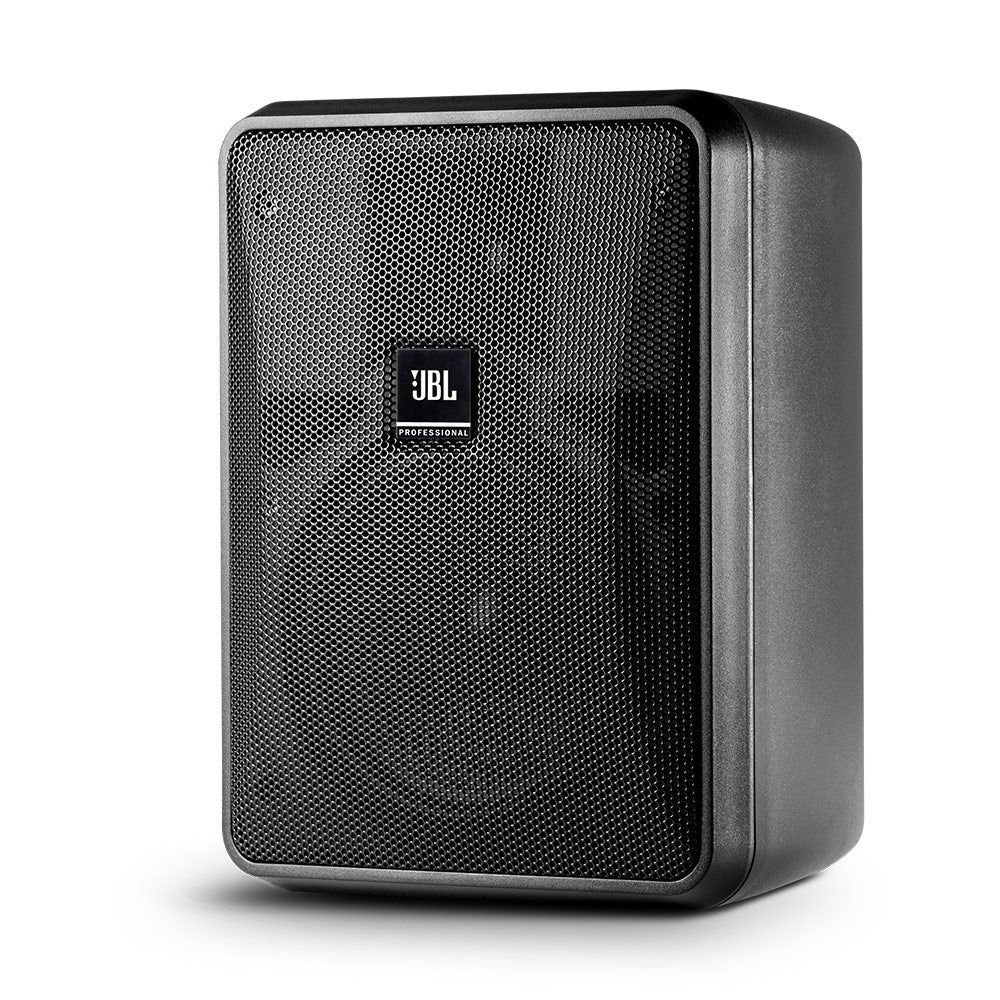

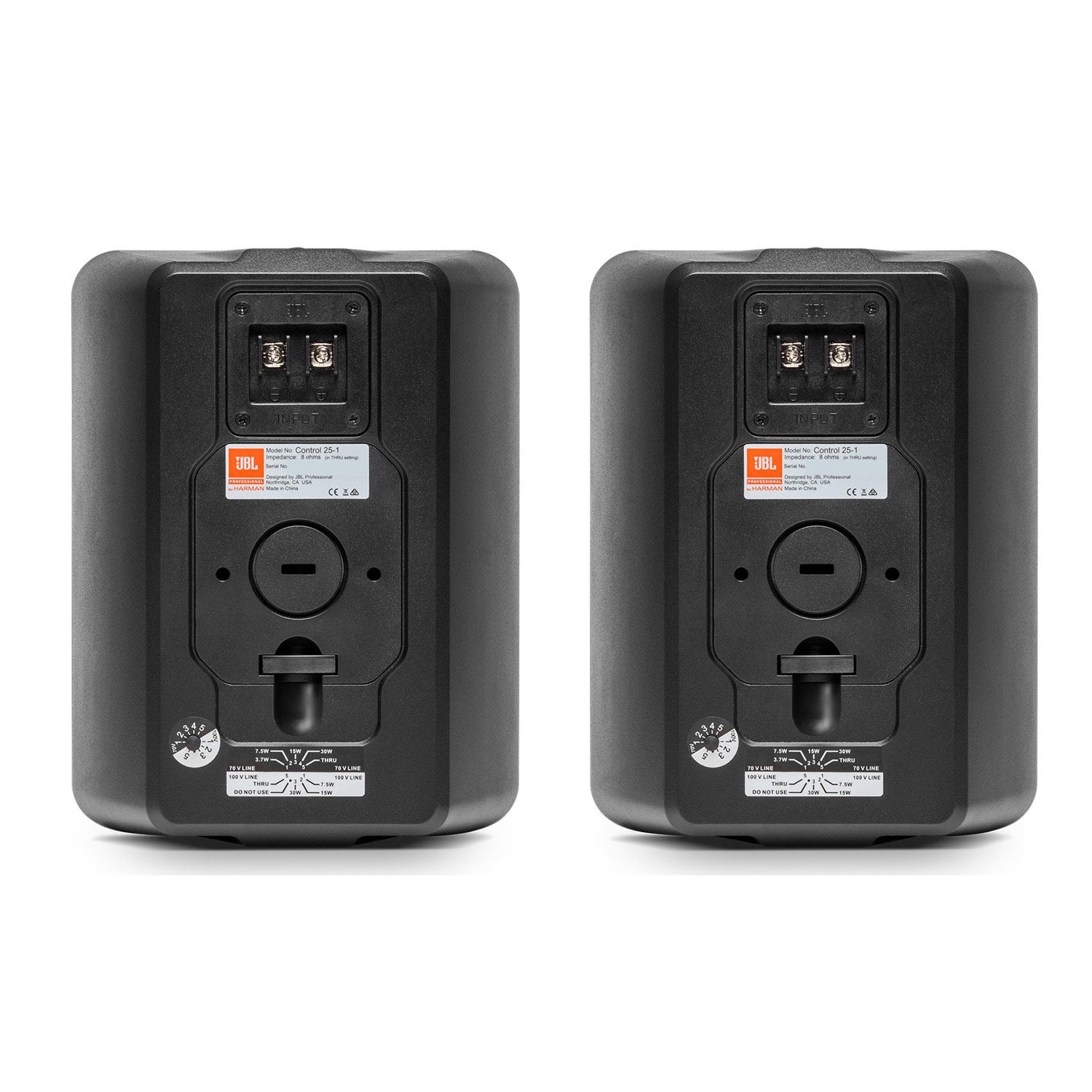

JBL Control 25-1 Compact Indoor/Outdoor Loudspeaker (Black)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
JBL Control 25-1 Compact Indoor/Outdoor Loudspeaker (Black)
Sale price$225.00
Regular price$270.00
Description
Priced individually, but sold in pairs.
The Control¨ 25-1 is a two-way 5" speaker with rich sonic character, wide coverage, consistent dispersion, versatile mounting, and a contemporary high-design look that fits into a wide range of decors. This makes Control 25-1 an excellent choice for a wide variety of applications, including retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality, music cafes, leisure venues, and anywhere where a top quality high-output indoor/outdoor foreground/background music (and/or paging) speaker is required.
Features:
- Components:
5-1/4" woofer with woven fiberglass cone
3/4" PEI diaphragm tweeter with fluid cooling - Contemporary, high-design appearance
- Built-in InvisiBall¨ mounting hardware*, plus available U-bracket
- Weather resistant enclosure and transducers
- Wide 100 deg. x 100 deg. coverage
- 100 Watt power handling (200 Watt program) in direct 8 ohm setting, plus built-in 30 Watt 70V/100V multi-tap transformer.
- High fidelity sound character with broad frequency response of 60 Hz - 20 kHz.
| Frequency Range (-10 dB) | 60 Hz to 20 kHz |
| Frequency Response (+/-3 dB) | 85Hz - 17 kHz |
| Power Rating | 200 W Continuous Program (2 hrs) 100 W (400W peak), Continuous Pink Noise (2 hrs) 75 W (300W peak) Continuous Pink Noise (100 hrs) |
| Maximum Input Voltage | 25.3 V RMS (2 hrs), 50.6 V peak |
| Maximum SPL | 110 dB ave. Continuous Pink Noise (116 dB peak) |
| Sensitivity | 90 dB, 1W/1m (ave. 100 Hz - 10 kHz) |
| Coverage Angle | 100Á x 100Á |
| Directivity Factor (Q) | 6.04 (averaged 1kHz - 16kHz) |
| Directivity Index (DI) | 7.6dB (averaged 1kHz - 16kHz) |
| Nominal Impedance | 8 ohms (THRU setting) |
| Crossover Type | 2nd order low-pass, 3rd order high-pass |

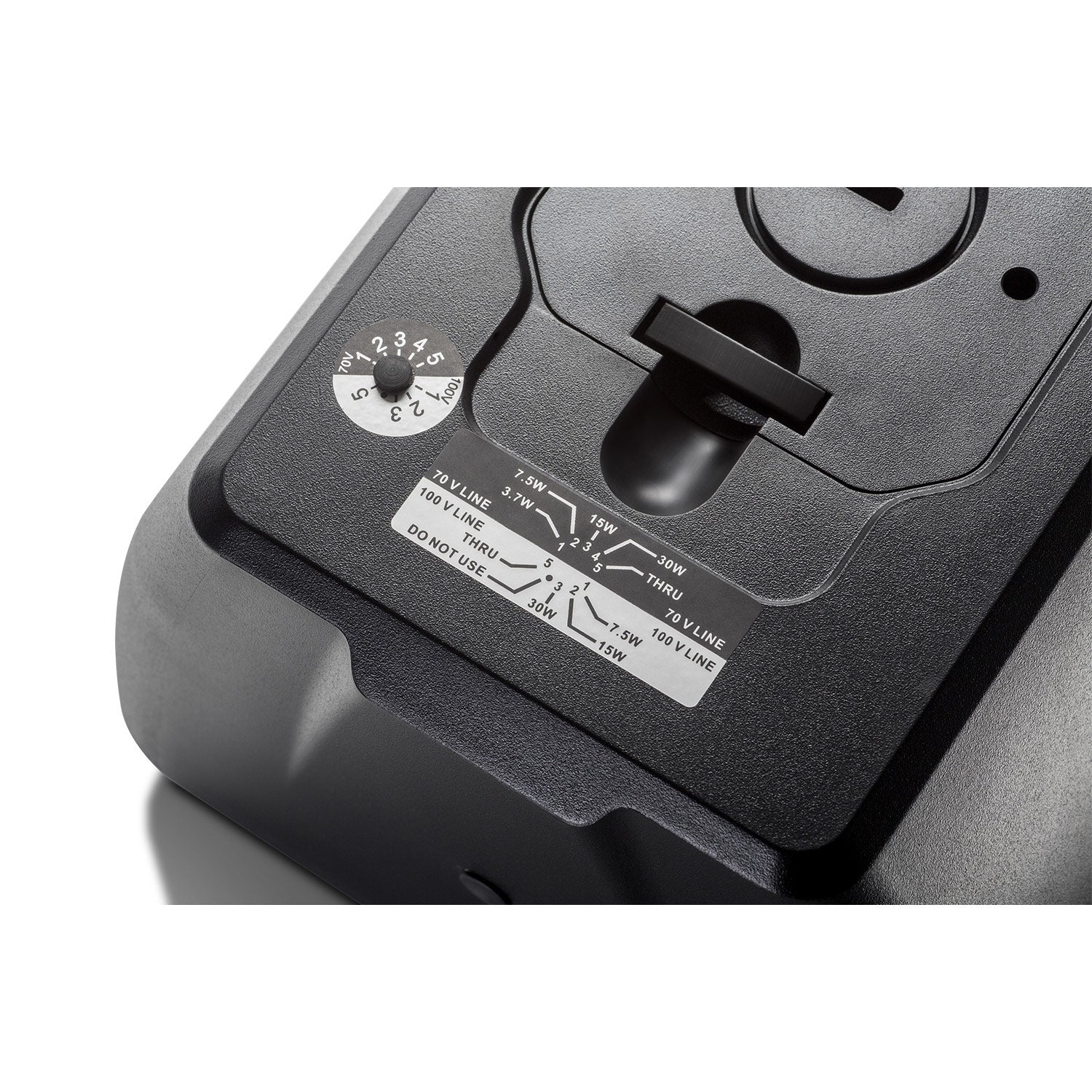

| Transformer Taps | 70V: 30W, 15W, 7.5W, 3.7W 100V: 30W, 15W, 7.5W Insertion Loss <0.94 dB at any tap setting Thru Setting: 8_ nominal |
| Recommended Protective High-Pass | 60 Hz high-pass (24 dB/oct) (for 8_ operation and for all 70V/100V taps settings). |
| Low Frequency Driver | 135 mm (5.25 in), woven-fiberglass cone with pure butyl rubber surround with Weather-Edge frame protection, high-temp fiberglass voice coil former, high-temp voice coil wire, optimized cone geometry, linear suspension spider, and FEA optimized motor structure. |
| High Frequency Driver | 19 mm (0.75 in) PEI diaphragm, low-viscosity ferro-magnetic fluid, and lightweight Kapton» voice coil former. |
| Enclosure Material | High Impact Polystyrene (HIPS), painted with highly-UV resistant paint on white (-WH) version for maximum UV fade resistance. |
| Grille | Highly zinc-plated, finished in durable TGIC polyester powdercoating. MTC-25WMG-1 (&-WH) available with WeatherMax» multi-layer foam and tight-weave mesh vapor barrier backing. |
| Installation | InvisiBall wall-mounting system included. Two 6 mm attachment points (on top and bottom) for optional MTC-25UB-1 (&-WH) U-bracket. Secondary safety attachment loop point on back panel. |
| Environmental | IP-44 per IEC529 (IP-55 when installed with the optional MTC-25WMG-1 WeatherMax» grille and either MTC-PC2 or MTC-PC3 panel cover.) Exceeds MilSpec 810 for humidity, salt-spray, temperature / UV. Passes MilStd-202F for salt spray and ASTM G85 for acid-air plus salt spray. Optional MTC-25WMG-1 WeatherMax» grille for breaking up driving rain and for especially difficult environments. |

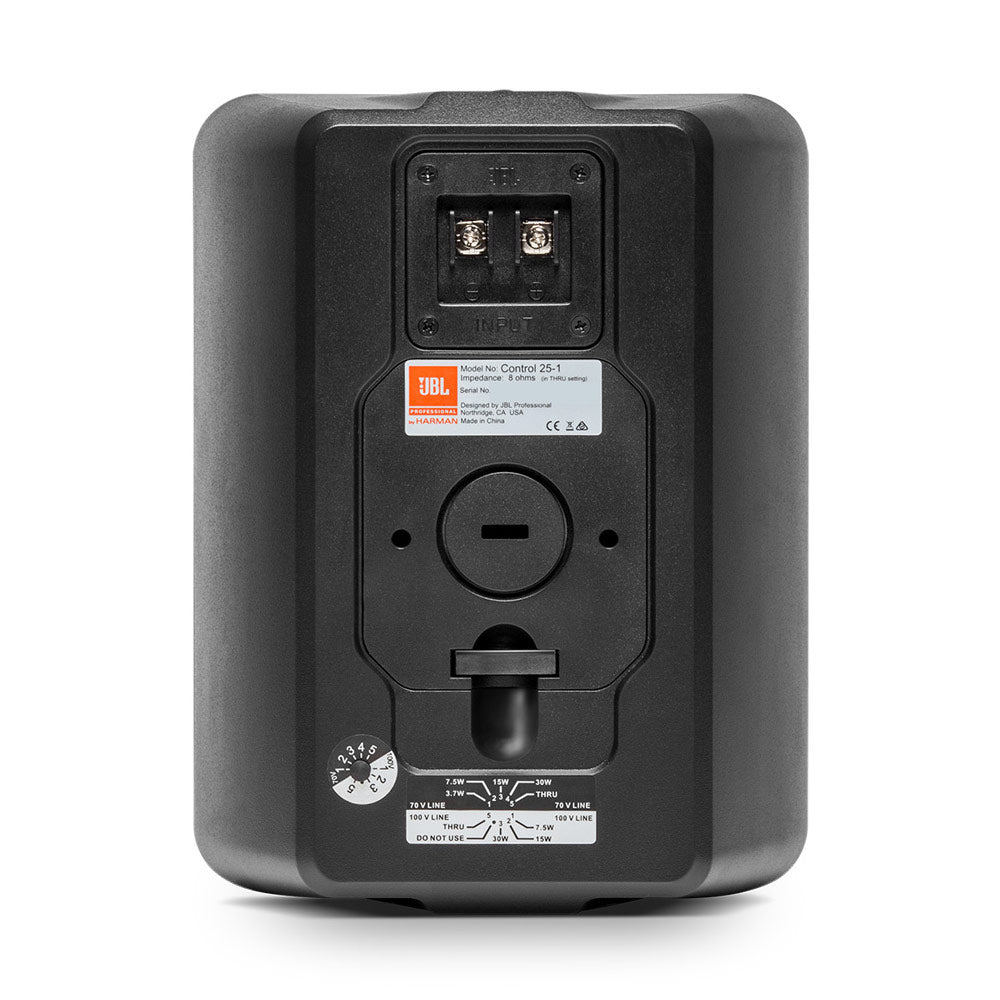

| Termination | Screw-down terminal strip, zinc-plated copper based, nickel-plated metal screws and washers. Accepts up to 9 mm outside 4 mm inside open lugs (#6, #8, or #10 lug), plus bare wire (up to 12 AWG / 2.5 mm2). Optional MTC-PC2 and MTC-PC3 protective panel covers available to provide sealed entrance for additional weather protection. |
| Agency Rating | ROHS-compliant; Transformer UL Recognized per UL1876 |
| Colors | Black (RAL9004) or white (-WH, RAL9016) |
| Dimensions (H x W x D) | 243 x 188 x 145 mm (9.6 x 7.4 x 5.7 in); 203 mm (8.0 in) deep total when mounted on InvisiBall wall-mount bracket. |
| Net Weight | 3.4 kg (7.5 lbs) |
| Shipping Weight | 8.16 kg (18 lbs) for the pair-pack (for 2 speakers) |
| Included Accessories | InvisiBall» wall-mounting system), 6 mm x 100 mm hex key |
| Optional Accessories | MTC-25UB-1 - Yolk-type U-bracket (&-WH) MTC-25WMG-1 - WeatherMax grille with backing (&-WH) MTC-28/25CM - Ceiling-Mount InvisiBall adapter (&-WH) |
Priced individually, but sold in pairs.
The Control¨ 25-1 is a two-way 5" speaker with rich sonic character, wide coverage, consistent dispersion, versatile mounting, and a contemporary high-design look that fits into a wide range of decors. This makes Control 25-1 an excellent choice for a wide variety of applications, including retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality, music cafes, leisure venues, and anywhere where a top quality high-output indoor/outdoor foreground/background music (and/or paging) speaker is required.
Features:
- Components:
5-1/4" woofer with woven fiberglass cone
3/4" PEI diaphragm tweeter with fluid cooling - Contemporary, high-design appearance
- Built-in InvisiBall¨ mounting hardware*, plus available U-bracket
- Weather resistant enclosure and transducers
- Wide 100 deg. x 100 deg. coverage
- 100 Watt power handling (200 Watt program) in direct 8 ohm setting, plus built-in 30 Watt 70V/100V multi-tap transformer.
- High fidelity sound character with broad frequency response of 60 Hz - 20 kHz.
| Frequency Range (-10 dB) | 60 Hz to 20 kHz |
| Frequency Response (+/-3 dB) | 85Hz - 17 kHz |
| Power Rating | 200 W Continuous Program (2 hrs) 100 W (400W peak), Continuous Pink Noise (2 hrs) 75 W (300W peak) Continuous Pink Noise (100 hrs) |
| Maximum Input Voltage | 25.3 V RMS (2 hrs), 50.6 V peak |
| Maximum SPL | 110 dB ave. Continuous Pink Noise (116 dB peak) |
| Sensitivity | 90 dB, 1W/1m (ave. 100 Hz - 10 kHz) |
| Coverage Angle | 100Á x 100Á |
| Directivity Factor (Q) | 6.04 (averaged 1kHz - 16kHz) |
| Directivity Index (DI) | 7.6dB (averaged 1kHz - 16kHz) |
| Nominal Impedance | 8 ohms (THRU setting) |
| Crossover Type | 2nd order low-pass, 3rd order high-pass |
| Transformer Taps | 70V: 30W, 15W, 7.5W, 3.7W 100V: 30W, 15W, 7.5W Insertion Loss <0.94 dB at any tap setting Thru Setting: 8_ nominal |
| Recommended Protective High-Pass | 60 Hz high-pass (24 dB/oct) (for 8_ operation and for all 70V/100V taps settings). |
| Low Frequency Driver | 135 mm (5.25 in), woven-fiberglass cone with pure butyl rubber surround with Weather-Edge frame protection, high-temp fiberglass voice coil former, high-temp voice coil wire, optimized cone geometry, linear suspension spider, and FEA optimized motor structure. |
| High Frequency Driver | 19 mm (0.75 in) PEI diaphragm, low-viscosity ferro-magnetic fluid, and lightweight Kapton» voice coil former. |
| Enclosure Material | High Impact Polystyrene (HIPS), painted with highly-UV resistant paint on white (-WH) version for maximum UV fade resistance. |
| Grille | Highly zinc-plated, finished in durable TGIC polyester powdercoating. MTC-25WMG-1 (&-WH) available with WeatherMax» multi-layer foam and tight-weave mesh vapor barrier backing. |
| Installation | InvisiBall wall-mounting system included. Two 6 mm attachment points (on top and bottom) for optional MTC-25UB-1 (&-WH) U-bracket. Secondary safety attachment loop point on back panel. |
| Environmental | IP-44 per IEC529 (IP-55 when installed with the optional MTC-25WMG-1 WeatherMax» grille and either MTC-PC2 or MTC-PC3 panel cover.) Exceeds MilSpec 810 for humidity, salt-spray, temperature / UV. Passes MilStd-202F for salt spray and ASTM G85 for acid-air plus salt spray. Optional MTC-25WMG-1 WeatherMax» grille for breaking up driving rain and for especially difficult environments. |
| Termination | Screw-down terminal strip, zinc-plated copper based, nickel-plated metal screws and washers. Accepts up to 9 mm outside 4 mm inside open lugs (#6, #8, or #10 lug), plus bare wire (up to 12 AWG / 2.5 mm2). Optional MTC-PC2 and MTC-PC3 protective panel covers available to provide sealed entrance for additional weather protection. |
| Agency Rating | ROHS-compliant; Transformer UL Recognized per UL1876 |
| Colors | Black (RAL9004) or white (-WH, RAL9016) |
| Dimensions (H x W x D) | 243 x 188 x 145 mm (9.6 x 7.4 x 5.7 in); 203 mm (8.0 in) deep total when mounted on InvisiBall wall-mount bracket. |
| Net Weight | 3.4 kg (7.5 lbs) |
| Shipping Weight | 8.16 kg (18 lbs) for the pair-pack (for 2 speakers) |
| Included Accessories | InvisiBall» wall-mounting system), 6 mm x 100 mm hex key |
| Optional Accessories | MTC-25UB-1 - Yolk-type U-bracket (&-WH) MTC-25WMG-1 - WeatherMax grille with backing (&-WH) MTC-28/25CM - Ceiling-Mount InvisiBall adapter (&-WH) |
