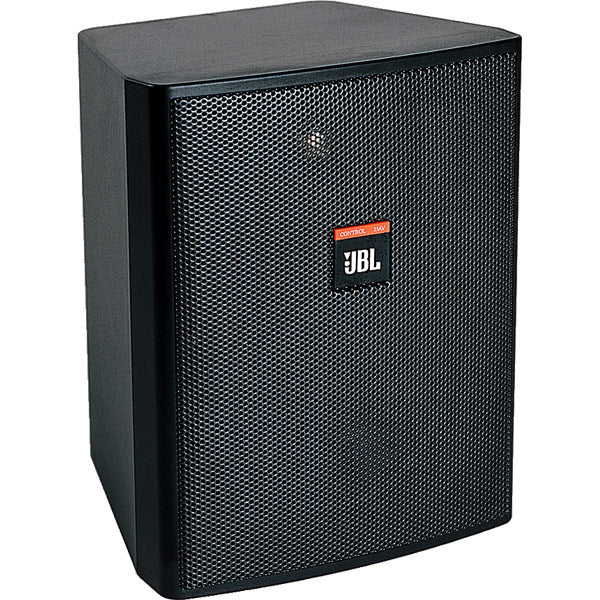

JBL Control 25AV Shielded 5.25" 2-Way Indoor Outdoor Speaker (Black)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description

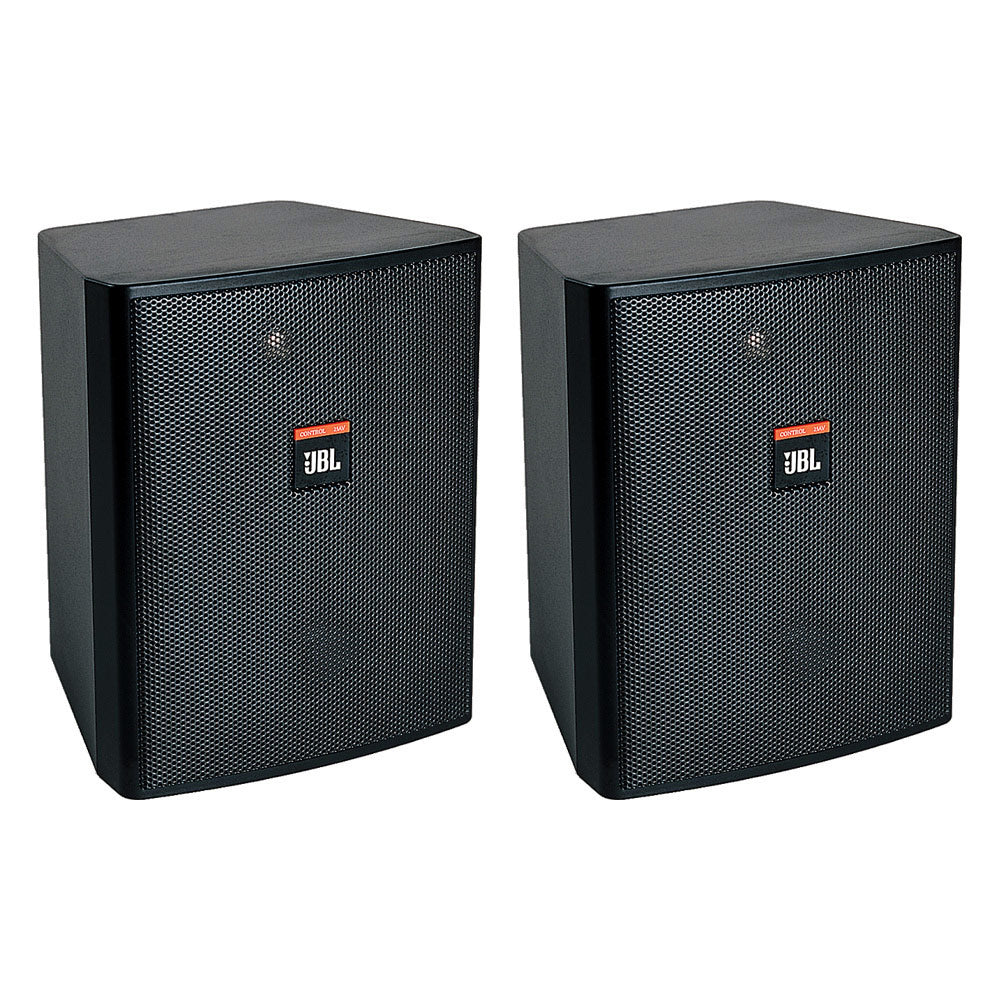

Priced individually, but sold in pairs.
The control 25av is an especially wide bandwidth, smooth response speaker. The compact cabinet is magnetically shielded, perfect for use in close proximity to video monitors. The control 25av also features a top-quality 60w multi-tap transformer for 70v/100v line distribution systems, as found in professional installs. The transformer is easily bypassed allowing the control 25av to be used as an 8ohm impedance speaker for pretty much any audio application. The 25av's are famously used for home a/v installs and both indoor and outdoor applications due to the stainless steel grille and mtc-pc2 panel cover included for additional weather resistance.
| Frequency Range | 70 Hz - 23 kHz (-10 dB) |
| Power Capacity | 200 W Continuous Program Power; 100 W Continuous Pink Noise |
| Transformer Taps | 70V: 60 W, 30 W, 15 W, 7.5 Wæ 100V: 60 W, 30 W, 15 W |
| Nominal Sensitivity | 87 dB SPL, 1 W @ 1 m (3.3 ft) |
| Midrange (±1.5 dB, typical) | 130 Hz - 14 kHz |
| Nominal Coverage | 100 deg. x 100 deg. |
| Maximum SPL @ 1m | 113 dB continuous peak pink noise 107 dB continuous average pink noise 103 dB continuous average music or speech |
| Directivity Factor (Q) | 4.9 dB, averaged 500 Hz to 4 kHz |
| Directivity Index (DI) | 6.9 dB, averaged 500 Hz to 4 kHz |
| Nominal Impedance | 8 ohms |
| Minimum Impedance | 6.7 ohms at 230 Hz |
| Crossover Network | Second Order Low Pass, Second Order High Pass, Complex Optimization for Maximally Flat Response |
| Low Frequency | 130 mm (5.25 in) polypropylene-coated paper with WeatherEdge surround, 25 mm (1 in) voicecoil on kapton former |
| High-Frequency | 20 mm (.75 in) titanium coated PEI |
| Enclosure Material | High Impact polystyrene |
| Grille | Painted stainless steel, black or white to match cabinet, paintable |
| Overload Protection | Full-range power limiting to protect network and transducers. Internal fuse to protect during exceptional overload condition |
| Environmental | Exceeds Mil Spec 810 for humidity, salt spray, temperature / UV. IEC 529 IP-X4 splashproof rating |
| Terminations | Screw-down terminal strip, zinc-plated copper base, nickel plated metal screws/washers, accepts up to 9 mm outside 4 mm inside open lug (#6, #8 or #10), plus bare wire. (up to 12 AWG) |
| Safety Agency Rating | Transformer is listed per UL1876 |
| Colors | Black or white (-WH) |
| Rotation | Against wall on InvisiBall Base: 37 deg. vertical 44 deg. horizontal On bracket: 44 deg.æ all directions |
| Dimensions (H x W x D) | 236 x 186 x 159 mmæ (9.3 x 7.4 x 6.3 in) |
| Net Weight (ea) | 4.0 kg (9 lb) |
| Shipping Weight (ea) | 9.0 kg (20 lb) per pair |
| Included Accessories | 1 Pr MTC-PC input panel cover, InvisiBall mounting base, 6 mm x 100 mm InvisiBall hex wrench |
| Optional Accessories | MTC-25V: For vertical columnar orientation of up to 3 loudspeakers extension of the woofer surround that MTC-25/23H: For horizontal splaying of two speakers. Three brackets array up to six loudspeakers in a 360 deg. array. MTC-28/25CM: Ceiling-mount adapter. |
