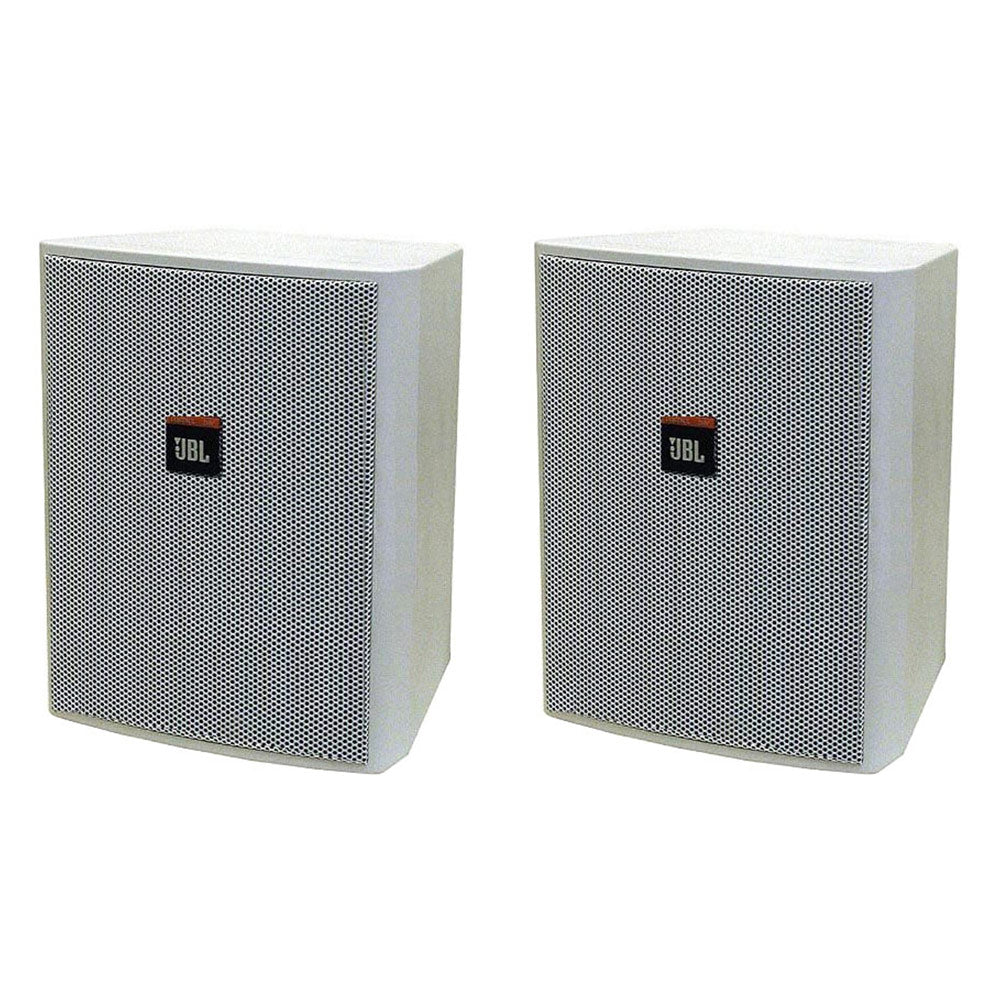

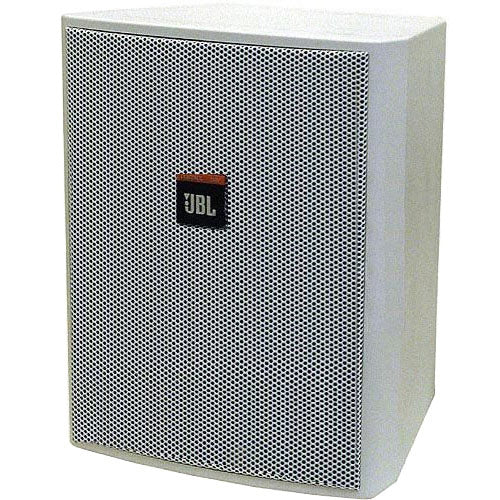

JBL Control 25AV-WH Two Way 5.25" Shielded Surface Mount Monitor (White)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Priced individually, but sold in pairs.
The control 25av is an especially wide bandwidth, smooth response speaker. The compact cabinet is magnetically shielded, perfect for use in close proximity to video monitors. The control 25av also features a top-quality 60w multi-tap transformer for 70v/100v line distribution systems, as found in professional installs. The transformer is easily bypassed allowing the control 25av to be used as an 8ohm impedance speaker for pretty much any audio application. The 25av's are famously used for home a/v installs and both indoor and outdoor applications due to the stainless steel grille and mtc-pc2 panel cover included for additional weather resistance.
| Freq. Range (-10 dB)1 | 70 Hz - 23 kHz |
| Midrange (±1.5 dB, typical)2 | 130 Hz - 14 kHz |
| 100 Hr Power Capacity3 | 200 Watts Continuous Program Power 100 Watts Continuous Pink Noise |
| Nominal Coverage | 100Á x 100Á |
| Nominal Sensitivity4 | 87 dB SPL, 1W @ 1 m (3.3ft) |
| Nominal Coverage | 100Á x 100Á |
| Maximum SPL @ 1m | 113 dB continuous peak pink noise 107 dB continuous average pink noise 103 dB continuous average music or speech |
| Directivity Factor (Q) | 4.9, averaged 500 Hz to 4 kHz |
| Directivity Index (DI) | 6.9 dB, averaged 500 Hz to 4 kHz |
| Nominal Impedance | 8 ohms |
| Minimum Impedance | 6.7 ohms at 230 Hz |
| Crossover Type | Second Order Lowpass, Second Order Highpass, Complex Optimization for Maximally Flat Response |
| Transformer Taps | 170V : 60W, 30W, 15W, 7.5W taps (Taps #4,#3, #2 / #1) 100V : 60W, 30W, 15W taps (Taps #3, #2, / #1) Thru position : 8 nominal |
| Transducers | |
| Low-Frequency | 130 mm (5.25 in) polypropylene-coated paper with WeatherEdge surround, 25 mm (1 in) voicecoil on kapton former |
| High-Frequency | 20 mm (.75 in) titanium coated PEI |
| Physical | |
| Enclosure Material | High Impact polystyrene |
| Grille | Painted stainless steel, black or white to match cabinet, paintable |
| Overload Protection | Full-range power limiting to protect network and transducers. Internal fuse to protect during exceptional overload condition |
| Environmental | Exceeds Mil Spec 810 for humidity, salt spray, temperature / UV. IEC 529 IP-X4 splashproof rating |
| Termination | Screw-down terminal strip, zinc-plated copper base, nickel plated metal screws/washers, accepts up to 9 mm outside 4 mm inside open lug (#6, #8 or #10), plus bare wire. (up to 12 AWG) |
| Safety Agency Rating | Transformer is listed per UL1876 |
| Colors | white (-WH) |
| Rotation | Against wall on InvisiBall Base : 37Á vertical 44Á horizontal On bracket : 44Á all directions |
| Dimensions (H x W x D) | 236 x 186 x 159 mm (9.3 x 7.4 x 6.3 in) |
Priced individually, but sold in pairs.
The control 25av is an especially wide bandwidth, smooth response speaker. The compact cabinet is magnetically shielded, perfect for use in close proximity to video monitors. The control 25av also features a top-quality 60w multi-tap transformer for 70v/100v line distribution systems, as found in professional installs. The transformer is easily bypassed allowing the control 25av to be used as an 8ohm impedance speaker for pretty much any audio application. The 25av's are famously used for home a/v installs and both indoor and outdoor applications due to the stainless steel grille and mtc-pc2 panel cover included for additional weather resistance.
| Freq. Range (-10 dB)1 | 70 Hz - 23 kHz |
| Midrange (±1.5 dB, typical)2 | 130 Hz - 14 kHz |
| 100 Hr Power Capacity3 | 200 Watts Continuous Program Power 100 Watts Continuous Pink Noise |
| Nominal Coverage | 100Á x 100Á |
| Nominal Sensitivity4 | 87 dB SPL, 1W @ 1 m (3.3ft) |
| Nominal Coverage | 100Á x 100Á |
| Maximum SPL @ 1m | 113 dB continuous peak pink noise 107 dB continuous average pink noise 103 dB continuous average music or speech |
| Directivity Factor (Q) | 4.9, averaged 500 Hz to 4 kHz |
| Directivity Index (DI) | 6.9 dB, averaged 500 Hz to 4 kHz |
| Nominal Impedance | 8 ohms |
| Minimum Impedance | 6.7 ohms at 230 Hz |
| Crossover Type | Second Order Lowpass, Second Order Highpass, Complex Optimization for Maximally Flat Response |
| Transformer Taps | 170V : 60W, 30W, 15W, 7.5W taps (Taps #4,#3, #2 / #1) 100V : 60W, 30W, 15W taps (Taps #3, #2, / #1) Thru position : 8 nominal |
| Transducers | |
| Low-Frequency | 130 mm (5.25 in) polypropylene-coated paper with WeatherEdge surround, 25 mm (1 in) voicecoil on kapton former |
| High-Frequency | 20 mm (.75 in) titanium coated PEI |
| Physical | |
| Enclosure Material | High Impact polystyrene |
| Grille | Painted stainless steel, black or white to match cabinet, paintable |
| Overload Protection | Full-range power limiting to protect network and transducers. Internal fuse to protect during exceptional overload condition |
| Environmental | Exceeds Mil Spec 810 for humidity, salt spray, temperature / UV. IEC 529 IP-X4 splashproof rating |
| Termination | Screw-down terminal strip, zinc-plated copper base, nickel plated metal screws/washers, accepts up to 9 mm outside 4 mm inside open lug (#6, #8 or #10), plus bare wire. (up to 12 AWG) |
| Safety Agency Rating | Transformer is listed per UL1876 |
| Colors | white (-WH) |
| Rotation | Against wall on InvisiBall Base : 37Á vertical 44Á horizontal On bracket : 44Á all directions |
| Dimensions (H x W x D) | 236 x 186 x 159 mm (9.3 x 7.4 x 6.3 in) |
