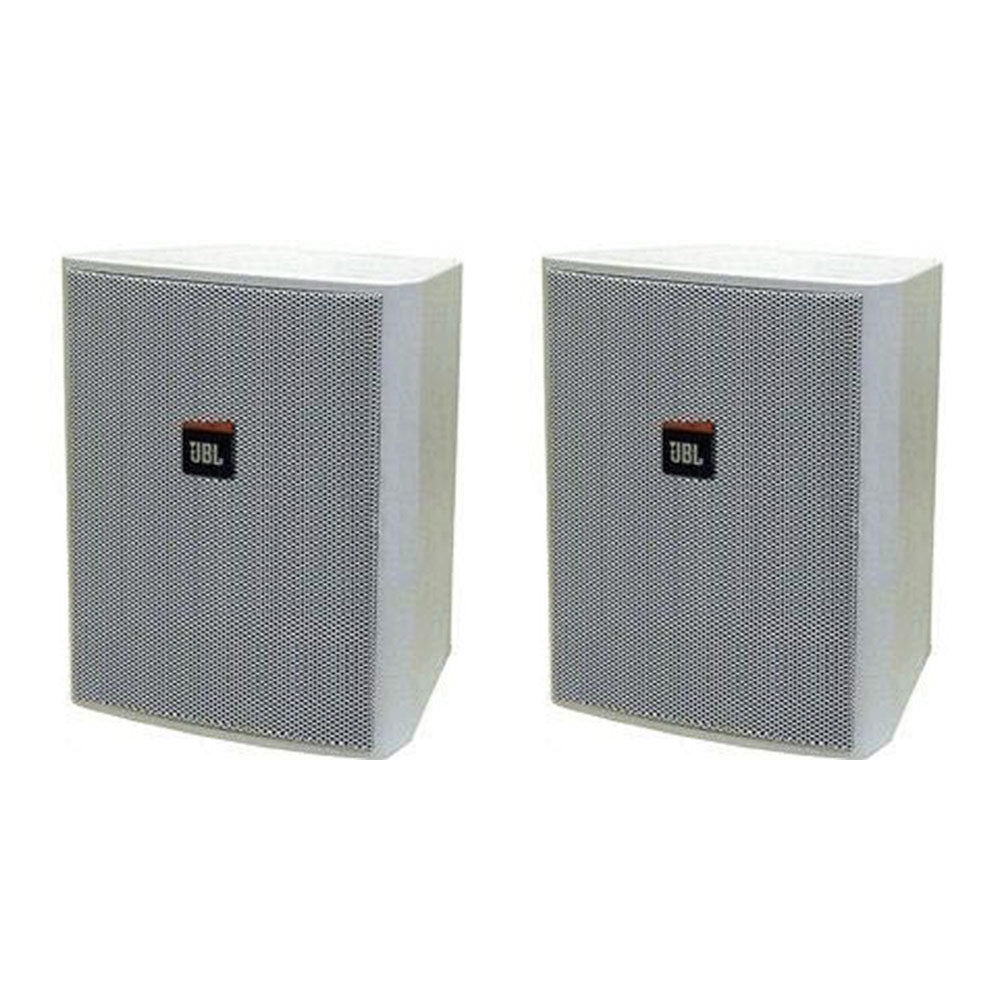

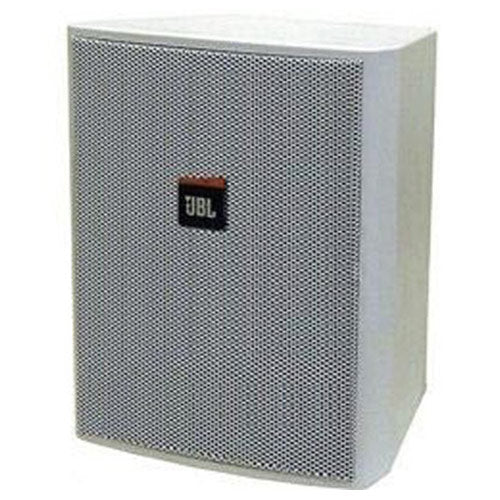

JBL Control 25AVLSWH Life Safety Outdoor Installation Speaker (White)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
JBL Control 25AVLSWH Life Safety Outdoor Installation Speaker (White)
Sale price$315.00
Description
Priced individually, but sold in pairs.
The Control¨ 25AV-LS built on the same platform as our popular Control 25AV and is UL 1480 UUMW Listed for use in fire alarm and/or emergency communication systems.
Features
- UL 1480 UUMW Listed for Use in Fire Alarm and/or Emergency Communication
- Systems; EN54-24 certified
- Video shielded for use near video monitors.
- Extremely smooth frequency response.
- Aluminum Grille with Polyester Powder Coating for enduring reliability.
- 60 W transformer for 70 V or 100 V lines, with 8 ohms thru.
- SonicGuardª overload protection.
- 130 mm (5.25 in) polypropylene coated woofer, 10 mm (.75 in) titanium coated horn-loaded tweeter.
- Includes InvisiBall¨ mounting hardware and sealed input panel cover.
- Screw-down input terminals.
- 105 deg. x 85 deg. high frequency horn.
| Freq. Range (-10 dB) | 90 Hz - 20 kHz |
| Power Capacity | 200 Watts Continuous Program Power (at 8 ohm bypass mode) 100 Watts Continuous Pink Noise (at 8 ohm bypass mode) 60 Watts (at 60W tap setting) |
| Transformer Taps | 60W, 30W, 15W (& 7.5W @ 70V) |
| Nominal Sensitivity | 87dB, 1W at 1m (1kHz-10kHz, ave., at 8 ohm bypass mode); 71 dB, 1W at 4m per EN54-24 (100 Hz - 10 kHz, ave., 60W tap) |
| Nominal Coverage Angle | 110Á x 85Á (1kHz to 16kHz) |
| Directivity Factor (Q) | 4.8 (500 Hz to 4kHz) |
| Directivity Index (DI) | 107 dB @ 1 m (3.3 ft) average, 113 dB peak |
| Rated Maximum SPL | 8 ohms (in bypass mode) |
| LF Driver | 130mm (5.25 in) with polypropylene coated paper cone with WeatherEdge surround, 25 mm (1 in) voicecoil on kapton former |
| HF Driver | 20mm (.75 in) titanium coated PEI |
| Termination | Captive screw-down terminals, zinc-plated copper base, nickel plated metal screws/washers, accepts up to 9 mm outside 4 mm inside open lug, plus bare wire up to 12 AWG (2.5 mm) |
| Cabinet Material | ABS, (materials rated UL94-5VA) |
| Grille | Aluminum with polyester powder coating |
| Environmental | Exceeds Mil Spec 810 for humidity, salt spray, temperature / UV, IEC 529 IP-x5 splashproof rating |
| Environmental | Full-range power limiting to protect network and transducers. Internal fuse to protect during exceptional overload condition |
| Safety Agency | UL1480-UUMW Listed, EN54-24 certified, NFPA90, NFPA70A, and in accordance with the requirements of IEC60849/EN60849 |
| Dimensions (H x W x D) | 236 x 186 x 159 mm (9.3 x 7.4 x 6.3 in) |
| Net Weight | 3.8 kg (8.4 lbs) ea |
| Shipping Weight | 8.6 kg (19 lbs) pair |
| Included Accessories | 1 pc MTC-PC2 input panel cover, Invisiball mounting base, 6 mm x 100 mm Invisiball hex wrench |
| Optional Accessories | MTC-25V for vertical columnar mounting of up to 3 speakers MTC-25/23H for horizontal splaying of 2 speakers. Three brackets array either 3 or 6 speakers in a hanging array module for 360Á horizontal coverage. MTC-28/25CM to install speaker down from the ceiling. See JBL Control Contractor Bracket and Adapter Handbook. |
Priced individually, but sold in pairs.
The Control¨ 25AV-LS built on the same platform as our popular Control 25AV and is UL 1480 UUMW Listed for use in fire alarm and/or emergency communication systems.
Features
- UL 1480 UUMW Listed for Use in Fire Alarm and/or Emergency Communication
- Systems; EN54-24 certified
- Video shielded for use near video monitors.
- Extremely smooth frequency response.
- Aluminum Grille with Polyester Powder Coating for enduring reliability.
- 60 W transformer for 70 V or 100 V lines, with 8 ohms thru.
- SonicGuardª overload protection.
- 130 mm (5.25 in) polypropylene coated woofer, 10 mm (.75 in) titanium coated horn-loaded tweeter.
- Includes InvisiBall¨ mounting hardware and sealed input panel cover.
- Screw-down input terminals.
- 105 deg. x 85 deg. high frequency horn.
| Freq. Range (-10 dB) | 90 Hz - 20 kHz |
| Power Capacity | 200 Watts Continuous Program Power (at 8 ohm bypass mode) 100 Watts Continuous Pink Noise (at 8 ohm bypass mode) 60 Watts (at 60W tap setting) |
| Transformer Taps | 60W, 30W, 15W (& 7.5W @ 70V) |
| Nominal Sensitivity | 87dB, 1W at 1m (1kHz-10kHz, ave., at 8 ohm bypass mode); 71 dB, 1W at 4m per EN54-24 (100 Hz - 10 kHz, ave., 60W tap) |
| Nominal Coverage Angle | 110Á x 85Á (1kHz to 16kHz) |
| Directivity Factor (Q) | 4.8 (500 Hz to 4kHz) |
| Directivity Index (DI) | 107 dB @ 1 m (3.3 ft) average, 113 dB peak |
| Rated Maximum SPL | 8 ohms (in bypass mode) |
| LF Driver | 130mm (5.25 in) with polypropylene coated paper cone with WeatherEdge surround, 25 mm (1 in) voicecoil on kapton former |
| HF Driver | 20mm (.75 in) titanium coated PEI |
| Termination | Captive screw-down terminals, zinc-plated copper base, nickel plated metal screws/washers, accepts up to 9 mm outside 4 mm inside open lug, plus bare wire up to 12 AWG (2.5 mm) |
| Cabinet Material | ABS, (materials rated UL94-5VA) |
| Grille | Aluminum with polyester powder coating |
| Environmental | Exceeds Mil Spec 810 for humidity, salt spray, temperature / UV, IEC 529 IP-x5 splashproof rating |
| Environmental | Full-range power limiting to protect network and transducers. Internal fuse to protect during exceptional overload condition |
| Safety Agency | UL1480-UUMW Listed, EN54-24 certified, NFPA90, NFPA70A, and in accordance with the requirements of IEC60849/EN60849 |
| Dimensions (H x W x D) | 236 x 186 x 159 mm (9.3 x 7.4 x 6.3 in) |
| Net Weight | 3.8 kg (8.4 lbs) ea |
| Shipping Weight | 8.6 kg (19 lbs) pair |
| Included Accessories | 1 pc MTC-PC2 input panel cover, Invisiball mounting base, 6 mm x 100 mm Invisiball hex wrench |
| Optional Accessories | MTC-25V for vertical columnar mounting of up to 3 speakers MTC-25/23H for horizontal splaying of 2 speakers. Three brackets array either 3 or 6 speakers in a hanging array module for 360Á horizontal coverage. MTC-28/25CM to install speaker down from the ceiling. See JBL Control Contractor Bracket and Adapter Handbook. |
