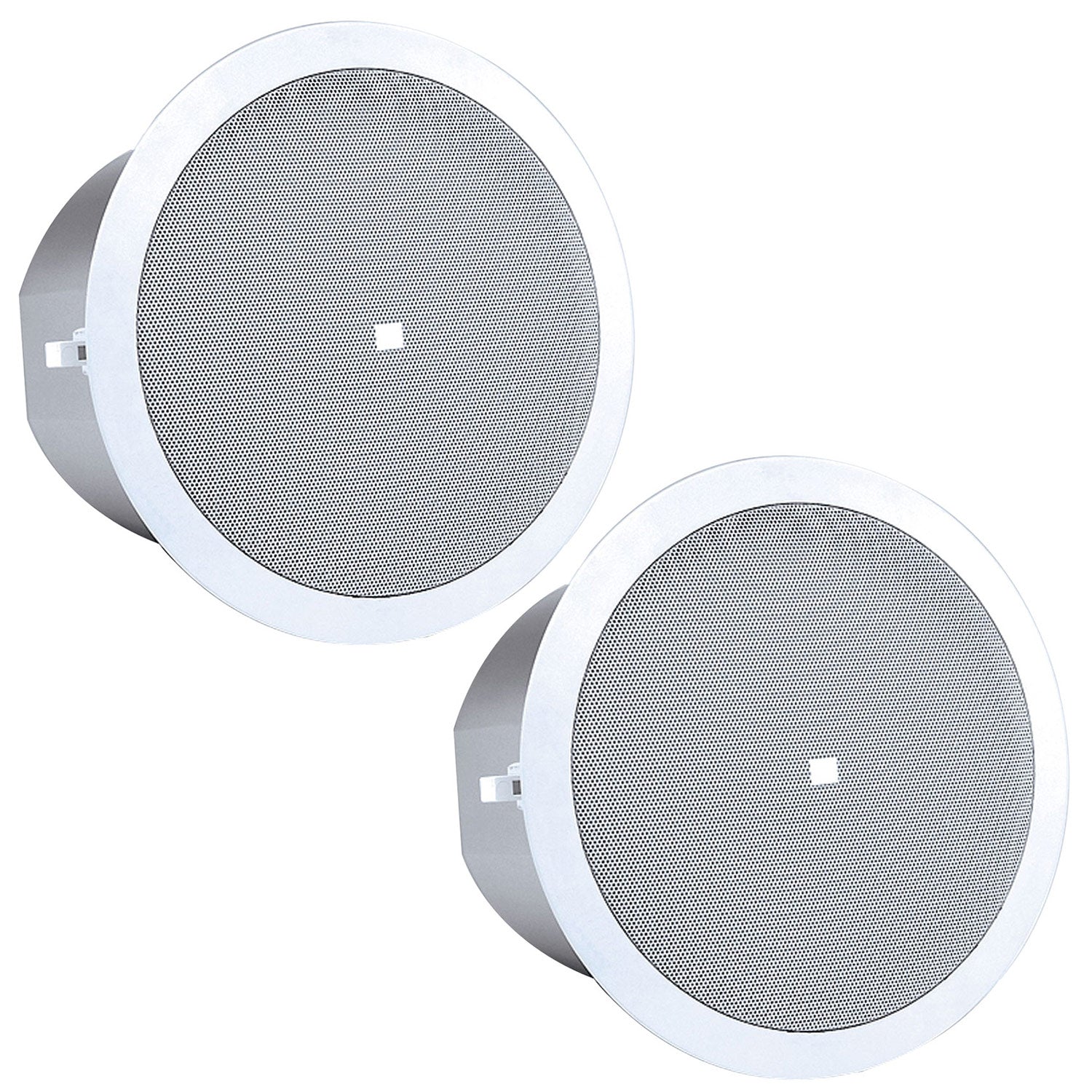

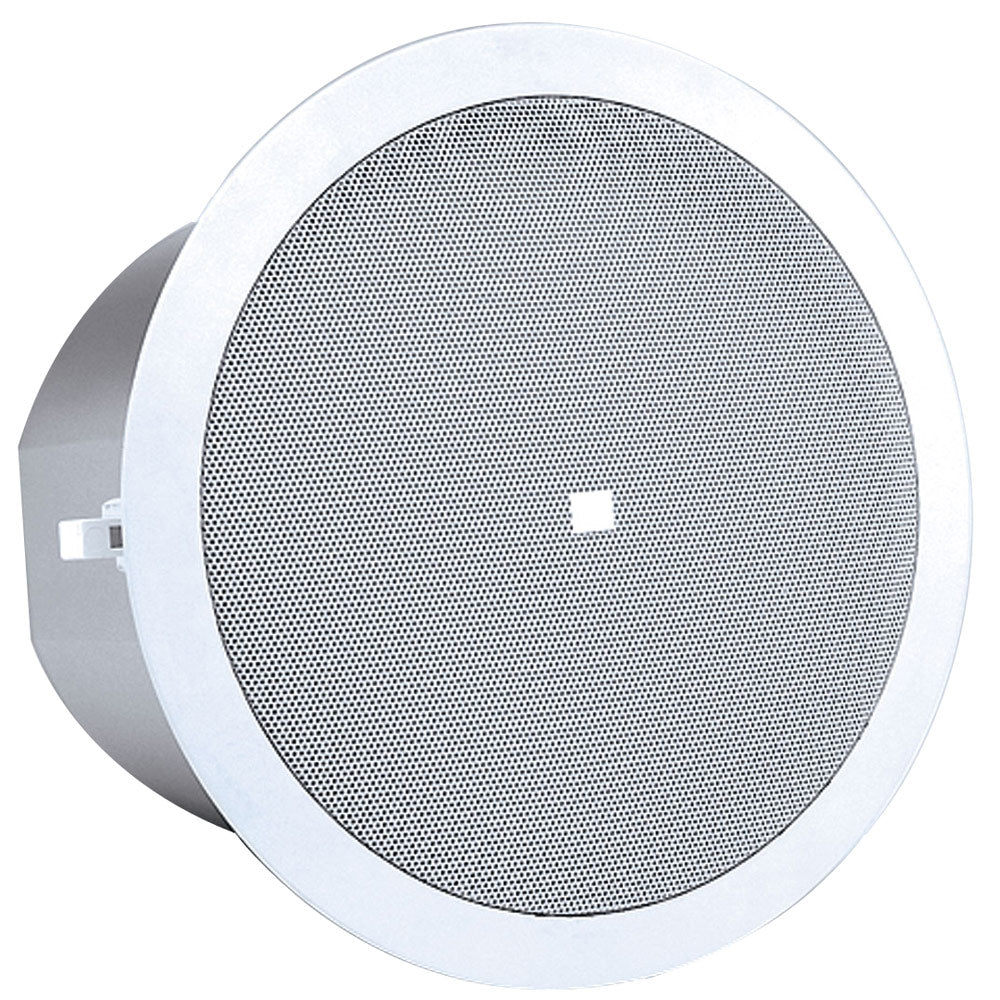

JBL Control 26CTLS Life Safety Ceiling Installation Speaker
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
JBL Control 26CTLS Life Safety Ceiling Installation Speaker
Sale price$240.00
Description
Priced individually, but sold in pairs.
The Control 26CT-LS is a compact ceiling speaker providing premium performance in background or foreground music sound systems.
Features
- UL1480 UUMW Listed for use in Fire Alarm and/or Emergency Communication Systems.
- Coaxially mounted 165 mm (6.5 in) woofer with butyl rubber surround and 19 mm ( 3/4 in) titanium coated diffraction-loaded tweeter
- High power, wide frequency response and low distortion for high sound level capability
- Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking
| Frequency Range | 80 Hz - 20 kHz |
| Power Capacity | 150 W Continuous Program Power 75 W Continuous Pink Noise |
| Transformer Taps | 070V: 60W, 30W, 15W / 7.5W 100V: 60W, 30W, / 15W |
| Nominal Coverage Angle | 110Á conical coverage |
| Directivity Index (DI) | 4.6 averaged 500 Hz to 4 kHz |
| Rated Maximum SPL | 107 dB @ 1 m (3.3 ft) |
| Low-Frequency | 165 mm (6.5 in) Polypropylene-coated, 1" coil on aluminum former |
| High-Frequency | 19 mm (_ in) Titanium coated polyester |
| Termination | Removable locking connector with screw-down terminals. 2 input terminals and 2 loop-thru output terminals. Max. wire 12 AWG (2.5 mm2) |
| Outside Dimensions (H x Dia) | 210 x 252 mm (8.3 x 9.9 in) 190 mm (7.5 in) front of ceiling tile to back of backcan |
| Net Weight (ea) | 4.2 kg (10 lb) |
| Shipping Weight (pair) | 9.7 kg (21 lb) |
Priced individually, but sold in pairs.
The Control 26CT-LS is a compact ceiling speaker providing premium performance in background or foreground music sound systems.
Features
- UL1480 UUMW Listed for use in Fire Alarm and/or Emergency Communication Systems.
- Coaxially mounted 165 mm (6.5 in) woofer with butyl rubber surround and 19 mm ( 3/4 in) titanium coated diffraction-loaded tweeter
- High power, wide frequency response and low distortion for high sound level capability
- Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking
| Frequency Range | 80 Hz - 20 kHz |
| Power Capacity | 150 W Continuous Program Power 75 W Continuous Pink Noise |
| Transformer Taps | 070V: 60W, 30W, 15W / 7.5W 100V: 60W, 30W, / 15W |
| Nominal Coverage Angle | 110Á conical coverage |
| Directivity Index (DI) | 4.6 averaged 500 Hz to 4 kHz |
| Rated Maximum SPL | 107 dB @ 1 m (3.3 ft) |
| Low-Frequency | 165 mm (6.5 in) Polypropylene-coated, 1" coil on aluminum former |
| High-Frequency | 19 mm (_ in) Titanium coated polyester |
| Termination | Removable locking connector with screw-down terminals. 2 input terminals and 2 loop-thru output terminals. Max. wire 12 AWG (2.5 mm2) |
| Outside Dimensions (H x Dia) | 210 x 252 mm (8.3 x 9.9 in) 190 mm (7.5 in) front of ceiling tile to back of backcan |
| Net Weight (ea) | 4.2 kg (10 lb) |
| Shipping Weight (pair) | 9.7 kg (21 lb) |
