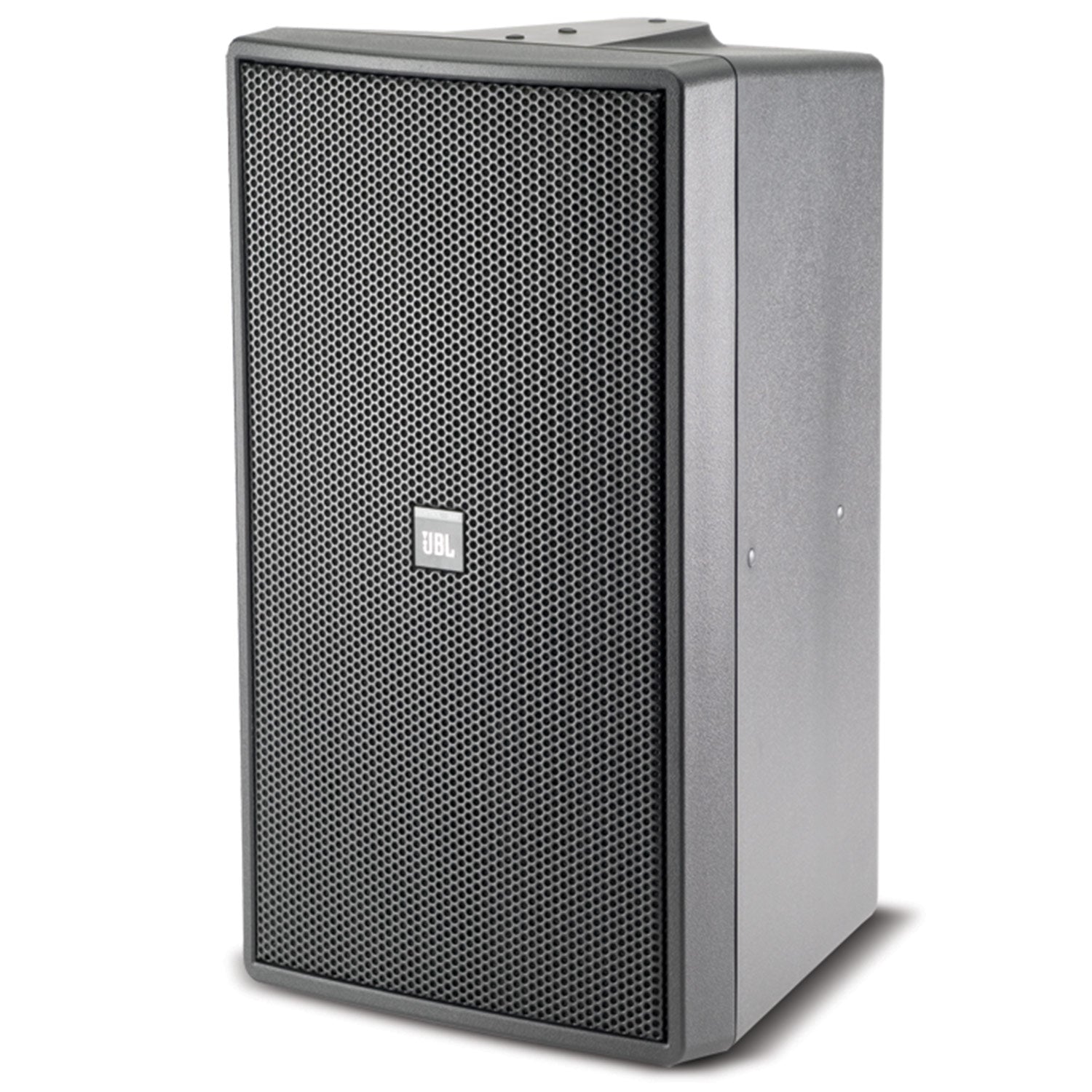

JBL CONTROL 29AV-1-BK Indoor / Outdoor Monitor Speaker Black
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
The JBL CONTROL 29AV1 is a high-output installation speaker with extended bandwidth for indoor or outdoor applications in bars and restaurants. The built-in line distribution transformer allows the use of either 70V or 100V speaker lines, and the 8-ohm load allows the use of multiple speakers with less amplifier load and fatigue.
The CONTROL 29AV1 cabinet will accept a variety of paints to match with decor and has been maximized for weather resistance. The rubber-surrounded kevlar woofer cone, pure titanium compression driver, rear loaded driver basket, and composite coated grill with foam all greatly reduce moisture incursion.
The CONTROL 29AV1's InvisiBall mounting kit facilitates placement and installation, while allowing for vertical rotation of up to 37degree off-axis and horizontal rotation of up to 44 degree off-axis, enabling optimal coverage. For further convenience, all transformer adjustments are made from behind the logo badge without having to remove the grill.
Features:
- 300 Watts power capability
- 110 Watt transformer for 70V/100V lines, with 8 ohm thru
- Includes InvisiBall mounting hardware, plus ten 6 mm attachment points for suspension and optional U-bracket
- 8 in. (200 mm) Kevlar cone woofer, 1 in. (25 mm) titanium diaphragm compression driver
- 110 degree x 85 degree HF coverage, rotatable horn
- SonicGuard overload protection
- Sealed input panel cover and screw-down input terminals
- Extended bandwidth, extremely smooth frequency response
| Active or Passive | Passive |
| Frequency Response | 40Hz to 19kHz |
| Power Capacity | 300 Watts Continuous Program Power 150 Watts Continuous Pink Noise |
| Maximum Sound Pressure Level (SPL) | 120dB, Long-Term: 114dB |
| Nominal Sensitivity | 91dB, 1W @ 1m (3.3 ft) |
| Transformer Taps | 70V: 110W, 55W, 28W / 14W 100V: 110W, 55W, / 28W |
| Impedance | 8 ohms |
| Crossover | 3rd order High Pass, 2nd order Low Pass with impedance compensation, 2.5 kHz crossover frequency |
| Shielded | Yes, as close as 9 in. to monitor |
| Low Frequency Driver | 200 (8 in) kevlar cone with pure butyl rubber surround, 2 in. (50 mm) voice-coil on fiberglass former |
| High Frequency Driver | 1-in. (25-mm) compression driver, pure titanium diaphragm with patented JBL diamond surround |
| Enclosure Material | High impact polystyrene cabinet with a thermoset composite coated steel grille |
| Input Connections | Screw-down terminal strip, zinc plated copper base, nickel-plated metal screws/washers. Accepts up to 9 mm outside 4 mm inside open lug (#6, #8 or #10 lug), plus bare wire (up to 12 AWG/2.5 mm2). |
| Environmental | IEC 529 IP-X4 splashproof rating. Exceeds MilSpec 810 for humidity, salt spray, temperature / UV. Passes Mil-Std-202F for salt spray. |
| Dimensions | 20.5 x 12.0 x 10.9 in. (520 x 306 x 277 mm) |
| Weight | 26.8 lbs. (12.2 kg) each |
| Specialties | Rotatable horn for either horizontal or vertical mounting |
The JBL CONTROL 29AV1 is a high-output installation speaker with extended bandwidth for indoor or outdoor applications in bars and restaurants. The built-in line distribution transformer allows the use of either 70V or 100V speaker lines, and the 8-ohm load allows the use of multiple speakers with less amplifier load and fatigue.
The CONTROL 29AV1 cabinet will accept a variety of paints to match with decor and has been maximized for weather resistance. The rubber-surrounded kevlar woofer cone, pure titanium compression driver, rear loaded driver basket, and composite coated grill with foam all greatly reduce moisture incursion.
The CONTROL 29AV1's InvisiBall mounting kit facilitates placement and installation, while allowing for vertical rotation of up to 37degree off-axis and horizontal rotation of up to 44 degree off-axis, enabling optimal coverage. For further convenience, all transformer adjustments are made from behind the logo badge without having to remove the grill.
Features:
- 300 Watts power capability
- 110 Watt transformer for 70V/100V lines, with 8 ohm thru
- Includes InvisiBall mounting hardware, plus ten 6 mm attachment points for suspension and optional U-bracket
- 8 in. (200 mm) Kevlar cone woofer, 1 in. (25 mm) titanium diaphragm compression driver
- 110 degree x 85 degree HF coverage, rotatable horn
- SonicGuard overload protection
- Sealed input panel cover and screw-down input terminals
- Extended bandwidth, extremely smooth frequency response
| Active or Passive | Passive |
| Frequency Response | 40Hz to 19kHz |
| Power Capacity | 300 Watts Continuous Program Power 150 Watts Continuous Pink Noise |
| Maximum Sound Pressure Level (SPL) | 120dB, Long-Term: 114dB |
| Nominal Sensitivity | 91dB, 1W @ 1m (3.3 ft) |
| Transformer Taps | 70V: 110W, 55W, 28W / 14W 100V: 110W, 55W, / 28W |
| Impedance | 8 ohms |
| Crossover | 3rd order High Pass, 2nd order Low Pass with impedance compensation, 2.5 kHz crossover frequency |
| Shielded | Yes, as close as 9 in. to monitor |
| Low Frequency Driver | 200 (8 in) kevlar cone with pure butyl rubber surround, 2 in. (50 mm) voice-coil on fiberglass former |
| High Frequency Driver | 1-in. (25-mm) compression driver, pure titanium diaphragm with patented JBL diamond surround |
| Enclosure Material | High impact polystyrene cabinet with a thermoset composite coated steel grille |
| Input Connections | Screw-down terminal strip, zinc plated copper base, nickel-plated metal screws/washers. Accepts up to 9 mm outside 4 mm inside open lug (#6, #8 or #10 lug), plus bare wire (up to 12 AWG/2.5 mm2). |
| Environmental | IEC 529 IP-X4 splashproof rating. Exceeds MilSpec 810 for humidity, salt spray, temperature / UV. Passes Mil-Std-202F for salt spray. |
| Dimensions | 20.5 x 12.0 x 10.9 in. (520 x 306 x 277 mm) |
| Weight | 26.8 lbs. (12.2 kg) each |
| Specialties | Rotatable horn for either horizontal or vertical mounting |
