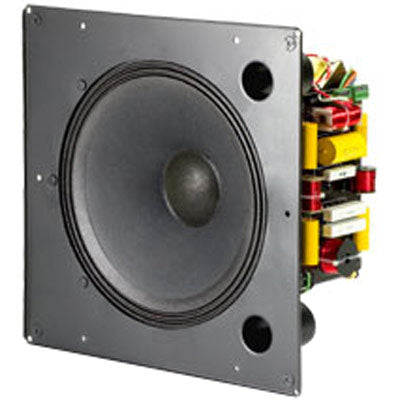

JBL Control 321CT 12" Coaxial Ceiling Speaker (with Transformer)


  • Dale #:

    JBL-CONTROL321CT
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The Control 321CT has been engineered from the ground up to deliver exceptional next-generation performance in a coaxial point source design ceiling loudspeaker.Features Consistent 90° broadband pattern control. Components300 mm (12 in) woofer with Kevlar-reinforcedcone with 50 mm (2 in) voice-co... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The Control 321CT has been engineered from the ground up to deliver exceptional next-generation performance in a coaxial point source design ceiling loudspeaker.

Features

  • Consistent 90° broadband pattern control.
  • Components
    300 mm (12 in) woofer with Kevlar-reinforcedcone with 50 mm (2 in) voice-coil.
    25 mm (1 exit) compression driver.
  • Extraordinary clarity for speech and vocals with extended frequency response for music.
  • 250 Watt power handling with high sensitivity provides high SPL capability.
  • Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
  • Clean, contemporary grille and optional backbox available.

More +

Product Specs

Frequency Range (-10 dB)34 Hz – 18 kHz
Power Rating200 W (600 W peak), 100 hrs
Taps70V: 68W, 34W, 17W, 8.5W
100V: 68W, 34W, 17W
Frequency Response (±3 dB)47 Hz – 16 kHz
Coverage Pattern90° conical, broadband (Avg 1k - 16kHz)
Directivity Factor (Q)8.7 (1k - 16kHz)
Directivity Index (DI)9.4 dB (1k - 16kHz)
Sensitivity (2.83V@ 1m)94 dB measured half-space
99 dB computed for competitive comparison
Crossover Network1.8 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF
Dimensions (H x W x D)366 x 366 mm (14.4 x 14.4 in) square baffle x depth from back of baffle of 240 mm (9.5 in)

More +
