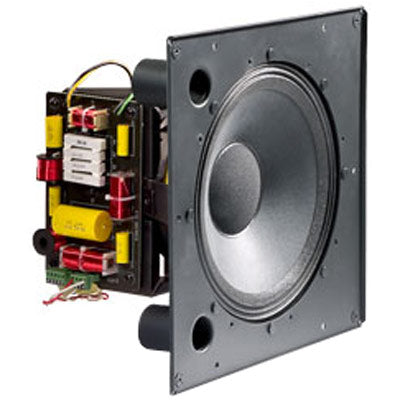

JBL Control 322C High Output 12" Coaxial Ceiling Speaker


  • Dale #:

    JBL-CONTROL322C
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The Control 322C delivers exceptional next-generation performance in a coaxial point source design ceiling loudspeaker.Features Consistent 90° broadband pattern control. ComponentsKevlar-reinforced 300 mm (12 in) woofer with 75 mm (3 inch) voice-coil cone.Medium-format compression driver. Extraor... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The Control 322C delivers exceptional next-generation performance in a coaxial point source design ceiling loudspeaker.

Features

  • Consistent 90° broadband pattern control.
  • Components
    Kevlar-reinforced 300 mm (12 in) woofer with 75 mm (3 inch) voice-coil cone.
    Medium-format compression driver.
  • Extraordinary clarity for speech and vocals with extended frequency response for music.
  • Power handling of 400 Watts with high sensitivity provides high SPL capability.
  • Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
  • Clean, contemporary grille and optional backbox available.

More +

Product Specs

Frequency Range (-10 dB)32 Hz – 20 kHz
Long-Term System Power Rating400 W (1600 W peak), 2 hrs
250 W (1000 W peak), 100 hrs
Sensitivity (2.83V@ 1m)95 dB measured half-space
100 dB computed for competitive comparison
Frequency Response (±3 dB)48 Hz – 19 kHz
Coverage Pattern90° conical, broadband (Avg. 1k - 16kHz)
Directivity Factor (Q)9 (1k - 16kHz)
Directivity Index (DI)9.5dB (1k - 16kHz)
Crossover Network1.4 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF
Nominal Impedance8 ohms
Dimensions (H x W x D)366 x 366 mm (14.4 x 14.4 in) square baffle x depth from back of baffle of 223 mm (8.8 in)
