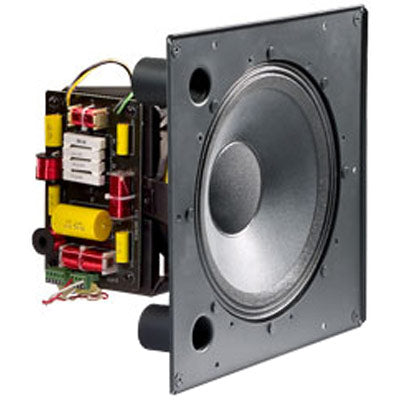

JBL Control 322CT High Output 12" Coaxial Ceiling Speaker (with Transformer)
Dale #:
JBL-CONTROL322CTAvailability:
Not in Stock - Reserve YoursThis item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.
Description
The 322CT delivers exceptional next-generation performance in a coaxial point source design ceiling loudspeaker.Features Consistent 90° broadband pattern control. ComponentsKevlar-reinforced 300 mm (12 in) woofer with 75 mm (3 inch) voice-coil cone.Medium-format compression driver. Extraordinary ... Read MoreRetail Price: $910.52 Our Price: $735.00
Free Shipping (Continental US)
Suggested Accessories
Description
The 322CT delivers exceptional next-generation performance in a coaxial point source design ceiling loudspeaker.
Features
- Consistent 90° broadband pattern control.
- Components
Kevlar-reinforced 300 mm (12 in) woofer with 75 mm (3 inch) voice-coil cone.
Medium-format compression driver. - Extraordinary clarity for speech and vocals with extended frequency response for music.
- Power handling of 400 Watts with high sensitivity provides high SPL capability.
- Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
- Clean, contemporary grille and optional backbox available.
More +
Product Specs
| Frequency Range (-10 dB) | 32 Hz – 20 kHz |
| Long-Term System Power Rating | 400 W (1600 W peak), 2 hrs 250 W (1000 W peak), 100 hrs |
| Taps | 0V: 100W, 50W, 25W, & 12.5W 100V: 100W, 50W & 25W |
| Frequency Response (±3 dB) | 48 Hz – 19 kHz |
| Coverage Pattern | 90° conical, broadband (Avg. 1k - 16kHz) |
| Directivity Factor (Q) | 9 (1k - 16kHz) |
| Directivity Index (DI) | 9.5dB (1k - 16kHz) |
| Sensitivity (2.83V@ 1m) | 95 dB measured half-space |
| Maximum SPL | 121 dB cont ave (124 dB peak) |
| Dimensions (H x W x D) | 366 x 366 mm (14.4 x 14.4 in) square baffle x depth from back of baffle of 240 mm (9.5 in) |
More +
