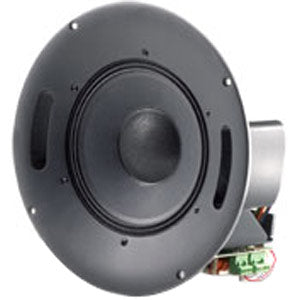

JBL Control 328C 8" Coaxial Ceiling Speaker


  • Dale #:

    JBL-CONTROL328C
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Control 328C has been engineered from the ground up to deliver exceptional next-generation performance in a coaxial point source design ceiling loudspeaker.Features Consistent 120° broadband pattern control covers an extremely large area. Shaped mounting baffle provides the pattern control of a 3... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Control 328C has been engineered from the ground up to deliver exceptional next-generation performance in a coaxial point source design ceiling loudspeaker.

Features

  • Consistent 120° broadband pattern control covers an extremely large area.
  • Shaped mounting baffle provides the pattern control of a 300 mm (12 in) horn from a 200 mm (8 in) driver.
  • Components
    200 mm (8 in) woofer with Kevlarreinforced cone and 50 mm (2 in) voice-coil.
    5 mm (1" exit) compression driver.
  • Extraordinary clarity for speech and vocals with extended frequency response for music.
  • 250 Watt power handling with very high sensitivity provides high SPL capability.
  • Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
  • Clean, contemporary grille and optional backbox available.

More +

Product Specs

Frequency Range (-10 dB)45 Hz – 18 kHz
Long-Term System Power Rating250 W (1000 W peak), 2 hrs
150 W (600 W peak), 100 hrs
Sensitivity (2.83V@ 1m):93 dB4 measured half-space
Frequency Response (±3 dB)60Hz – 16 kHz
Coverage Pattern120° conical, broadband
Directivity Factor (Q)7.0 (Avg 1k - 16kHz)
Directivity Index (DI)8.5dB (Avg 1k - 16kHz)
Maximum SPL6118 dB cont ave (124 dB peak)
Crossover Network1.9 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF
Nominal Impedance (321C)8 ohms
Dimensions (H x W x D)05 mm (12.0 in.) diameter round baffle x depth from back of baffle of 160 mm (6.3in)
