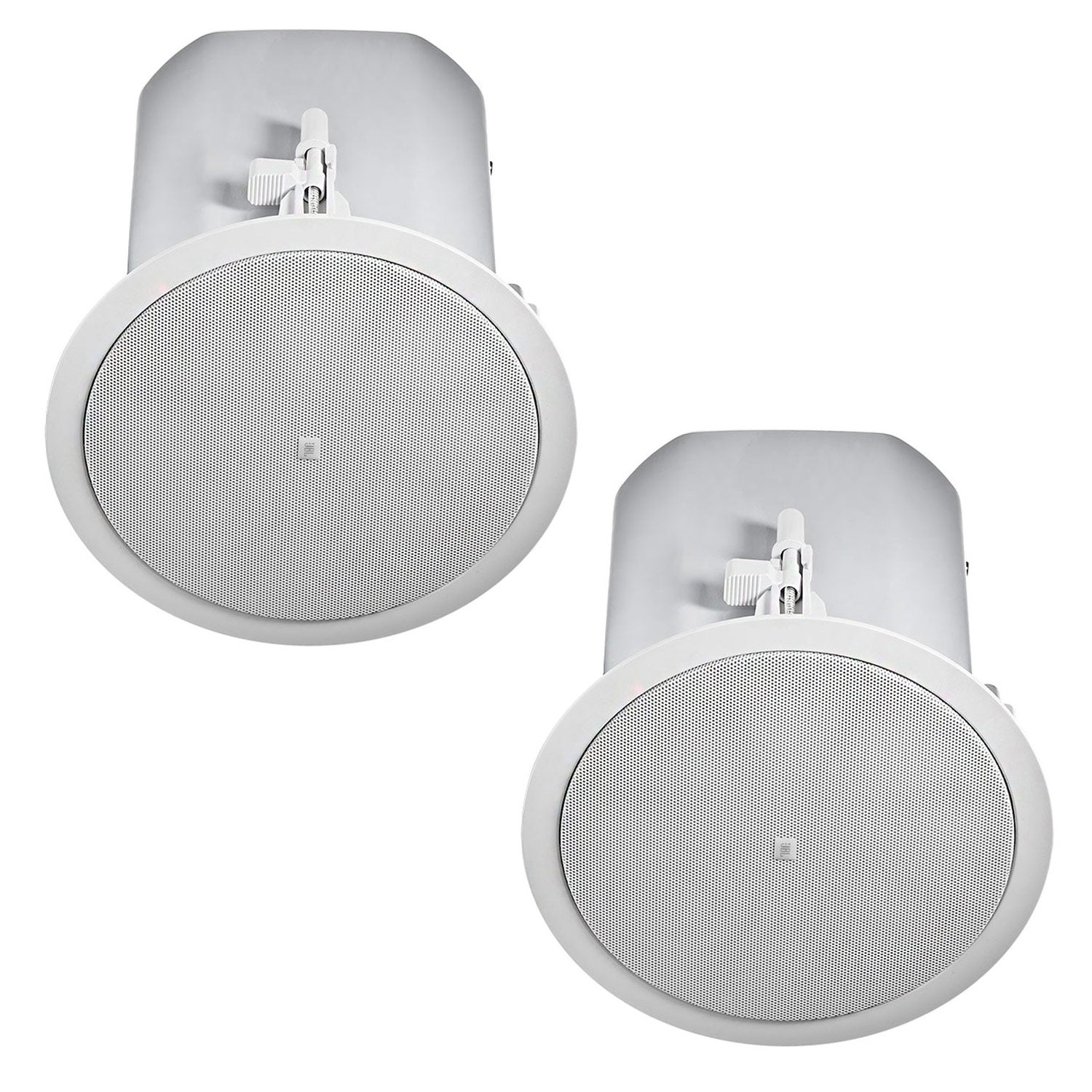

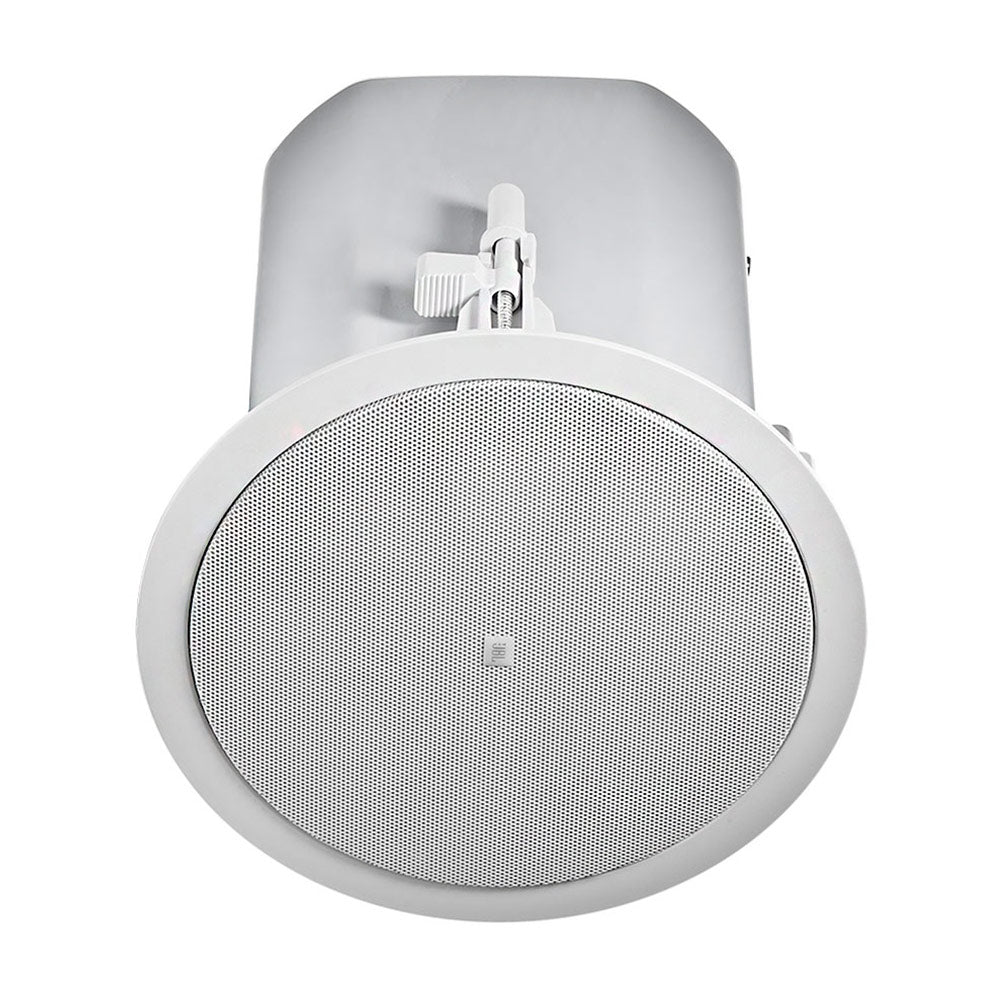

JBL Control 45C/T Two-Way 5.25" Coaxial Ceiling Speaker
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
Priced individually, but sold in pairs.
The Control 45C/T is a premium inceiling professional loudspeaker designed for applications that can benefit from extremely wide bandwidth and very consistent coverage from a ceiling speaker with a small footprint.
Features:
- Extremely consistent 120¡ broadband pattern control featuring JBL's exclusive conical Radiation Boundary Integrator (RBI) technology.
- Very consistent, full-range coverage of listening area while providing a small ceiling footprint.
- Wide, consistent coverage requires fewer speakers, reducing the cost of the installed system without
sacrificing performance. - Coaxial design featuring:
- 130 mm (5.25 in) polypropylene-coated paper cone with butyl rubber surround.

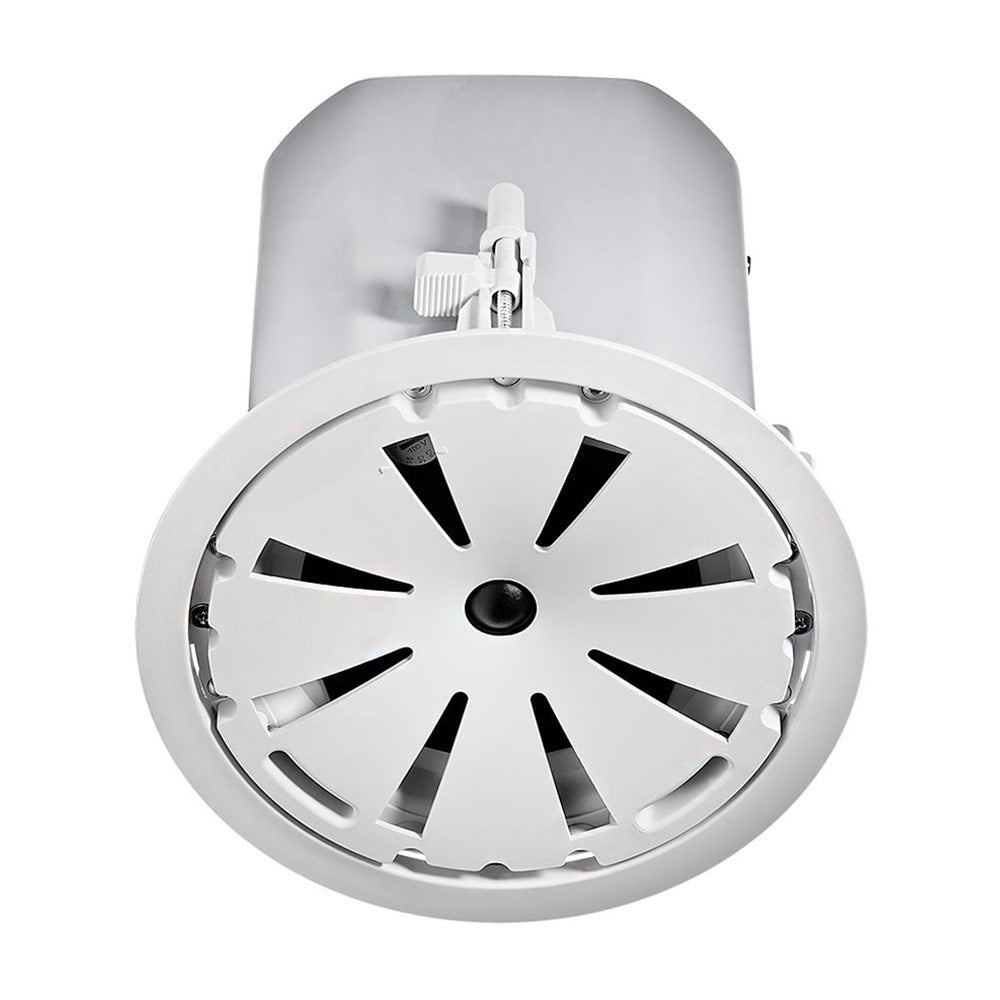

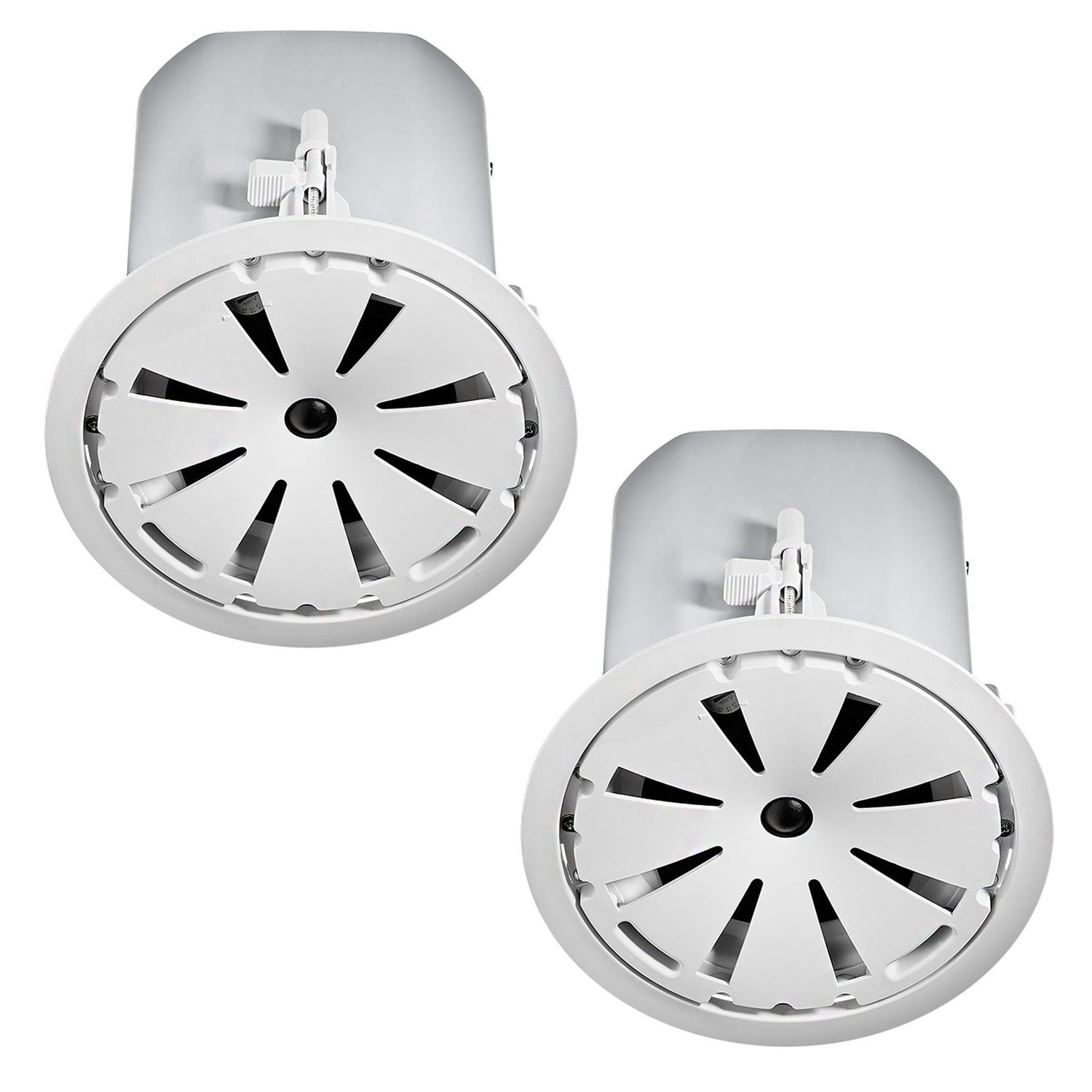

- 20 mm (.75 in) soft-dome tweeter on 210 mm (8.25 in) diameter wave guide. - Bass extension down to 55 Hz.
- 8 ohm and 70V/100V operation.
- Integrated backcan for easy Òblind-mount" install. Packaged with grille and tile rails for easy installation.
Control Contractor 40 Series is line of premium, in-ceiling, specialty loudspeakers that combine outstanding pattern control and consistent coverage with superior sonic performance. Featuring JBL's proprietary conical Radiation Boundary Integrator¨ (RBIª) technology adapted from the groundbreaking VerTec¨ Series line array loudspeakers, the Control 40 series includes six models. The Control 47C/T features extended bass performance with a wide 120¡ of coverage that allows fewer speakers to cover a large space; the Control 47LP, a low-profile model for locations with limited above-ceiling clearance; the Control 47HC, a high-ceiling model with narrow coverage; Control 45C/T, the most compact RBI full-range model in the line-up; the Control 40 CS/T, a subwoofer with built-in passive crossover; and the Control 42C, an ultra-compact, in-ceiling satellite speaker. Unmatched in its class and built on over 60 years of JBL loudspeaker design, the Control Contractor 40 Series delivers outstanding performance and reliability housed in an elegant industrial design.
| Frequency Range (-10 dB) | 55 Hz - 20 kHz |
| Frequency Response (+/-3 dB) | 80 Hz - 17 kHz |
| Power Capacity | 150 Watts Continuous Program Power 75 Watts Continuous Pink Noise |
| Nominal Sensitivity (2.83V/1m) | 88 dB |
| Nominal Coverage Angle | 120Á conical coverage |
| Directivity Factor (Q) | 5.6 |
| Directivity Index (DI) | 7.3 dB |
| Rated Maximum SPL | 107 dB @ 1 m (3.3 ft) average, 113 dB peak |
| Rated Impedance | 8 ohms (in bypass mode) |
| Transformer Taps | 60W, 30W, 15W, (& 7.5W @ 70V) |
| Transformer Insertion Loss | 0.76 dB @ 60W, 0.70 dB @ 30W, 0.61 dB @ 15W, 0.58 dB @ 7.5W |
| LF Driver | 130 mm (5.25 in) polypropylene-coated paper cone with butyl rubber surround, 25 mm (1 in) copper voice coil, vented fiberglass resin voice coil former. |
| HF Driver | 20 mm (0.75 in) soft-dome, neodymium magnet assembly, ferro-fluid cooling, aluminum voice coil former. |
| Input Connectors | Two removable locking 2-pin connectors with screw-down terminals. Max wire 12 AWG (2.5 mm). Key: 1) + in, 2) - in, A)+ loop thru, B) - loop thru |
| Knockouts | Two (top, and side) |
| Safety Agency | Suitable for use in air handling spaces per UL1480 Speakers for Fire Alarm, Emergency and Commercial and Professional Use, complies with UL-2043 Fire Tests for Heat and Visible Smoke Release for Discrete Products, CUL, NFPA-70, NFPA- 90A Installation of Air Conditioning and Ventilation Systems. In accordance with the requirements of IEC60849/EN60849. |
| Dimensions | 250 mm (9.9 in) diameter, 239 mm (9.4 in) mounting depth |
| Cutout Size | 220 mm (8.75 in) |
| Ceiling Thickness Range | Accommodates tiles / drywall up to 70 mm (2.75 in) thick |
| Net Weight | 3.9 kg (8.6 lb) |
| Shipping Weight | 8.6 kg (19.0 lb), pair pack |
| Included Accessories | C-ring support backing plate, 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles), press-in grille, knockout strain relief, cutout template, paint shield, 2 removable locking multi-pin connectors. |
| Optional Accessories | MTC-26NC New Construction Bracket MTC-26MR Mud Ring Construction Bracket |
