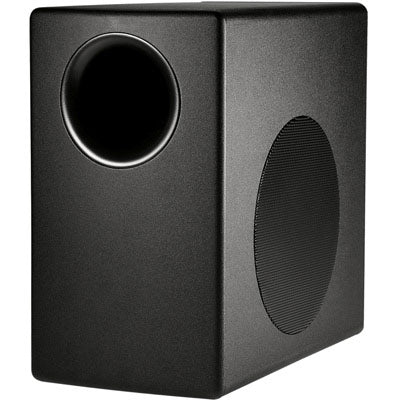

JBL Control 50S/T 150 Watt 8" 8 Ohm/70V/100V Passive Ported Installation Subwoofer - Black
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Control 50 Series subwoofer-satellite loudspeaker system provides high fidelity sound in restaurants, retail stores, music cafes, health clubs, theme bars, leisure venues, or any location where full-range high fidelity foreground/background music is required from surface- mount system.
Features:
- Full bandwidth 32 Hz Ð 20 kHz high fidelity sound
- Selectable 70V/100V for distributed lines, or low impedance
- Versatility for either two or four satellite speakers per system
- Available in black or white
Control 52 Satellite Speaker
The stylish Control 52 satellite loudspeaker produces superb high fidelity sound via a low- distortion 60 mm (2_ in) driver, which features a secondary bucking magnet for high efficiency, rubber half roll surround for enhanced bass performance, 19 mm (0.75 in) copper clad aluminum wire voice coil on a vented Nomex¨ former for high fidelity and reliability, and a copper-capped pole piece for more consistent impedance and extended high frequency response. The wall bracket allows each speaker to be angled up to 45¡ off-axis.
Control 50 Subwoofer
The 150 Watt (600 Watt peak) Control 50S/T subwoofer contains a high-power, long-excursion, 200 mm (8 inch) driver which features an extremely robust high-mass cone for extended low frequency response, a 38 mm (1.5 in) 4-layer copper voice coil for high motor strength, an aluminum former for good transient response, and a rubber half roll surround for enhanced bass performance. The Control 50S/T's included two-piece easy-mount wall-bracket installs quickly: The multi-point wall portion of the bracket attached to the wall and the self-guiding speaker-mounted bracket drops into place for a secure attachment. A cover over the Control 50S/T terminal cup keeps wiring neat. The Control 50S/T is mono. The crossover network built into the subwoofer provides proper signal routing and four satellite output connectors allow connection of the wires for the four Control 52 satellite loudspeakers. A Loop Out connector is also provided on the subwoofer for looping the full-range input signal to other loudspeakers or to other subwoofer/satellite systems.
| Driver | 8" (200mm) Polyproylene Cone with Butyl Rubber Surround, 1.5" 4-Layer Copper-Clad Voice Coil, and Vented Aluminum Former |
| Frequency Range | 32-299Hz (-10dB) |
| Impedance | 8 Ohms (Bypass/Thru Mode) |
| Maximum Power Handling | 300W Continuous (Program, 2 Hours) 150W Continuous (Pink Noise, 2 Hours) 200W Continuous (Program, 100 Hours) 100W Continuous (Pink Noise, 100 Hours) |
| Maximum Sound Pressure Level(SPL) | 115dB Average, 121dB Peak (Corner) 109dB Average, 115dB Peak (Center) |
| Controls and Indicators | 1 x Volume Control |
| Connectors | 6 x Removable Locking 2-Pin Connectors with Screw-Down Terminals |
| Enclosure | Material Plywood and MDF Cabinet with Zinc-Plated Metal Grille |
| Dimensions (HxWxD) | 14 x 15.4 x 8" (356 x 391 x 203mm) |
| Weight | 20 lbs (9kg) |
The Control 50 Series subwoofer-satellite loudspeaker system provides high fidelity sound in restaurants, retail stores, music cafes, health clubs, theme bars, leisure venues, or any location where full-range high fidelity foreground/background music is required from surface- mount system.
Features:
- Full bandwidth 32 Hz Ð 20 kHz high fidelity sound
- Selectable 70V/100V for distributed lines, or low impedance
- Versatility for either two or four satellite speakers per system
- Available in black or white
Control 52 Satellite Speaker
The stylish Control 52 satellite loudspeaker produces superb high fidelity sound via a low- distortion 60 mm (2_ in) driver, which features a secondary bucking magnet for high efficiency, rubber half roll surround for enhanced bass performance, 19 mm (0.75 in) copper clad aluminum wire voice coil on a vented Nomex¨ former for high fidelity and reliability, and a copper-capped pole piece for more consistent impedance and extended high frequency response. The wall bracket allows each speaker to be angled up to 45¡ off-axis.
Control 50 Subwoofer
The 150 Watt (600 Watt peak) Control 50S/T subwoofer contains a high-power, long-excursion, 200 mm (8 inch) driver which features an extremely robust high-mass cone for extended low frequency response, a 38 mm (1.5 in) 4-layer copper voice coil for high motor strength, an aluminum former for good transient response, and a rubber half roll surround for enhanced bass performance. The Control 50S/T's included two-piece easy-mount wall-bracket installs quickly: The multi-point wall portion of the bracket attached to the wall and the self-guiding speaker-mounted bracket drops into place for a secure attachment. A cover over the Control 50S/T terminal cup keeps wiring neat. The Control 50S/T is mono. The crossover network built into the subwoofer provides proper signal routing and four satellite output connectors allow connection of the wires for the four Control 52 satellite loudspeakers. A Loop Out connector is also provided on the subwoofer for looping the full-range input signal to other loudspeakers or to other subwoofer/satellite systems.
| Driver | 8" (200mm) Polyproylene Cone with Butyl Rubber Surround, 1.5" 4-Layer Copper-Clad Voice Coil, and Vented Aluminum Former |
| Frequency Range | 32-299Hz (-10dB) |
| Impedance | 8 Ohms (Bypass/Thru Mode) |
| Maximum Power Handling | 300W Continuous (Program, 2 Hours) 150W Continuous (Pink Noise, 2 Hours) 200W Continuous (Program, 100 Hours) 100W Continuous (Pink Noise, 100 Hours) |
| Maximum Sound Pressure Level(SPL) | 115dB Average, 121dB Peak (Corner) 109dB Average, 115dB Peak (Center) |
| Controls and Indicators | 1 x Volume Control |
| Connectors | 6 x Removable Locking 2-Pin Connectors with Screw-Down Terminals |
| Enclosure | Material Plywood and MDF Cabinet with Zinc-Plated Metal Grille |
| Dimensions (HxWxD) | 14 x 15.4 x 8" (356 x 391 x 203mm) |
| Weight | 20 lbs (9kg) |
