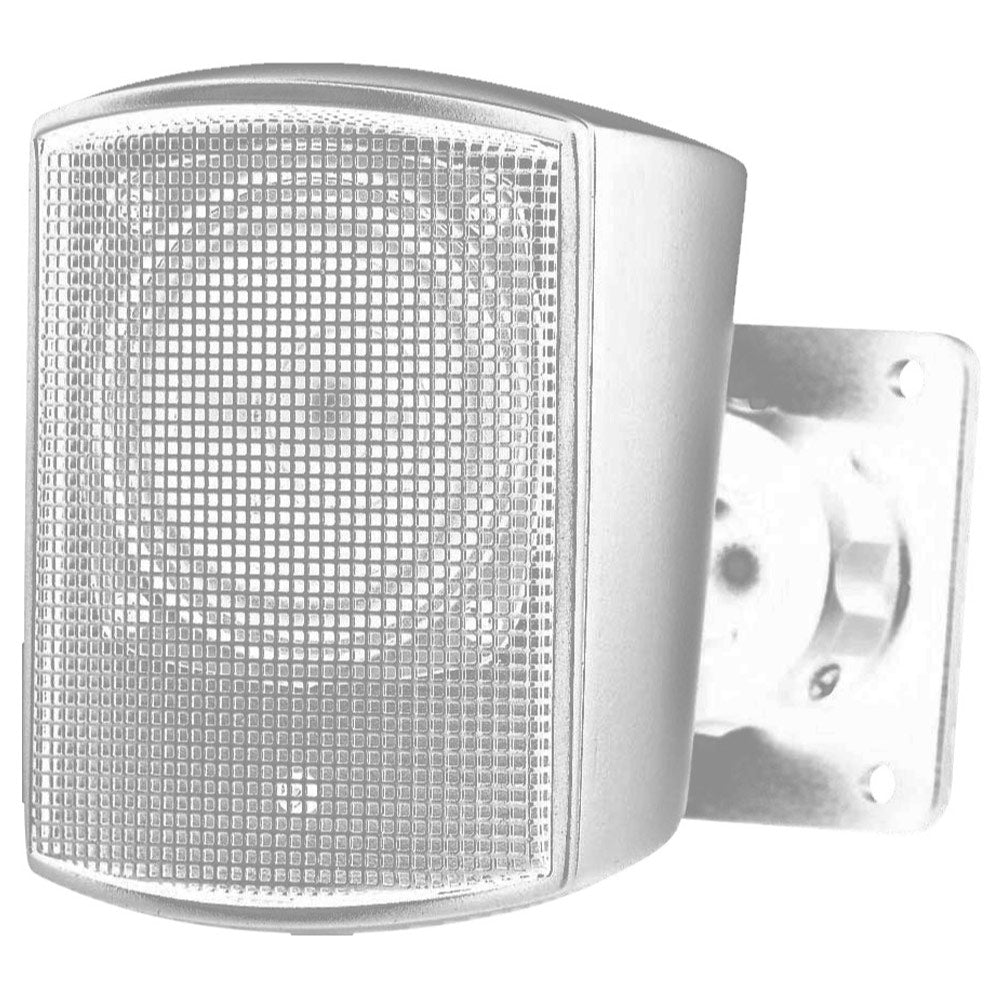

JBL Control 52 Surface-Mount Speaker for Subwoofer-Satellite Loudspeaker System (White)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

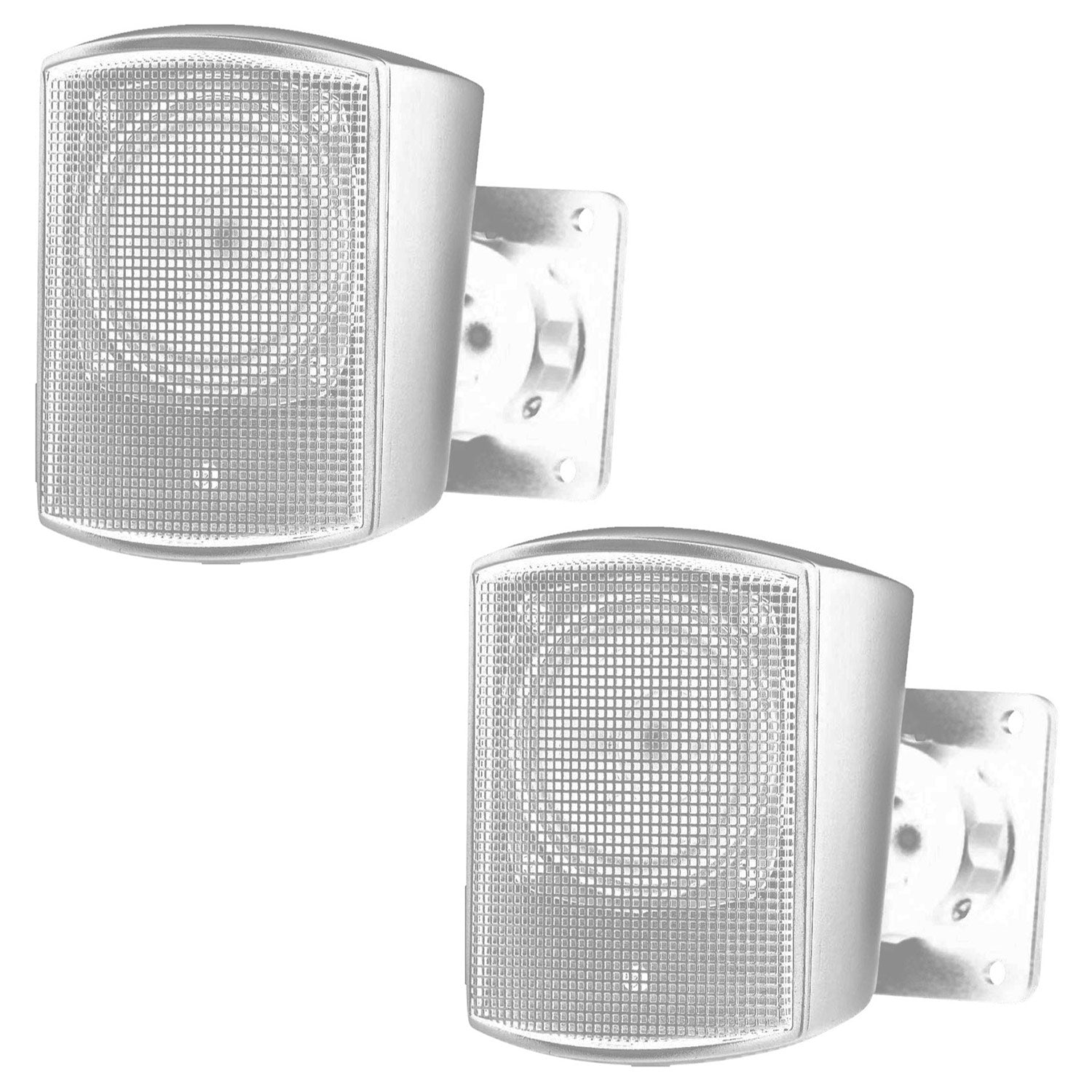

Priced individually, but sold in pairs.
The stylish Control 52 satellite loudspeaker produces superb high fidelity sound via a low distortion 60 mm (2.5 in) driver, which features a secondary bucking magnet for high efficiency, rubber half roll surround for enhanced bass performance, 19 mm (0.75 in) copper clad aluminum wire voice coil on a vented Nomex¨ former for high fidelity and reliability, and a copper-capped pole piece for more consistent impedance and extended high frequency response. The wall bracket allows each speaker to be angled up to 45 deg. off-axis.
For full-range wide-bandwidth performance, either 2 or 4 Control 52P mid-high speakers can be driven from the Control 50S/T pendant subwoofer (or from a Control 60PS/T pendant or Control 40CS/T in-ceiling subwoofer). The crossover for this subwoofer-satellite system is included in the subwoofer, and the system can be driven either low-impedance or from a 70V/100V distributed speaker line.
Features:
- Stylish, unobtrusive design fits into a wide variety of decors
- Ability to intermix with Control 42C in-ceiling and Control 62P pendant satellite speakers
- 16 ohms impedance
- Wall-mount brackets included
- Available in black or white
| Frequency Range (-10 dB) | 140 Hz - 20 kHz |
| Frequency Response (±3 dB) | 180 Hz - 17 kHz |
| Power Capacity | 50 Watts Continuous Program Power (2 hrs) 25 Watts Continuous Pink Noise (2 hrs) 30 Watts Continuous Program Power (100 hrs) 15 Watts Continuous Pink Noise (100 hrs) |
| Nominal Sensitivity | 85 dB (4.0V/1m = 1W) 82 dB (2.83V, 1m) |
| Nominal Coverage Angle | 150 deg. x 150 deg. (omnidirectional) |
| Rated Maximum SPL (1m) | 94 dB average, 100 dB peak |
| Nominal Impedance | 16 ohms |
| Transducer Driver | 60 mm (2.5 in) with polypropylene cone, butyl rubber surround, 19 mm (0.75 in) copper-clad coil, vented Nomex¬ former, secondary bucking magnet, and copper sleeved pole piece for high frequency extension. |
| Input Connector | Removable locking 2-pin connector with screw-down terminals. Max wire 12 AWG (2.5 mm2) |
| Material | High impact polystyrene, painted zinc-plated metal grille. |
| Dimensions (H x W x D) | Cabinet: 115 x 84 x 96 mm (4.5 x 3.3 x 3.75 in) Wall bracket: 51 mm (2.0 in) |
| Net Weight | 0.7 kg (1.5 lbs) |
| Shipping Weight | 0.8 kg (1.8 lbs) |
| Included Accessories | Wall bracket (both speaker and wall parts), 2-pin locking connector. |
Priced individually, but sold in pairs.
The stylish Control 52 satellite loudspeaker produces superb high fidelity sound via a low distortion 60 mm (2.5 in) driver, which features a secondary bucking magnet for high efficiency, rubber half roll surround for enhanced bass performance, 19 mm (0.75 in) copper clad aluminum wire voice coil on a vented Nomex¨ former for high fidelity and reliability, and a copper-capped pole piece for more consistent impedance and extended high frequency response. The wall bracket allows each speaker to be angled up to 45 deg. off-axis.
For full-range wide-bandwidth performance, either 2 or 4 Control 52P mid-high speakers can be driven from the Control 50S/T pendant subwoofer (or from a Control 60PS/T pendant or Control 40CS/T in-ceiling subwoofer). The crossover for this subwoofer-satellite system is included in the subwoofer, and the system can be driven either low-impedance or from a 70V/100V distributed speaker line.
Features:
- Stylish, unobtrusive design fits into a wide variety of decors
- Ability to intermix with Control 42C in-ceiling and Control 62P pendant satellite speakers
- 16 ohms impedance
- Wall-mount brackets included
- Available in black or white
| Frequency Range (-10 dB) | 140 Hz - 20 kHz |
| Frequency Response (±3 dB) | 180 Hz - 17 kHz |
| Power Capacity | 50 Watts Continuous Program Power (2 hrs) 25 Watts Continuous Pink Noise (2 hrs) 30 Watts Continuous Program Power (100 hrs) 15 Watts Continuous Pink Noise (100 hrs) |
| Nominal Sensitivity | 85 dB (4.0V/1m = 1W) 82 dB (2.83V, 1m) |
| Nominal Coverage Angle | 150 deg. x 150 deg. (omnidirectional) |
| Rated Maximum SPL (1m) | 94 dB average, 100 dB peak |
| Nominal Impedance | 16 ohms |
| Transducer Driver | 60 mm (2.5 in) with polypropylene cone, butyl rubber surround, 19 mm (0.75 in) copper-clad coil, vented Nomex¬ former, secondary bucking magnet, and copper sleeved pole piece for high frequency extension. |
| Input Connector | Removable locking 2-pin connector with screw-down terminals. Max wire 12 AWG (2.5 mm2) |
| Material | High impact polystyrene, painted zinc-plated metal grille. |
| Dimensions (H x W x D) | Cabinet: 115 x 84 x 96 mm (4.5 x 3.3 x 3.75 in) Wall bracket: 51 mm (2.0 in) |
| Net Weight | 0.7 kg (1.5 lbs) |
| Shipping Weight | 0.8 kg (1.8 lbs) |
| Included Accessories | Wall bracket (both speaker and wall parts), 2-pin locking connector. |
