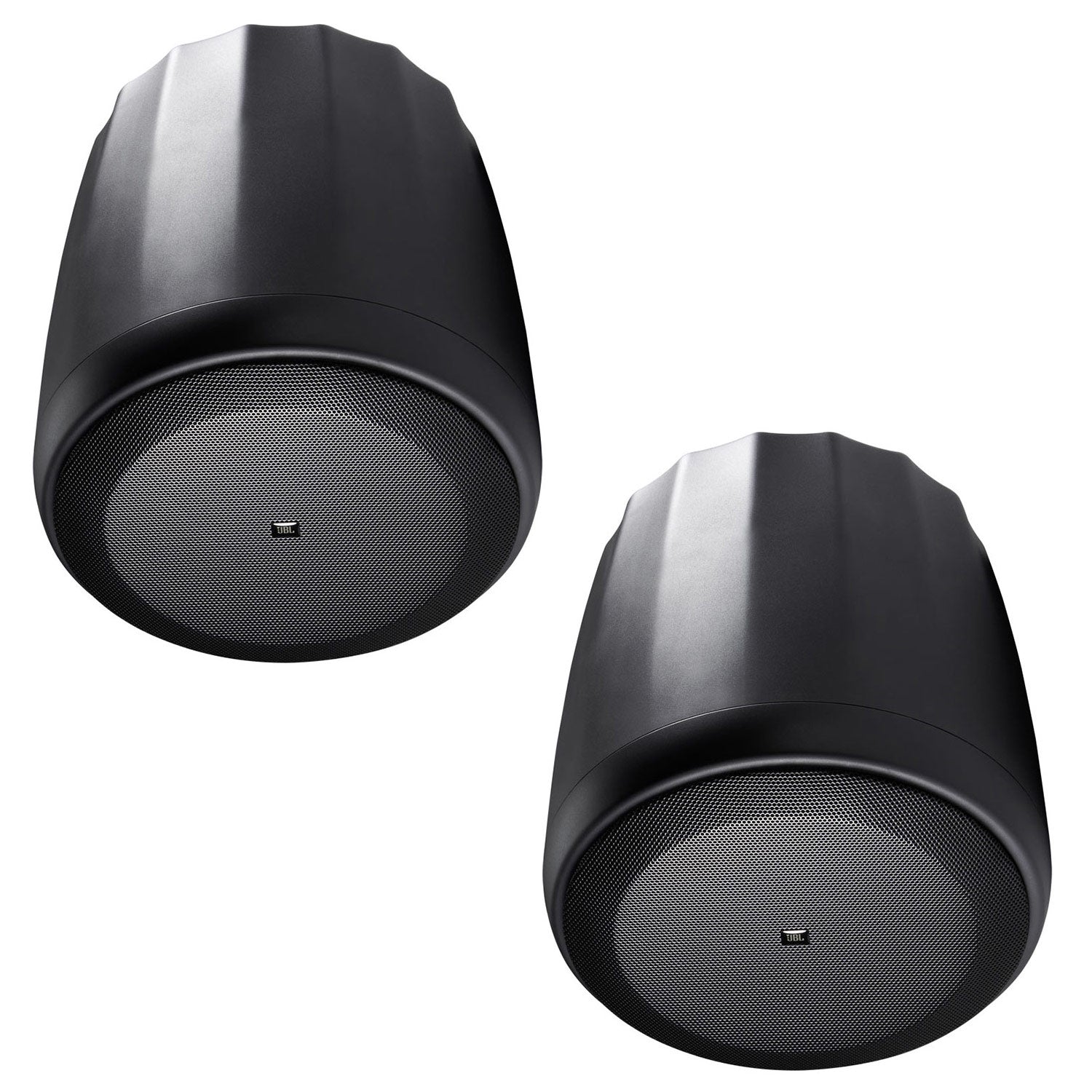

JBL Control 60PS/T Pendant Subwoofer (Black)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
Priced individually, but sold in pairs.
The Control 60PS/T pendant subwoofer loudspeaker provides bass extension and high impact for high-fidelity sound systems in a wide variety of applications including restaurants, retail stores, music cafes, health clubs, theme bars, leisure venues, and other locations where full-range high fidelity foreground/background music systems are utilized. Featuring 150 Watt power handling and low distortion, the long-excursion 200 mm (8 in) low frequency driver features butyl rubber surround for well-damped, tight sound quality and long-term reliability, and a polypropylene-coated cone for humidity protection. The high-temperature 50 mm (2 in) voice coil and low-mass fiberglass coil former ensure good bass transient response and excellent stability under high power, high dutycycle, working conditions.
Features:
- High impact, 150 Watt direct radiating pendant subwoofer with built-in passive crossover for up to four satellite speakers.
- 200 mm (8 in) long-excursion driver.
- 8 ohm (150 Watt) and 70V/100V (100 Watt) operation.
- Hanging hardware with 4.5 m (15 foot) galvanized steel cable and easy to adjust clamp.
- Stylish design, available in black or white (-WH).
- UL listed (speaker and hanging cable system).
JBL Control Contractor 60 Series Pendant loudspeakers bring renowned JBL sound and outstanding coverage to rooms and venues with open architecture or high-ceilings, while providing superior voice and musical clarity for rooms with difficult acoustics. The diverse line-up, coupled with stylish design, is suitable for a wide variety of applications and decors, from convention and exhibit spaces to atriums, restaurants and retail stores. Included, easy-to-install hanging hardware features redundant suspension cables and UL listed adjustable-height hangers.
JBL's proprietary conical RBI Radiation Boundary Integrator is adapted from the groundbreaking VERTEC Series of line array loudspeakers. This unique JBL patent-pending innovation combines a large diameter high-frequency waveguide with low-frequency projection apertures that work in tandem to provide a seamless integration of coverage between the two coaxially-mounted drivers. The result is extremely even pattern control and coverage, where all listeners hear a consistent flat, frequency response. This often allows the use of fewer speakers.
| Frequency Range (-10 dB) | 42 Hz - 350 Hz |
| Frequency Response (± 3 dB) | 55 Hz - 125 Hz |
| Power Capacity | 300 Watts Continuous Program Power, 100 hrs 150 Watts Continuous Pink Noise, 100 hrs |
| Nominal Sensitivity (2.83V/1m) | 88 dB |
| Rated Maximum SPL | 107 dB @ 1 m (3.3 ft) average, 113 dB peak |
| Rated Impedance | 8 ohms |
| Transformer Taps | 110W, 55W, 30W (& 15W@70V). Set via rotary tap-selector switch (70V/100V taps along with direct 8 |
| Transformer Insertion Loss | 0.98 dB @ 15W, 0.99 dB @ 30W, 0.94 dB @ 55W, 1.10 @ 110W |
| Standalone Hookup | Connect to Input connector; built-in low-pass filter permanently engaged. Loop Out in parallel with Input connector (pre low-pass filter) for sending to additional speakers. |
| Subwoofer-Satellite Hookup | For either two or four satellite speakers (not for one or three satellite speakers). With two satellite speakers, must connect to Sat 1 and Sat 2 terminals only (NC to Sat 3 and Sat 4 terminals). Satellite outputs highpassed. Suggested satellite speakers include Control 62P (pendant), Control 52 (surface-mount on-wall) and Control 42C (in-ceiling). Satellite speakers to be low-Z type (8 to 16 |
| Transducer | 200mm (8 in) polypropylene-coated paper cone with butyl rubber surround, 50 mm (2 in) high-temperature copper voice coil, vented fiberglass resin voice coil former. |
| Enclosure Material | High impact polystyrene |
| Grille | Zinc-plated steel grille with powder-coat finish, foam backing (grille and grille backing are removable for painting) |
| Environmental | Exceeds Mil Spec 810 for humidity, salt spray, temperature / UV. IP44 capability per IEC 529 - splash-proof rating |
| Termination | Six removable locking 2-pin connectors with screw-down terminals. Input, Loop Out, Sat 1, Sat 2, Sat 3, Sat 4. Max wire 12 AWG (2.5 mm2). Rubber terminal covers included. |
| Suspension | Two identical suspension cable systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long, 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple» brand adjustable-height cable fasteners for infinitely adjustable height. Cable has SWL rating of 45 kg (99 lb). |
| Safety Agency | Speaker listed per UL1480 (UEAY), transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple¬- brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 / Class 3426-81. |
| Dimensions | 333 mm (13.1 in) diameter, 344 mm (13.6 in) height to top of cabinet. 369 mm (14.5 in) to top of suspension bracket. |
| Net Weight | 7.6 kg (16.7 lb) |
| Shipping Weight | 17.6 kg (38.7 lbs) per pair-packed carton |
| Included Accessories | Two suspension cable systems (see ñsuspensionî, above), six removable locking 2-pin euro-block connectors, six rubber cover boots for euroblock connectors. |
| Optional Accessories | MTC-PC60 full top panel / terminal cover. Wire access holes in plastic cover to be drilled by installer to suit the number and dimensions of wire. |
| Colors | Available in black or white (-WH). Paintable. |
Priced individually, but sold in pairs.
The Control 60PS/T pendant subwoofer loudspeaker provides bass extension and high impact for high-fidelity sound systems in a wide variety of applications including restaurants, retail stores, music cafes, health clubs, theme bars, leisure venues, and other locations where full-range high fidelity foreground/background music systems are utilized. Featuring 150 Watt power handling and low distortion, the long-excursion 200 mm (8 in) low frequency driver features butyl rubber surround for well-damped, tight sound quality and long-term reliability, and a polypropylene-coated cone for humidity protection. The high-temperature 50 mm (2 in) voice coil and low-mass fiberglass coil former ensure good bass transient response and excellent stability under high power, high dutycycle, working conditions.
Features:
- High impact, 150 Watt direct radiating pendant subwoofer with built-in passive crossover for up to four satellite speakers.
- 200 mm (8 in) long-excursion driver.
- 8 ohm (150 Watt) and 70V/100V (100 Watt) operation.
- Hanging hardware with 4.5 m (15 foot) galvanized steel cable and easy to adjust clamp.
- Stylish design, available in black or white (-WH).
- UL listed (speaker and hanging cable system).
JBL Control Contractor 60 Series Pendant loudspeakers bring renowned JBL sound and outstanding coverage to rooms and venues with open architecture or high-ceilings, while providing superior voice and musical clarity for rooms with difficult acoustics. The diverse line-up, coupled with stylish design, is suitable for a wide variety of applications and decors, from convention and exhibit spaces to atriums, restaurants and retail stores. Included, easy-to-install hanging hardware features redundant suspension cables and UL listed adjustable-height hangers.
JBL's proprietary conical RBI Radiation Boundary Integrator is adapted from the groundbreaking VERTEC Series of line array loudspeakers. This unique JBL patent-pending innovation combines a large diameter high-frequency waveguide with low-frequency projection apertures that work in tandem to provide a seamless integration of coverage between the two coaxially-mounted drivers. The result is extremely even pattern control and coverage, where all listeners hear a consistent flat, frequency response. This often allows the use of fewer speakers.
| Frequency Range (-10 dB) | 42 Hz - 350 Hz |
| Frequency Response (± 3 dB) | 55 Hz - 125 Hz |
| Power Capacity | 300 Watts Continuous Program Power, 100 hrs 150 Watts Continuous Pink Noise, 100 hrs |
| Nominal Sensitivity (2.83V/1m) | 88 dB |
| Rated Maximum SPL | 107 dB @ 1 m (3.3 ft) average, 113 dB peak |
| Rated Impedance | 8 ohms |
| Transformer Taps | 110W, 55W, 30W (& 15W@70V). Set via rotary tap-selector switch (70V/100V taps along with direct 8 |
| Transformer Insertion Loss | 0.98 dB @ 15W, 0.99 dB @ 30W, 0.94 dB @ 55W, 1.10 @ 110W |
| Standalone Hookup | Connect to Input connector; built-in low-pass filter permanently engaged. Loop Out in parallel with Input connector (pre low-pass filter) for sending to additional speakers. |
| Subwoofer-Satellite Hookup | For either two or four satellite speakers (not for one or three satellite speakers). With two satellite speakers, must connect to Sat 1 and Sat 2 terminals only (NC to Sat 3 and Sat 4 terminals). Satellite outputs highpassed. Suggested satellite speakers include Control 62P (pendant), Control 52 (surface-mount on-wall) and Control 42C (in-ceiling). Satellite speakers to be low-Z type (8 to 16 |
| Transducer | 200mm (8 in) polypropylene-coated paper cone with butyl rubber surround, 50 mm (2 in) high-temperature copper voice coil, vented fiberglass resin voice coil former. |
| Enclosure Material | High impact polystyrene |
| Grille | Zinc-plated steel grille with powder-coat finish, foam backing (grille and grille backing are removable for painting) |
| Environmental | Exceeds Mil Spec 810 for humidity, salt spray, temperature / UV. IP44 capability per IEC 529 - splash-proof rating |
| Termination | Six removable locking 2-pin connectors with screw-down terminals. Input, Loop Out, Sat 1, Sat 2, Sat 3, Sat 4. Max wire 12 AWG (2.5 mm2). Rubber terminal covers included. |
| Suspension | Two identical suspension cable systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long, 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple» brand adjustable-height cable fasteners for infinitely adjustable height. Cable has SWL rating of 45 kg (99 lb). |
| Safety Agency | Speaker listed per UL1480 (UEAY), transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple¬- brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 / Class 3426-81. |
| Dimensions | 333 mm (13.1 in) diameter, 344 mm (13.6 in) height to top of cabinet. 369 mm (14.5 in) to top of suspension bracket. |
| Net Weight | 7.6 kg (16.7 lb) |
| Shipping Weight | 17.6 kg (38.7 lbs) per pair-packed carton |
| Included Accessories | Two suspension cable systems (see ñsuspensionî, above), six removable locking 2-pin euro-block connectors, six rubber cover boots for euroblock connectors. |
| Optional Accessories | MTC-PC60 full top panel / terminal cover. Wire access holes in plastic cover to be drilled by installer to suit the number and dimensions of wire. |
| Colors | Available in black or white (-WH). Paintable. |
