DALE SKU # JBL-CSA180Z

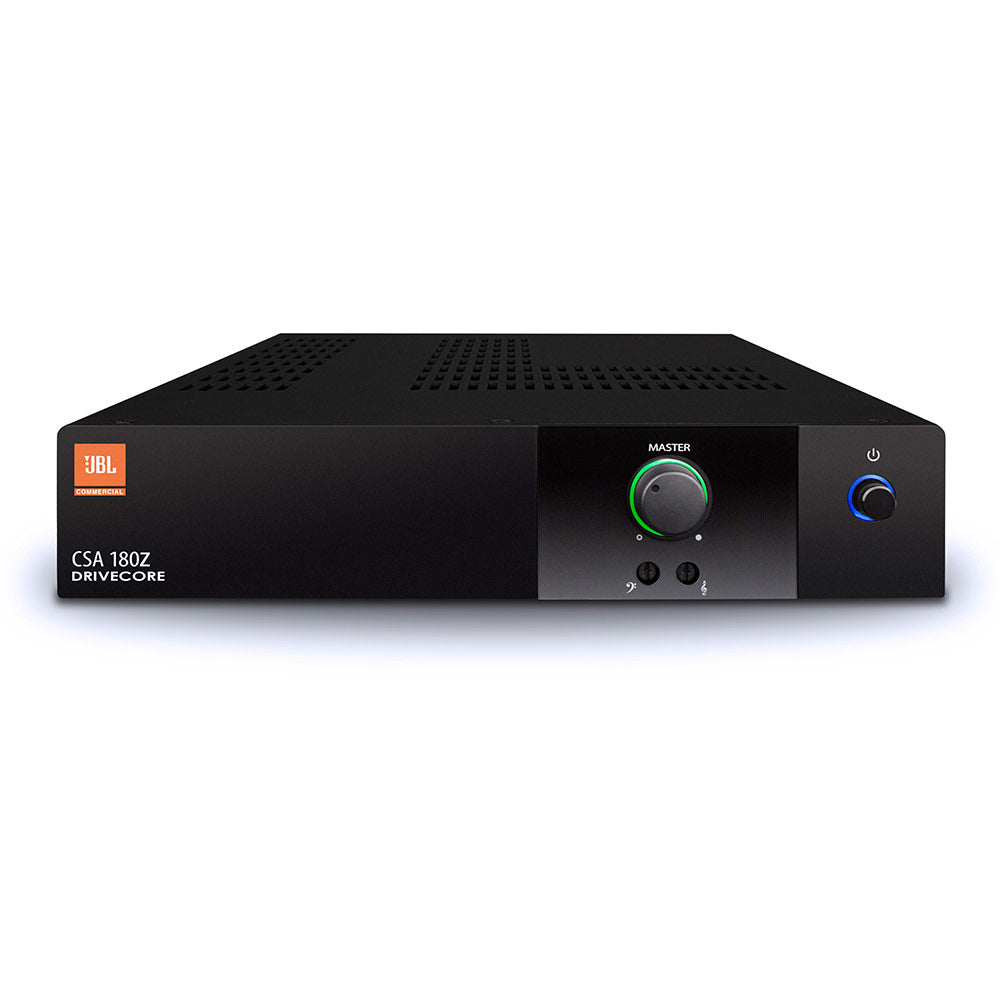

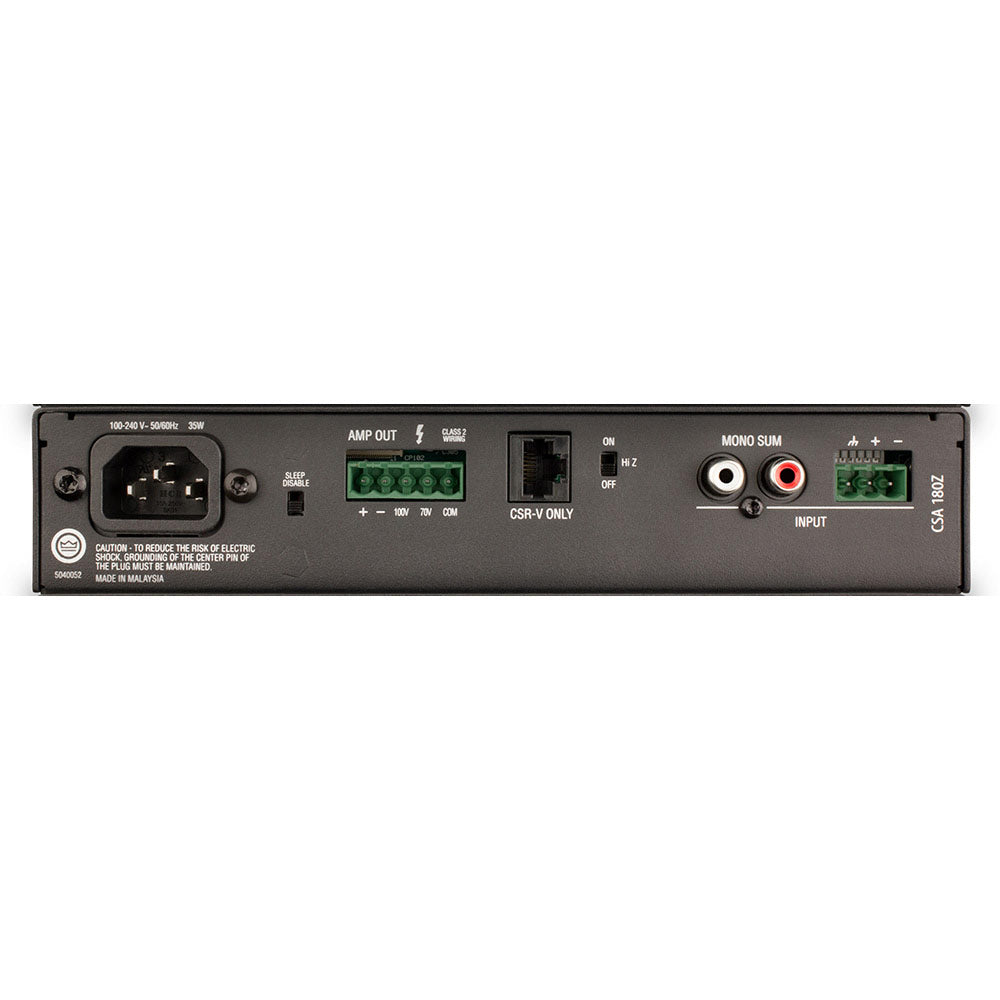

JBL CSA180Z Single Channel 80W 70/100V Install Amplifier

Sale price$455.00
  • Availability:

    In Stock
  • Available for immediate shipment or pick-up from our Jamaica, NY warehouse. In-store pick-up is available Monday through Friday 8:30 am to 5:30 pm.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    By combining years of innovation, invention and insight from HARMAN brands, JBL® Commercial Series Amplifiers (CSA) go well beyond the expected in generating powerful sound. From the switch-mode universal power supply to the efficient performance of Crown’s DriveCore™ Technology, they continue to set new standards in commercial power amplifier technology.

    Simple to configure, the CS amp provides a DriveCore-based sound solution. This replaces up to 500 parts with one small chip, significantly reducing the part count and increasing reliability while maintaining superb performance. Supporting 70V and 100V installations out of the box, CS amps include RJ45 connectors for use with JBL CSR-V in-wall volume controls. Its universal power supply allows every CS amp to accept AC voltages from 100 to 240 VAC, 50/60 Hz. And with HARMAN’s GreenEdge™ environmental initiative, CS amps quickly pay for themselves in energy savings.

    Features:

    • 1 output channel with 80W power
    • Built-in 70V and 100V
    • Fanless, space-saving 1U design
    • Sleep mode disable function
    • Energy-efficient amplifier
    • Sleek industrial look with illuminated rings making knobs easy to see and use
    • Supports the JBL CSR-V wall controller via Ethernet cable
    • Universal power supply
    • Energy Star® Certified
    Power Output80W
    Output Channels1
    Input Sensitivity1.4Vrms for 8-ohms
    Phantom Power27VDC
    AC Line Voltage100 - 240V, 50/60 Hz
    Input Impedance20K ohms/50K ohms
    Dimensions1.7 x 8.6 x 11.9 (43.3mm x 218.5mm x 303.4mm)
    Included AccessoriesRack mounting kit

    By combining years of innovation, invention and insight from HARMAN brands, JBL® Commercial Series Amplifiers (CSA) go well beyond the expected in generating powerful sound. From the switch-mode universal power supply to the efficient performance of Crown’s DriveCore™ Technology, they continue to set new standards in commercial power amplifier technology.

    Simple to configure, the CS amp provides a DriveCore-based sound solution. This replaces up to 500 parts with one small chip, significantly reducing the part count and increasing reliability while maintaining superb performance. Supporting 70V and 100V installations out of the box, CS amps include RJ45 connectors for use with JBL CSR-V in-wall volume controls. Its universal power supply allows every CS amp to accept AC voltages from 100 to 240 VAC, 50/60 Hz. And with HARMAN’s GreenEdge™ environmental initiative, CS amps quickly pay for themselves in energy savings.

    Features:

    • 1 output channel with 80W power
    • Built-in 70V and 100V
    • Fanless, space-saving 1U design
    • Sleep mode disable function
    • Energy-efficient amplifier
    • Sleek industrial look with illuminated rings making knobs easy to see and use
    • Supports the JBL CSR-V wall controller via Ethernet cable
    • Universal power supply
    • Energy Star® Certified
    Power Output80W
    Output Channels1
    Input Sensitivity1.4Vrms for 8-ohms
    Phantom Power27VDC
    AC Line Voltage100 - 240V, 50/60 Hz
    Input Impedance20K ohms/50K ohms
    Dimensions1.7 x 8.6 x 11.9 (43.3mm x 218.5mm x 303.4mm)
    Included AccessoriesRack mounting kit
