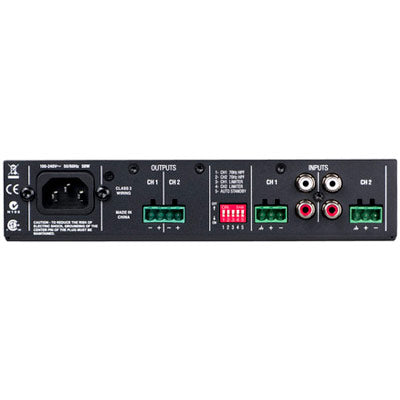

JBL CSA2120R Commercial 2 x 120 Watt Power Amplifier
Dale #:
JBL-CSA2120RAvailability:
In StockAvailable for immediate shipment or pick-up from our Jamaica, NY warehouse. In-store pick-up is available Monday through Friday 8:30 am to 5:30 pm.
Description
The JBL Commercial® CSA-2120 power amplifier is a professional tool designed and built for installed sound applications. The amplifier is two-channel model providing simple analog front-end processing, with a switch-mode universal power supply. The amplifier includes two optional accessories: rac... Read MoreRetail Price: $716.13 Our Price: $521.00
Free Shipping (Continental US)
Suggested Accessories
Description
The JBL Commercial® CSA-2120 power amplifier is a professional tool designed and built for installed sound applications. The amplifier is two-channel model providing simple analog front-end processing, with a switch-mode universal power supply. The amplifier includes two optional accessories: rack mounting kit and transformer module. With the rack mounting kit, you can install the amplifier to a cabinet or wall. If your loudspeaker system requires higher impedance, the transformer module can be connected between the amplifier and loudspeaker systems to obtain the impedance matching
Features
- Two input channels and two output channels,Power of each channel: 120W
- Output impedance of each channel: 4Ω and 8Ω
- High power output, compact size, light weight
- Accurate, uncoloured sound with very low distortion for the best in music and voice
- Over heat auto protection
- Low voltage auto protection
- The auto-standby mode allows the amplifier to save energy by disabling the amplifier pulse
width modulation generator when there is no input signal - Detachable Euroblock input and output
- Switch-mode universal power supply
More +
Product Specs
| Output Power | 4 ohms / 8 ohms 120 W (two channels at 1 kHz power, THD+N<0.5%) |
| Frequency Response | +/- 1dB (At 1wat into 4 or 8 ohms) |
| Load Impedance | Rated for 4 or 8 ohms |
| Sensitivity (8 ohms load) | 1.4 Vrms |
| Signal to Noise Ratio | >100 dB (below rated 8-ohm power at 1 kHz, A weighted) |
| Crosstalk (A weighted) | 70 dB below rated from 20 Hz to 1 kHz; 50 dB below rated at 20 kHz |
| Input Impedance | Balanced: 20 k ohms (nominal) Unbalanced: 10 k ohms (nominal) |
| AC Line Voltage and Frequency Configurations Available | 100-240 V, 50/60 Hz |
| Maximum Input Signal | +20 dBu typical |
| Operaing Temperature | 0° C to 40° C at 95% relaive humidity (non-condensing) |
| Dimensions (W x H x D) | 8.2” x 1.7 x 7” (209 mm x 44 mm x 178 mm) |
| Shipping Weight | 1.5 KG (3.4 lbs) (Rack mouning kit atached forunits with the part number “NCSA2120R-U-CN”) 1.3 KG (2.9 lbs) (No rack mouning kit atached for units with the part number “NCSA2120-U-CN”) |
More +
