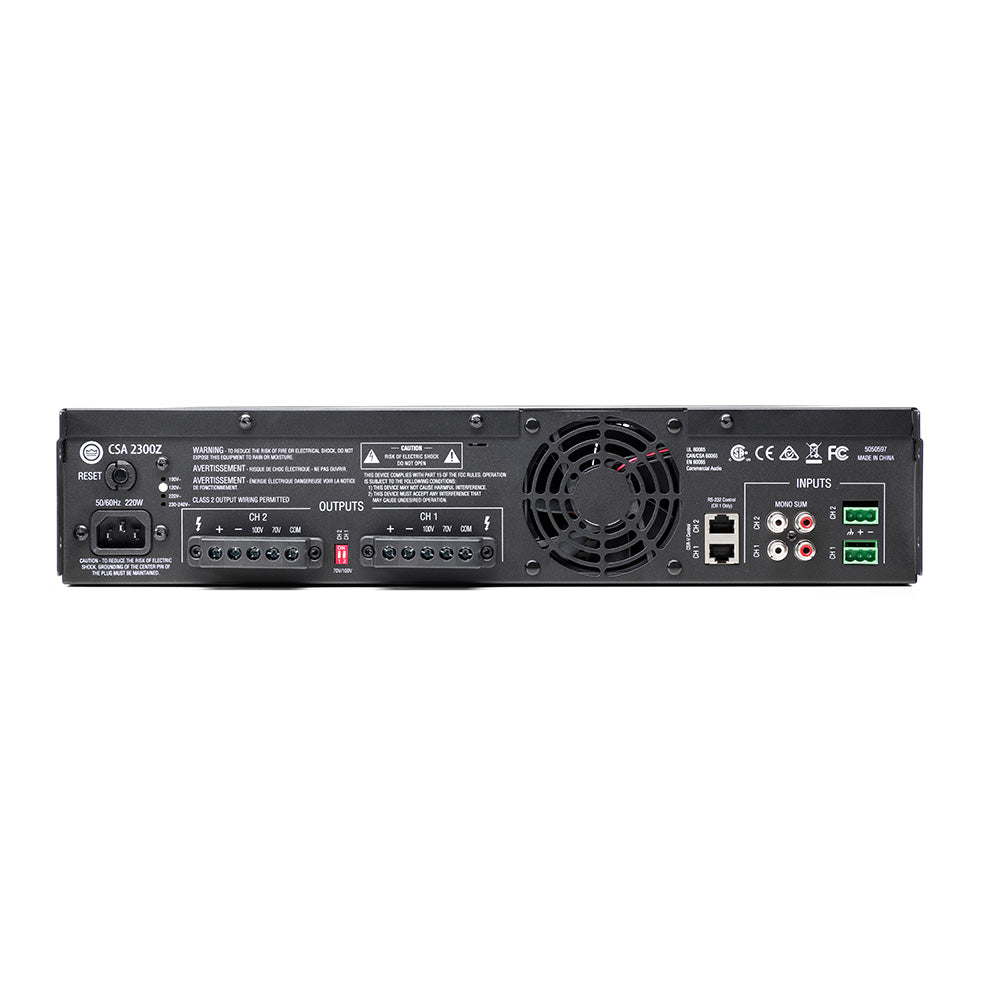

JBL CSA2300Z Dual Channel Commercial Amplifier


  • Dale #:

    JBL-CSA2300Z
  • Availability:

    In Stock
  • Available for immediate shipment and pick-up from our Jamaica, New York location. In-store pick-up is available Monday through Friday from 8:30 am to 5:30 pm

Description

By combining years of innovation, invention and insight from HARMAN brands, JBL® Commercial Series Amplifiers (CSA) go well beyond the expected in generating powerful sound. The efficient performance of Crown’s DriveCore™ Technology continues to set new standards in commercial power amplifier tec... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

By combining years of innovation, invention and insight from HARMAN brands, JBL® Commercial Series Amplifiers (CSA) go well beyond the expected in generating powerful sound. The efficient performance of Crown’s DriveCore™ Technology continues to set new standards in commercial power amplifier technology.

Simple to configure, the CS amp provides a DriveCore-based sound solution. This replaces up to 500 parts with one small chip, significantly reducing the part count and increasing reliability while maintaining superb performance. Supporting 70V and 100V installations out of the box, CS amps include RJ45 connectors for use with JBL CSR-V in-wall volume controls. And with HARMAN’s GreenEdge™ environmental initiative, CS amps quickly pay for themselves in energy savings.

Features:

  • 2 channels X 300W output
  • Built-in 70V and 100V
  • Space-saving 2 RU design
  • Sleep mode disable function
  • Energy-efficient amplifier
  • Sleek industrial look with illuminated rings making knobs easy to see and use
  • Supports JBL CSR-V wall controller via CAT5 cable with RJ45 connectors

More +

Product Specs

Rated Power into 4 Ω or 8 Ω; 1kHz, ≤ 0.5% THD 300W
Number of Output Channels 2
Insertion Loss (70V & 100V outputs) 1 dB maximum
Input Sensitivity (8 Ω Load) Balanced line input: 775mVRMS
RCA Mono Sum input: 300mVRMS
Frequency Response (8Ω, 20Hz -20kHz, tone ctrls set to flat response) +/- 1.0 dB
Total Harmonic Distortion (THD) (@ Full rated power, 20Hz-20kHz) <0.5%
Signal-to-Noise Ratio (Ref. rated output, 22KHz BW, A-weighted) >97dB
Input Impedance (nominal) Euro Block: 20 kΩ (balanced); RCA: 10 kΩ
Maximum Input Level +22dBu (Nominal)
Crosstalk (Ref. rated power, A-weighted, 1kHz) <-70 dB
Tone Controls (Bass and Treble non-detented potentiometers on each channel) Bass +/-12dB @100Hz
Treble +/-12dB @10kHz
Nominal AC Line Voltages 100V, 120V, 220V, 230-240V, 50/60 Hz
Minimum Load Impedance
Low-Z Output
70V Output
100V Output
4 Ω
12 Ω
24 Ω
Operating Temperature/Humidity 0°C to 35°C @ 95% R.H. (non-condensing)
Storage Temperature -20°C to 85°C
Net Weight 17.8 lb
(8.05 kg)
Dimensions Width: 17.0 in. (432 mm)
Depth: 10.8 in. (274 mm)
Height: 3.5 in. (89 mm)
Shipping Weight 20.6 lb
(9.35 kg)
