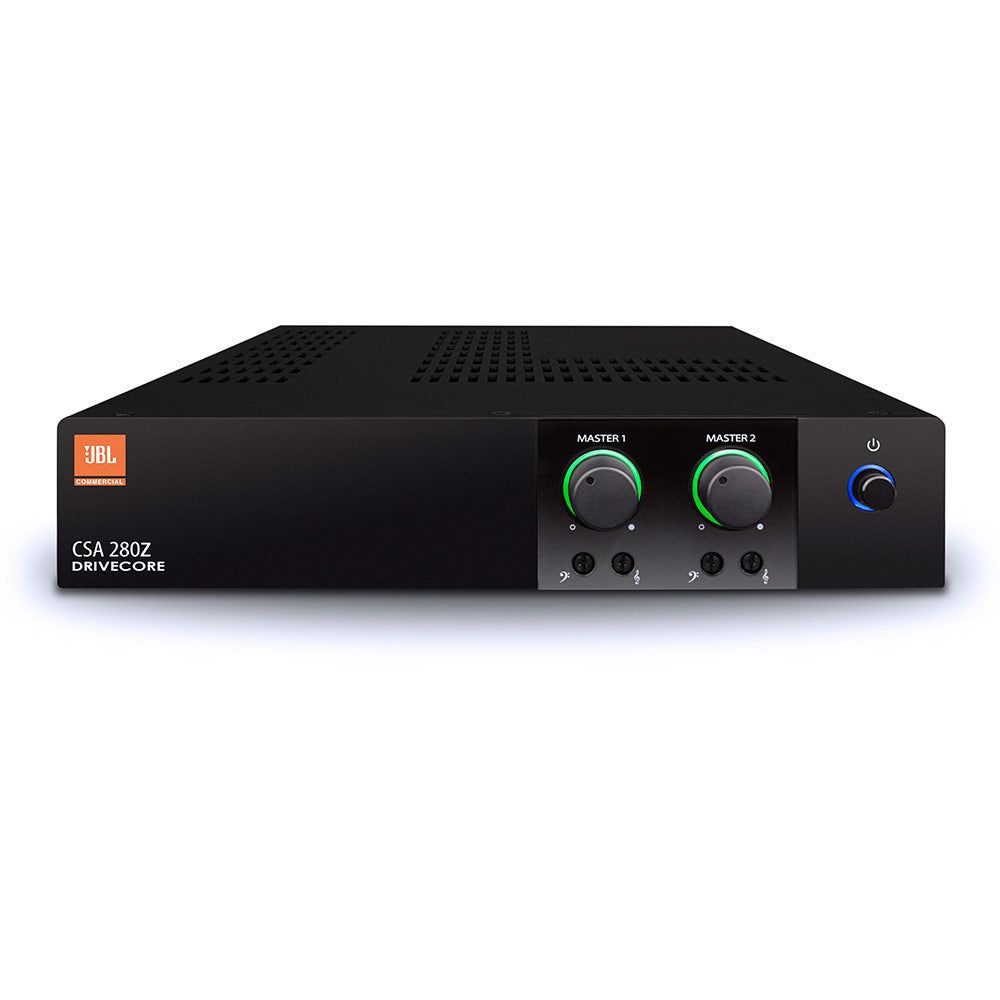

JBL CSA280Z Dual Channel 80W 70/100V Install Amplifier


  • Dale #:

    JBL-CSA280Z
  • Availability:

    Reserve Yours Now
  • This item usually ships within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

By combining years of innovation, invention and insight from HARMAN brands, JBL® Commercial Series Amplifiers (CSA) go well beyond the expected in generating powerful sound. From the switch-mode universal power supply to the efficient performance of Crown’s DriveCore™ Technology, they continue to... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

By combining years of innovation, invention and insight from HARMAN brands, JBL® Commercial Series Amplifiers (CSA) go well beyond the expected in generating powerful sound. From the switch-mode universal power supply to the efficient performance of Crown’s DriveCore™ Technology, they continue to set new standards in commercial power amplifier technology.

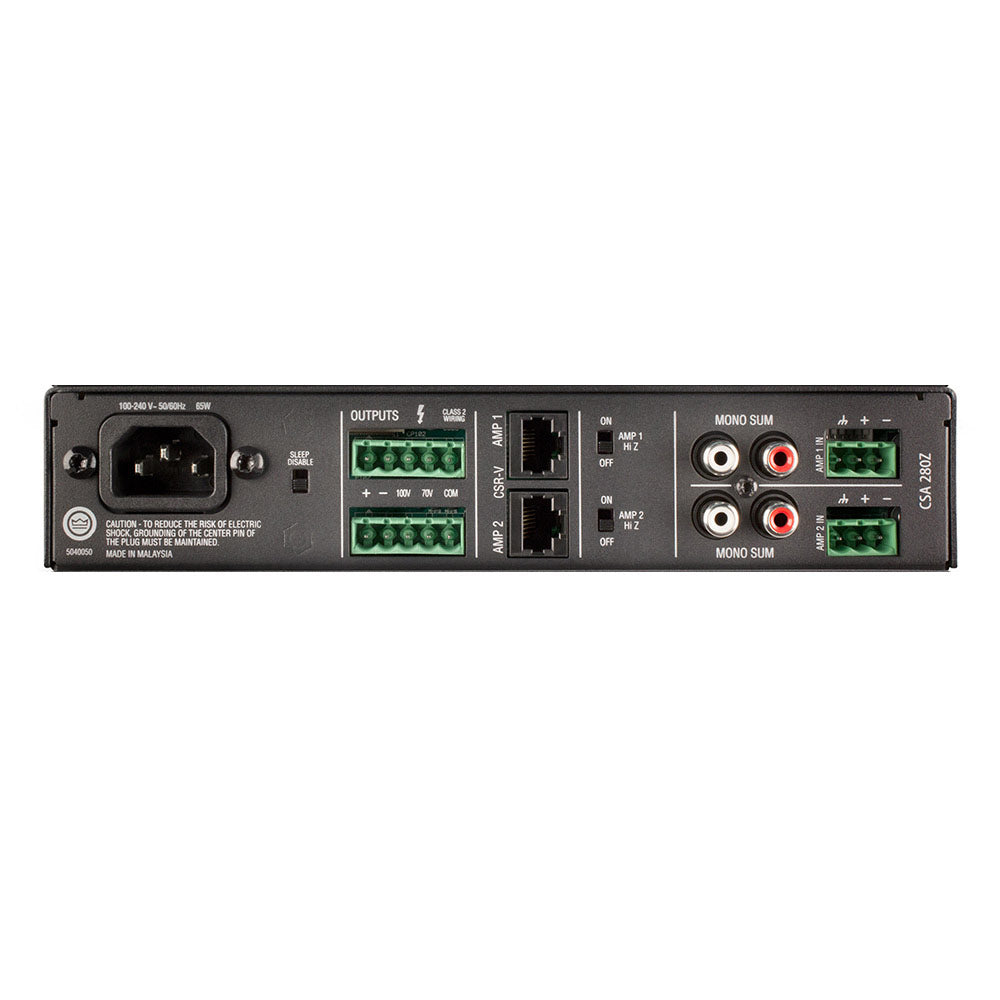

Simple to configure, the CS amp provides a DriveCore-based sound solution. This replaces up to 500 parts with one small chip, significantly reducing the part count and increasing reliability while maintaining superb performance. Supporting 70V and 100V installations out of the box, CS amps include RJ45 connectors for use with JBL CSR-V in-wall volume controls. Its universal power supply allows every CS amp to accept AC voltages from 100 to 240 VAC, 50/60 Hz. And with HARMAN’s GreenEdge™ environmental initiative, CS amps quickly pay for themselves in energy savings.

Features:

  • 2 output channels with 80W power
  • Built-in 70V and 100V
  • Fanless, space-saving 1U design
  • Sleep mode disable function
  • Energy-efficient amplifier
  • Sleek industrial look with illuminated rings making knobs easy to see and use
  • Supports the JBL CSR-V wall controller via Ethernet cable
  • Universal power supply
  • Energy Star® Certified

More +

Product Specs

Power Output 2 x 80W
Output Channels 2
Input Sensitivity 1.4Vrms for 8-ohms
Phantom Power 27VDC
AC Line Voltage 100 - 240V, 50/60 Hz
Input Impedance 20K ohms/50K ohms
Dimensions 1.7 x 8.6 x 11.9 (43.3mm x 218.5mm x 303.4mm)
Included Accessories Rack mounting kit

More +
