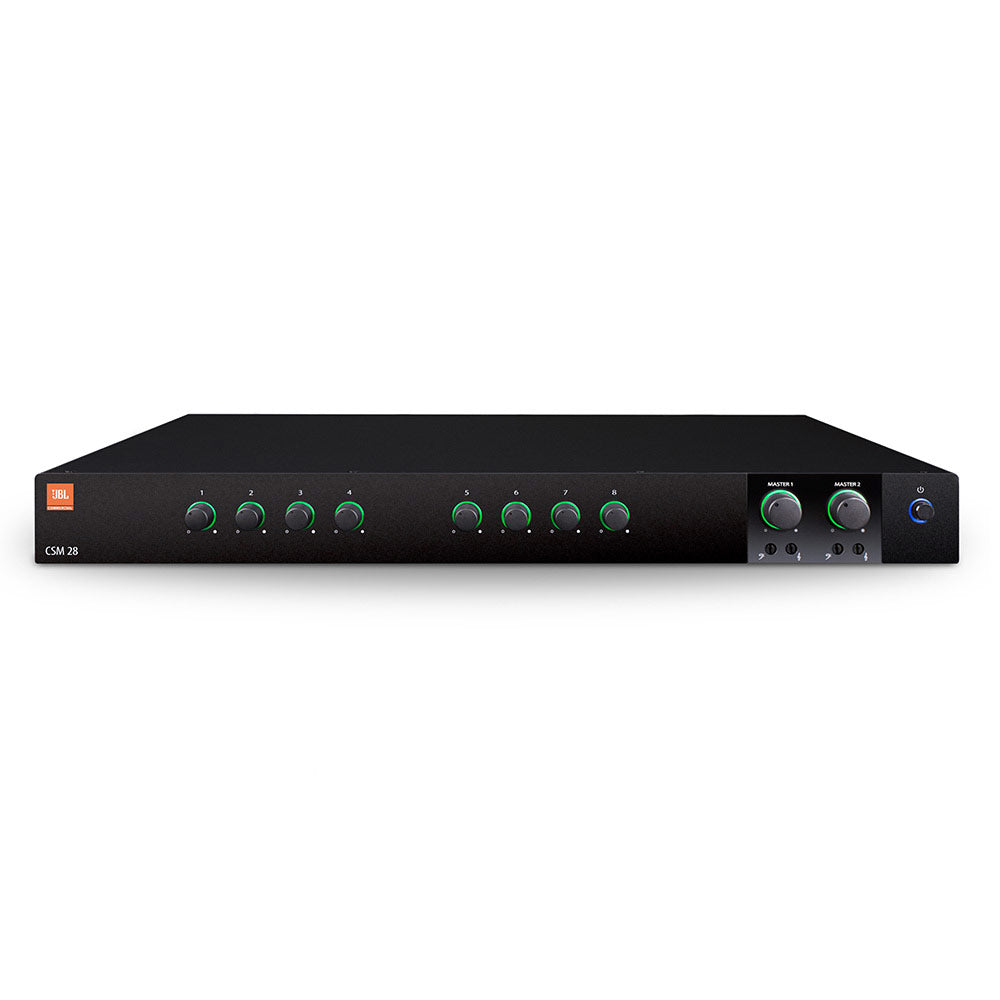

JBL CSM28 8-Input 2-Output 70/100V Installation Mixer


  • Dale #:

    JBL-CSM28
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Backed by the combined technological prowess of multiple HARMAN brands, the JBL® Commercial Series Mixers (CSM) deliver unsurpassed quality in commercial sound. Easily configured for a range of applications, such as background music, security, and paging, CSM units are designed for everything fr... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Backed by the combined technological prowess of multiple HARMAN brands, the JBL® Commercial Series Mixers (CSM) deliver unsurpassed quality in commercial sound.

Easily configured for a range of applications, such as background music, security, and paging, CSM units are designed for everything from schools and hospitals to restaurants and fitness facilities.

They feature RJ45 connectors for use with JBLCSR-V in-wall volume controls, and a universal power supply that accepts AC voltages from 100 to 240 VAC, 50/60 Hz. Plus, they’re built using HARMAN’s GreenEdge™ clean standards to offer numerous energy-efficient benefits, including a lighter weight, space-saving design, and conforming to RoHS standards.

Features:

  • 8 inputs with 2 channel outputs
  • Fanless, space-saving 1U design
  • Independent base/treble controls

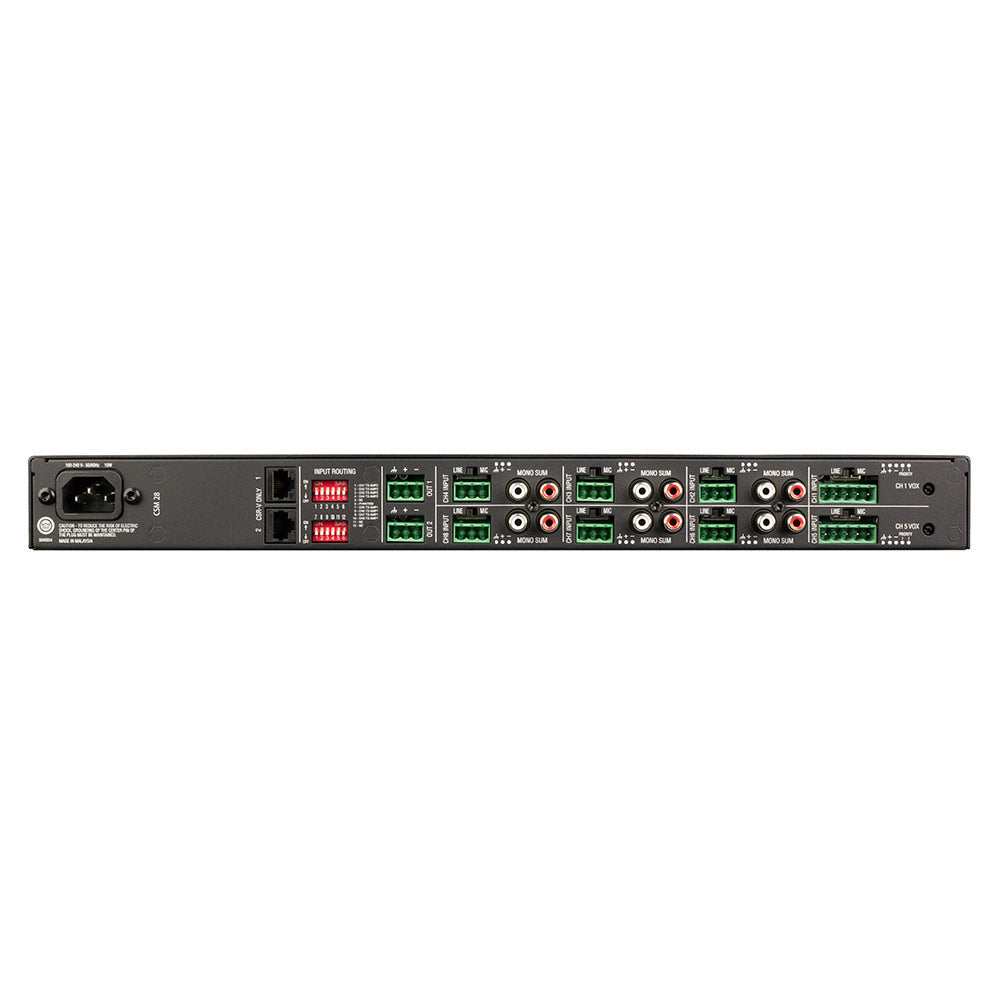

  • Euro-block type mic/line input and output connectors, and unbalanced RCA inputs for consumer connection
  • Sleek industrial look with illuminated rings making them easy to see and use
  • Configurable output routing
  • Supports JBL CSR-V wall controller via Ethernet cable
  • Priority muting, VOX ducking, and phantom power for all models

More +

Product Specs

Inputs 8
Output Channels 2
Input Sensitivity (Mic) 3mVrms
Input Sensitivity (Line) 775mVrms
Input Sensitivity (RCA) 300mVrms
Phantom Power 27VDC
Priority Muting Yes
Configurable Output Routing No
AC Line Voltage 100 - 240V, 50/60 Hz
Dimensions 1.7 x 17.2 x 11.9 (43.3mm x 437mm x 303.4mm)

More +
