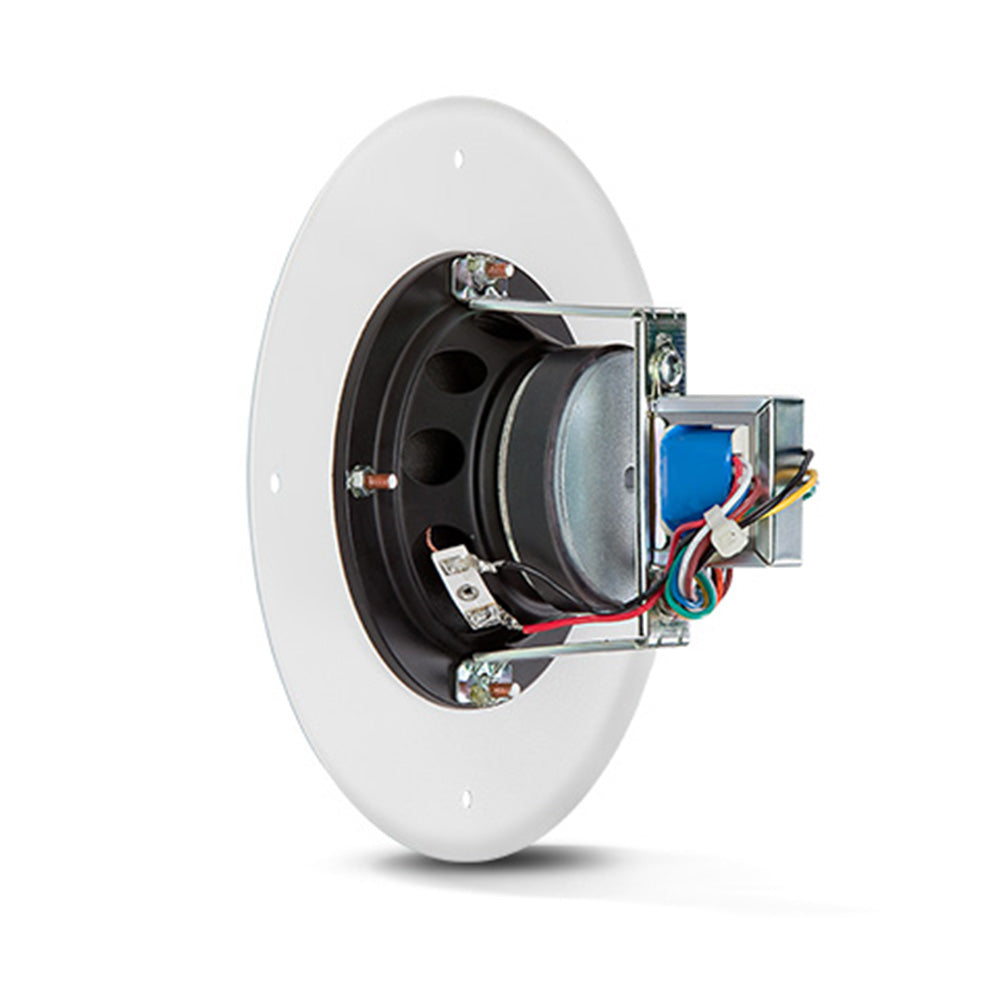

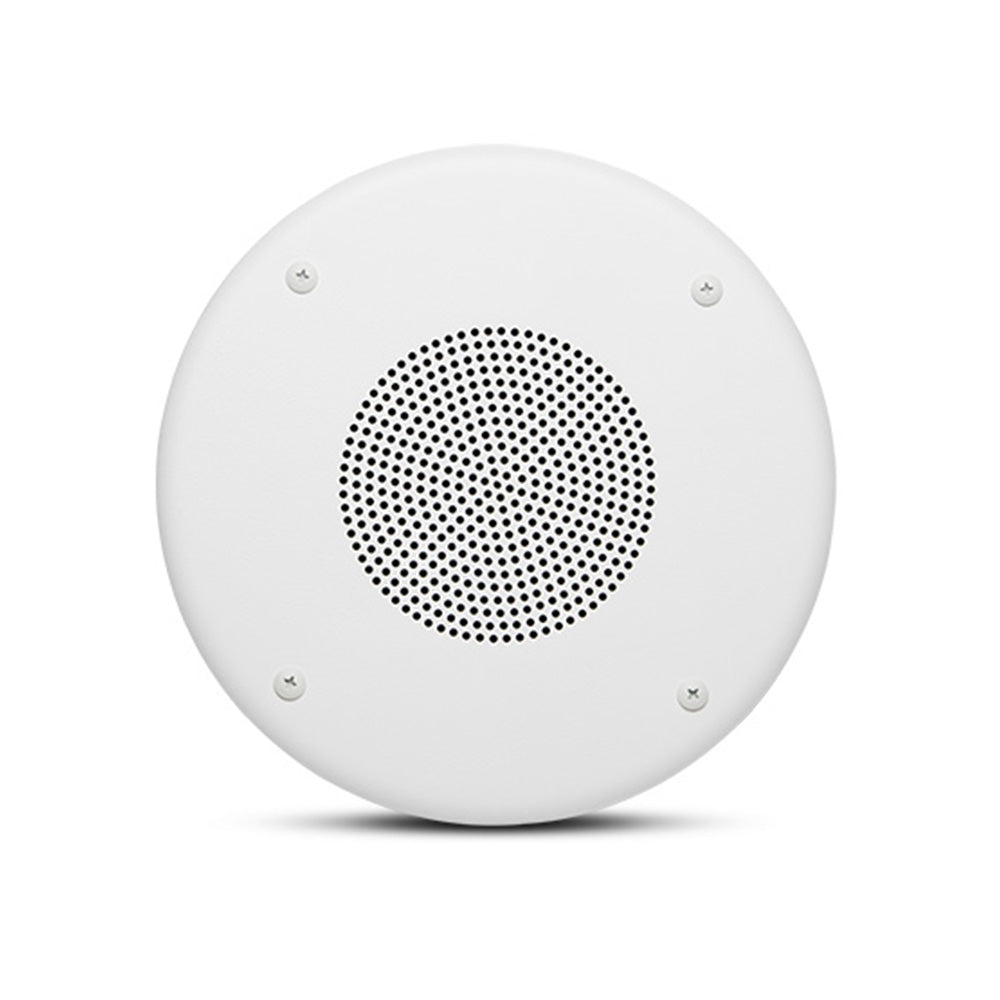

JBL CSS8004 - 4" Commercial Series Ceiling Speaker
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Priced individually, but sold in sets of 6.
JBL's Commercial Series Ceiling Speakers provide excellent performance for paging and background music applications. High sensitivity across the product line provides maximum sound level, even at low tap settings.
Features
- High 90 dB sensitivity
- 5 Watt multi-tap transformer for 100V, 70V, and 25V distributed speaker lines.
- Very wide 175 degree coverage
- Requires CSS-BB4 pre-install backcan
| Driver Size (dual-cone) | 100 mm (4 in) |
| Driver Sensitivity (mid-range)Ê (1W [2.83V], 1m, 2k Ð 6k Hz) |
90 dB |
| Frequency Range (-10 dB)Ê Driver/Grille Assembly |
85 Hz Ð 18 kHz |
| Installed in CSS-BB backcan | 130 Hz Ð 18 kHz |
| Coverage (2 kHz) | 175¡ |
| Driver Continuous Power Handling | 15 Watts |
| 100V Taps | 5W, 2.5W, 1.3W |
| 70V Taps | 5W, 2.5W, 1.3W, 0.7W |
| 25V Taps | 5W, 2.5W, 1.3W, 0.7W |
| Transformer Insertion Loss | 1.5 dB Maximum |
| Transformer Connection | Bare wire |
| Motor Mass | 200 g (7 oz) |
| Safety Agency | Suitable for use in air handling spaces per UL1480, UL2043, NFPA 90 / NFPA 70, when installed with corresponding UL Listed backcan, below. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849. |
| Matching CSS Backcan | CSS-BB4 |
| Other Compatible Backcans | N/A |
| Bolt Mounting Circle to Backcan | 4 points on 165 mm (6.5 in) diameter |
| Cutout Diameter Open-back |
125 mm (5.0 in) |
| In CSS-BB backcan | 170 mm (6.7 in) |
| Depth (behind grille) | 94 mm (3.7 in) |
| Grille Diameter | 198 mm (7.8 in) |
| Net Weight (ea) | 0.90 kg (1.0 lb) |
| Shipping Weight (ea) | 1.26 kg (2.8 lb) |
| Included Accessories | 4 pcs M4 x 40 mm sheet metal screws for attaching speaker/driver/transformer assembly to corresponding backcan. |
Priced individually, but sold in sets of 6.
JBL's Commercial Series Ceiling Speakers provide excellent performance for paging and background music applications. High sensitivity across the product line provides maximum sound level, even at low tap settings.
Features
- High 90 dB sensitivity
- 5 Watt multi-tap transformer for 100V, 70V, and 25V distributed speaker lines.
- Very wide 175 degree coverage
- Requires CSS-BB4 pre-install backcan
| Driver Size (dual-cone) | 100 mm (4 in) |
| Driver Sensitivity (mid-range)Ê (1W [2.83V], 1m, 2k Ð 6k Hz) |
90 dB |
| Frequency Range (-10 dB)Ê Driver/Grille Assembly |
85 Hz Ð 18 kHz |
| Installed in CSS-BB backcan | 130 Hz Ð 18 kHz |
| Coverage (2 kHz) | 175¡ |
| Driver Continuous Power Handling | 15 Watts |
| 100V Taps | 5W, 2.5W, 1.3W |
| 70V Taps | 5W, 2.5W, 1.3W, 0.7W |
| 25V Taps | 5W, 2.5W, 1.3W, 0.7W |
| Transformer Insertion Loss | 1.5 dB Maximum |
| Transformer Connection | Bare wire |
| Motor Mass | 200 g (7 oz) |
| Safety Agency | Suitable for use in air handling spaces per UL1480, UL2043, NFPA 90 / NFPA 70, when installed with corresponding UL Listed backcan, below. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849. |
| Matching CSS Backcan | CSS-BB4 |
| Other Compatible Backcans | N/A |
| Bolt Mounting Circle to Backcan | 4 points on 165 mm (6.5 in) diameter |
| Cutout Diameter Open-back |
125 mm (5.0 in) |
| In CSS-BB backcan | 170 mm (6.7 in) |
| Depth (behind grille) | 94 mm (3.7 in) |
| Grille Diameter | 198 mm (7.8 in) |
| Net Weight (ea) | 0.90 kg (1.0 lb) |
| Shipping Weight (ea) | 1.26 kg (2.8 lb) |
| Included Accessories | 4 pcs M4 x 40 mm sheet metal screws for attaching speaker/driver/transformer assembly to corresponding backcan. |
